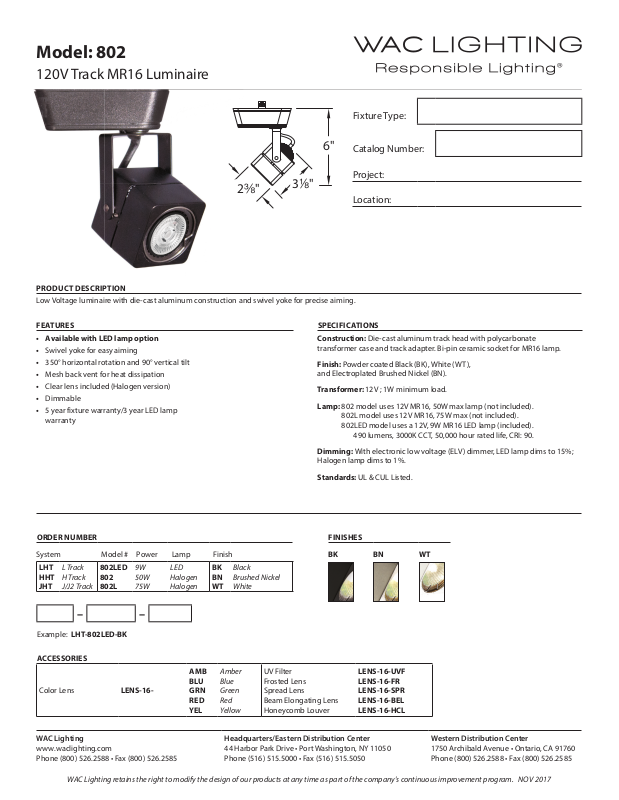

Page 1
Model: 802
120V Track MR16 Luminaire
6"
2a"
PRODUCT DESCRIPTION
Low Voltage luminaire with die-cast aluminum construction and swivel yoke for precise aiming.
38"
Fixture Type:
Catalog Number:
Project:
Location:
FEATURES
• Available with LED lamp option
• Swivel yoke for easy aiming
• 350° horizontal rotation and 90° vertical tilt
• Mesh back vent for heat dissipation
• Clear lens included (Halogen version)
• Dimmable
fixture warranty/3 year LED lamp
• 5 year
warranty
ORDER NUMBER
System Model # Power Lamp Finish
LHT
HHT
JHT
L Track
H Track
J/J2 Track
802LED
802
802L
9W
50W
75W
LED
Halogen
Halogen
BK
BN
WT
– –
SPECIFICATIONS
Construction: Die-cast aluminum track head with polycarbonate
transformer case and track adapter. Bi-pin ceramic socket for MR16 lamp.
Finish: Powder coated Black (BK), White (WT ),
and Electroplated Brushed Nickel (BN).
Transformer: 12V ; 1W minimum load.
Lamp: 802 model uses 12V MR16, 50W max lamp (not included).
802L model uses 12V MR16, 75W max (not included).
802LED model uses a 12V, 9W MR16 LED lamp (included).
490 lumens, 3000K CCT, 50,000 hour rated life, CRI: 90.
Dimming: With electronic low voltage (ELV) dimmer, LED lamp dims to 15%;
Halogen lamp dims to 1%.
Standards: UL & CUL Listed.
FINISHES
BK BN WT
Black
Brushed Nickel
White
Example: LHT-802LED-BK
ACCESSORIES
Color Lens LENS-16-
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. NOV 2017
AMB
BLU
GRN
RED
YEL
Amber
Blue
Green
Red
Yellow
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
UV Filter
Frosted Lens
Spread Lens
Beam Elongating Lens
Honeycomb Louver
LENS-16-UVF
LENS-16-FR
LENS-16-SPR
LENS-16-BEL
LENS-16-HCL
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
