WAC Lighting WAC6907 Specifications

Download

Page 1

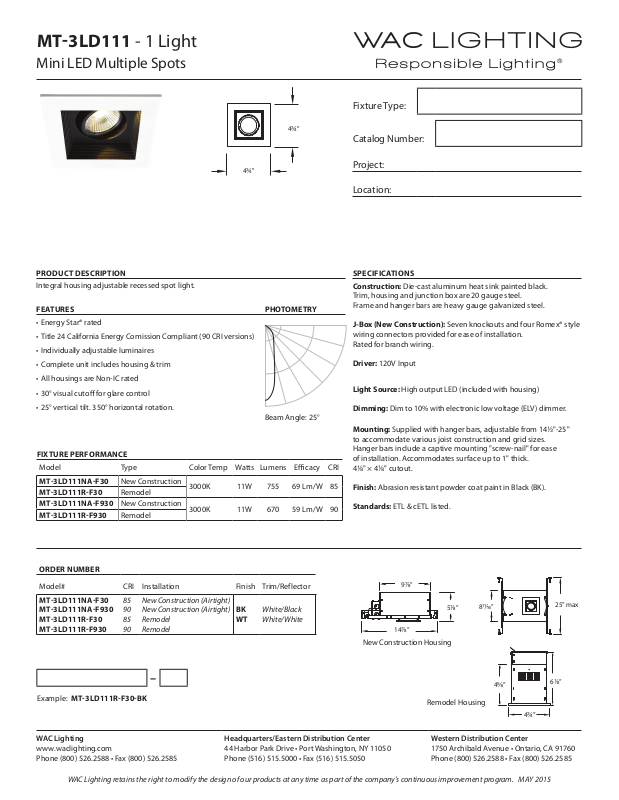

MT3LD111 - 1 Light

Mini LED Multiple Spots

Fixture Type:

4w”

Catalog Number:

4w"

PRODUCT DESCRIPTION

Integral housing adjustable recessed spot light.

FEATURES

• Energy Star® rated

• Title 24 California Energy Comission Compliant (90 CRI versions)

• Individually adjustable luminaires

• Complete unit includes housing & trim

• All housings are Non-IC rated

• 30° visual cutoﬀ for glare control

• 25° vertical tilt. 350° horizontal rotation.

FIXTURE PERFORMANCE

Model Type Color Temp Watts Lumens Eﬃ cacy CRI

MT3LD111NAF30 New Construction

MT3LD111RF30 Remodel MT3LD111NAF930 New Construction MT3LD111RF930 Remodel

3000K 11W 755 69 Lm/W 85

3000K 11W 670 59 Lm/W 90

PHOTOMETRY

Beam Angle: 25°

Project:

Location:

SPECIFICATIONS

Construction: Die-cast aluminum heat sink painted black.

Trim, housing and junction box are 20 gauge steel. Frame and hanger bars are heavy gauge galvanized steel.

J-Box (New Construction): Seven knockouts and four Romex® style wiring connectors provided for ease of installation. Rated for branch wiring.

Driver: 120V Input

Light Source: High output LED (included with housing)

Dimming:

Mounting: Supplied with hanger bars, adjustable from 142"-25"

to accommodate various joist construction and grid sizes. Hanger bars include a captive mounting "screw-nail" for ease of installation. Accommodates surface up to 1" thick. 48" × 48" cutout.

Finish: Abrasion resistant powder coat paint in Black (BK).

Standards: ETL & cETL listed.

Dim to 10% with electronic low voltage (ELV) dimmer.

ORDER NUMBER

Model# CRI Installation Finish Trim/Reflector

MT3LD111NAF30 MT3LD111NAF930 MT3LD111RF30 MT3LD111RF930

New Construction (Airtight)

Remodel

BKWTWhite/Black

White/White

–

Example: MT3LD111RF30BK

WAC Lighting

www.waclighting.com Phone (800) 526.2588 • Fax (800) 526.2585

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. MAY 2015

Headquarters/Eastern Distribution Center

44 Harbor Park Drive • Port Washington, NY 11050 Phone (516) 515.5000 • Fax (516) 515.5050

9d”

14d”

New Construction Housing

Remodel Housing

Western Distribution Center

1750 Archibald Avenue • Ontario, CA 91760 Phone (800) 526.2588 • Fax (800) 526.2585

58”

8n”

4s”

25” max

68”

4w”
