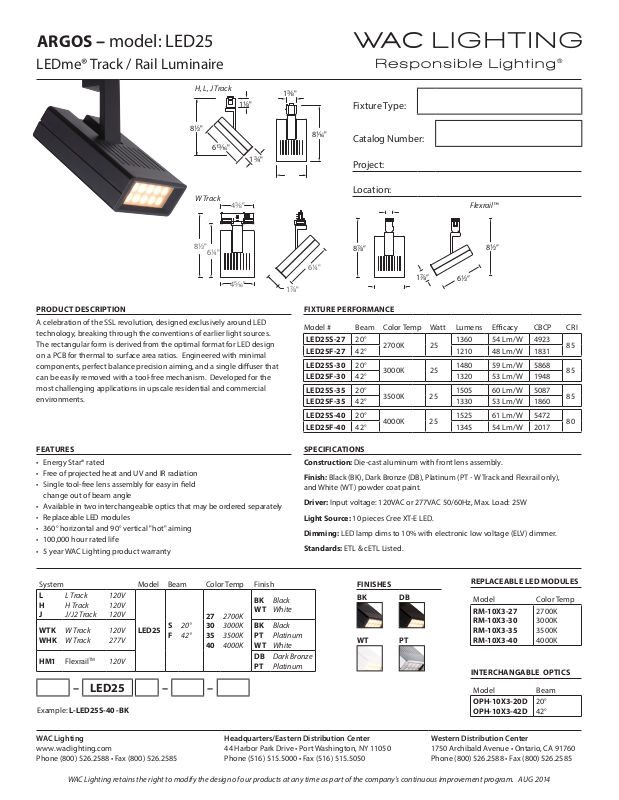

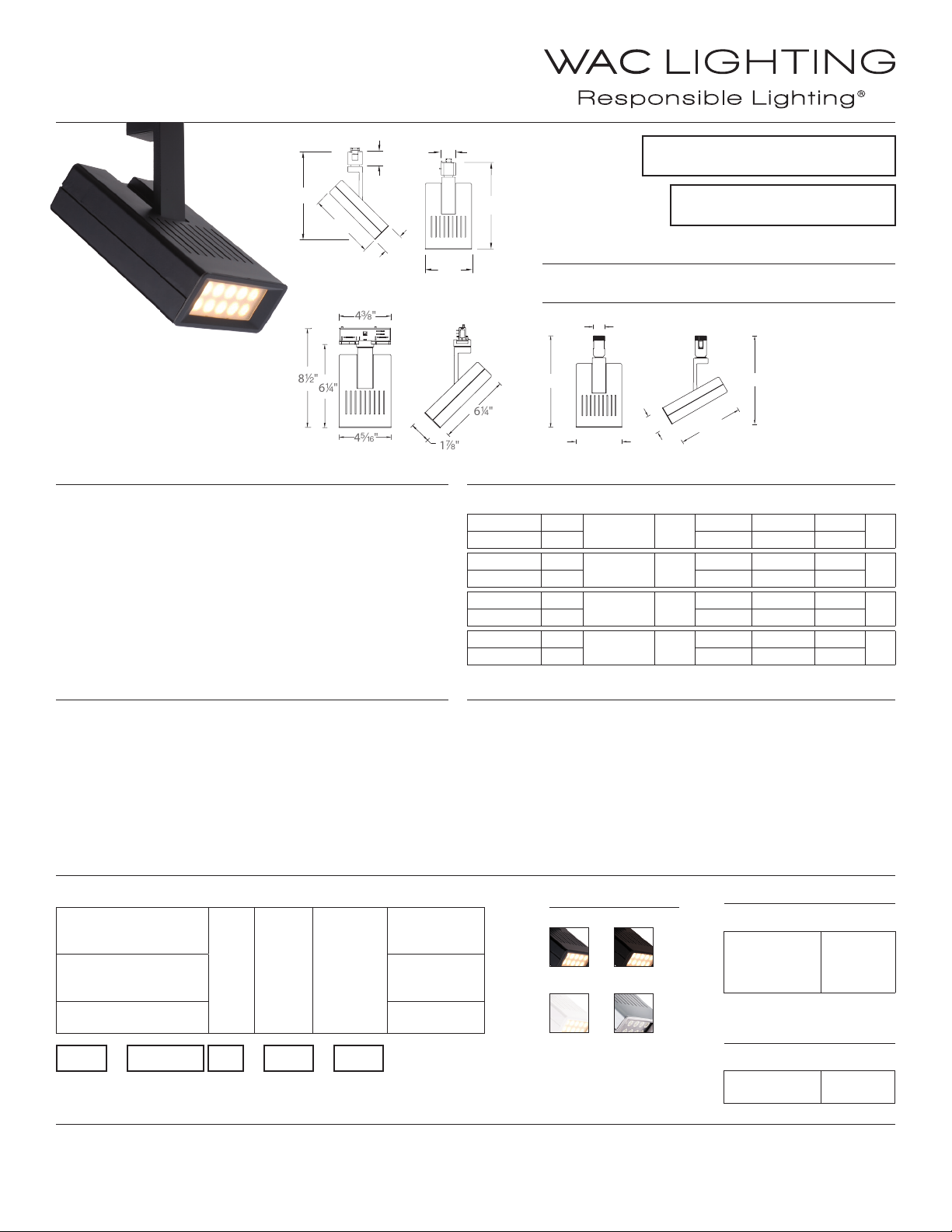

Page 1
ARGOS – model: LED25
1d"
64"
4a"
4c"
64"
82"
LEDme® Track / Rail Luminaire
H, L, J Track
18"
82"
6m"
1w"
W Track
PRODUCT DESCRIPTION
A celebration of the SSL revolution, designed exclusively around LED
technology, breaking through the conventions of earlier light sources.
The rectangular form is derived from the optimal format for LED design
on a PCB for thermal to surface area ratios. Engineered with minimal
components, perfect balance precision aiming, and a single diuser that
can be easily removed with a tool-free mechanism. Developed for the
most challenging applications in upscale residential and commercial
environments.
1a"
Fixture Type:
8z"
Catalog Number:
Project:
Location:
Flexrail™
8d”
1d”
FIXTURE PERFORMANCE
Model # Beam Color Temp Watt Lumens Ecacy CBCP CRI
LED25S-27 20°
LED25F-27 42° 1210 48 Lm/W 1831
LED25S-30 20°
LED25F-30 42° 1320 53 Lm/W 1948
LED25S-35 20°
LED25F-35 42° 1330 53 Lm/W 1860
LED25S-40 20°
LED25F-40 42° 1345 54 Lm/W 2017
2700K 25
3000K 25
3500K 25
4000K 25
1360 54 Lm/W 4923
1480 59 Lm/W 5868
1505 60 Lm/W 5087
1525 61 Lm/W 5472
82”
62”
85
85
85
80
FEATURES
• Energy Star® rated
• Free of projected heat and UV and IR radiation
• Single tool-free lens assembly for easy in eld
change out of beam angle
• Available in two interchangeable optics that may be ordered separately
• Replaceable LED modules
• 360° horizontal and 90° vertical "hot" aiming
• 100,000 hour rated life
• 5 year WAC Lighting product warranty
System Model Beam Color Temp Finish
L
L Track
H
H Track
J
J/J2 Track
WTK
W Track
WHK
W Track
HM1 FlexrailTM120V
120V
120V
120V
120V
277V
LED25
SF20°
42°
27
30
35
40
2700K
3000K
3500K
4000K
BKWTBlack
White
BK
Black
PT
Platinum
WT
White
DB PTDark Bronze
Platinum
– LED25 – –
Example: L-LED25S-40 -BK
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
SPECIFICATIONS
Construction: Die-cast aluminum with front lens assembly.
Finish: Black (BK), Dark Bronze (DB), Platinum (PT - W Track and Flexrail only),
and White (WT) powder coat paint.
Driver: Input voltage: 120VAC or 277VAC 50/60Hz, Max. Load: 25W
Light Source: 10 pieces Cree XT-E LED.
Dimming: LED lamp dims to 10% with electronic low voltage (ELV) dimmer.
Standards: ETL & cETL Listed.
FINISHES
BK DB
WT PT
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
REPLACEABLE LED MODULES
Model Color Temp
RM-10X3-27
RM-10X3-30
RM-10X3-35
RM-10X3-40
INTERCHANGABLE OPTICS
Model Beam
OPH-10X3-20D
OPH-10X3-42D
2700K
3000K
3500K
4000K
20°
42°
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. AUG 2014

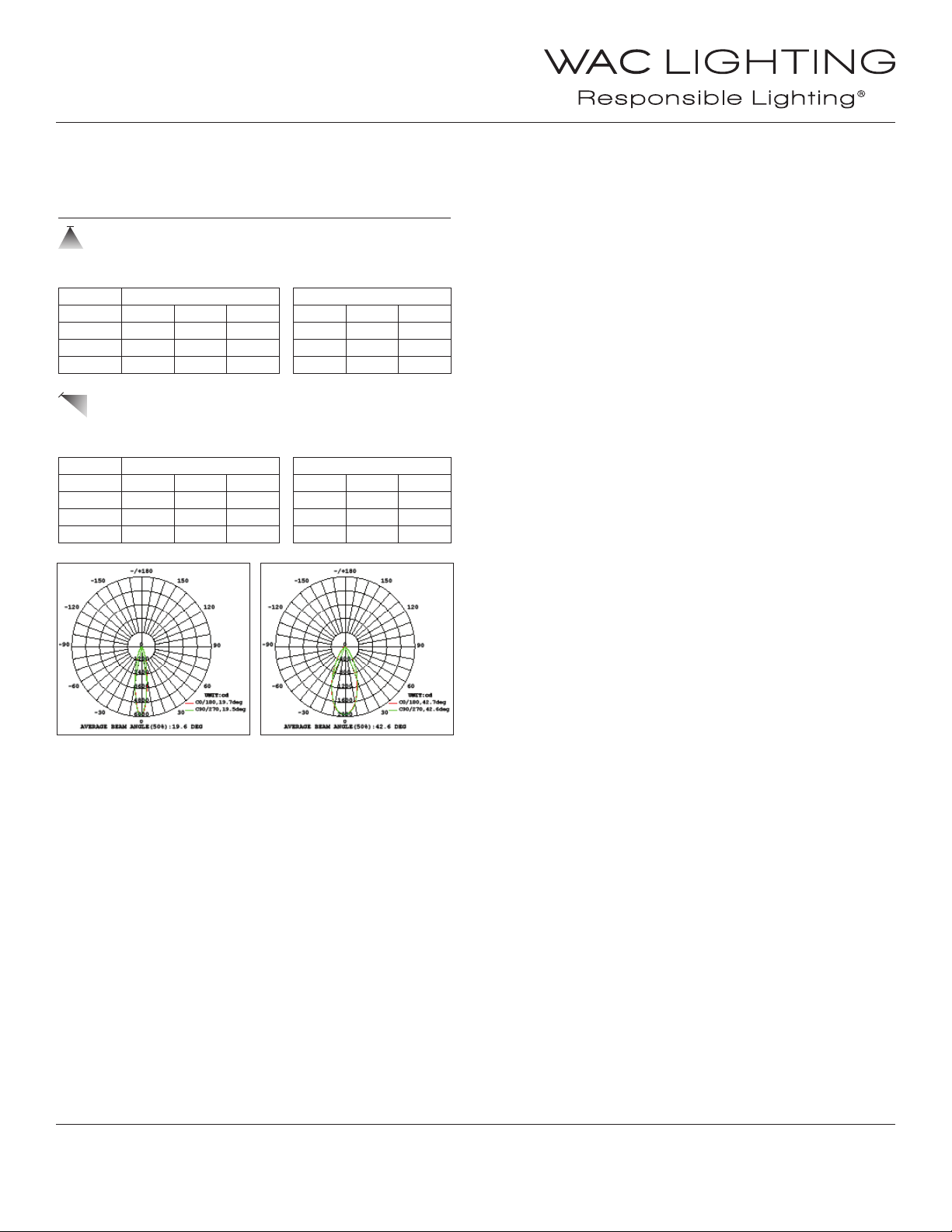

Page 2
ARGOS – model: LED25
Photometrics
FIXTURE PERFORMANCE 3000K
0° Aiming Angle (ceiling to oor)
LED25S-30 LED25F-30
20° beam 42° beam
Distance FC L W FC L W
6 ft
9 ft
12 ft
15 ft
Distance FC L W FC L W
6 ft
9 ft
12 ft
15 ft
162 1.9 1.9 54 4.5 4.5
72 2.8 2.8 24 6.8 6.8
40 3.8 3.8 14 9.1 9.1
26 4.7 4.7 9 11.3 11.3
45° Aiming Angle (ceiling to wall)
LED25S-30 LED25F-30
20° beam 42° beam
57 3.9 2.7 19 10.6 6.4
25 5.8 4.0 8 15.9 9.6
14 7.7 5.3 5 21.2 12.8
9 9.6 6.6 3 26.4 16.0
FC– Initial footcandle level at the center of the beam
L– Beam length at the point the candlepower drops o to 50% of maximum*
W– Beam width at the point the candlepower drops o to 50% of maximum*
*Measured in feet
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. AUG 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
