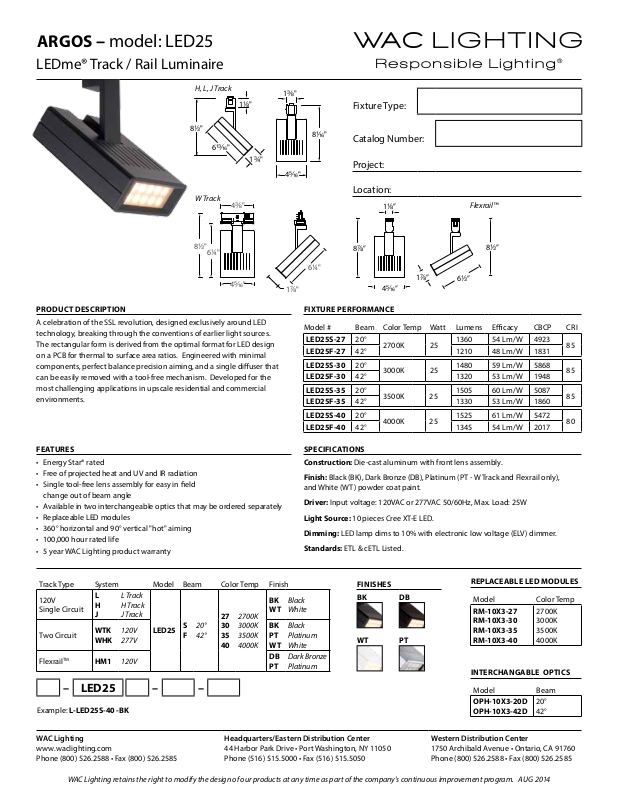

ARGOS – model: LED25
1d"
64"
4a"
4c"
64"
82"
LEDme® Track / Rail Luminaire
H, L, J Track
18"
82"
6m"
1w"
W Track

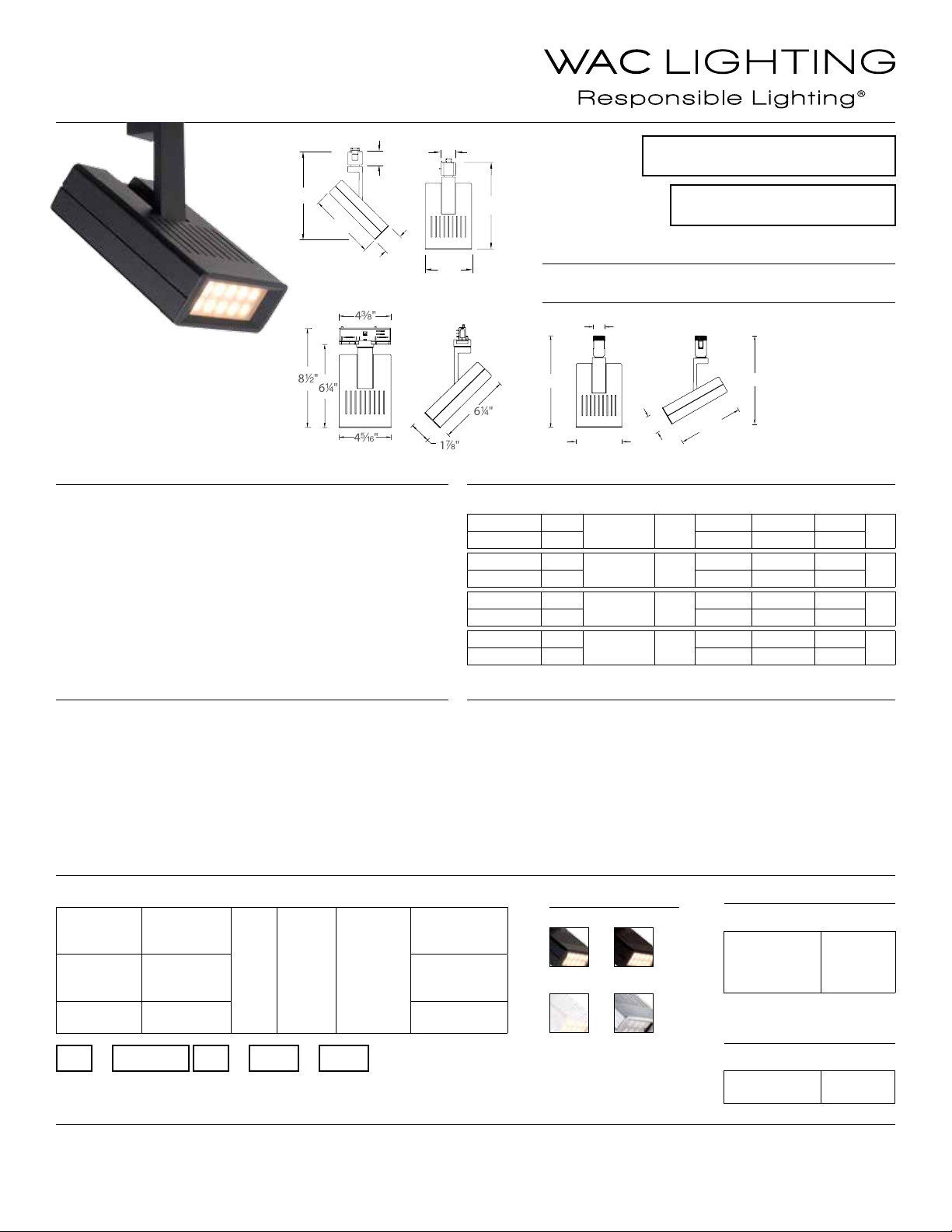

PRODUCT DESCRIPTION
A celebration of the SSL revolution, designed exclusively around LED technology, breaking through the conventions of earlier light sources. The rectangular form is derived from the optimal format for LED design on a PCB for thermal to surface area ratios. Engineered with minimal components, perfect balance precision aiming, and a single diuser that can be easily removed with a tool-free mechanism. Developed for the most challenging applications in upscale residential and commercial environments.
1a"
Fixture Type:
8z"
Catalog Number:
Project:
4c"
Location:
18”
8d”
1d”
4c”
FIXTURE PERFORMANCE
Model # Beam Color Temp Watt Lumens Ecacy CBCP CRI
LED25S-27 20° LED25F-27 42° 1210 48 Lm/W 1831
LED25S-30 20° LED25F-30 42° 1320 53 Lm/W 1948
LED25S-35 20° LED25F-35 42° 1330 53 Lm/W 1860
LED25S-40 20° LED25F-40 42° 1345 54 Lm/W 2017
2700K 25
3000K 25
3500K 25
4000K 25
Flexrail™
82”
62”
1360 54 Lm/W 4923
1480 59 Lm/W 5868
1505 60 Lm/W 5087
1525 61 Lm/W 5472
85
85
85
80
FEATURES
• Energy Star® rated
• Free of projected heat and UV and IR radiation
• Single tool-free lens assembly for easy in eld change out of beam angle
• Available in two interchangeable optics that may be ordered separately
• Replaceable LED modules
• 360° horizontal and 90° vertical "hot" aiming
• 100,000 hour rated life
• 5 year WAC Lighting product warranty
Track Type System Model Beam Color Temp Finish
L
120V Single Circuit
Two Circuit
TM
Flexrail
L Track
H
H Track
J
J Track
WTK
120V
WHK
277V
HM1 120V
LED25
SF20°
42°
27 30 35 40
2700K 3000K 3500K 4000K
BKWTBlack
BK PT WT
DB PTDark Bronze
– LED25 – –
Example: L-LED25S-40 -BK
WAC Lighting
www.waclighting.com Phone (800) 526.2588 • Fax (800) 526.2585
Headquarters/Eastern Distribution Center
SPECIFICATIONS
Construction: Die-cast aluminum with front lens assembly.
Finish: Black (BK), Dark Bronze (DB), Platinum (PT - W Track and Flexrail only),
and White (WT) powder coat paint.
Driver: Input voltage: 120VAC or 277VAC 50/60Hz, Max. Load: 25W
Light Source: 10 pieces Cree XT-E LED.
Dimming: LED lamp dims to 10% with electronic low voltage (ELV) dimmer.
Standards: ETL & cETL Listed.
REPLACEABLE LED MODULES
Model Color Temp
RM-10X3-27 RM-10X3-30 RM-10X3-35 RM-10X3-40
INTERCHANGABLE OPTICS
Model Beam
OPH-10X3-20D OPH-10X3-42D
White
Black Platinum White
Platinum
FINISHES
BK DB
WT PT
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760 Phone (800) 526.2588 • Fax (800) 526.2585
2700K 3000K 3500K 4000K
20° 42°
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. AUG 2014
Page 2
ARGOS – model: LED25
LUMINAIRE PHOTOMETRIC TEST REPORT
TYPE:Track light
SPEC.:
SUR.:
WEIGHT:
SERIAL No.:
PROTECTION ANGLE:
C0 PLANE ISOLUX DIAGRAM (UNIT:lx)
MH(m)
14
18
22
26
30
34
38
42
46
0.0 17.0 34.0 S(m)
30.0
4.90
DATA OF LAMP PHOTOMETRIC DATA Eff: 53.85 lm/W
Imax(cd)
LOR(%)
TOTAL FLUX(lm)
CIE CLASS
up(%)
down(%)
S/MH(C0/180)
S/MH(C90/270)
UP,DN(C0-180)
UP,DN(C180-360)
CIBSE SHR NOM
CIBSE SHR MAX
CREE XTE
26
120
1357.4
1
120.0
4936
100.0
1357.4
DIRECT
0.0
100.0
0.35
0.37
0.0,52.9
0.0,47.1
0.00
1.00
LUMINAIRE PHOTOMETRIC TEST REPORT
TYPE:Track light
SPEC.:
SUR.:
WEIGHT:
SERIAL No.:
PROTECTION ANGLE:
C0 PLANE ISOLUX DIAGRAM (UNIT:lx)
MH(m)
14
18
22
26
30
34
38
42
46
0.0 17.0 34.0 S(m)
11.0
1.80
DATA OF LAMP PHOTOMETRIC DATA Eff: 47.98 lm/W
Imax(cd)
LOR(%)
TOTAL FLUX(lm)
CIE CLASS
up(%)
down(%)
S/MH(C0/180)
S/MH(C90/270)
UP,DN(C0-180)
UP,DN(C180-360)
CIBSE SHR NOM
CIBSE SHR MAX
CREE XTE
26
120
1210.1
1
120.0
1832
100.0
1210.1
DIRECT
0.0
100.0
0.67
0.69
0.0,51.8
0.0,48.2
0.50
0.70
LUMINAIRE PHOTOMETRIC TEST REPORT
TYPE:Track light
SPEC.:
SUR.:
WEIGHT:
SERIAL No.:
PROTECTION ANGLE:
C0 PLANE ISOLUX DIAGRAM (UNIT:lx)
MH(m)
14
18
22
26
30
34
38
42
46
0.0 17.0 34.0 S(m)
35.0
5.90
DATA OF LAMP PHOTOMETRIC DATA Eff: 59.20 lm/W
Imax(cd)
LOR(%)
TOTAL FLUX(lm)
CIE CLASS
up(%)
down(%)
S/MH(C0/180)
S/MH(C90/270)
UP,DN(C0-180)
UP,DN(C180-360)
CIBSE SHR NOM
CIBSE SHR MAX
CREE XTE
26
120
1482.3
1
120.0
5876
100.0
1482.3
DIRECT
0.0
100.0
0.31
0.31
0.0,46.7
0.0,53.3
0.00
1.00
LUMINAIRE PHOTOMETRIC TEST REPORT
TYPE:Track light
SPEC.:
SUR.:
WEIGHT:
SERIAL No.:
PROTECTION ANGLE:
C0 PLANE ISOLUX DIAGRAM (UNIT:lx)
MH(m)
14
18
22
26
30
34
38
42
46
0.0 17.0 34.0 S(m)
12.0
1.90
DATA OF LAMP PHOTOMETRIC DATA Eff: 52.49 lm/W
Imax(cd)
LOR(%)
TOTAL FLUX(lm)
CIE CLASS
up(%)
down(%)
S/MH(C0/180)
S/MH(C90/270)
UP,DN(C0-180)
UP,DN(C180-360)
CIBSE SHR NOM
CIBSE SHR MAX
CREE XTE
26
120
1317.7
1
120.0
1950
100.0
1317.7
DIRECT
0.0
100.0
0.65
0.66
0.0,48.6
0.0,51.4
0.50
0.70

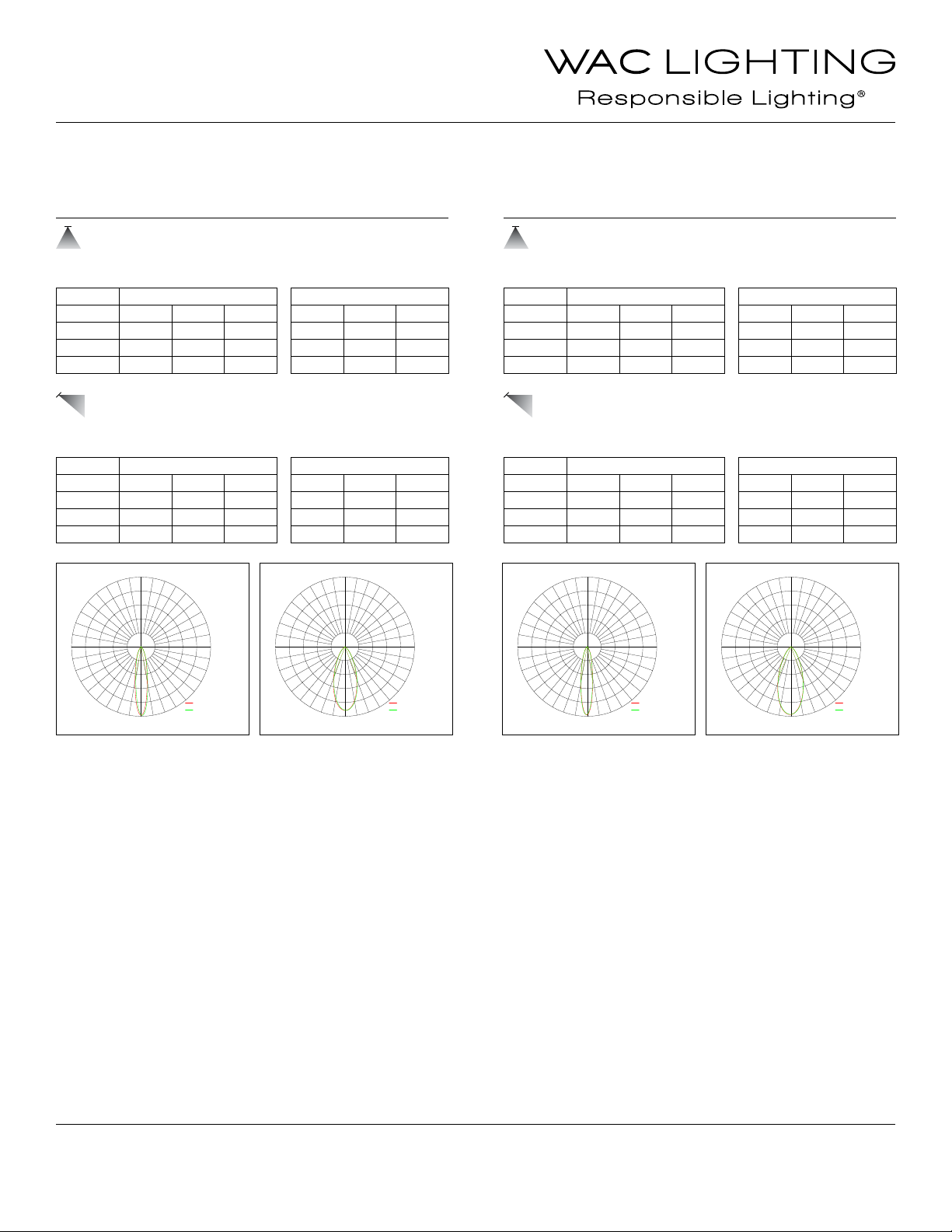

Photometrics
FIXTURE PERFORMANCE  2700K
0° Aiming Angle (ceiling to oor)
LED25S-27 LED25F-27
20° beam 42° beam
Distance FC L W FC L W 6 ft 9 ft 12 ft 15 ft
136 2.3 2.3 51 4.8 4.8
60 3.5 3.5 23 7.2 7.2 34 4.6 4.6 13 9.6 9.6 22 5.8 5.8 8 12.1 12.1
45° Aiming Angle (ceiling to wall)
LED25S-27 LED25F-27
20° beam 42° beam
Distance FC L W FC L W 6 ft 9 ft 12 ft 15 ft
-150
-120
-90
-60
AVERAGE BEAM ANGLE(50%):20.2 DEG
48 4.8 3.3 18 11.5 6.8 21 7.2 4.9 8 17.3 10.2 12 9.6 6.5 4 23.0 13.6
8 12.0 8.2 3 28.8 17.1
-/+180
-30
1000
2000
3000
4000
5000
150
120
0
0
C0/180,20.4deg C90/270,19.9deg
30
90
60
UNIT:cd
UNIT:cd
-150
-120
-90
-60
-30
AVERAGE BEAM ANGLE(50%):41.7 DEG
-/+180
0
400
800
1200
1600
2000
0
150
C0/180,41.7deg C90/270,41.7deg
30
120
60
90
UNIT:cd
UNIT:cd
FIXTURE PERFORMANCE  3000K
0° Aiming Angle (ceiling to oor)
LED25S-30 LED25F-30
20° beam 42° beam
Distance FC L W FC L W 6 ft 9 ft 12 ft 15 ft
162 1.9 1.9 54 4.5 4.5
72 2.8 2.8 24 6.8 6.8 40 3.8 3.8 14 9.1 9.1 26 4.7 4.7 9 11.3 11.3
45° Aiming Angle (ceiling to wall)
LED25S-30 LED25F-30
20° beam 42° beam
Distance FC L W FC L W 6 ft 9 ft 12 ft 15 ft
-150
-120
-90
-60
-30
AVERAGE BEAM ANGLE(50%):19.6 DEG
57 3.9 2.7 19 10.6 6.4 25 5.8 4.0 8 15.9 9.6 14 7.7 5.3 5 21.2 12.8
9 9.6 6.6 3 26.4 16.0
-/+180
0
1200
2400
3600
4800
6000
0
150
C0/180,19.7deg C90/270,19.5deg
30
120
90
60
UNIT:cd
UNIT:cd
-120
-90
-60
AVERAGE BEAM ANGLE(50%):42.6 DEG
-150
-/+180
-30
400
800
1200
1600
2000
150
0
C0/180,42.7deg C90/270,42.6deg
30
0
120
60
UNIT:cd
UNIT:cd
90
FC– Initial footcandle level at the center of the beam L– Beam length at the point the candlepower drops o to 50% of maximum* W– Beam width at the point the candlepower drops o to 50% of maximum*
*Measured in feet
WAC Lighting
www.waclighting.com Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. AUG 2014
Headquarters/Eastern Distribution Center
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760 Phone (800) 526.2588 • Fax (800) 526.2585
Page 3
ARGOS – model: LED25
