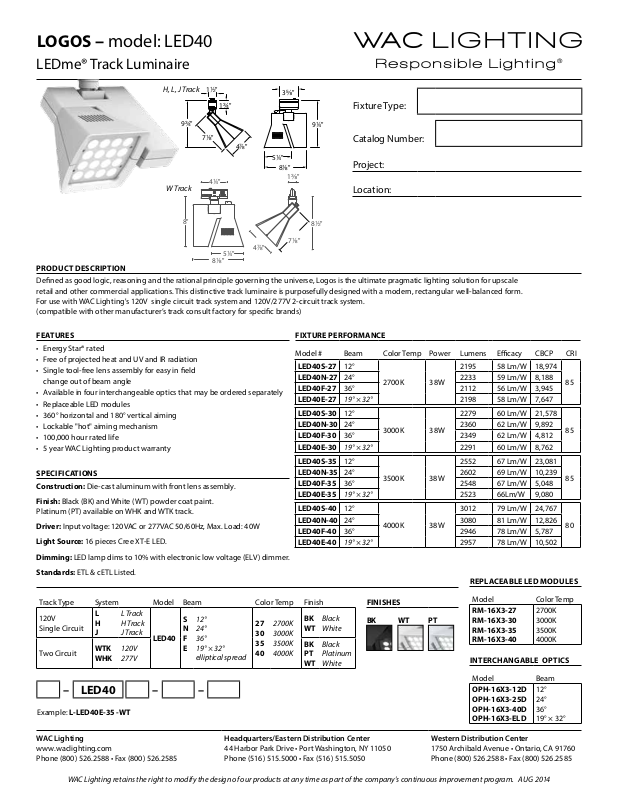

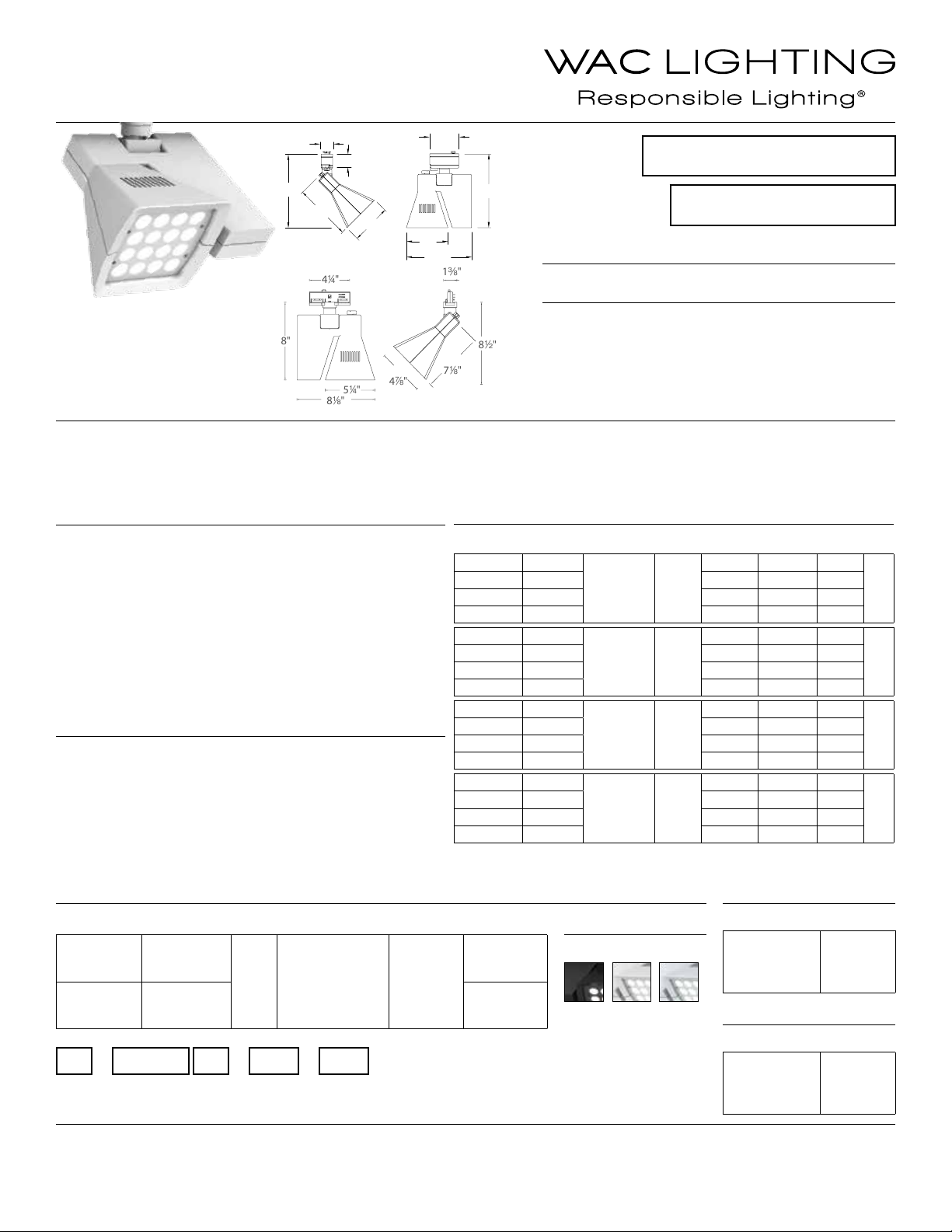

LOGOS – model: LED40
44"
54"
88"
4d"
1a"
82"
8"
78"
LEDme® Track Luminaire
9w"
78"
12"
1w"
4d"
3s"
Fixture Type:
94"
Catalog Number:
54"
88"
Project:
Location:
FIXTURE PERFORMANCE
Model # Beam Color Temp Power Lumens Ecacy CBCP CRI
LED40S-27 12°
LED40N-27 24° 2233 59 Lm/W 8,188
LED40F-27 36° 2112 56 Lm/W 3,945
LED40E-27 19° × 32° 2198 58 Lm/W 7,647
LED40S-30 12°
LED40N-30 24° 2360 62 Lm/W 9,892
LED40F-30 36° 2349 62 Lm/W 4,812
LED40E-30 19° × 32° 2291 60 Lm/W 8,762
LED40S-35 12°
LED40N-35 24° 2602 69 Lm/W 10,239
LED40F-35 36° 2548 67 Lm/W 5,048
LED40E-35 19° × 32° 2523 66Lm/W 9,080
LED40S-40 12°
LED40N-40 24° 3080 81 Lm/W 12,826
LED40F-40 36° 2946 78 Lm/W 5,787
LED40E-40 19° × 32° 2957 78 Lm/W 10,502
2700K 38W
3000K 38W
3500K 38W
4000K 38W
2195 58 Lm/W 18,974
2279 60 Lm/W 21,578
2552 67 Lm/W 23,081
3012 79 Lm/W 24,767
REPLACEABLE LED MODULES
H, L, J Track
W Track
PRODUCT DESCRIPTION
Dened as good logic, reasoning and the rational principle governing the universe, Logos is the ultimate pragmatic lighting solution for upscale
retail and other commercial applications. This distinctive track luminaire is purposefully designed with a modern, rectangular well-balanced form.
For use with WAC Lighting's 120V single circuit track system and 120V/277V 2-circuit track system.
(compatible with other manufacturer’s track consult factory for specic brands)
FEATURES
• Energy Star® rated
• Free of projected heat and UV and IR radiation
• Single tool-free lens assembly for easy in eld
change out of beam angle
• Available in four interchangeable optics that may be ordered separately
• Replaceable LED modules
• 360° horizontal and 180° vertical aiming
• Lockable "hot" aiming mechanism
• 100,000 hour rated life
• 5 year WAC Lighting product warranty
SPECIFICATIONS
Construction: Die-cast aluminum with front lens assembly.
Finish: Black (BK) and White (WT) powder coat paint.
Platinum (PT) available on WHK and WTK track.
Driver: Input voltage: 120VAC or 277VAC 50/60Hz, Max. Load: 40W
Light Source: 16 pieces Cree XT-E LED.
Dimming: LED lamp dims to 10% with electronic low voltage (ELV) dimmer.
Standards: ETL & cETL Listed.
85
85
85
80
Track Type System Model Beam Color Temp Finish
L
120V
Single Circuit
Two Circuit
H
J
WTK
WHK
L Track
H Track
J Track
120V
277V
LED40
S
12°
N
24°
F
36°
E
19° × 32°
elliptical spread
27
30
35
40
2700K
3000K
3500K
4000K
BKWTBlack
BK
PT
WT
– LED40 – –
Example: L-LED40E-35 -WT
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. AUG 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
White
Black
Platinum
White
FINISHES
BK WT PT
Model Color Temp
RM-16X3-27
RM-16X3-30
RM-16X3-35
RM-16X3-40
INTERCHANGABLE OPTICS
Model Beam
OPH-16X3-12D
OPH-16X3-25D
OPH-16X3-40D
OPH-16X3-ELD
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
2700K
3000K
3500K
4000K
12°
24°
36°
19° × 32°
