Page 1
Overview:
QMP-S60ERN canopy is designed to fit all WAC
quick connect fixtures and pendants(50W max).
The canopy comes with a self-contained
electronic transformer that may be dimmed with an
electronic low voltage dimmer switch.
QMP-S60ERN works with QMP-60-COL when
Installing over a shallow junction box.
QMP-S60ERN is designed for adjustable sloped ceiling.
Shallow junction box Installation:
1. Cut out: 4 1/8”
2. Mount QMP-60-COL to shallow(1/2”) junction box
with two screws supplied
3. Remove the metal ring from QMP-S60ERN and
separate the canopy from base plate
4. Connect corresponding line volt wires from the
junction box to transformer wires (white wire
connect to white wire and black wire connect to
black wire) with wire nuts supplied. Tuck excess
wire into the junction box.
5. Connect ground wire from junction box to the
green grounding wire from the base plate.
6. Mount base plate assembly to QMP-60-COL with
two mount screws supplied.
7. Mount canopy to surface and tighten metal ring to
Quick connect fitting
8. Install quick connect fixture or pendant by
inserting quick connect post into fitting and
threading clockwise until snug
1. Cut out: 4 1/8”
2. Remove the metal ring from QMP-S60ERN and
separate the canopy from base plate
3. Connect corresponding line volt wires from the
junction box to transformer wires (white wire
connect to white wire and black wire connect to
black wire) with wire nuts supplied. Tuck excess
wire into the junction box.
4. Connect ground wire from junction box to the
green grounding wire from the base plate.
5. Mount base plate assembly to 4” junctiinserting
quick connect post into fitting and threading
clockwise until snug
6.

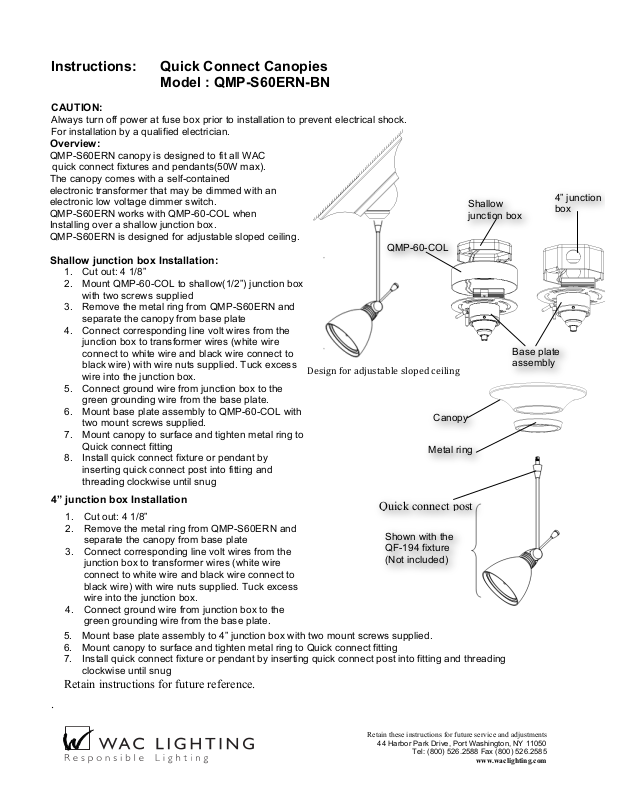

Instructions: Quick Connect Canopies
Model : QMP-S60ERN-BN
CAUTION:
Always turn off power at fuse box prior to installation to prevent electrical shock.
For installation by a qualified electrician.
4” junction box Installation
.
Retain these instructions for future service and adjustments
44 Harbor Park Drive, Port Washington, NY 11050
Tel: (800) 526.2588 Fax (800) 526.2585
www.waclighting.com
Shallow
junction box
QMP-60-COL
Base plate
assembly
Canopy
Metal ring
Quick connect post
4” junction
5. Mount base plate assembly to 4” junction box with two mount screws supplied.
6. Mount canopy to surface and tighten metal ring to Quick connect fitting
7. Install quick connect fixture or pendant by inserting quick connect post into fitting and threading
clockwise until snug
Retain instructions for future reference.
Shown with the
QF-194 fixture
(Not included)
Design'for'adjustable'sloped'ceiling
