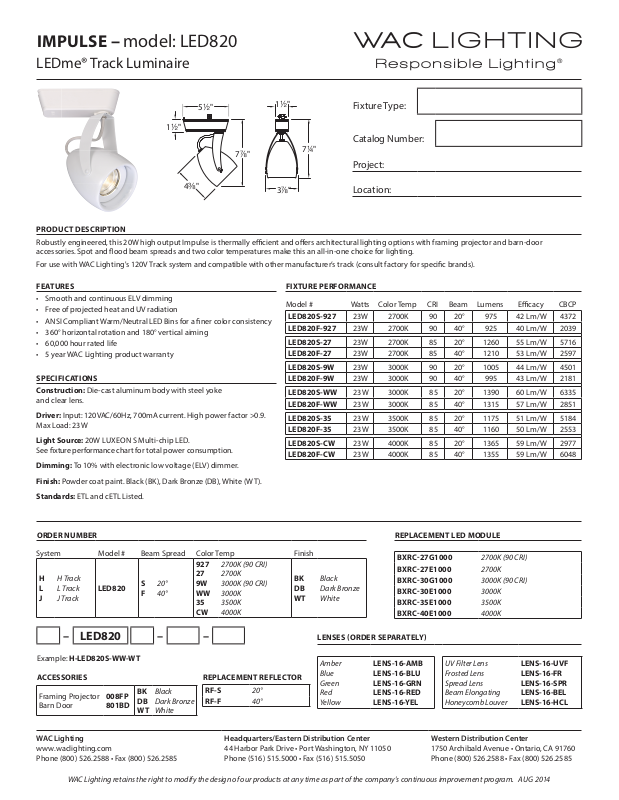

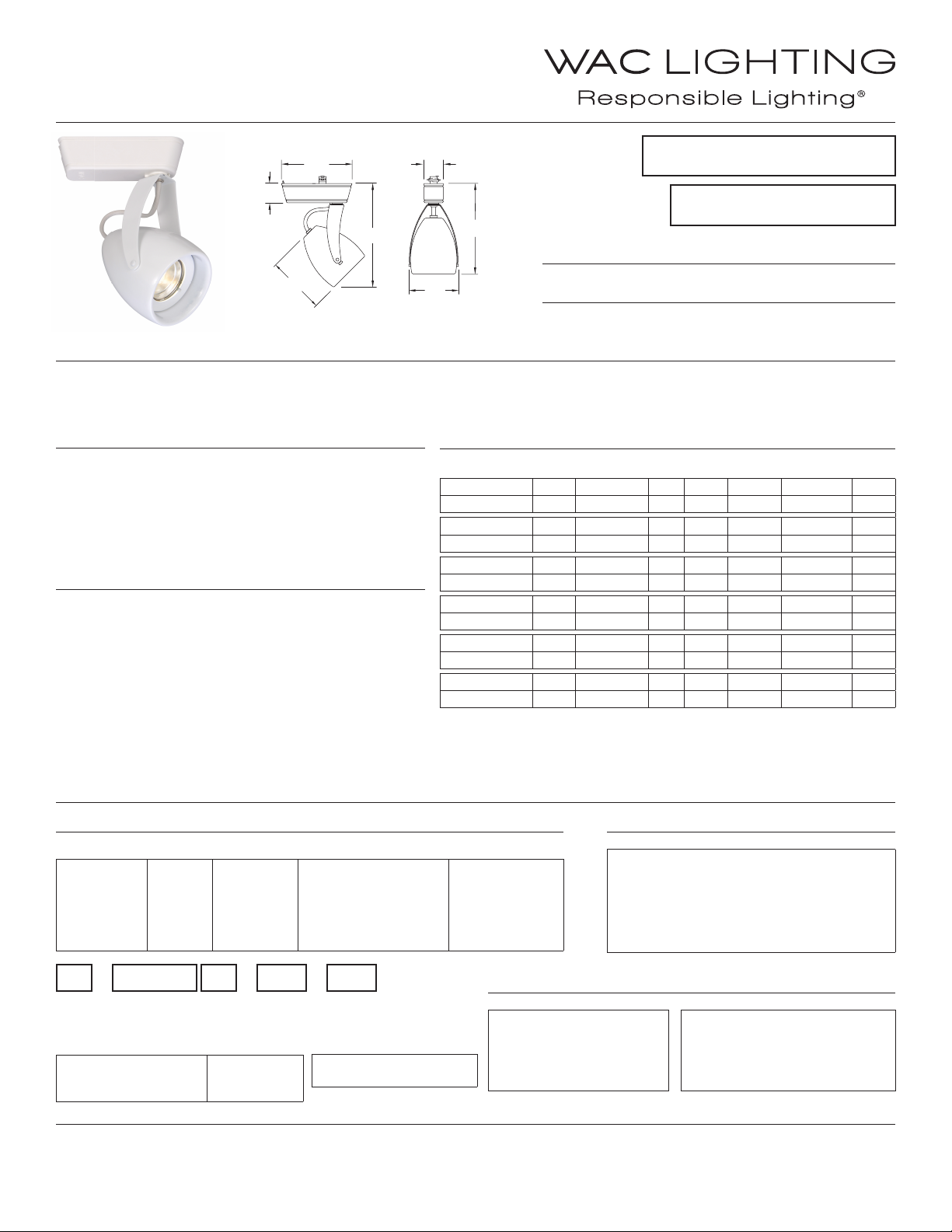

IMPULSE – model: LED820
LEDme® Track Luminaire
52"
12"
Fixture Type:
12"
Catalog Number:
7d"
74"
Project:
4a"
PRODUCT DESCRIPTION
Robustly engineered, this 20W high output Impulse is thermally effi cient and off ers architectural lighting options with framing projector and barn-door
accessories. Spot and ood beam spreads and two color temperatures make this an all-in-one choice for lighting.
For use with WAC Lighting's 120V Track system and compatible with other manufacturer’s track (consult factory for speci c brands).
FEATURES
• Smooth and continuous ELV dimming
• Free of projected heat and UV radiation
• ANSI Compliant Warm/Neutral LED Bins for a ner color consistency
• 360° horizontal rotation and 180° vertical aiming
• 60,000 hour rated life
• 5 year WAC Lighting product warranty
SPECIFICATIONS
Construction: Die-cast aluminum body with steel yoke
and clear lens.
Driver: Input: 120VAC/60Hz, 700mA current. High power factor >0.9.
Max Load: 23W
Light Source: 20W LUXEON S Multi-chip LED.
See xture performance chart
Dimming: To 10% with electronic low voltage (ELV) dimmer.
Finish: Powder coat paint. Black (BK), Dark Bronze (DB), White (WT ).
Standards: ETL and cETL Listed.
for total power consumption
.
3d"
FIXTURE PERFORMANCE
Model # Watts Color Temp CRI Beam Lumens Effi cacy CBCP
LED820S-927 23W 2700K 90 20° 975 42 Lm/W 4372
LED820F-927 23W 2700K 90 40° 925 40 Lm/W 2039
LED820S-27 23W 2700K 85 20° 1260 55 Lm/W 5716
LED820F-27 23W 2700K 85 40° 1210 53 Lm/W 2597
LED820S-9W 23W 3000K 90 20° 1005 44 Lm/W 4501
LED820F-9W 23W 3000K 90 40° 995 43 Lm/W 2181
LED820S-WW 23W 3000K 85 20° 1390 60 Lm/W 6335
LED820F-WW 23W 3000K 85 40° 1315 57 Lm/W 2851
LED820S-35 23W 3500K 85 20° 1175 51 Lm/W 5184
LED820F-35 23W 3500K 85 40° 1160 50 Lm/W 2553
LED820S-CW 23W 4000K 85 20° 1365 59 Lm/W 2977
LED820F-CW 23W 4000K 85 40° 1355 59 Lm/W 6048
Location:
ORDER NUMBER
System Model # Beam Spread Color Temp Finish
927
2700K (90 CRI)
27
H
H Track
L
L Track
J
J Track
LED820
SF20°
40°
9W
WW
35
CW
2700K
3000K (90 CRI)
3000K
3500K
4000K
BK
DB
WT
– LED820 – –
Example: H-LED820S-WW-WT
ACCESSORIES
BK
Framing Projector
Barn Door
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. AUG 2014
008FP
801BD
DB
WT
Black
Dark Bronze
White
REPLACEMENT REFLECTOR
RF-S 20°
RF-F 40°
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
REPLACEMENT LED MODULE
BXRC27G1000 2700K (90 CRI)
Black
Dark Bronze
White
LENSES ORDER SEPARATELY
Amber
Blue
Green
Red
Yellow
BXRC27E1000 2700K
BXRC30G1000 3000K (90 CRI)
BXRC30E1000 3000K
BXRC35E1000 3500K
BXRC40E1000 4000K
LENS-16-AMB
LENS-16-BLU
LENS-16-GRN
LENS-16-RED
LENS-16-YEL
UV Filter Lens
Frosted Lens
Spread Lens
Beam Elongating
Honeycomb Louver
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
LENS-16-UVF
LENS-16-FR
LENS-16-SPR
LENS-16-BEL
LENS-16-HCL
Page 2
IMPULSE – model: LED820S

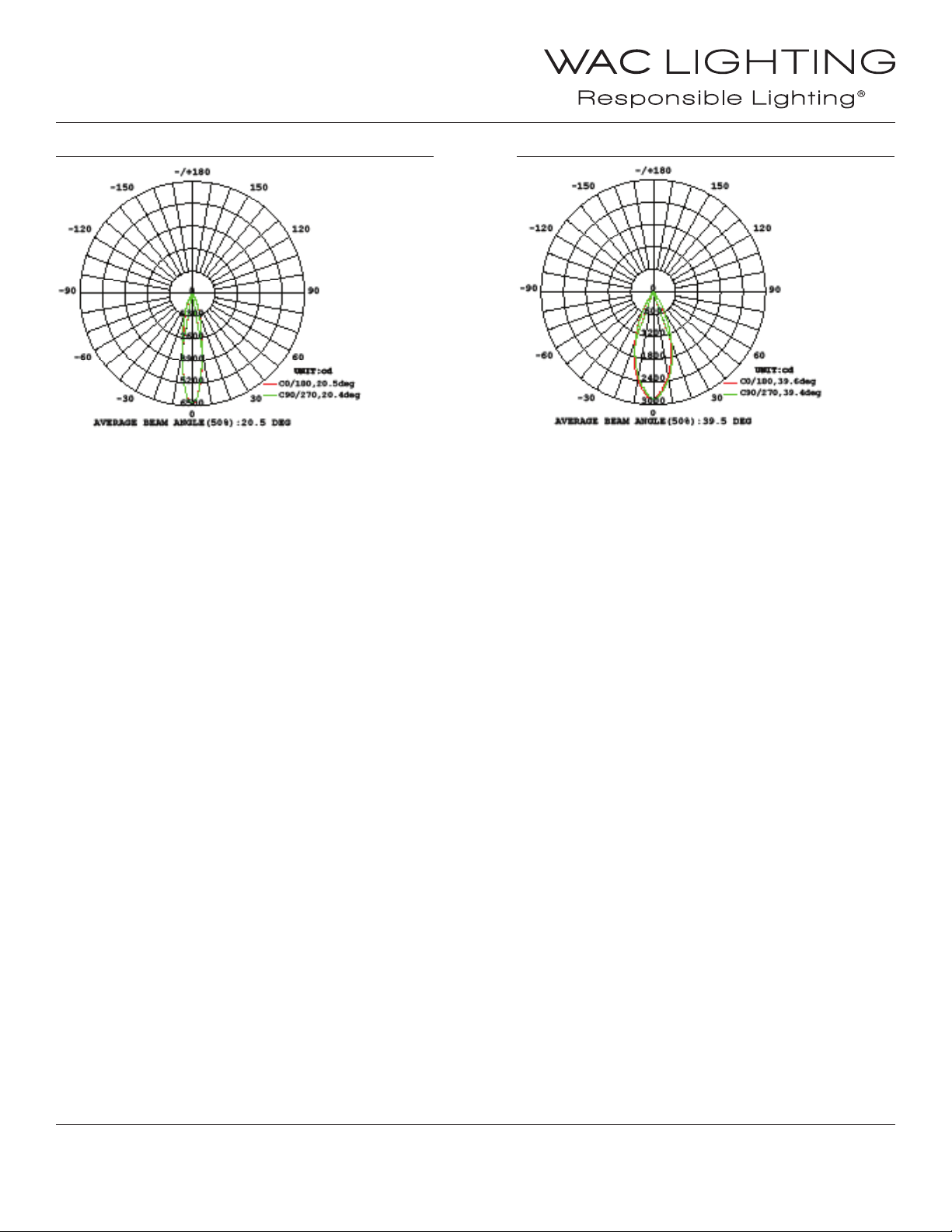

Photometrics
