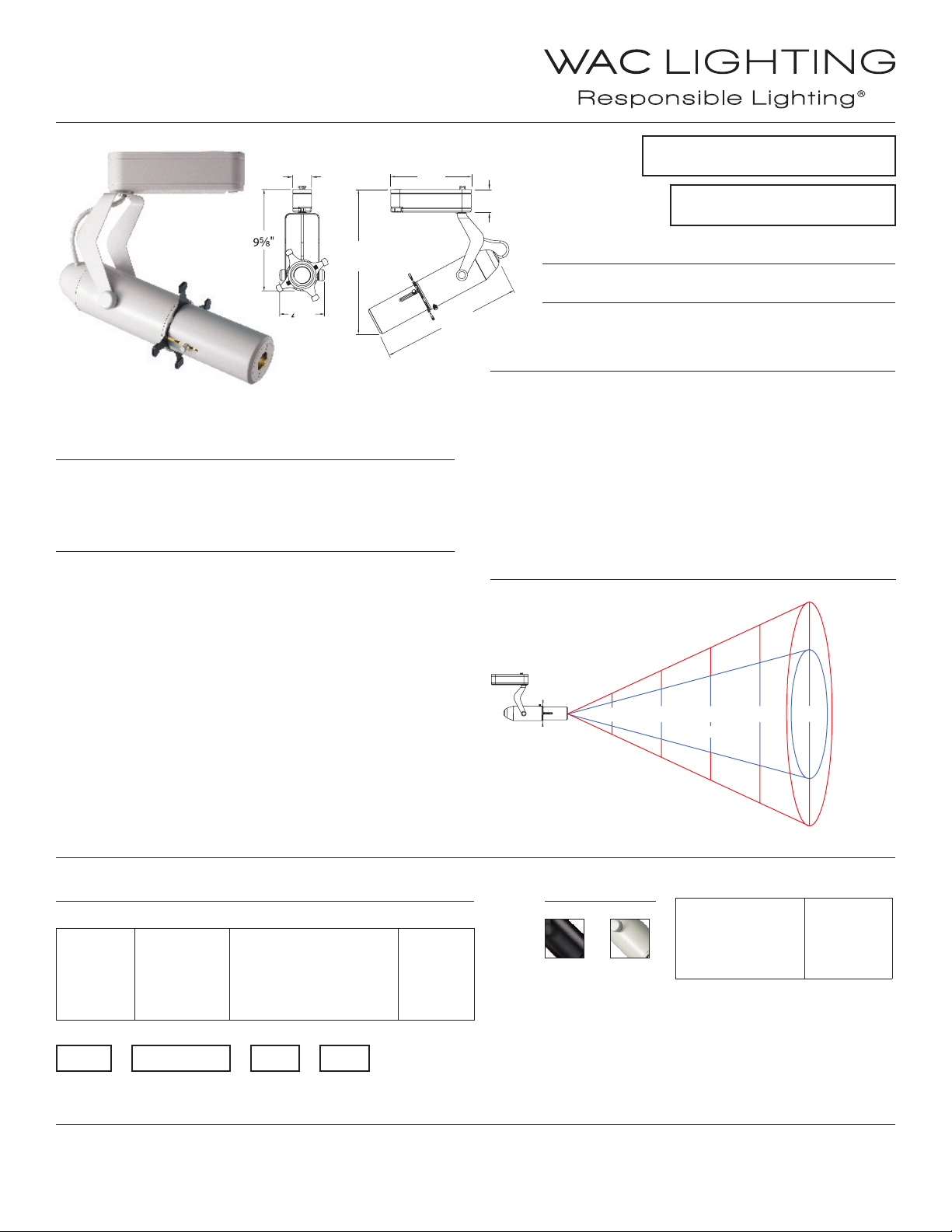

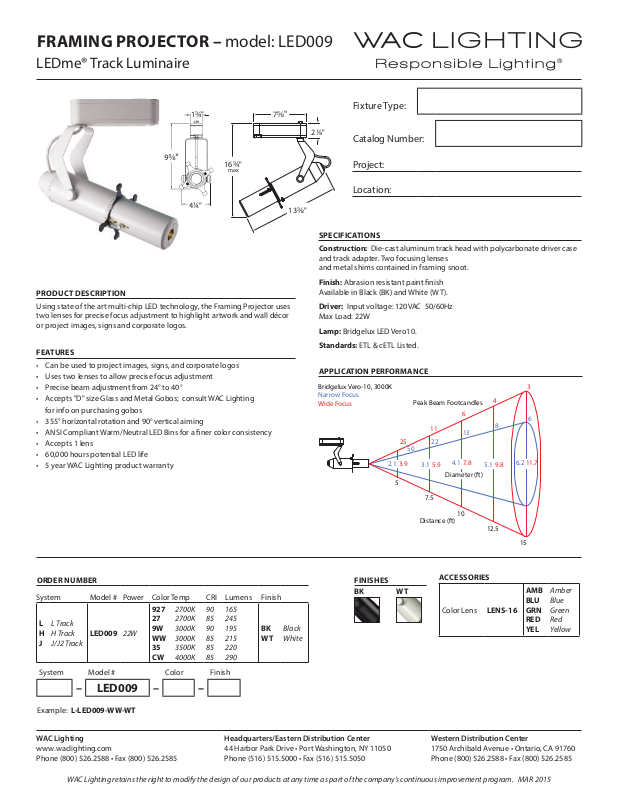

FRAMING PROJECTOR – model: LED009
LEDme® Track Luminaire
9s"
1w"
16w"
max
7s"
44"
PRODUCT DESCRIPTION
Using state of the art multi-chip LED technology, the Framing Projector uses
two lenses for precise focus adjustment to highlight artwork and wall décor
or project images, signs and corporate logos.
FEATURES
• Can be used to project images, signs, and corporate logos
• Uses two lenses to allow precise focus adjustment
• Precise beam adjustment from 24° to 40°
• Accepts "D" size Glass and Metal Gobos; consult WAC Lighting
for info on purchasing gobos
• 355° horizontal rotation and 90° vertical aiming
• ANSI Compliant Warm/Neutral LED Bins for a ner color consistency
• Accepts 1 lens
• 60,000 hours potential LED life
• 5 year WAC Lighting product warranty
13a"
Fixture Type:
28"
Catalog Number:
Project:
Location:
SPECIFICATIONS
Construction: Die-cast aluminum track head with polycarbonate driver case
and track adapter. Two focusing lenses
and metal shims contained in framing snoot.
Finish: Abrasion resistant paint nish
Available in Black (BK) and White (WT).
Driver: Input voltage: 120VAC 50/60Hz
Max Load: 22W
Lamp: Bridgelux LED Vero10.
Standards: ETL & cETL Listed.
APPLICATION PERFORMANCE
6.2
3
6
11.7
15
Bridgelux Vero-10, 3000K
Narrow Focus
Wide Focus
Peak Beam Footcandles
25
50
3.9
2.1
3.1
5
Distance (ft)
11
22
5.9
7.5
6
13
7.8
4.1
Diameter (ft)
10
5.1
4
8
9.8
12.5
ORDER NUMBER
System Model # Power Color Temp CRI Lumens Finish
927
L
H
J
L Track
H Track
J/J2 Track
LED009 22W
27
9W
WW
35
CW
2700K
2700K
3000K
3000K
3500K
4000K
90
165
85
245
90
195
85
215
85
220
85
290
BKWTBlack
System Model # Color Finish
– LED009 – –
Example: L-LED009-WW-WT
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. MAR 2015
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
White
FINISHES
BK WT
ACCESSORIES
AMB
Amber
BLU
Color Lens LENS-16
GRN
RED
YEL
Blue
Green
Red
Yellow
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
