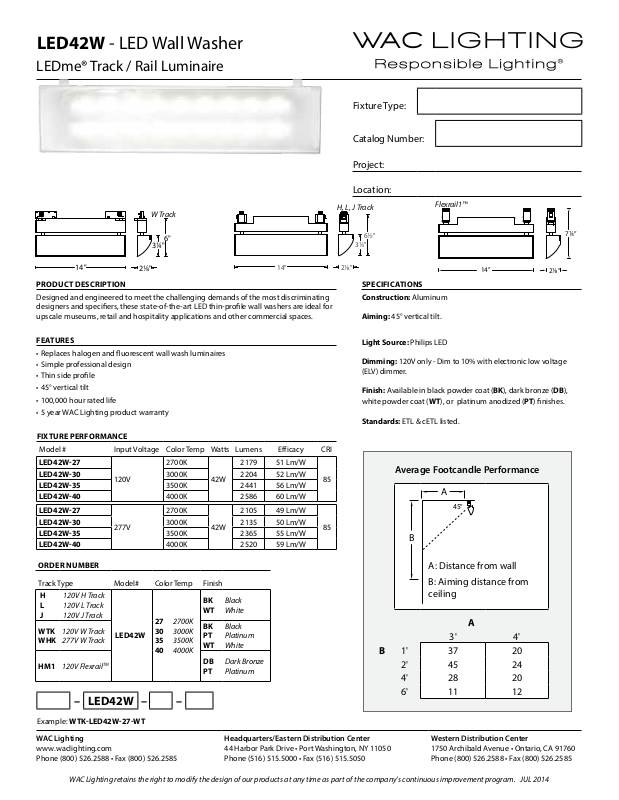

Page 1
LED42W - LED Wall Washer
62"
34"
28"
14"
LEDme® Track / Rail Luminaire
W Track
Fixture Type:
Catalog Number:
Project:
Location:
H, L, J Track
Flexrail1™
6"
34"
14"
PRODUCT DESCRIPTION
Designed and engineered to meet the challenging demands of the most discriminating
designers and speciers, these state-of-the-art LED thin-prole wall washers are ideal for
upscale museums, retail and hospitality applications and other commercial spaces.
FEATURES
• Replaces halogen and uorescent wall wash luminaires
• Simple professional design
• Thin side prole
• 45° vertical tilt
• 100,000 hour rated life
• 5 year WAC Lighting product warranty
FIXTURE PERFORMANCE
Model # Input Voltage Color Temp Watts Lumens Efficacy CRI
LED42W-27
LED42W-30 3000K 2204 52 Lm/W
LED42W-35 3500K 2441 56 Lm/W
LED42W-40 4000K 2586 60 Lm/W
LED42W-27
LED42W-30 3000K 2135 50 Lm/W
LED42W-35 3500K 2365 55 Lm/W
LED42W-40 4000K 2520 59 Lm/W
120V
277V
28"
2700K
2700K
42W
42W
2179 51 Lm/W
85
2105 49 Lm/W
85
14”
SPECIFICATIONS
Construction: Aluminum
Aiming: 45° vertical tilt.
Light Source: Philips LED
Dimming:
(ELV) dimmer.
Finish: Available in black powder coat (BK), dark bronze (DB),
white powder coat (WT), or platinum anodized (PT) nishes.
Standards: ETL & cETL listed.
120V only - Dim to 10% with electronic low voltage
28”
Average Footcandle Performance
A
45°
B
74”
ORDER NUMBER
Track Type Model# Color Temp Finish
H
120V H Track
L
120V L Track
J
120V J Track
WTK
120V W Track
WHK
277V W Track
HM1 120V Flexrail
TM
LED42W
27
30
35
40
2700K
3000K
3500K
4000K
BKWTBlack
BK
PT
WT
DBPTDark Bronze
– LED42W – –
Example: WTK-LED42W-27-WT
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUL 2014
White
Black
Platinum
White
Platinum
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
B 1' 37 20
A: Distance from wall
B: Aiming distance from
ceiling
A
3' 4'
2' 45 24
4' 28 20
6' 11 12
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
Page 2
LED42W - LED Wall Washer
LUMINAIRE PHOTOMETRIC TEST REPORT
TYPE:Track light
SPEC.:
SUR.:
WEIGHT:
SERIAL No.:C13090028-8
PROTECTION ANGLE:
-/+180
-90
AVERAGE BEAM ANGLE(50%):95.2 DEG
C0 PLANE ISOLUX DIAGRAM (UNIT:lx)
MH(m)
14
18
22
26
30
34
38
42
46
0.0 17.0 34.0
S(m)
4.30
0.7100
DATA OF LAMP PHOTOMETRIC DATA Eff: 51.09 lm/W
Imax(cd)
LOR(%)
TOTAL FLUX(lm)
CIE CLASS
up(%)
down(%)
S/MH(C0/180)
S/MH(C90/270)
UP,DN(C0-180)
UP,DN(C180-360)
CIBSE SHR NOM
CIBSE SHR MAX
42
120
2179.87
1
120.0
984.9
100.0
2179.9
DIRECT
0.3
99.7
1.35
1.74
0.1,65.7
0.2,34.0
1.25
1.35
数字签名者：Alice.Xiao
DN：cn=Alice.Xiao, o=WAC LIGHTING,
ou=LAB,
[email protected],
c=CN
日期：2013.09.26 19:30:58 +08'00'
LUMINAIRE PHOTOMETRIC TEST REPORT
TYPE:Track light
SPEC.:
SUR.:
WEIGHT:
SERIAL No.:C13090028-5
PROTECTION ANGLE:
-/+180
AVERAGE BEAM ANGLE(50%):93.7 DEG
C0 PLANE ISOLUX DIAGRAM (UNIT:lx)
MH(m)
14
18
22
26
30
34
38
42
46
0.0 17.0 34.0
S(m)
4.30
0.7200
DATA OF LAMP PHOTOMETRIC DATA Eff: 52.05 lm/W
Imax(cd)
LOR(%)
TOTAL FLUX(lm)
CIE CLASS
up(%)
down(%)
S/MH(C0/180)
S/MH(C90/270)
UP,DN(C0-180)
UP,DN(C180-360)
CIBSE SHR NOM
CIBSE SHR MAX
42
120
2204.67
1
120.0
1021
100.0
2204.7
DIRECT
0.2
99.8
1.35
1.74
0.1,65.9
0.2,33.9
1.25
1.35
数字签名者：Alice.Xiao
DN：cn=Alice.Xiao, o=WAC LIGHTING,
ou=LAB,
[email protected],
c=CN
日期：2013.09.26 16:31:26 +08'00'
LUMINAIRE PHOTOMETRIC TEST REPORT
TYPE:Track light
SPEC.:
SUR.:
WEIGHT:
SERIAL No.:C13090028-4
PROTECTION ANGLE:
-/+180
AVERAGE BEAM ANGLE(50%):94.2 DEG
C0 PLANE ISOLUX DIAGRAM (UNIT:lx)
MH(m)
14
18
22
26
30
34
38
42
46
0.0 17.0 34.0
S(m)
DATA OF LAMP PHOTOMETRIC DATA Eff: 56.76 lm/W
Imax(cd)
LOR(%)
TOTAL FLUX(lm)
CIE CLASS
up(%)
down(%)
S/MH(C0/180)
S/MH(C90/270)
UP,DN(C0-180)
UP,DN(C180-360)
CIBSE SHR NOM
CIBSE SHR MAX
44
120
2441.47
1
120.0
1129
100.0
2441.5
DIRECT
0.3
99.7
1.36
1.79
0.1,67.5
0.2,32.3
1.25
1.35
数字签名者：Alice.Xiao
DN：cn=Alice.Xiao, o=WAC LIGHTING,
ou=LAB,
[email protected],
c=CN
日期：2013.09.26 15:29:22 +08'00'
LUMINAIRE PHOTOMETRIC TEST REPORT
TYPE:Track light
SPEC.:
SUR.:
WEIGHT:
SERIAL No.:C13090028-1
PROTECTION ANGLE:
AVERAGE BEAM ANGLE(50%):95.5 DEG
C0 PLANE ISOLUX DIAGRAM (UNIT:lx)
MH(m)
14
18
22
26
30
34
38
42
46
0.0 17.0 34.0
S(m)
DATA OF LAMP PHOTOMETRIC DATA Eff: 60.24 lm/W
Imax(cd)
LOR(%)
TOTAL FLUX(lm)
CIE CLASS
up(%)
down(%)
S/MH(C0/180)
S/MH(C90/270)
UP,DN(C0-180)
UP,DN(C180-360)
CIBSE SHR NOM
CIBSE SHR MAX
44
120
2586.6
1
120.0
1153
100.0
2586.6
DIRECT
0.3
99.7
1.36
1.69
0.1,64.0
0.2,35.7
1.25
1.35
数字签名者：Alice.Xiao
DN：cn=Alice.Xiao, o=WAC LIGHTING, ou=LAB, email=Alice.xiao@WACLIGHTING.COM.CN, c=CN
日期：2013.09.26 11:51:33 +08'00'
Photometrics - 120V
2700K
-150
-120
0
200
400
-60
-30
-150
-120
-90
-60
-30
600
800
1000
0
0
300
600
900
1200
1500
0
150
120
90
60
UNIT:cd
UNIT:cd
C0/180,112.7deg
C90/270,77.7deg
30
150
120
60
UNIT:cd
UNIT:cd
C0/180,113.1deg
C90/270,75.3deg
30
90
3000K
-150
-120
-90
-60
1200
-30
4000K 3500K
-150
-120
-90
-60
-30
1500
-/+180
1200
1500
0
300
600
900
0
0
300
600
900
0
150
C0/180,112.5deg
C90/270,75.0deg
30
150
C0/180,112.5deg
C90/270,78.5deg
30
120
90
60
UNIT:cd
UNIT:cd
120
90
60
UNIT:cd
UNIT:cd
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUL 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
