Overview:

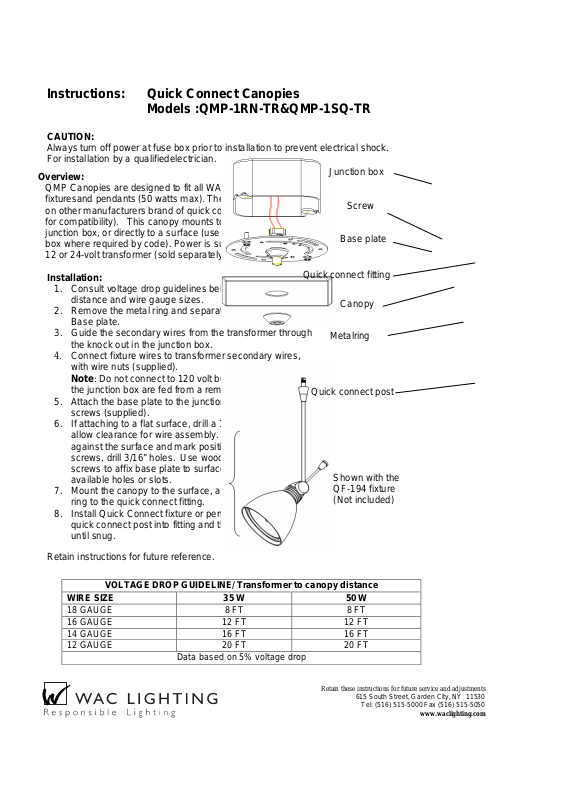

Instructions: Quick Connect Canopies
Retain these instructions for future service and adjustments
Models :QMP-1RN-TR&QMP-1SQ-TR
CAUTION:
Always turn off power at fuse box prior to installation to prevent electrical shock.
For installation by a qualifiedelectrician.
QMP Canopies are designed to fit all WAC quick connect
fixturesand pendants (50 watts max). They may also be used
on other manufacturers brand of quick connect (consult factory
for compatibility). This canopy mounts to a standard 4”
junction box, or directly to a surface (use conduit & junction
box where required by code). Power is supplied by a remote
12 or 24-volt transformer (sold separately).
Installation:
1. Consult voltage drop guidelines below to determine
2. Remove the metal ring and separate the canopy from
3. Guide the secondary wires from the transformer through
4.
5. Attach the base plate to the junction box using two
6. If attaching to a flat surface, drill a 1 ¼” center hole to
7. Mount the canopy to the surface, and tighten the metal
8. Install Quick Connect fixture or pendant by inserting
Retain instructions for future reference.
Junction box
Screw
Base plate
Quick connect fitting
distance and wire gauge sizes.
Base plate.
the knock out in the junction box.
Connect fixture wires to transformer secondary wires,
with wire nuts (supplied).
Note:
Do not connect to 120 volt building wires. Wires in
the junction box are fed from a remote transformer
.
Quick connect post
screws (supplied).
allow clearance for wire assembly. Hold base plate
against the surface and mark positions of the canopy
screws, drill 3/16” holes. Use wood or other suitable
screws to affix base plate to surface through other
available holes or slots.
ring to the quick connect fitting.
quick connect post into fitting and threading clockwise
until snug.
VOLTAGE DROP GUIDELINE/ Transformer to canopy distance
WIRE SIZE 35 W 50 W
18 GAUGE 8 FT 8 FT
16 GAUGE 12 FT 12 FT
14 GAUGE 16 FT 16 FT
12 GAUGE 20 FT 20 FT
Data based on 5% voltage drop
Canopy
Metalring
Shown with the
QF-194 fixture
(Not included)
615 South Street, Garden City, NY 11530
Tel: (516) 515-5000 Fax (516) 515-5050
www.waclighting.com
