CATALOG NUMBER
TYPE
PROJECT

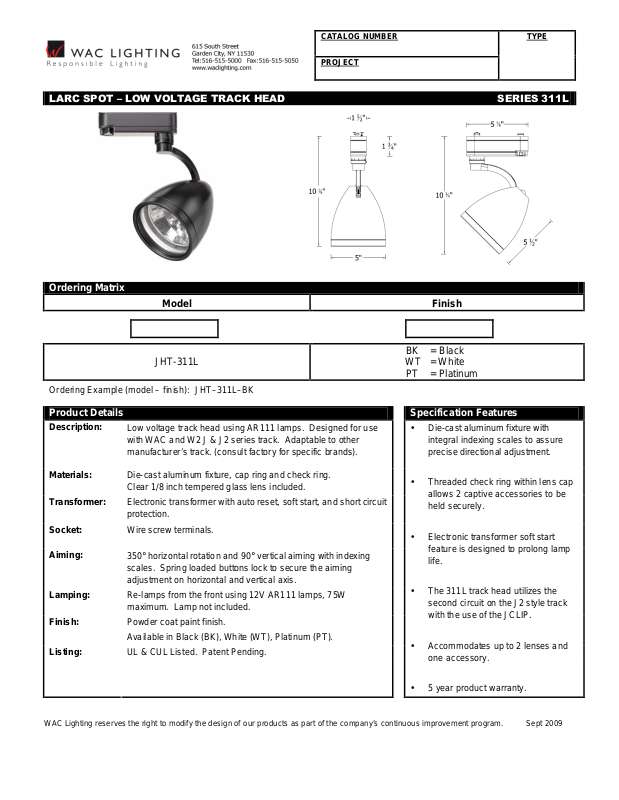

LARC SPOT – LOW VOLTAGE TRACK HEAD SERIES 311L
Ordering Matrix
Model Finish
JHT-311L
Ordering Example (model – finish): JHT–311L–BK
BK = Black
WT = White
PT = Platinum
Product Details
Description:
Materials:
Transformer:
Socket: Wire screw terminals.
Aiming:
Lamping:
Finish: Powder coat paint finish.
Listing: UL & CUL Listed. Patent Pending.
WAC Lighting reserves the right to modify the design of our products as part of the company’s continuous improvement program. Sept 2009
Low voltage track head using AR111 lamps. Designed for use
with WAC and W2 J & J2 series track. Adaptable to other
manufacturer’s track. (consult factory for specific brands).
Die-cast aluminum fixture, cap ring and check ring.
Clear 1/8 inch tempered glass lens included.
Electronic transformer with auto reset, soft start, and short circuit
protection.
350° horizontal rotation and 90° vertical aiming with indexing
scales. Spring loaded buttons lock to secure the aiming
adjustment on horizontal and vertical axis.
Re-lamps from the front using 12V AR111 lamps, 75W
maximum. Lamp not included.
Available in Black (BK), White (WT), Platinum (PT).
Specification Features
• Die-cast aluminum fixture with
• Threaded check ring within lens cap
• Electronic transformer soft start
• The 311L track head utilizes the
• Accommodates up to 2 lenses and
• 5 year product warranty.
integral indexing scales to assure
precise directional adjustment.
allows 2 captive accessories to be
held securely.
feature is designed to prolong lamp
life.
second circuit on the J2 style track
with the use of the JCLIP.
one accessory.
Track Adaptor Information
Standard Adaptor
For J style
W2 & WAC track
J2 Adaptor
For J2 style
W2 & WAC track
JCLIP
Ordered when using track
heads on 2
nd
circuit of J2
Compatible Accessories
LENS-111-DIC-COLOR
Dichroic Lenses
LENS-111-COLOR
Color Lenses
AMB = Amber ; BLU = Blue ; GRN = Green
RED = Red ; YEL = Yellow
Photometry
50W AR111 (8 DEG)
0° Aiming Angle
D(ft) FC W L D(ft) FC W L
6
641 0.8 0.8
9
285 1.3 1.3
12
160 1.7 1.7
15
103 2.1 2.1
45° Aiming Angle
D(ft) FC W L D(ft) FC W L
6
227 1.7 1.2
9
101 2.5 1.8
12
57 3.4 2.4
15
36 4.2 3.0
6 833 0.8 0.8
9 370 1.3 1.3
12 208 1.7 1.7
15 133 2.1 2.1
6 295 1.7 1.2
9 131 2.5 1.8
12 74 3.4 2.4
15 47 4.2 3.0
75W AR111 (8 DEG)
50W AR111 (24 DEG)
0° Aiming Angle
D(ft) FC W L D(ft) FC W L
6
111 2.6 2.6
9
49 3.8 3.8
12
28 5.1 5.1
15
18 6.4 6.4
45° Aiming Angle
D(ft) FC W L D(ft) FC W L
6
39 5.3 3.6
9
17 8.0 5.4
12
10 10.7 7.2
15
6 13.4 9.0
75W AR111 (24 DEG)
6 147 2.6 2.6
9 65 3.8 3.8
12 37 5.1 5.1
15 24 6.4 6.4
6 52 5.3 3.6
9 23 8.0 5.4
12 13 10.7 7.2
15 8 13.4 9.0
D(ft) FC W L
D(ft) FC W L
75W AR111 (45 DEG)
6 53 5.0 5.0
9 23 7.5 7.5
12 13 9.9 9.9
15 8 12.4 12.4
6 19 12.0 7.0
9 8 18.0 10.5
12 5 24.0 14.1
15 3 30.0 17.6
WAC Lighting reserves the right to modify the design of our products as part of the company’s continuous improvement program. Sept 2009
LENS-111-HCL
Honeycomb Louver
0° Aiming Angle
45° Aiming Angle
0° Aiming Angle
45° Aiming Angle
0° Aiming Angle
45° Aiming Angle
LENS-111-CRL
Cross Louver
HOOD-111-BK
Light Deflecting Hood
for wall wash application
D Distance To Fixture From Wall Or Floor
FC Initial Footcandle Level At Center Of Beam
L Beam Length (where candlepower drops
to 50% of maximum)
W Beam Width (where candlepower drops to
50% of maximum)
50W CBCP 23091
75W CBCP 30000
50W CBCP 4000
75W CBCP 5300
LENS-111-UVF
UV Filter
LENS-111-FR
Frosted Lens
LENS-111-SPR
Spread Lens
LENS111-BEL
Beam Elongating Lens
