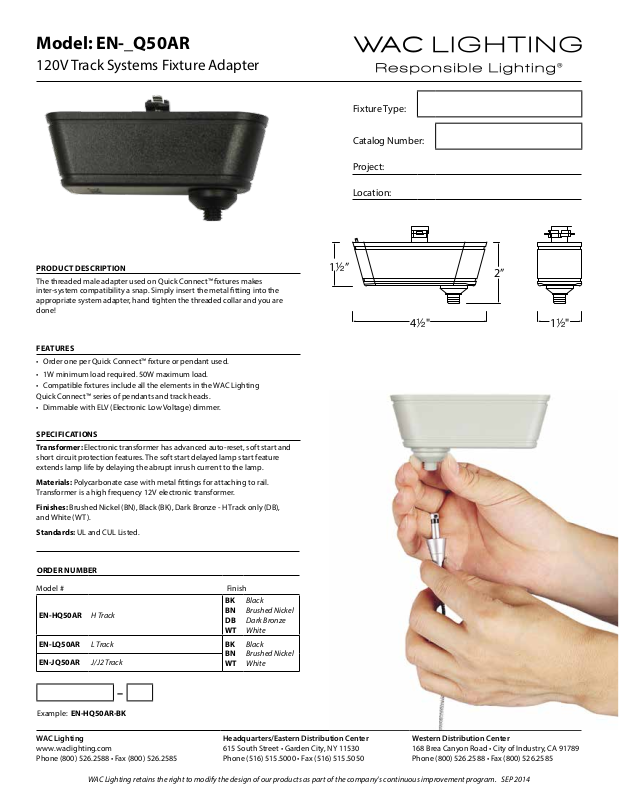

Model: EN-_Q50AR
120V Track Systems Fixture Adapter
Fixture Type:
Catalog Number:
Project:
Location:
PRODUCT DESCRIPTION
The threaded male adapter used on Quick Connect™ xtures makes
inter-system compatibility a snap. Simply insert the metal tting into the
appropriate system adapter, hand tighten the threaded collar and you are
done!
FEATURES
• Order one per Quick Connect™ xture or pendant used.
• 1W minimum load required. 50W maximum load.
• Compatible xtures include all the elements in the WAC Lighting
Quick Connect™ series of pendants and track heads.
• Dimmable with ELV (Electronic Low Voltage) dimmer.
SPECIFICATIONS
Transformer: Electronic transformer has advanced auto-reset, soft start and
short circuit protection features. The soft start delayed lamp start feature
extends lamp life by delaying the abrupt inrush current to the lamp.
Materials: Polycarbonate case with metal ttings for attaching to rail.
Transformer is a high frequency 12V electronic transformer.
Finishes: Brushed Nickel (BN), Black (BK), Dark Bronze - H Track only (DB),
and White (W T).
Standards: UL and CUL Listed.
12”
42"
2”
12"
ORDER NUMBER
Model # Finish
BK
EN-HQ50AR H Track
EN-LQ50AR L Track
EN-JQ50AR J/J2 Track
BN
DB
WT
BK
BN
WT
–
Example: EN-HQ50AR-BK
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products as part of the company's continuous improvement program. SEP 2014
Headquarters/Eastern Distribution Center
615 South Street • Garden City, NY 11530
Phone (516) 515.5000 • Fax (516) 515.5050
Black
Brushed Nickel
Dark Bronze
White
Black
Brushed Nickel
White
Western Distribution Center
168 Brea Canyon Road • City of Industry, CA 91789
Phone (800) 526.2588 • Fax (800) 526.2585
