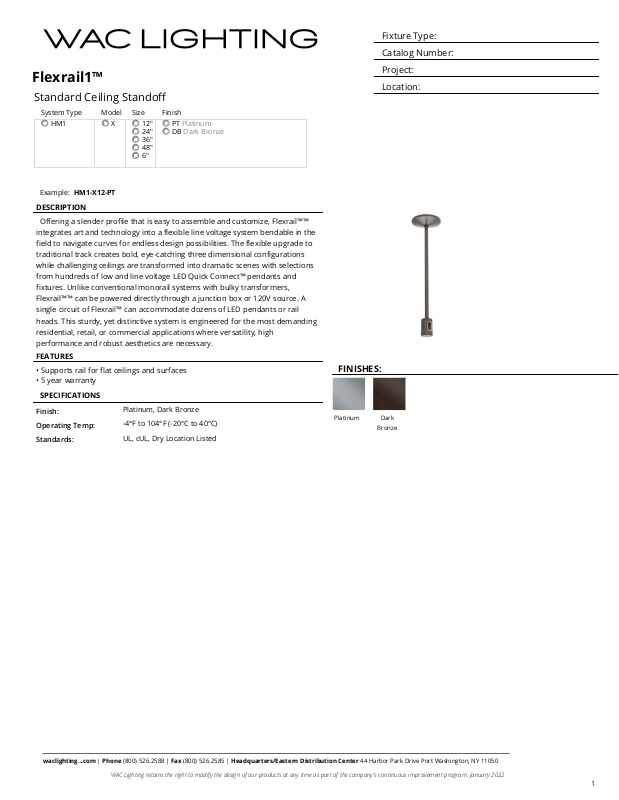

Page 1
Flexrail1™
Standard Ceiling Standoff
System Type Model Size Finish
HM1
X 12"
24"
36"
48"
6"
PT Platinum
DB Dark Bronze
Fixture Type:
Catalog Number:
Project:
Location:
Example: HM1-X12-PT
DESCRIPTION
Offering a slender profile that is easy to assemble and customize, Flexrail™™
integrates art and technology into a flexible line voltage system bendable in the
field to navigate curves for endless design possibilities. The flexible upgrade to
traditional track creates bold, eye-catching three dimensional configurations
while challenging ceilings are transformed into dramatic scenes with selections
from hundreds of low and line voltage LED Quick Connect™ pendants and
fixtures. Unlike conventional monorail systems with bulky transformers,
Flexrail™™ can be powered directly through a junction box or 120V source. A
single circuit of Flexrail™ can accommodate dozens of LED pendants or rail
heads. This sturdy, yet distinctive system is engineered for the most demanding
residential, retail, or commercial applications where versatility, high
performance and robust aesthetics are necessary.
FEATURES
• Supports rail for flat ceilings and surfaces
• 5 year warranty
SPECIFICATIONS
Finish:
Operating Temp:
Standards:
Platinum, Dark Bronze
-4°F to 104°F (-20°C to 40°C)
UL, cUL, Dry Location Listed
FINISHES:
Platinum Dark
Bronze
waclighting...com | Phone (800) 526.2588 | Fax (800) 526.2585 | Headquarters/Eastern Distribution Center 44 Harbor Park Drive Port Washington, NY 11050
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. January 2022
1
Page 2
Flexrail1™
Rail Sections
System Type Model Size Finish
HM1
T 4'
8'
PT Platinum
Fixture Type:
Catalog Number:
Project:
Location:
Example: HM1-T4-PT
DESCRIPTION
Offering a slender profile that is easy to assemble and customize, Flexrail™™
integrates art and technology into a flexible line voltage system bendable in the
field to navigate curves for endless design possibilities. The flexible upgrade to
traditional track creates bold, eye-catching three dimensional configurations
while challenging ceilings are transformed into dramatic scenes with selections
from hundreds of low and line voltage LED Quick Connect™ pendants and
fixtures. Unlike conventional monorail systems with bulky transformers,
Flexrail™™ can be powered directly through a junction box or 120V source. A
single circuit of Flexrail™ can accommodate dozens of LED pendants or rail
heads. This sturdy, yet distinctive system is engineered for the most demanding
residential, retail, or commercial applications where versatility, high
performance and robust aesthetics are necessary.
FEATURES
• Bendable 120V monorail with 1920W maximum
• Includes two matching end caps
• The suspension rods for Flexrail1™ are field cuttable or extendable (96" max).
Rods are available for most ceiling types.
• Shaping rail before mounting on the ceiling allows you to determine the best
location for standoffs. Use a bending machine (HM1-BM) for professional
installations.
• The HM1-EN50 Quick Connect™ transformer adapter allows the use of any
Quick Connect™ element on the Flexrail1™ system. Ordered separately.
• Rail can be put together to any length desired. The use of the "I" connectors
will be required when connecting sections of track. The total load of a Flexrail1™
system can be up to 1920 watts.
• 5 year warranty
SPECIFICATIONS
Input:
Mounting:
120 VAC, 50/60Hz
Minimum three supports for 8 foot section, two for 4 foot
section. Custom length suspensions are possible by using
cables or suspension rods with rod couplers.
Finish:
Operating Temp:
Standards:
Platinum
-4°F to 104°F (-20°C to 40°C)
UL, cUL, Dry Location Listed
FINISHES:
Platinum
waclighting...com | Phone (800) 526.2588 | Fax (800) 526.2585 | Headquarters/Eastern Distribution Center 44 Harbor Park Drive Port Washington, NY 11050
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. January 2022
2
Page 3
Flexrail1™
Standard Ceiling Standoff
ACCESSORIES
Model Description Finish
HM-XADJ-PT
Fixture Type:
Catalog Number:
Project:
Location:
Flexrail1™
Platinum
Powered by TCPDF (www.tcpdf.org)
waclighting...com | Phone (800) 526.2588 | Fax (800) 526.2585 | Headquarters/Eastern Distribution Center 44 Harbor Park Drive Port Washington, NY 11050
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. January 2022
3
