CATALOG NUMBER
PROJECT
TYPE

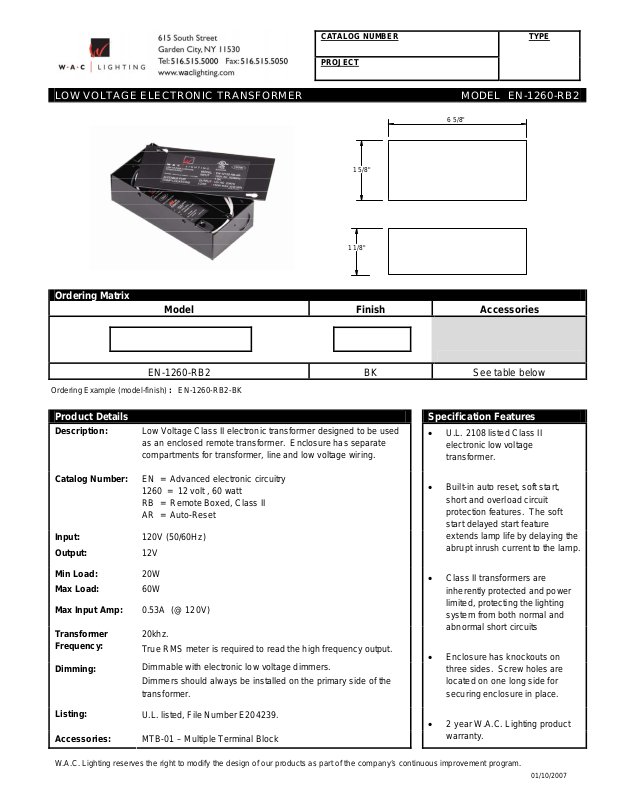

LOW VOLTAGE ELECTRONIC TRANSFORMER MODEL EN-1260-RB2
6 5/8"
1 5/8"
1 1/8"
Ordering Matrix
Model Finish Accessories
EN-1260-RB2 BK
Ordering Example (model-finish) : EN-1260-RB2-BK
Product Details Specification Features
Description:
Catalog Number:
Input:
Output:
Min Load:
Max Load:
Max Input Amp:
Transformer
Frequency:
Dimming:
Listing:
Accessories:
W.A.C. Lighting reserves the right to modify the design of our products as part of the company’s continuous improvement program.
Low Voltage Class II electronic transformer designed to be used
as an enclosed remote transformer. Enclosure has separate
compartments for transformer, line and low voltage wiring.
EN = Advanced electronic circuitry
1260 = 12 volt , 60 watt
RB = Remote Boxed, Class II
AR = Auto-Reset
120V (50/60Hz)
12V
20W
60W
0.53A (@ 120V)
20khz.
True RMS meter is required to read the high frequency output.
Dimmable with electronic low voltage dimmers.
Dimmers should always be installed on the primary side of the
transformer.
U.L. listed, File Number E204239.
MTB-01 – Multiple Terminal Block
• U.L. 2108 listed Class II
• Built-in auto reset, soft start,
• Class II transformers are
• Enclosure has knockouts on
• 2 year W.A.C. Lighting product
See table below
electronic low voltage
transformer.
short and overload circuit
protection features. The soft
start delayed start feature
extends lamp life by delaying the
abrupt inrush current to the lamp.
inherently protected and power
limited, protecting the lighting
system from both normal and
abnormal short circuits
three sides. Screw holes are
located on one long side for
securing enclosure in place.
warranty.
01/10/2007
