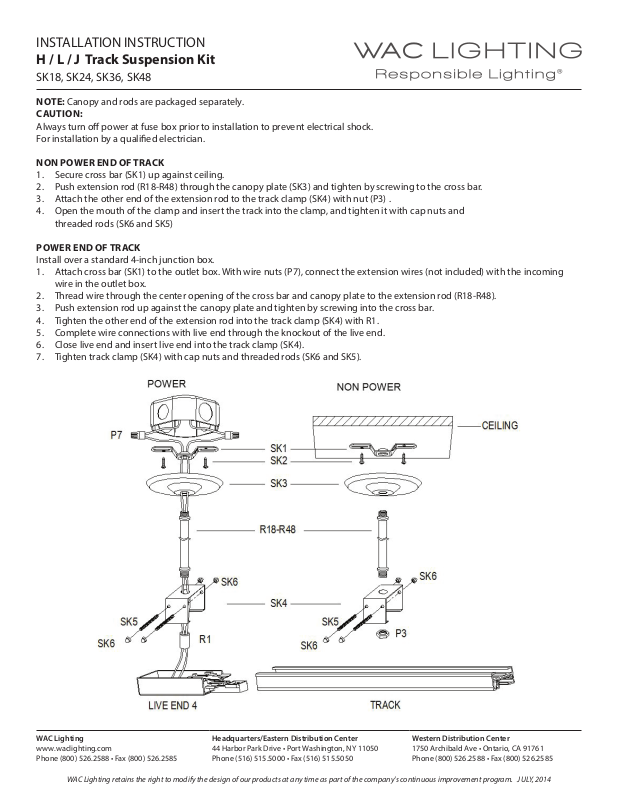

INSTALLATION INSTRUCTION

H / L / J Track Suspension Kit

SK18, SK24, SK36, SK48

NOTE: Canopy and rods are packaged separately.
CAUTION:

Always turn o power at fuse box prior to installation to prevent electrical shock.
For installation by a qualied electrician.

NON POWER END OF TRACK

1. Secure cross bar (SK1) up against ceiling.

2. Push extension rod (R18-R48) through the canopy plate (SK3) and tighten by screwing to the cross bar.

3. Attach the other end of the extension rod to the track clamp (SK4) with nut (P3) .

4. Open the mouth of the clamp and insert the track into the clamp, and tighten it with cap nuts and
threaded rods (SK6 and SK5)

POWER END OF TRACK

Install over a standard 4-inch junction box.

1. Attach cross bar (SK1) to the outlet box. With wire nuts (P7), connect the extension wires (not included) with the incoming
wire in the outlet box.

2. Thread wire through the center opening of the cross bar and canopy plate to the extension rod (R18-R48).

3. Push extension rod up against the canopy plate and tighten by screwing into the cross bar.

4. Tighten the other end of the extension rod into the track clamp (SK4) with R1.

5. Complete wire connections with live end through the knockout of the live end.

6. Close live end and insert live end into the track clamp (SK4).

7. Tighten track clamp (SK4) with cap nuts and threaded rods (SK6 and SK5).

WAC Lighting

www.waclighting.com
Phone [phone] • Fax [phone]

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JULY, 2014
