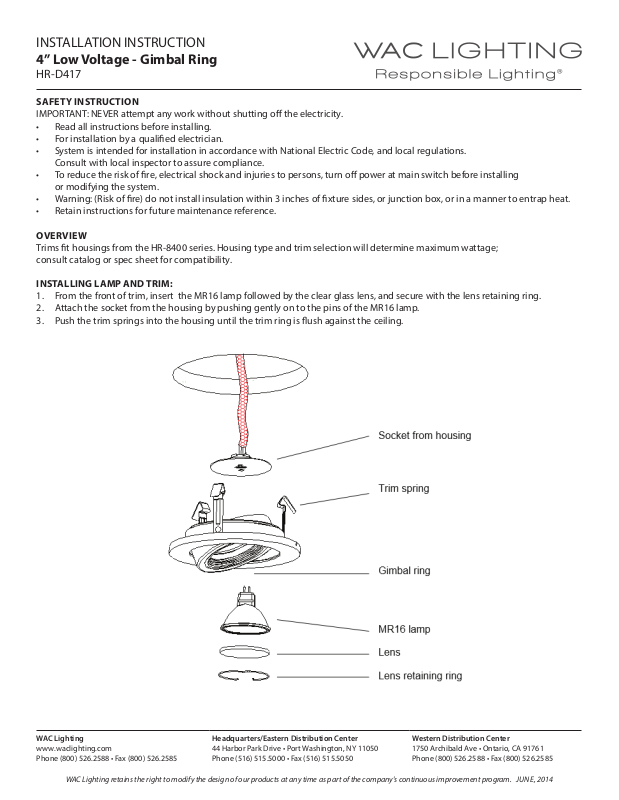

INSTALLATION INSTRUCTION

4” Low Voltage - Gimbal Ring

HR-D417

SAFETY INSTRUCTION

IMPORTANT: NEVER attempt any work without shutting o the electricity.

• Read all instructions before installing.

• For installation by a qualied electrician.

• System is intended for installation in accordance with National Electric Code, and local regulations.
Consult with local inspector to assure compliance.

• To reduce the risk of re, electrical shock and injuries to persons, turn o power at main switch before installing
or modifying the system.

• Warning: (Risk of re) do not install insulation within 3 inches of xture sides, or junction box, or in a manner to entrap heat.

• Retain instructions for future maintenance reference.

OVERVIEW
Trims t housings from the HR-8400 series. Housing type and trim selection will determine maximum wattage;
consult catalog or spec sheet for compatibility.

INSTALLING LAMP AND TRIM:

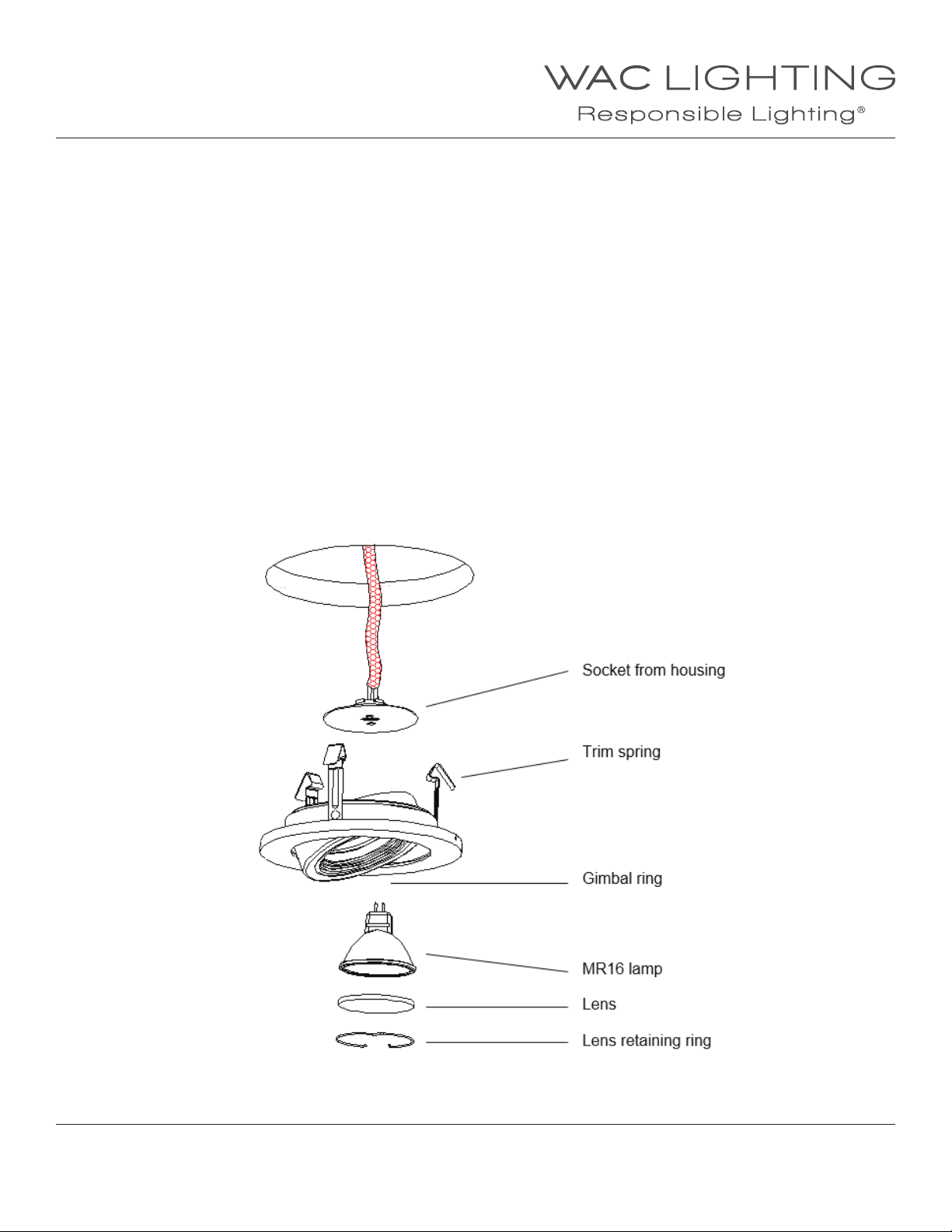

1. From the front of trim, insert the MR16 lamp followed by the clear glass lens, and secure with the lens retaining ring.

2. Attach the socket from the housing by pushing gently on to the pins of the MR16 lamp.

3. Push the trim springs into the housing until the trim ring is ush against the ceiling.

WAC Lighting

www.waclighting.com
Phone [phone] • Fax [phone]

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUNE, 2014
