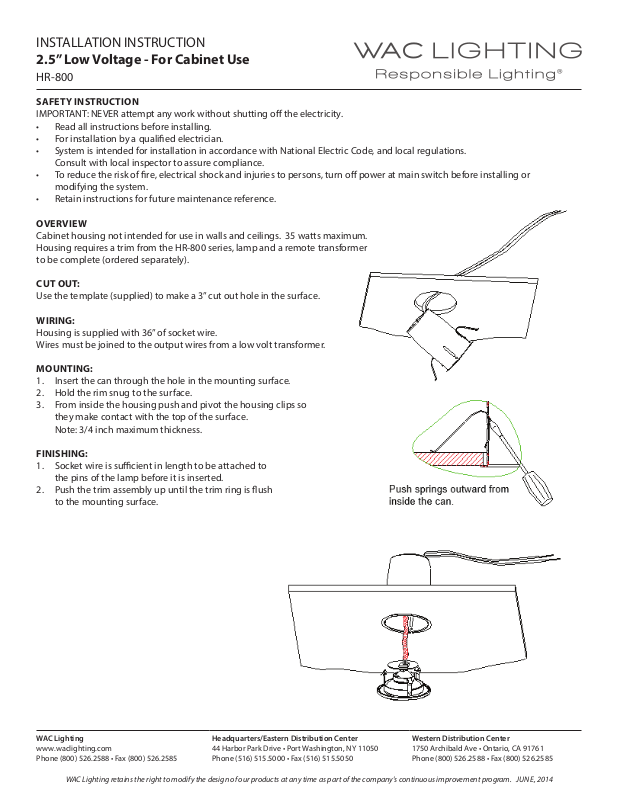

INSTALLATION INSTRUCTION

2.5” Low Voltage - For Cabinet Use

HR-800

SAFETY INSTRUCTION

IMPORTANT: NEVER attempt any work without shutting o the electricity.

• Read all instructions before installing.

• For installation by a qualied electrician.

• System is intended for installation in accordance with National Electric Code, and local regulations.
Consult with local inspector to assure compliance.

• To reduce the risk of re, electrical shock and injuries to persons, turn o power at main switch before installing or
modifying the system.

• Retain instructions for future maintenance reference.

OVERVIEW
Cabinet housing not intended for use in walls and ceilings. 35 watts maximum.
Housing requires a trim from the HR-800 series, lamp and a remote transformer
to be complete (ordered separately).

CUT OUT:

Use the template (supplied) to make a 3” cut out hole in the surface.

WIRING:

Housing is supplied with 36” of socket wire.
Wires must be joined to the output wires from a low volt transformer.

MOUNTING:

1. Insert the can through the hole in the mounting surface.

2. Hold the rim snug to the surface.

3. From inside the housing push and pivot the housing clips so
they make contact with the top of the surface.
Note: 3/4 inch maximum thickness.

FINISHING:

1. Socket wire is sucient in length to be attached to
the pins of the lamp before it is inserted.

2. Push the trim assembly up until the trim ring is ush
to the mounting surface.

WAC Lighting

www.waclighting.com
Phone [phone] • Fax [phone]

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUNE, 2014
