CATALOG NUMBER
TYPE
PROJECT

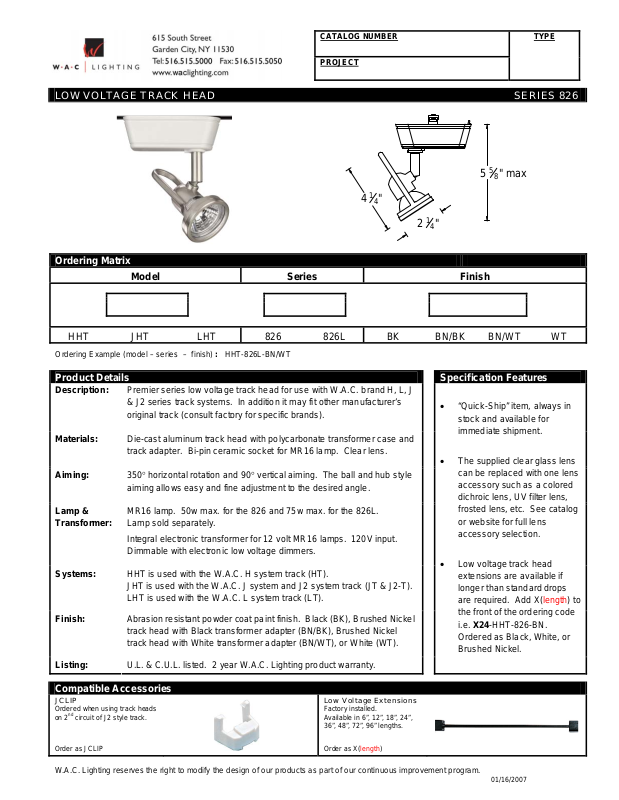

LOW VOLTAGE TRACK HEAD SERIES 826
4
1
"
4
1
2
"
4
5
5
" max
8
Ordering Matrix
Model Series Finish
HHT JHT LHT 826 826L BK BN/BK BN/WT WT
Ordering Example (model – series – finish) : HHT-826L-BN/WT
Product Details
Description:
Materials:
Aiming:
Lamp &
Transformer:
Systems:
Finish:
Listing:
Premier series low voltage track head for use with W.A.C. brand H, L, J
& J2 series track systems. In addition it may fit other manufacturer’s
original track (consult factory for specific brands).
Die-cast aluminum track head with polycarbonate transformer case and
track adapter. Bi-pin ceramic socket for MR16 lamp. Clear lens.
350° horizontal rotation and 90° vertical aiming. The ball and hub style
aiming allows easy and fine adjustment to the desired angle.
MR16 lamp. 50w max. for the 826 and 75w max. for the 826L.
Lamp sold separately.
Integral electronic transformer for 12 volt MR16 lamps. 120V input.
Dimmable with electronic low voltage dimmers.
HHT is used with the W.A.C. H system track (HT).
JHT is used with the W.A.C. J system and J2 system track (JT & J2-T).
LHT is used with the W.A.C. L system track (LT).
Abrasion resistant powder coat paint finish. Black (BK), Brushed Nickel
track head with Black transformer adapter (BN/BK), Brushed Nickel
track head with White transformer adapter (BN/WT), or White (WT).
U.L. & C.U.L. listed. 2 year W.A.C. Lighting product warranty.
Specification Features
• “Quick-Ship” item, always in
stock and available for
immediate shipment.
• The supplied clear glass lens
can be replaced with one lens
accessory such as a colored
dichroic lens, UV filter lens,
frosted lens, etc. See catalog
or website for full lens
accessory selection.
• Low voltage track head
extensions are available if
longer than standard drops
are required. Add X(length) to
the front of the ordering code
i.e. X24-HHT-826-BN.
Ordered as Black, White, or
Brushed Nickel.
Compatible Accessories
JCLIP
Ordered when using track heads
nd
on 2
circuit of J2 style track.
Order as JCLIP
W.A.C. Lighting reserves the right to modify the design of our products as part of our continuous improvement program.
Low Voltage Extensions
Factory installed.
Available in 6”, 12”, 18”, 24”,
36”, 48”, 72”, 96” lengths.
Order as X(length)
01/16/2007
