CATALOG NUMBER
TYPE
PROJECT

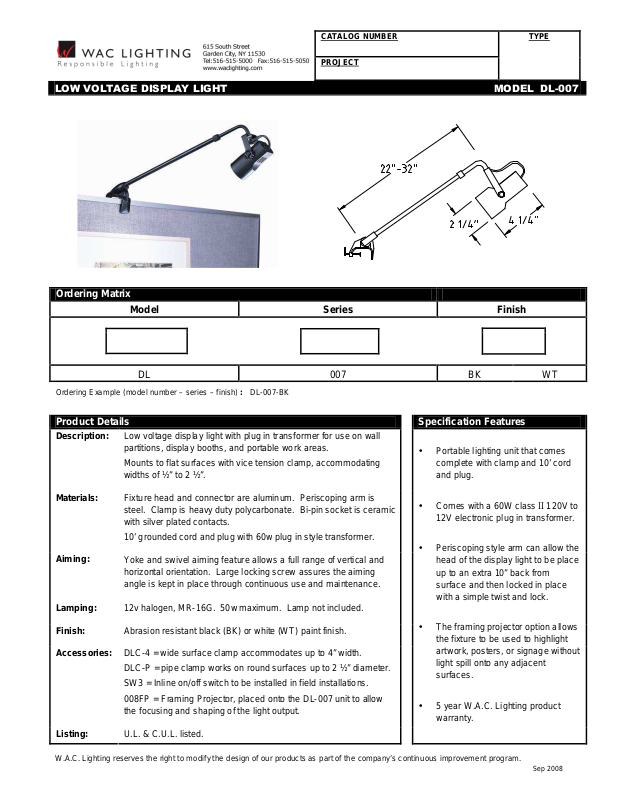

LOW VOLTAGE DISPLAY LIGHT MODEL DL-007
Ordering Matrix
Model Series Finish
DL 007 BK WT
Ordering Example (model number – series – finish) : DL-007-BK
Product Details Specification Features
Description:
Materials:
Aiming:
Lamping:
Finish: Abrasion resistant black (BK) or white (WT) paint finish.
Accessories: DLC-4 = wide surface clamp accommodates up to 4” width.
Listing: U.L. & C.U.L. listed.
W.A.C. Lighting reserves the right to modify the design of our products as part of the company’s continuous improvement program.
Low voltage display light with plug in transformer for use on wall
partitions, display booths, and portable work areas.
Mounts to flat surfaces with vice tension clamp, accommodating
widths of ½” to 2 ½”.
Fixture head and connector are aluminum. Periscoping arm is
steel. Clamp is heavy duty polycarbonate. Bi-pin socket is ceramic
with silver plated contacts.
10’ grounded cord and plug with 60w plug in style transformer.
Yoke and swivel aiming feature allows a full range of vertical and
horizontal orientation. Large locking screw assures the aiming
angle is kept in place through continuous use and maintenance.
12v halogen, MR-16G. 50w maximum. Lamp not included.
DLC-P = pipe clamp works on round surfaces up to 2 ½” diameter.
SW3 = Inline on/off switch to be installed in field installations.
008FP = Framing Projector, placed onto the DL-007 unit to allow
the focusing and shaping of the light output.
• Portable lighting unit that comes
complete with clamp and 10’ cord
and plug.
• Comes with a 60W class II 120V to
12V electronic plug in transformer.
• Periscoping style arm can allow the
head of the display light to be place
up to an extra 10” back from
surface and then locked in place
with a simple twist and lock.
• The framing projector option allows
the fixture to be used to highlight
artwork, posters, or signage without
light spill onto any adjacent
surfaces.
• 5 year W.A.C. Lighting product
warranty.
Sep 2008
