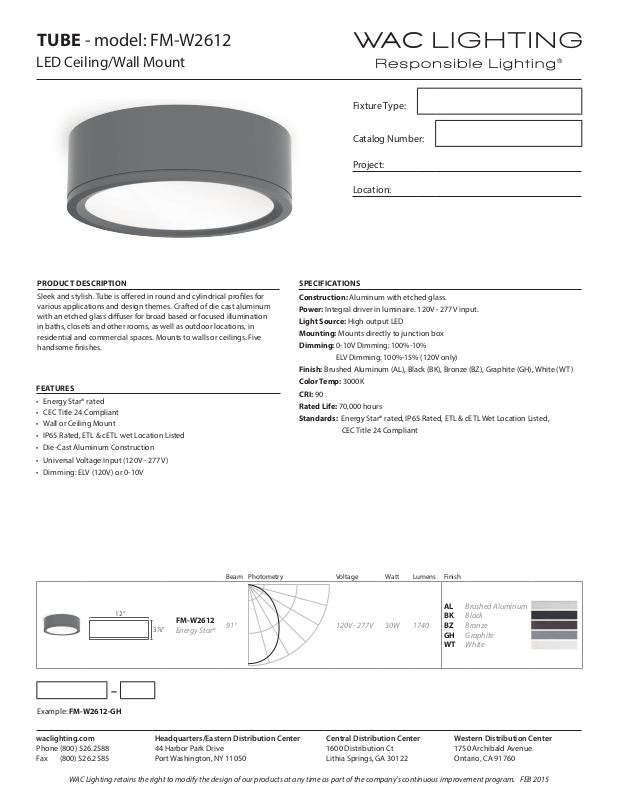

WAC Lighting W000703969 Specifications

TUBE - model: FM-W2612

LED Ceiling/Wall Mount

Fixture Type:

Catalog Number:

Project:

Location:

PRODUCT DESCRIPTION

Sleek and stylish. Tube is oered in round and cylindrical proles for
various applications and design themes. Crafted of die cast aluminum
with an etched glass diuser for broad based or focused illumination
in baths, closets and other rooms, as well as outdoor locations, in
residential and commercial spaces. Mounts to walls or ceilings. Five
handsome nishes.

FEATURES

• Energy Star® rated

• CEC Title 24 Compliant

• Wall or Ceiling Mount

• IP65 Rated, ETL & cETL wet Location Listed

• Die-Cast Aluminum Construction

• Universal Voltage Input (120V - 277V)

• Dimming: ELV (120V) or 0-10V

Beam Photometry Voltage Watt Lumens Finish

SPECIFICATIONS

Construction: Aluminum with etched glass.

Power: Integral driver in luminaire. 120V - 277V input.

Light Source: High output LED

Mounting: Mounts directly to junction box

Dimming:

ELV Dimming: 100%-15% (120V only)

Finish: Brushed Aluminum (AL), Black (BK), Bronze (BZ), Graphite (GH), White (WT )

Color Temp: 3000K

CRI: 90

Rated Life: 70,000 hours

Standards: Energy Star® rated, IP65 Rated, ETL & cETL Wet Location Listed,

CEC Title 24 Compliant

0-10V Dimming: 100%-10%

–

Example: FM-W2612-GH

waclighting.com

Phone [phone]
Fax [phone]

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. FEB 2015

12”

FM-W2612

3d”

Energy Star®

Headquarters/Eastern Distribution Center

44 Harbor Park Drive
Port Washington, NY 11050

91° 120V - 277V 30W 1740

Central Distribution Center

1600 Distribution Ct
Lithia Springs, GA 30122

AL

Brushed Aluminum

BK

Black

BZ

Bronze

GH

Graphite

WT

White

Western Distribution Center

1750 Archibald Avenue
Ontario, CA 91760
