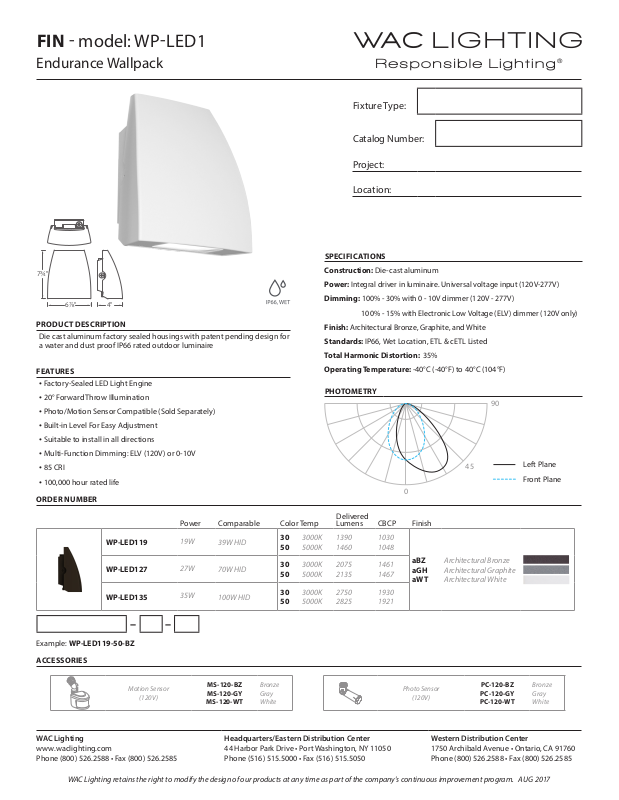

FIN model: WPLED1
Endurance Wallpack
7w"
6d"
PRODUCT DESCRIPTION
Die cast aluminum factory sealed housings with patent pending design for
a water and dust proof IP66 rated outdoor luminaire
FEATURES
• Factory-Sealed LED Light Engine
• 20° Forward Throw Illumination
• Photo/Motion Sensor Compatible (Sold Separately)
• Built-in Level For Easy Adjustment
• Suitable to install in all directions
• Multi-Function Dimming: ELV (120V) or 0-10V
• 85 CRI
• 100,000 hour rated life
ORDER NUMBER
4"
WP-LED119
WP-LED127
WP-LED135
Power Comparable Color Temp
19W
27W
35W
39W HID
70W HID
100W HID
30503000K
5000K
30503000K
5000K
30503000K
5000K
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFICATIONS
Construction: Die-cast aluminum
Integral driver in luminaire. Universal voltage input (120V-277V)
Power:
Dimming:
100% - 15% with Electronic Low Voltage (ELV) dimmer (120V only)
Finish:
Standards: IP66, Wet Location, ETL & cETL Listed
Total Harmonic Distortion: 35%
Operating Temperature: -40°C (-40°F) to 40°C (104°F)
PHOTOMETRY
100% - 30% with 0 - 10V dimmer (120V - 277V)
Architectural Bronze, Graphite, and White
0
Delivered
Lumens CBCP Finish
1390
1460
2075
2135
2750
2825
1030
1048
1461
1467
1930
1921
aBZ
aGH
aWT
Architectural Bronze
Architectural Graphite
Architectural White
45
90
Left Plane
Front Plane
– –
Example: WP-LED119-50-BZ
ACCESSORIES
Motion Sensor
(120V)
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. AUG 2017
MS-120-BZ
MS-120-GY
MS-120-WT
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Bronze
Gray
White
Photo Sensor
(120V)
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
PC-120-BZ
PC-120-GY
PC-120-WT
Bronze
Gray
White
