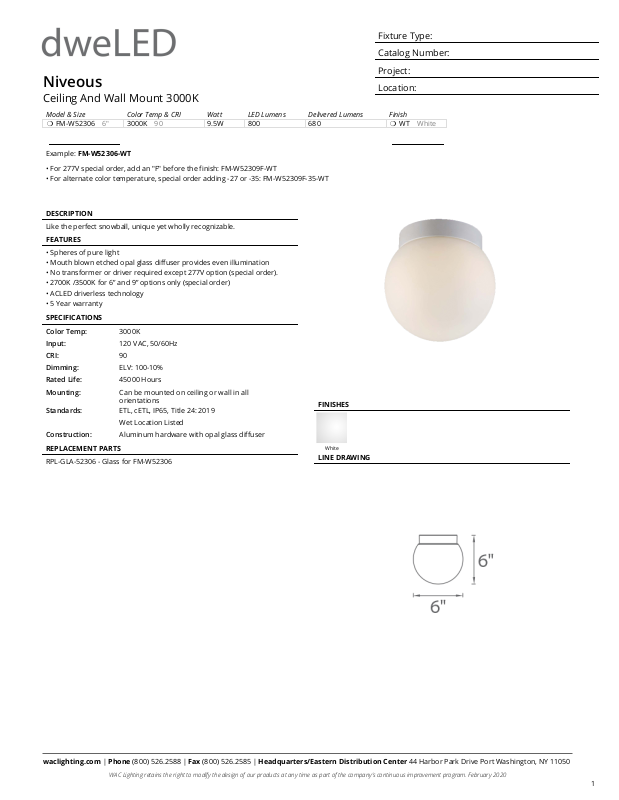

Page 1
Niveous
❍
❍
Ceiling And Wall Mount 3000K
Model & Size
FM-W52306
Example: FM-W52306-WT
• For 277V special order, add an "F" before the finish: FM-W52309F-WT
• For alternate color temperature, special order adding -27 or -35: FM-W52309F-35-WT
DESCRIPTION
Like the perfect snowball, unique yet wholly recognizable.
FEATURES
• Spheres of pure light
• Mouth blown etched opal glass diffuser provides even illumination
• No transformer or driver required except 277V option (special order).
• 2700K /3500K for 6” and 9” options only (special order)
• ACLED driverless technology
• 5 Year warranty
SPECIFICATIONS
Color Temp:
Input:
CRI:
Dimming:
Rated Life:
Mounting:
Standards:
Construction:
REPLACEMENT PARTS
RPL-GLA-52306 - Glass for FM-W52306
Color Temp & CRI
6" 3000K 90 9.5W 800 680 WT White
3000K
120 VAC, 50/60Hz
90
ELV: 100-10%
45000 Hours
Can be mounted on ceiling or wall in all
orientations
ETL, cETL, IP65, Title 24: 2019
Wet Location Listed
Aluminum hardware with opal glass diffuser
Watt
LED Lumens
Delivered Lumens
FINISHES
White
LINE DRAWING
Fixture Type:
Catalog Number:
Project:
Location:
Finish
waclighting.com | Phone (800) 526.2588 | Fax (800) 526.2585 | Headquarters/Eastern Distribution Center 44 Harbor Park Drive Port Washington, NY 11050
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. February 2020
1
Page 2
Niveous
❍
❍
Ceiling And Wall Mount 3000K
Model & Size
FM-W52309
Example: FM-W52309-WT
• For 277V special order, add an "F" before the finish: FM-W52309F-WT
• For alternate color temperature, special order adding -27 or -35: FM-W52309F-35-WT
DESCRIPTION
Like the perfect snowball, unique yet wholly recognizable.
FEATURES
• Spheres of pure light
• Mouth blown etched opal glass diffuser provides even illumination
• No transformer or driver required except 277V option (special order).
• 2700K /3500K for 6” and 9” options only (special order)
• ACLED driverless technology
• 5 Year warranty
SPECIFICATIONS
Color Temp:
Input:
CRI:
Dimming:
Rated Life:
Mounting:
Standards:
Construction:
REPLACEMENT PARTS
RPL-GLA-52309 - Glass for FM-W52309
Color Temp & CRI
9" 3000K 90 18W 1600 1428 WT White
3000K
120 VAC, 50/60Hz
90
ELV: 100-10%
45000 Hours
Can be mounted on ceiling or wall in all
orientations
ETL, cETL, IP65, Title 24: 2019
Wet Location Listed
Aluminum hardware with opal glass diffuser
Watt
LED Lumens
Delivered Lumens
FINISHES
White
LINE DRAWING
Fixture Type:
Catalog Number:
Project:
Location:
Finish
waclighting.com | Phone (800) 526.2588 | Fax (800) 526.2585 | Headquarters/Eastern Distribution Center 44 Harbor Park Drive Port Washington, NY 11050
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. February 2020
2
Page 3
Niveous
❍
❍
Ceiling And Wall Mount 3000K
Model & Size
FM-W52312
Example: FM-W52312-WT
• For 277V special order, add an "F" before the finish: FM-W52309F-WT
• For alternate color temperature, special order adding -27 or -35: FM-W52309F-35-WT
DESCRIPTION
Like the perfect snowball, unique yet wholly recognizable.
FEATURES
• Spheres of pure light
• Mouth blown etched opal glass diffuser provides even illumination
• No transformer or driver required except 277V option (special order).
• 2700K /3500K for 6” and 9” options only (special order)
• ACLED driverless technology
• 5 Year warranty
SPECIFICATIONS
Color Temp:
Input:
CRI:
Dimming:
Rated Life:
Mounting:
Standards:
Construction:
REPLACEMENT PARTS
RPL-GLA-52312 - Glass for FM-W52312
Color Temp & CRI
12" 3000K 90 24W 2229 1900 WT White
3000K
120 VAC, 50/60Hz
90
ELV: 100-10%
45000 Hours
Can be mounted on ceiling or wall in all
orientations
ETL, cETL, IP65, Title 24: 2019
Wet Location Listed
Aluminum hardware with opal glass diffuser
Watt
LED Lumens
Delivered Lumens
FINISHES
White
LINE DRAWING
Fixture Type:
Catalog Number:
Project:
Location:
Finish
Powered by TCPDF (www.tcpdf.org)
waclighting.com | Phone (800) 526.2588 | Fax (800) 526.2585 | Headquarters/Eastern Distribution Center 44 Harbor Park Drive Port Washington, NY 11050
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. February 2020
3
