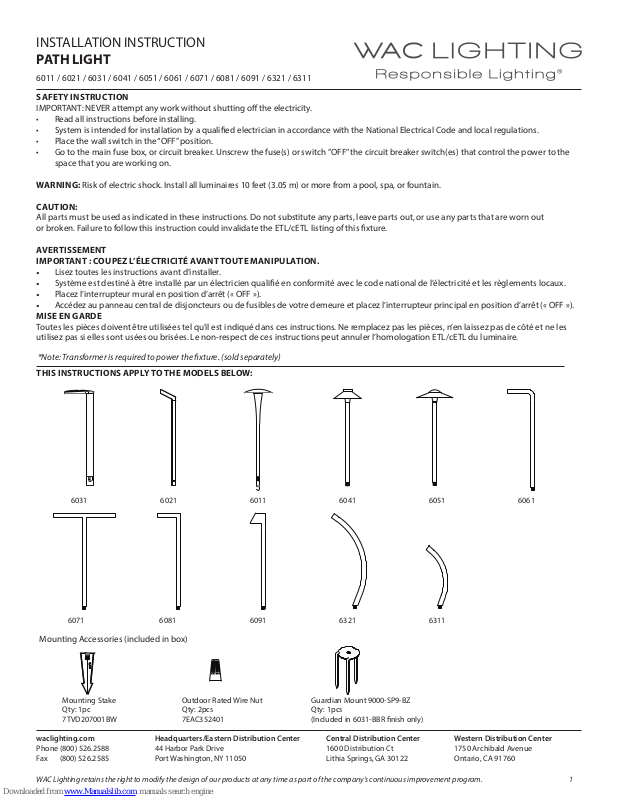

INSTALLATION INSTRUCTION
PATH LIGHT
6011 / 6021 / 6031 / 6041 / 6051 / 6061 / 6071 / 6081 / 6091 / 6321 / 6311
SAFETY INSTRUCTION
IMPORTANT: NEVER attempt any work without shutting o the electricity.
• Read all instructions before installing.
• System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.
• Place the wall switch in the “OFF” position.
• Go to the main fuse box, or circuit breaker. Unscrew the fuse(s) or switch ”OFF” the circuit breaker switch(es) that control the power to the
space that you are working on.
WARNING: Risk of electric shock. Install all luminaires 10 feet (3.05 m) or more from a pool, spa, or fountain.
CAUTION:
All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out
or broken. Failure to follow this instruction could invalidate the ETL/cETL listing of this xture.
AVERTISSEMENT
IMPORTANT : COUPEZ L’ÉLECTRICITÉ AVANT TOUTE MANIPULATION.
• Lisez toutes les instructions avant d’installer.
• Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les règlements locaux.
• Placez l’interrupteur mural en position d’arrêt (« OFF »).
• Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en position d’arrêt (« OFF »).
MISE EN GARDE
Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en laissez pas de côté et ne les
utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler l’homologation ETL/cETL du luminaire.
*Note: Transformer is required to power the xture. (sold separately)
THIS INSTRUCTIONS APPLY TO THE MODELS BELOW:
6031
6071 6081 6091 6321 6311
6021
6011 6041 6051 6061
Mounting Accessories (included in box)
Mounting Stake
Qty: 1pc
7TVD207001BW
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. 1
Outdoor Rated Wire Nut
Qty: 2pcs
7EAC352401
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Guardian Mount 9000-SP9-BZ
Qty: 1pcs
(Included in 6031-BBR nish only)
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
INSTALLATION INSTRUCTION
PATH LIGHT
6011 / 6021 / 6031 / 6041 / 6051 / 6061 / 6071 / 6081 / 6091 / 6321 / 6311
INSTALLATION
STEP 1:
1. Make sure your main power is o.
2. At the point of installation, mount the stake by placing
a piece of wood on the stake and hammering the wood.
Hammer till the bottom of the ring is ush with the ground.
Wood
Hammer
3. In the case of hard soil, dig a hole and place the stake in
so that the bottom of the ring is ush with the ground.
Fill the rest of the hole with the removed soil and pack it
tight to secure the stake.
4. Screw the xture onto the stake provided, leading the wire
from the xture through the wire slot in the stake.
STEP 2:
5. Cut the power supply wire from the transformer at the
location of the xture.
6. Separate the power supply wire into two individual wires
by lightly pulling on each side so that a couple inches is
separated.
7. Strip o ½ inch of the insulating material from each wire and
connect one to each of the wires from the xture using the
outdoor rated direct burial wire nuts provided.
Mounting Stake
Soil
Path Lighting
Fixture
Wire Slot
Fixture Wires
Mounting Stake
Note: To install multiple xtures, also connect the power supply wire of each
additional xture to the connection described in 7 of the previous xture.
To Next Fixture
Transformer
STEP 3:
8. Screw the xture onto the stake provided, leading the wire
from the xture through the wire slot in the stake.
9. If desired, bury your wire by digging a small trench. Close the
trench by applying an inward force to both sides of the trench.
10. Repeat steps for other xtures in the same electrical circuit.
11. Turn the main power supply back on and make sure the
xtures light up.
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. 2
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Transformer
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Path LightingFixture
Supply Wire between Fixtures
Mounting Stake
Soil
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
