Page 1
www.wackergroup.com
0170814en 003
0108
Generator
GV 6600A
OPERATOR’S MANUAL
0170814EN
Page 2
DANGER
CARBON MONOXIDE
Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide (CO). This is a poison you cannot see or
smell. If you can smell the generator exhaust, you are breathing CO. But even if you cannot
smell the exhaust, you could be breathing CO.
• NEVER use a generator inside homes, garages, crawlspaces, or other partly enclosed
areas. Deadly levels of carbon monoxide can build up in these areas. Using a fan or
opening windows and doors does NOT supply enough fresh air.
• ONLY use a generator outside and far away from windows, doors, and vents. These
openings can pull in generator exhaust.
Even when you use a generator correctly, CO may leak into the home. ALWAYS use a
battery-powered or battery-backup CO alarm in the home.
If you start to feel sick, dizzy, or weak after the generator has been running, move to fresh
air RIGHT AWAY. See a doctor. You could have carbon monoxide poison.
Page 3
GV 6600A Table of Contents
1. Foreword 5
2. Safety Information 6
2.1 Laws Pertaining to Spark Arresters ...................................................... 6
2.2 Operating Safety .................................................................................. 7
2.3 Operator Safety while using Internal Combustion Engines .................. 9
2.4 Service Safety .................................................................................... 10
2.5 Label Locations .................................................................................. 11

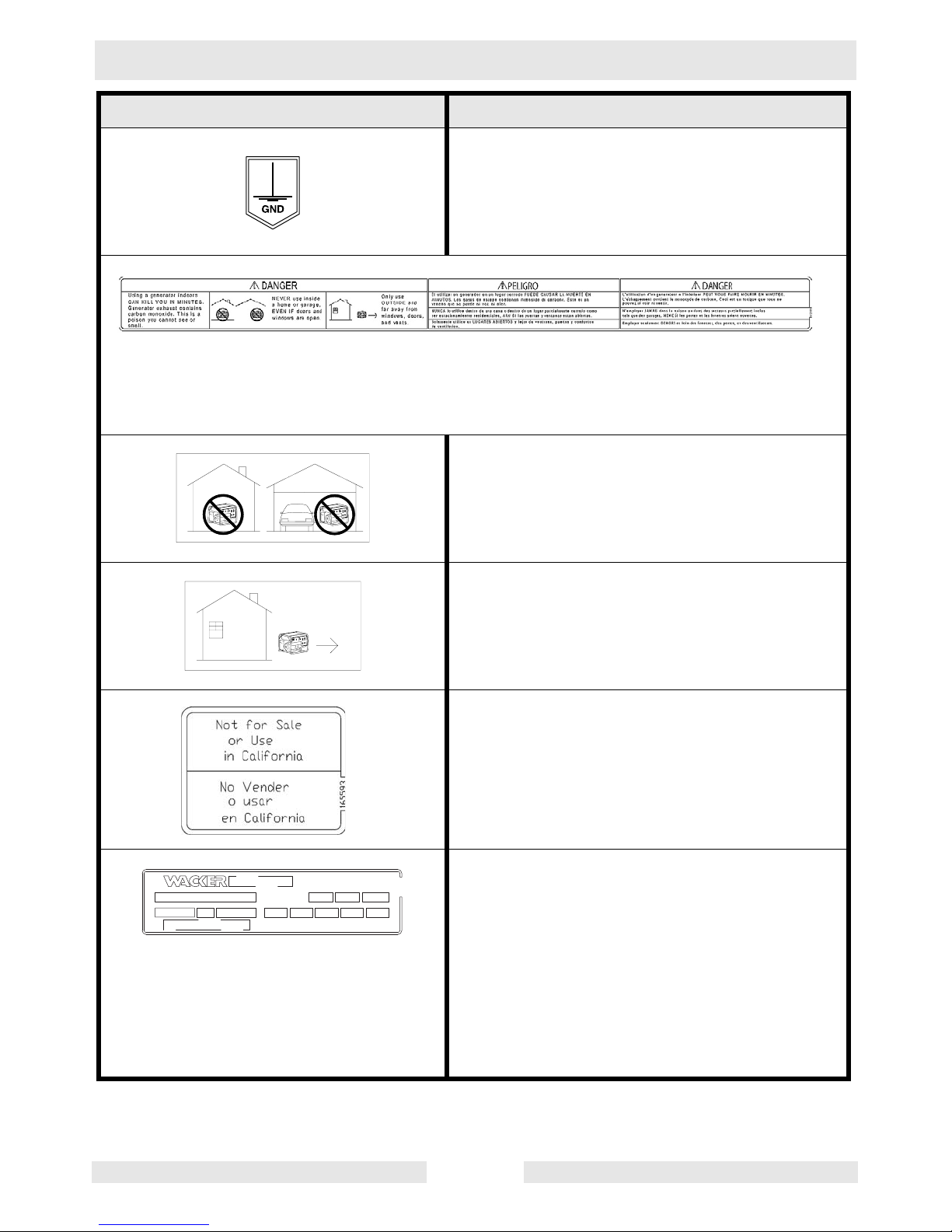

2.6 Safety and Operating Labels .............................................................. 12
3. Operation 15
3.1 Determining Power Requirements ..................................................... 15
3.2 Installation .......................................................................................... 16

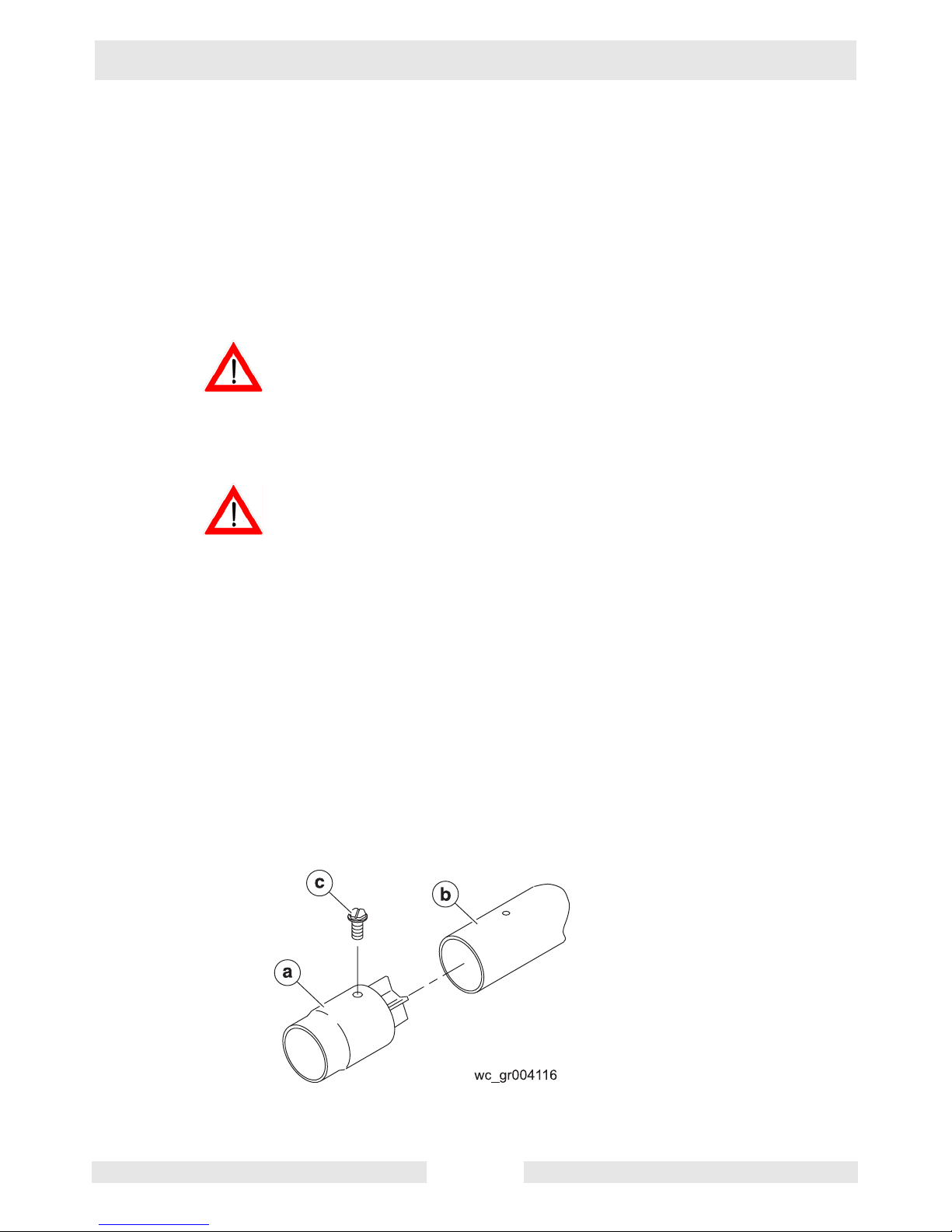

3.3 Installing Spark Arrester ..................................................................... 16
3.4 Generator Derating ............................................................................. 17

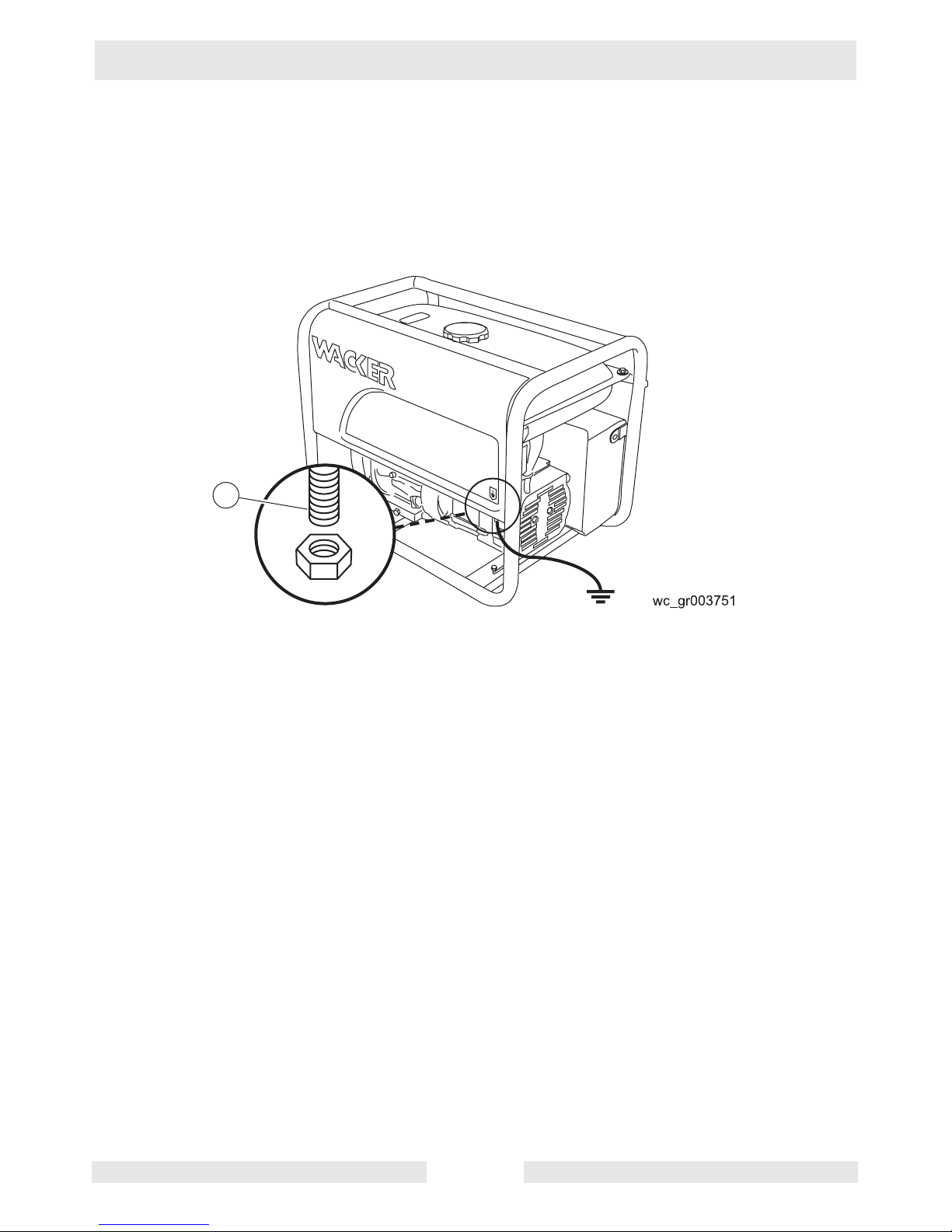

3.5 Grounding the Generator ................................................................... 18
3.6 Operating Heavy Loads ...................................................................... 18
3.7 Use of Extension Cords ...................................................................... 19

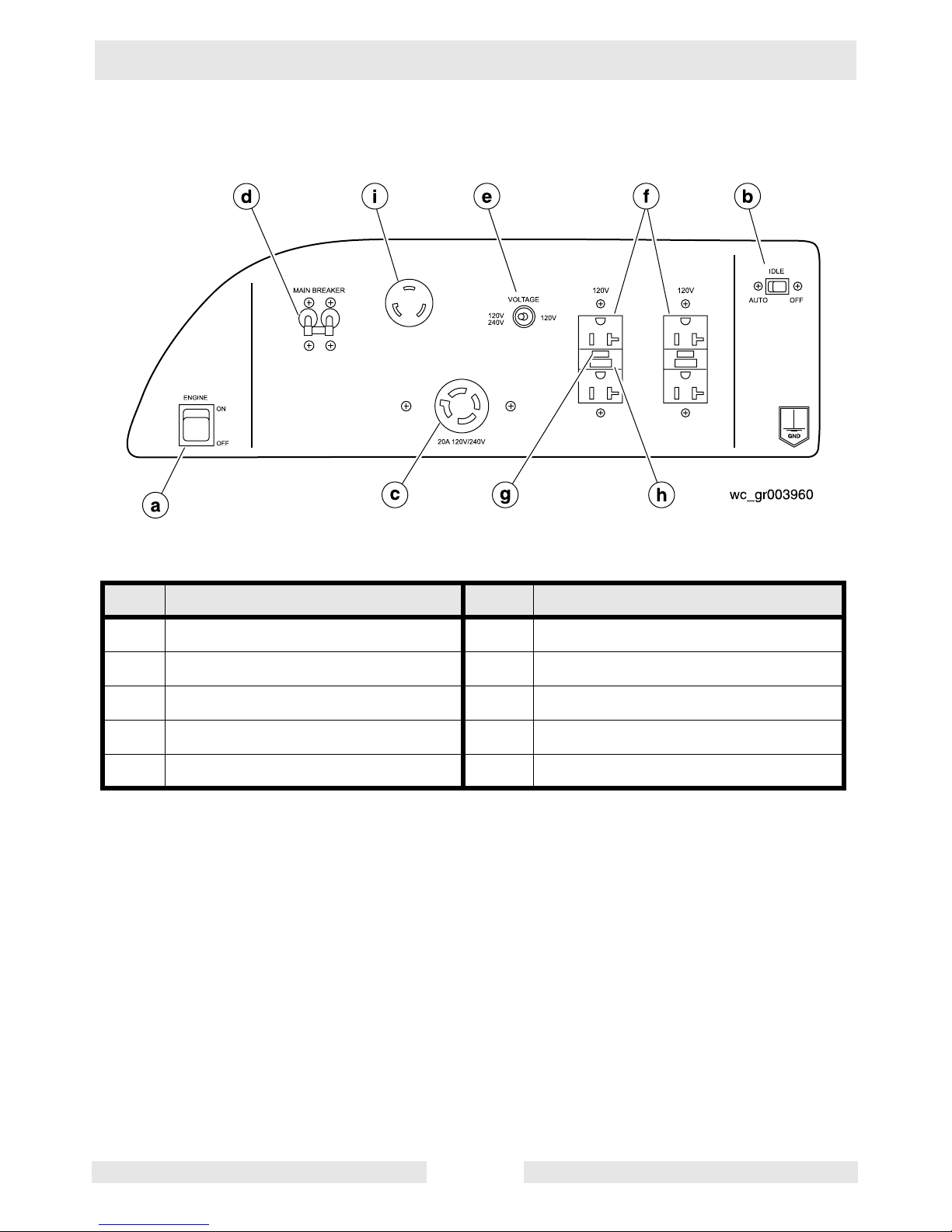

3.8 Control Panel ...................................................................................... 20
3.9 Ground Fault Interrupt (GFI) ............................................................... 21
3.10 Main Circuit Breaker ........................................................................... 21
3.11 Voltage Selection ............................................................................... 22
3.12 Engine Auto Idle ................................................................................. 22
3.13 Before Starting ................................................................................... 23

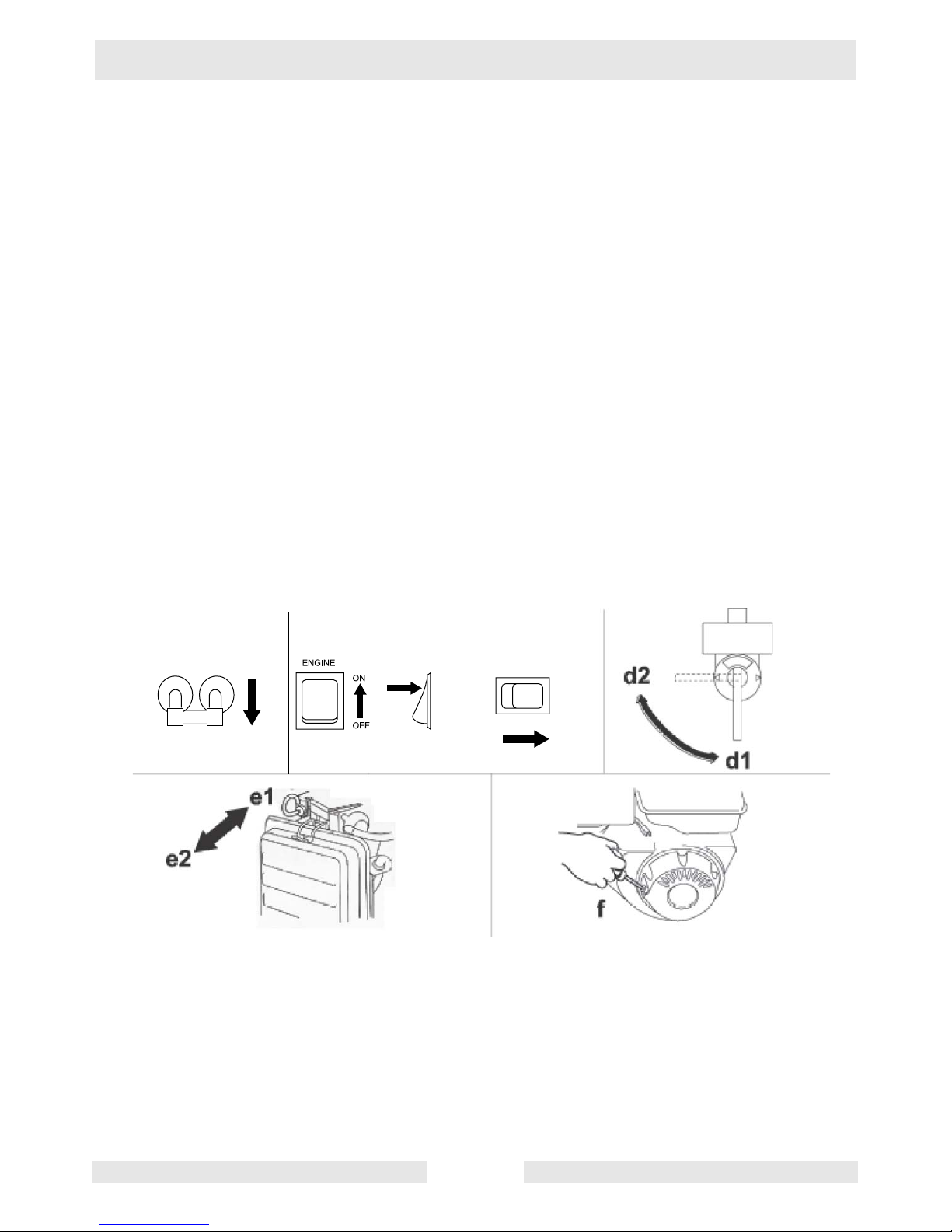

3.14 To Start ............................................................................................... 24
3.15 To Stop ............................................................................................... 25
wc_bo0170814en_003TOC.fm 3
Page 4
Table of Contents GV 6600A
4. Maintenance 26
4.1 Engine Maintenance ............................................................................26
4.2 Periodic Maintenance Schedule ..........................................................26
4.3 Engine Oil ............................................................................................27

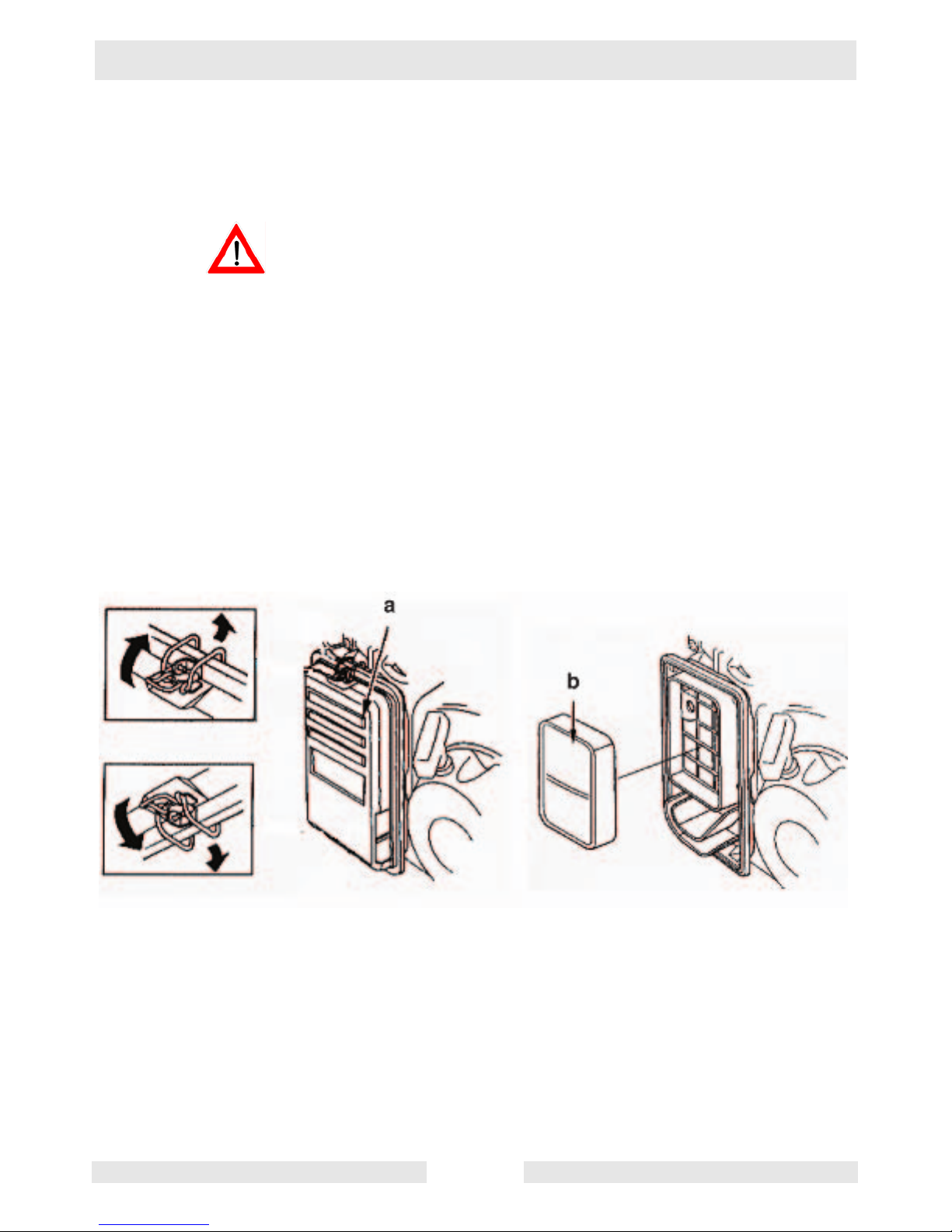

4.4 Servicing Air Cleaner ...........................................................................28

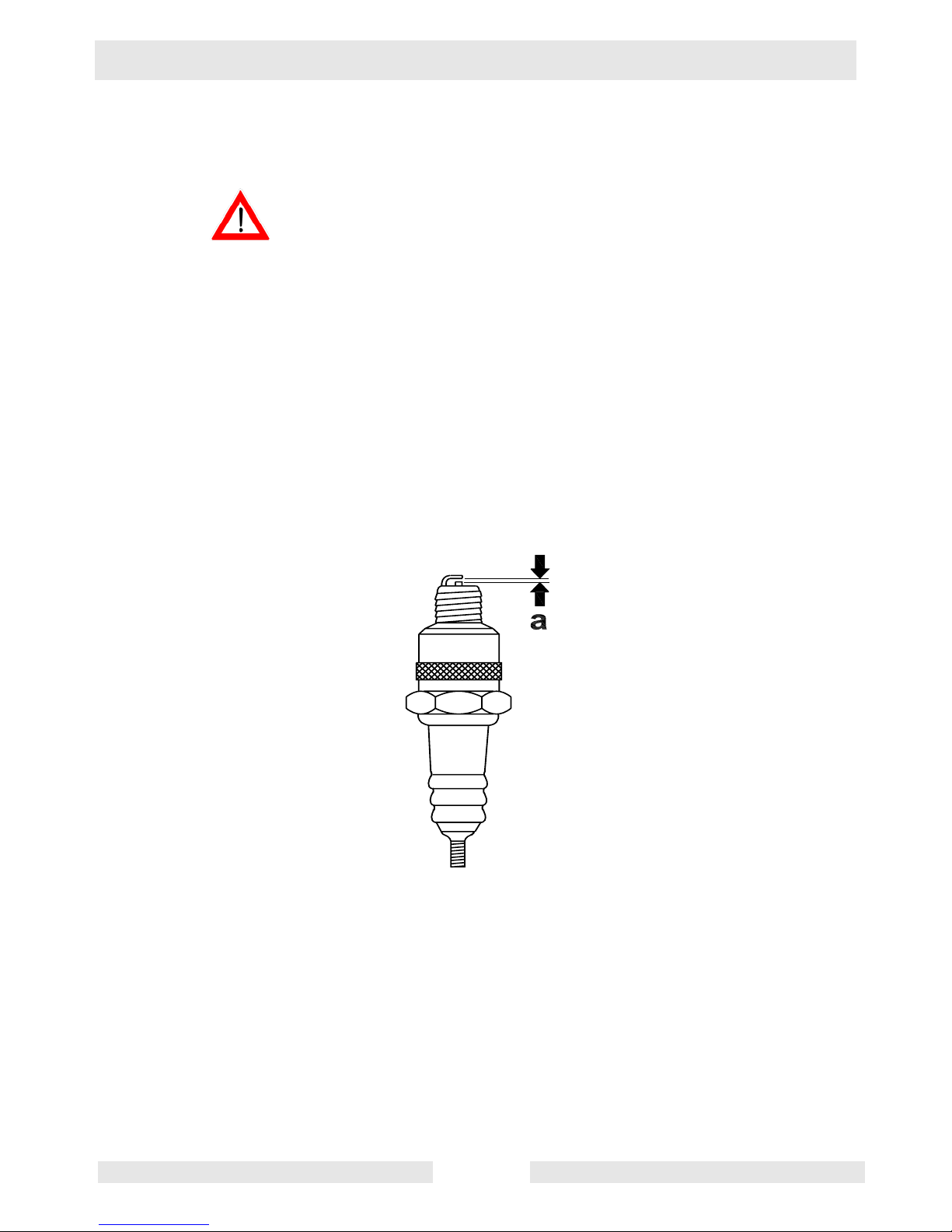

4.5 Spark Plug ...........................................................................................29

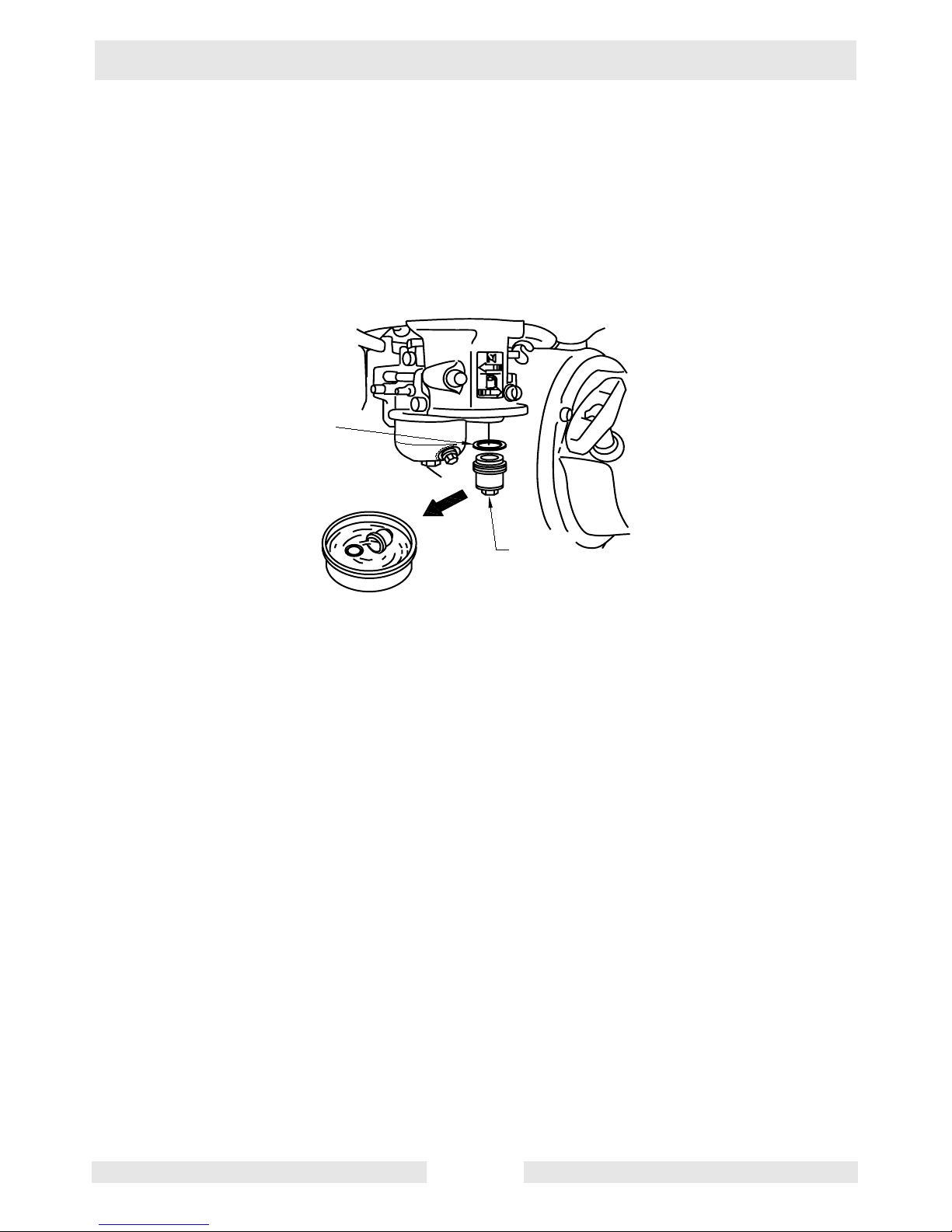

4.6 Cleaning the Sediment Cup ................................................................30
4.7 Storage ................................................................................................31
4.8 Transport .............................................................................................32
4.9 Troubleshooting ...................................................................................33
5. Technical Data 34
5.1 Generator ............................................................................................34
5.2 Engine .................................................................................................35
5.3 Electrical Schematic ............................................................................36
5.4 Schematic Components ......................................................................37
wc_bo0170814en_003TOC.fm 4
Page 5
WARNING
1. Foreword
CALIFORNIA
Proposition 65 Warning:
Engine exhaust, some of its constituents, and certain vehicle
components, contain or emit chemicals known to the State of
California to cause cancer and birth defects or other reproductive
harm.
This manual provides information and procedures to safely operate
and maintain this Wacker model. For your own safety and protection
from injury, carefully read, understand and observe the safety
instructions described in this manual.
Keep this manual or a copy of it with the machine. If you lose this
manual or need an additional copy, please contact Wacker
Corporation. This machine is built with user safety in mind; however,
it can present hazards if improperly operated and serviced. Follow
operating instructions carefully! If you have questions about operating
or servicing this equipment, please contact Wacker Corporation.
The information contained in this manual was based on machines in
production at the time of publication. Wacker Corporation reserves the
right to change any portion of this information without notice.
All rights, especially copying and distribution rights, are reserved.
Copyright 2007 by Wacker Corporation.
No part of this publication may be reproduced in any form or by any
means, electronic or mechanical, including photocopying, without
express written permission from Wacker Corporation.
Any type of reproduction or distribution not authorized by Wacker
Corporation represents an infringement of valid copyrights and will be
prosecuted. We expressly reserve the right to make technical
modifications, even without due notice, which aim at improving our
machines or their safety standards.
wc_tx000001gb.fm 5
Page 6
Safety Information GV 6600A
2. Safety Information
This manual contains DANGER, WARNING, CAUTION, NOTICE and
NOTE callouts which must be followed to reduce the possibility of
personal injury, damage to the equipment, or improper service.
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
DANGER
WARNING indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
WARNING
CAUTION indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
CAUTION
NOTICE: Used without the safety alert symbol, NOTICE indicates a
hazardous situation which, if not avoided, could result in property
damage.
Note: Contains additional information important to a procedure.
2.1 Laws Pertaining to Spark Arresters
Notice: State Health Safety Codes and Public Resources Codes
specify that in certain locations spark arresters be used on internal
combustion engines that use hydrocarbon fuels. A spark arrester is a
device designed to prevent accidental discharge of sparks or flames
from the engine exhaust. Spark arresters are qualified and rated by
the United States Forest Service for this purpose.
In order to comply with local laws regarding spark arresters, consult
the engine distributor or the local Health and Safety Administrator.
wc_si000209gb.fm 6
Page 7
GV 6600A Safety Information
2.2 Operating Safety
Using a generator indoors CAN KILL YOU IN MINUTES. Generator
exhaust contains carbon monoxide. This is a poison you cannot see or
smell. NEVER use this generator inside a home or garage, EVEN IF
DANGER
DANGER
doors and windows are open. Only use this generator OUTSIDE and
far away from windows, doors, and vents.
BACKFEED FROM THE GENERATOR INTO THE PUBLIC POWER
DISTRIBUTION SYSTEM CAN CAUSE SERIOUS INJURY OR
DEATH TO UTILITY WORKERS!
Improper connection of generator to a building’s electrical system can
allow electrical current from the generator to backfeed into utility lines.
This may result in electrocution of utility workers, fire, or explosion.
Connections to a building’s electrical system must be made by a
qualified electrician and comply with all applicable laws and electrical
codes.
If connected to a building’s electrical system the generator must meet
the power, voltage, and frequency requirements of the equipment in
the building. Differences in power, voltage, and frequency
requirements may exist and improper connection may lead to
equipment damage, fire, and personal injury or death.
Familiarity and proper training are required for the safe operation of the
machine. Machines operated improperly or by untrained personnel
can be dangerous. Read the operating instructions contained in both
WARNING
this manual and the engine manual and familiarize yourself with the
location and proper use of all controls. Inexperienced operators should
receive instruction from someone familiar with the machine before
being allowed to operate it.
2.2.1 NEVER operate the generator when open containers of fuel, paint, or
other flammable liquids are near.
2.2.2 NEVER operate the generator, or tools attached to the generator, with
wet hands.
2.2.3 NEVER use worn electrical cords. Severe electrical shock and
equipment damage may result.
2.2.4 NEVER run the electrical cords under the generator, or over vibrating
or hot parts.
2.2.5 NEVER enclose or cover the generator when it is in use or when it is
hot.
2.2.6 NEVER overload the generator. The total amperage of the tools and
equipment attached to the generator must not exceed the load rating
of the generator.
wc_si000209gb.fm 7
Page 8
Safety Information GV 6600A
2.2.7 NEVER operate the machine in snow, rain, or standing water.
2.2.8 NEVER allow untrained personnel to operate or service the generator.
The generator set should be set up by a trained electrician.
2.2.9 NEVER stand on the machine.
2.2.10 DO NOT stand under the machine while it is being hoisted or moved.
2.2.11 DO NOT attach equipment to the machine when it is suspended.
2.2.12 ALWAYS store the equipment properly when it is not being used.
Equipment should be stored in a clean, dry location out of the reach of
children.
2.2.13 ALWAYS position and operate the generator on a firm,
noncombustible, level surface.
2.2.14 ALWAYS transport the generator in an upright position.
2.2.15 ALWAYS keep the machine far away from structures, buildings, and
other equipment during use.
2.2.16 ALWAYS keep the area immediately surrounding and underneath the
machine clean, neat, and free of debris and combustible materials.
Make sure that the area overhead is clear of debris that could fall onto
or into the machine or exhaust compartment.
2.2.17 ALWAYS remove all tools, cords, and other loose items from the
generator before starting it.
2.2.18 ALWAYS make certain the machine is well-grounded and securely
fastened to a good earthen ground per national and local regulations.
wc_si000209gb.fm 8
Page 9
GV 6600A Safety Information
2.3 Operator Safety while using Internal Combustion Engines
Internal combustion engines present special hazards during operation
and fueling. Read and follow the warning instructions in the engine
owner’s manual and the safety guidelines below. Failure to follow the
DANGER
2.3.1 NEVER use this generator inside a home or garage, EVEN IF doors
2.3.2 NEVER use a generator inside an enclosed area such as a tunnel or a
2.3.3 DO NOT smoke while operating the machine.
2.3.4 DO NOT smoke when refueling the engine.
2.3.5 DO NOT refuel a hot or running engine.
2.3.6 DO NOT refuel the engine near an open flame.
warnings and safety guidelines could result in severe injury or death.
and windows are open. Only use OUTSIDE and far away from
windows, doors, and vents. Using a generator indoors CAN KILL YOU
IN MINUTES. Generator exhaust contains carbon monoxide. This is a
poison you cannot see or smell.
trench.
2.3.7 DO NOT spill fuel when refueling the engine.
2.3.8 DO NOT run the engine near open flames.
2.3.9 DO NOT start the engine if fuel has spilled or a fuel odor is present.
Move the generator away from the spill and wipe the generator dry
before starting.
2.3.10 ALWAYS refill the fuel tank in a well-ventilated area.
2.3.11 ALWAYS replace the fuel tank cap after refueling.
2.3.12 ALWAYS check the fuel lines and the fuel tank for leaks and cracks
before starting the engine. Do not run the machine if fuel leaks are
present or the fuel lines are loose.
wc_si000209gb.fm 9
Page 10
Safety Information GV 6600A
2.4 Service Safety
Poorly maintained equipment can become a safety hazard! In order
for the equipment to operate safely and properly over a long period of
time, periodic maintenance and occasional repairs are necessary. If
WARNING
2.4.1 DO NOT use gasoline or other types of fuels or flammable solvents to
2.4.2 DO NOT attempt to clean or service the machine while it is running.
2.4.3 DO NOT modify the machine without the express written approval of
2.4.4 DO NOT allow water to accumulate around the base of the machine.
the generator is experiencing problems or is being serviced, attach a
“DO NOT START” sign to the control panel to notify other people of its
condition.
clean parts, especially in enclosed areas. Fumes from fuels and
solvents can become explosive.
the manufacturer.
If water is present, move the machine and allow the machine to dry
before servicing.
2.4.5 DO NOT service the machine if your clothing or skin is wet.
2.4.6 DO NOT allow untrained personnel to service this equipment. Only
trained electrical technicians should be allowed to service the electrical
components of this equipment.
2.4.7 ALWAYS keep the machine clean and labels legible. Replace all
missing and hard-to-read labels. Labels provide important operating
instructions and warn of dangers and hazards.
2.4.8 ALWAYS replace the safety devices and guards after repairs and
maintenance.
2.4.9 ALWAYS let the engine cool before transporting or servicing it.
2.4.10 ALWAYS keep hands, feet, and loose clothing away from the moving
parts on the generator and engine.
2.4.11 ALWAYS turn the engine off before servicing the machine. If the
engine has electric start, disconnect the negative terminal on the
battery before servicing the machine.
2.4.12 ALWAYS keep the fuel lines in good condition and properly connected.
Leaking fuel and fumes are extremely explosive.
wc_si000209gb.fm 10
Page 11
GV 6600A Safety Information
2.5 Label Locations
wc_si000209gb.fm 11
Page 12
Safety Information GV 6600A
2.6 Safety and Operating Labels
Wacker machines use international pictorial labels where needed.
These labels are described below:
Label Meaning
DANGER!
No sparks, flames or burning objects near
machine.
Shut off the engine before refueling.
WARNING!
Hot surface!
Improper connection of generator to a
building’s electrical system can allow electrical
current from the generator to backfeed into
utility lines. This may result in electrocution of
utility workers, fire, or explosion. Connections
to a building’s electrical system must be made
by a qualified electrician and comply with all
applicable laws and electrical codes.
Close main circuit breaker.
wc_si000209gb.fm 12
CAUTION!
Use only clean, filtered gasoline fuel.
Check the fuel level.
Page 13
GV 6600A Safety Information

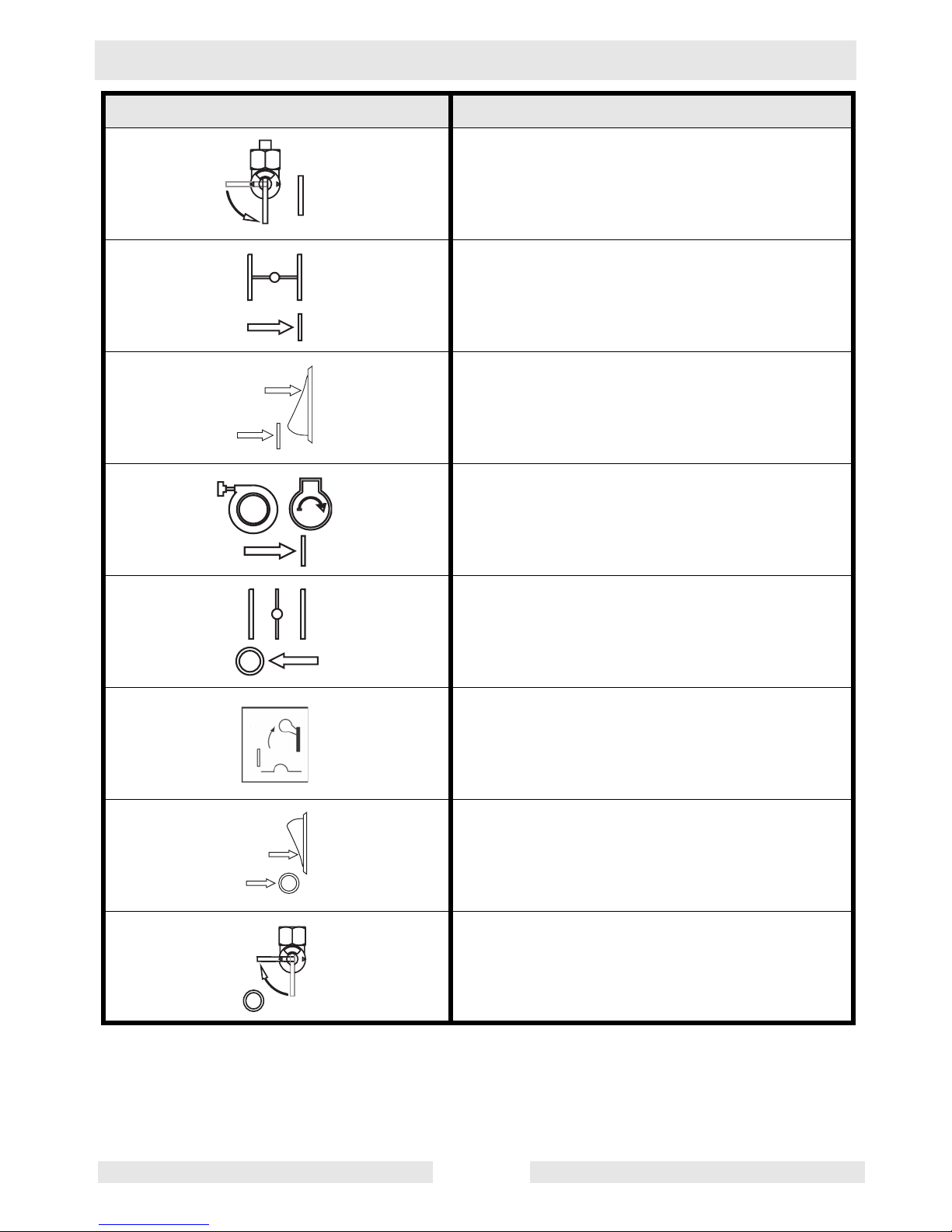

Label Meaning
Open the fuel flow valve.
Close the choke.
Turn the engine switch to the ON position.
Pull the rewind starter.
Open the choke.
Open main circuit breaker.
Turn the engine switch to “OFF”.
Close the fuel flow valve.
wc_si000209gb.fm 13
Page 14
Safety Information GV 6600A
A
MADE IN USA
Model
Item No.
Rev.
Serial No.
kg
V
kW Max
lbs
Ø
P.F.
164329
hz
Label Meaning
Electrical ground
Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains
carbon monoxide. This is a poison you cannot see or smell.
NEVER use inside a home or garage, EVEN
IF doors and windows are open.
Model
Item No.
Only use OUTSIDE and far away from
windows, doors, and vents.
This equipment does not meet California EVP
emission regulations for small off-road
engines.
A nameplate listing the model number, item
kg
kW Max
Serial No.
lbs
P.F.
Rev.
hz
MADE IN USA
164329
number, revision number, and serial number is
attached to each unit. Please record the
information found on this plate so it will be
available should the nameplate become lost or
damaged. When ordering parts or requesting
service information, you will always be asked
to specify the model number, item number,
revision number, and serial number of the unit.
wc_si000209gb.fm 14
Page 15
GV 6600A Operation
3. Operation
3.1 Determining Power Requirements
This generator is designed to operate single-phase, 60 Hz appliances
running at 120 VAC. Check the nameplate or label provided on tools
and appliances to make sure their power requirements match the
power output of the generator.
Some appliances and tools require a surge of current when starting.
This means that the amount of power needed to initially start the
equipment is larger than the power required to keep it running. The
generator must be capable of supplying this “surge” current. Other
types of appliances require more power than is actually stated on their
nameplate.
The information in “Approximate Starting Power Requirements” is
offered only as a general guideline to help you in determining power
requirements for different types of equipment. Check with your nearest
Wacker Dealer, or contact the manufacturer or dealer of the tool or
appliance, with questions regarding its power requirements.
NOTICE: If a tool or appliance does not reach full speed within a few
seconds when switched on, turn it off immediately to avoid damage.
Approximate Starting Power Requirements
• Incandescent lights and appliances such as irons and hot plates,
which use a resistive-type heating element, require the same wattage
to start and run as is stated on their nameplates.
• Fluorescent and mercury lamps require 1.2–2 times their stated
wattage to start.
• Electrical motors and many types of electrical tools often require a
large starting current. The amount of starting current depends on the
type of motor and its use.
• Most electrical tools require 1.2–3 times their stated wattage for
starting.
• Loads such as submersible pumps and air compressors require a
very large force to start. They need as much as 3–5 times the wattage
stated on the nameplate in order to start.
If the wattage is not given for a particular tool or appliance, it can be
calculated by multiplying its voltage and amperage requirements:
Single Phase: VOLTS x AMPS = WATTS
Three Phase: VOLTS x AMPS x 1.732 x 0.8 = WATTS
wc_tx000709gb.fm 15
Page 16
Operation GV 6600A
3.2 Installation
Place the generator in an area where it will not be exposed to rain,
snow, or direct sunlight. Make sure it is positioned on firm, level
ground, so it will not slide or shift. Position the engine exhaust away
from areas where people may be present.
The surrounding area must be free from water and moisture. All
components must be protected from excessive moisture.
Using a generator indoors CAN KILL YOU IN MINUTES. Generator
exhaust contains carbon monoxide. This is a poison you cannot see or
smell. NEVER use this generator inside a home or garage, EVEN IF
DANGER
DANGERDANGER
doors and windows are open. Only use this generator OUTSIDE and
far away from windows, doors, and vents.
NEVER install a generator in an enclosed area such as a tunnel or a
trench. Using a generator in a tunnel or a trench CAN KILL YOU IN
MINUTES. Generator exhaust contains carbon monoxide. This is a
poison you cannot see or smell. NEVER use this generator inside a
tunnel or a trench.
3.3 Installing Spark Arrester
A spark arrester is available as an accessory for this machine. Install
the spark arrester prior to using the machine in areas where spark
arresters are required.
To install spark arrester:
3.3.1 Position the spark arrester (a) on the engine exhaust pipe (b).
3.3.2 Secure the spark arrester with screw (c) included with spark arrester.
wc_tx000709gb.fm 16
Page 17
GV 6600A Operation
3.4 Generator Derating
All generators are subject to derating for altitude and temperature.
Internal combustion engines, unless modified, run less efficiently at
higher altitudes due to the reduction of air pressure. This translates
into a lack of power and thus reduction in generator output.
Temperature affects both engine and generator performance. As
temperature increases, an engine will run less efficiently and more
resistance will be found in electrical components. Therefore, as the
temperature increases, the output of the generator decreases. Altitude
also affects the cooling capacity of air—the higher the altitude the less
dense the air is and thus the lower its ability to transfer heat.
For every increase in altitude of 500 m (1650 ft.) above 1000 m (3300
ft.), the output of the generator will be reduced by 3%. For every
increase of 5° C (9° F) in ambient temperature above 40° C (104° F),
the output of the generator will be reduced by 3%. Use the tables
shown for altitude and temperature deration factors. It may be
necessary to consider both altitude and ambient temperature deration
factors to determine true generator output.
Ambient Temp.
°C (°F)
Derate Factor
45 (113) 3 % 0.97
50 (122) 6 % 0.94
55 (131) 9 % 0.91
60 (140) 12 % 0.88
Altitude
m (ft.)
Derate Factor
1500 (4900) 3 % 0.97
2000 (6600) 6 % 0.94
2500 (8200) 9 % 0.91
3000 (9900) 12 % 0.88
3500 (11500) 15 % 0.85
wc_tx000709gb.fm 17
4000 (13100) 18 % 0.82
Page 18
Operation GV 6600A
3.5 Grounding the Generator
A ground connection (a) is located on the generator frame. For proper
operating safety, this ground terminal must be connected to a good
ground source. This ground connection must comply with National
Electrical Code standards, and state and local regulations.
a
3.6 Operating Heavy Loads
Limit operations requiring the maximum rated output of 6600 Watts to
20–30 minutes. For continuous operation, do not exceed the
continuous rated output of 6000 Watts.
NOTICE: DO NOT exceed the current limit specified on the control
panel for any receptacle.
wc_tx000709gb.fm 18
Page 19
GV 6600A Operation
3.7 Use of Extension Cords
When a long extension cord is used to connect an appliance or tool to
the generator, a voltage loss occurs—the longer the cord, the greater
the voltage loss. This results in less voltage being supplied to the
appliance or tool and increases the amount of current draw or reduces
performance. A heavier cord with a larger wire size will reduce the
voltage loss.
Damaged extension cords can cause electrical shock, resulting in
serious injury or death. DO NOT use worn, bare, or frayed cords.
WARNING
Current Load in Watts Maximum Cable Length in Feet
(Amps) 120V 240V #10 #12 #14 #16
2.5 300 600 1000. 600 375 250
Replace damaged cords immediately.
Use the chart below as a guide for selecting proper cable size.
5 600 1200 500 300 200 125
7.5 900 1800 350 200 125 100
10 1200 2400 250 150 100 -
15 1800 3600 150 100 65 -
20 2400 4800 125 75 50 -
Use only extension cords rated for outdoor use and equipped with a
third-wire ground.
NOTICE: Operating equipment at low voltage can cause it to overheat.
wc_tx000709gb.fm 19
Page 20
Operation GV 6600A
3.8 Control Panel
Ref. Description Ref. Description
a Engine switch f GFI duplex receptacle—125V
b Auto idle switch g GFI test button
c Twist-lock receptacle—125/250V h GFI reset button
d Main circuit breaker i Twist-lock receptacle—125V
e Voltage Selector Switch (VSS) - ---
wc_tx000709gb.fm 20
Page 21
GV 6600A Operation
3.9 Ground Fault Interrupt (GFI)
See Graphic: wc_gr003960
Each of the 125V, 20 Amp receptacles (f) is equipped with a ground
fault circuit interrupt (GFI). The GFI shuts off power to the receptacle
when a ground fault occurs to a piece of equipment attached to the
generator.
The GFI should be tested for proper operation every time the generator
is used.
To test the GFI:
3.9.1 Disconnect all equipment from the generator.
3.9.2 Start the generator.
3.9.3 Push the TEST button (g) on the receptacle in. Pushing the TEST
button in shuts off power to the receptacle and causes the RESET
button (h) to pop out. If the RESET button does not pop out, the GFI is
not working. Do not operate the generator until the problem can be
corrected.
3.9.4 Push the RESET button in to restore power to the receptacle.
If the RESET button pops out during operation, stop the generator and
check the equipment attached to the generator for defects.
3.10 Main Circuit Breaker
See Graphic: wc_gr003960
The generator is protected by a two-pole, 15-Amp per pole, main
circuit breaker (d) located on the control panel.
The main circuit breaker protects the generator from severe overloads
or short circuits. If the main circuit breaker opens, turn the engine off
immediately and determine the cause before restarting. Check the
appliances and tools attached to the generator for defects and make
sure their power requirements do not exceed the power rating of the
generator or the current limit of the receptacles.
wc_tx000709gb.fm 21
Page 22
Operation GV 6600A
3.11 Voltage Selection
See Graphic: wc_gr003960
The voltage selector switch (VSS) (e) switches the generator output
between the single-voltage mode (120V) and the dual-voltage (120/
240V) mode.
In single-voltage mode, the full rated power of the generator is shared
between the two 125V GFI duplex receptacles and the 125V twist-lock
receptacle.
In dual-voltage mode, generator power is shared between the 125/
250V twist-lock receptacle, the 125V GFI duplex receptacles, and the
125V twist-lock receptacle. To achieve full power, use only the 125/
250V twist-lock receptacle. Note: Only use the 125/250V twist-lock
receptacle (j) when the VSS is in the 120V/240V position.
NOTICE: NEVER change the position of the VSS when the main
breaker is in the ON position. This can cause arcing and can damage
the generator. Turn all tools and appliances off and place the main
circuit breaker (d) in the OFF position before changing the position of
the voltage selector switch.
3.12 Engine Auto Idle
See Graphic: wc_gr003960
The auto idle switch (b) automatically reduces engine speed after all
appliances or tools attached to the generator have been turned off.
The engine automatically returns to full speed when a tool or appliance
is turned back on.
To turn the auto idle feature on, push the auto idle switch to “AUTO”.
The AUTO setting is recommended while the generator is running to
minimize fuel consumption. To avoid extended engine warm-up
periods, keep switch set to “OFF” when starting the engine and until
the engine reaches operating temperature.
wc_tx000709gb.fm 22
Page 23
GV 6600A Operation
3.13 Before Starting
3.13.1 Read and understand the safety and operating labels and instructions
at the beginning of this manual
3.13.2 Inspect the generator for any signs of damage which may affect
operation or pose a safety hazard.
3.13.3 Check:
• oil level in engine
• fuel level
• condition of air cleaner
• tightness of external fasteners
• condition of fuel lines.
Note: The engine is equipped with an oil alert system. If the oil level in
the engine drops too low, the engine will not start.
3.13.4 Fill the fuel tank with fresh, regular, unleaded grade gasoline. DO NOT
use an oil/gas mixture. The use of gasohol or any fuel containing more
than 10% ethanol is not recommended. Consult the engine owner's
manual for complete fuel specifications.
wc_tx000709gb.fm 23
Page 24
Operation GV 6600A
3.14 To Start
Before starting, be sure you read and understand all the safety and
operating instructions in this manual.
3.14.1 Disconnect all loads from the generator and place the main breaker in
the "OFF" position (a2).
3.14.2 Set the Auto Idle Switch (c) to "OFF".
3.14.3 Open the fuel valve (d1).
Note: If the engine is cold, move the choke lever to the closed position
(e2). If the engine is hot, set the choke to the open position (e1).
3.14.4 Turn the engine switch to "ON" (b1).
3.14.5 Pull the starter rope (f).
Note: If the oil level in the engine is low, the engine will not start. If this
happens, check the oil level and add oil as needed.
3.14.6 As the engine warms up, move the choke lever to the OPEN position
(e1).
3.14.7 Allow the engine to warm up for a few minutes before placing the main
MAIN BREAKER
breaker in the "ON" position (a1) and attaching loads.
a1
a2
b1
b2
IDLE
c
OFFAUTO
wc_tx000709gb.fm 24
Page 25
GV 6600A Operation
3.15 To Stop
3.15.1 Turn off and disconnect all tools and appliances attached to the
generator.
3.15.2 Place main circuit breaker in the "OFF" position (a2).
3.15.3 Turn the engine switch to "OFF" (b2).
3.15.4 Close fuel valve (d2).
Note: To stop the engine quickly in an emergency, turn the engine
switch to "OFF" (b2).
wc_tx000709gb.fm 25
Page 26
Maintenance GV 6600A
4. Maintenance
4.1 Engine Maintenance
The chart below lists basic machine and engine maintenance. Refer to
the engine manufacturer’s Operator’s Manual for additional
information on engine maintenance.
4.2 Periodic Maintenance Schedule
Check the fuel level.
Check the engine oil level.
Inspect the air filter. Replace as
needed.
Check external hardware.
Check condition of the fuel line.
Replace when necessary.
Clean the air cleaner element.*
Inspect the shockmounts for damage.
Change the engine oil.*
Clean the sediment cup or fuel
strainer.
Check and clean the spark plug.
Daily
before
starting
After
first
20 hrs.
Every
50
hrs.
Every
100
hrs.
Every
300
hrs.
Check and adjust the valve clearance.
Clean the fuel tank.*
*Service more frequently in dusty conditions.
wc_tx000710gb.fm 26
Page 27
GV 6600A Maintenance
4.3 Engine Oil
4.3.1 Drain the oil while the engine is still warm.
4.3.2 Remove the oil filler plug (a) and the drain plug (b) to drain the oil.
Note: In the interests of environmental protection, place a plastic sheet
and a container under the machine to collect any liquid that drains off.
Dispose of this liquid in accordance with environmental protection
legislation.
4.3.3 Install the drain plug.
4.3.4 Fill the engine crankcase with the recommended oil up to the level of
the plug opening (c). See Technical Data for oil quantity and type.
4.3.5 Install the oil filler plug.
wc_tx000710gb.fm 27
Page 28
Maintenance GV 6600A
4.4 Servicing Air Cleaner
Service the air cleaner frequently to prevent carburetor malfunction.
NOTICE: NEVER run the engine without the air cleaner. Severe
engine damage will occur.
NEVER use gasoline or other types of low flash-point solvents for
cleaning the air cleaner. A fire or explosion could result.
WARNING
To service:
4.4.1 Remove the air cleaner cover (a). Inspect the element (b) for holes or
tears. Replace the element if it is damaged.
4.4.2 Wash the foam element (b) in a solution of mild detergent and warm
water. Rinse it thoroughly in clean water. Allow the element to dry
thoroughly. Soak the element in clean engine oil and squeeze out
excess oil.
wc_tx000710gb.fm 28
wc_gr002815
Page 29
GV 6600A Maintenance
4.5 Spark Plug
Clean or replace the spark plug as needed to ensure proper operation.
Refer to the engine owner’s manual.
The muffler becomes very hot during operation and remains hot for a
while after stopping the engine. Do not touch the muffler while it is hot.
WARNING
Note: Refer to the Technical Data for the recommended spark plug
type and the electrode gap setting.
4.5.1 Remove the spark plug and inspect it.
4.5.2 Replace the spark plug if the insulator is cracked or chipped.
4.5.3 Clean the spark plug electrodes with a wire brush.
4.5.4 Set the electrode gap (a).
4.5.5 Tighten the spark plug securely.
NOTICE: A loose spark plug can become very hot and may cause
engine damage.
wc_tx000710gb.fm 29
Page 30
Maintenance GV 6600A
4.6 Cleaning the Sediment Cup
4.6.1 Turn the fuel valve off.
4.6.2 Remove the sediment cup (a) and the O-ring (b).
4.6.3 Wash both thoroughly in a nonflammable solvent. Dry and reinstall
them.
4.6.4 Turn the fuel valve on and check for leaks.
b
a
wc_gr000029
wc_tx000710gb.fm 30
Page 31
GV 6600A Maintenance
4.7 Storage
Before storing the generator for a long period of time:
4.7.1 Close the fuel valve and remove and empty the sediment cup or fuel
strainer.
4.7.2 Disconnect the fuel line from the carburetor. Place open end of fuel line
into a suitable container and open fuel valve to drain fuel from tank.
Gasoline is extremely flammable. Drain the fuel tank in a wellventilated area. DO NOT drain the fuel tank in an area with flames or
WARNING
4.7.3 Loosen the drain screw on the carburetor and drain any remaining fuel
4.7.4 Change the engine oil.
4.7.5 Remove the spark plug and pour approximately 30 ml (1 ounce) of
sparks.
from the carburetor.
clean engine oil into the cylinder. Crank the engine a few turns to
distribute the oil to the inside of the cylinder walls.
4.7.6 Pull the starter rope slowly until resistance is felt and leave the handle
in this position. This ensures that the intake and exhaust valves are
closed.
4.7.7 Store the generator in a clean, dry area.
wc_tx000710gb.fm 31
Page 32
Maintenance GV 6600A
4.8 Transport
Let the engine cool before transporting the generator or storing
indoors, to avoid burns or fire hazards.
WARNING
When transporting the generator:
4.8.1 Turn the engine fuel valve to the OFF position.
4.8.2 Position the generator level to prevent fuel from spilling.
4.8.3 Secure the generator by tying it down with a suitable rope.
When transporting the machine by hand, be sure to employ manpower
commensurate with the weight of the machine. To avoid back injury
WARNING
when lifting the machine, bend the knees to pick it up rather than
bending your back only.
wc_tx000710gb.fm 32
Page 33
GV 6600A Maintenance
4.9 Troubleshooting
Problem / Symptom Reason / Remedy
If engine doesn't start, check
that:
If engine starts but there is no
power at receptacles, check
that:
• Engine switch is on "Start".
• Fuel valves under fuel tank and on engine are open.
• Fuel tank has fuel.
• Choke lever is in correct position. Choke should be
closed when starting a cold engine.
• All loads are disconnected from generator.
• Spark plug is in good condition.
• Spark plug cap is tight.
• Engine oil level is adequate.
• Circuit breaker is closed.
• Connector from generator to control panel is tight.
wc_tx000710gb.fm 33
Page 34
Technical Data GV 6600A
5. Technical Data
5.1 Generator
Item No. GV 6600A
0620289
Generator
Maximum output
Continuous output
W
W
6600
6000
Type Single phase,
self-exciting, 2-pole, field rotating
AC voltages available
Frequency
Power factor
Volts
phase
Hz
cos ø
120/240
1
60
1.0
AC receptacles:
125V GFI duplex (2)
125/250V twist lock
125V twist lock
Main circuit breaker
Amp
Amp
Amp
Amp
20
30
30
15 per pole
(two pole)
L x W x H
Weight (dry)
mm (in.)
kg (lbs.)
710 x 550 x 515 (28.0 x 21.6 x 20.3)
80 (176.4)
wc_td000208gb.fm 34
Page 35
GV 6600A Technical Data
5.2 Engine
Item No. GV 6600A
0620289
Engine
Engine make Honda
Engine model GX 390 K1
Operating power (max.)
kW (Hp)
9.7 (13)
Spark plug BPR6ES (NKG)
Electrode gap
Operating speed (max.)
Air cleaner
Engine lubrication
Engine oil capacity
Fuel
Fuel tank capacity
Fuel consumption
Running time -
mm (in.)
rpm
type
oil grade
l (qts.)
type
l (gal.)
l (qts.)/hr.
hrs.
0.7–0.8 (0.028–0.031)
3600
Oil-wetted foam
SAE 10W30 service class SF or SG
1.1 (1.2)
Regular unleaded gasoline
21 (5.5)
3.9 (4.1)
5.4
continuous load
wc_td000208gb.fm 35
Page 36
Technical Data GV 6600A
5.3 Electrical Schematic
19
6
24
6
20
8
9
17
10
5
21
11
18
13
C
15 16
1
14
AB
3
wc_td000208gb.fm 36
12
22 23
2
4
Page 37
GV 6600A Technical Data
5.4 Schematic Components
Ref. Description Ref. Description Ref. Description
A Generator B Control Box C Engine
Ref. Description Ref. Description
1 Main stator winding 13 Spark plug
2 Secondary winding 14 Slip ring
3 Rotor winding 15 Auto idle unit
4 Automatic voltage regulator 16 Voltage selector switch
5 Main circuit breaker 17 Twist lock receptacle—125/250V
6 GFI duplex receptacle—125V 18 Auto idle switch
7 --- 19 Idle solenoid
8 Engine ON-OFF switch 20 Capacitor
9 Oil alert module 21 Fuel stop solenoid
10 Oil level switch 22 Auxiliary winding
11 Ignition coil 23 DC rectifier
12 Ground terminal 24 Twist lock receptacle—125V
wc_td000208gb.fm 37
Page 38
Wacker Construction Equipment AG · Preußenstraße 41 · D-80809 München · Tel.: +49-(0)89-3 54 02 - 0 · Fax: +49 - (0)8 9-3 5 4 02- 3 90
Wacker Corporation · P.O. Box 9007 · Menomonee Falls, WI 53052-9007 · Tel. : (262) 255-0500 · Fax: (262) 255-0550 · Tel. : (800) 770-0957
Wacker Asia Pacific Operations · Skyline Tower, Suite 2303, 23/F · 39 Wang Kwong Road, Kowloon Bay, Hong Kong · Tel. +852 2406 60 32 · Fax: +852 2406 60 21
Loading...
