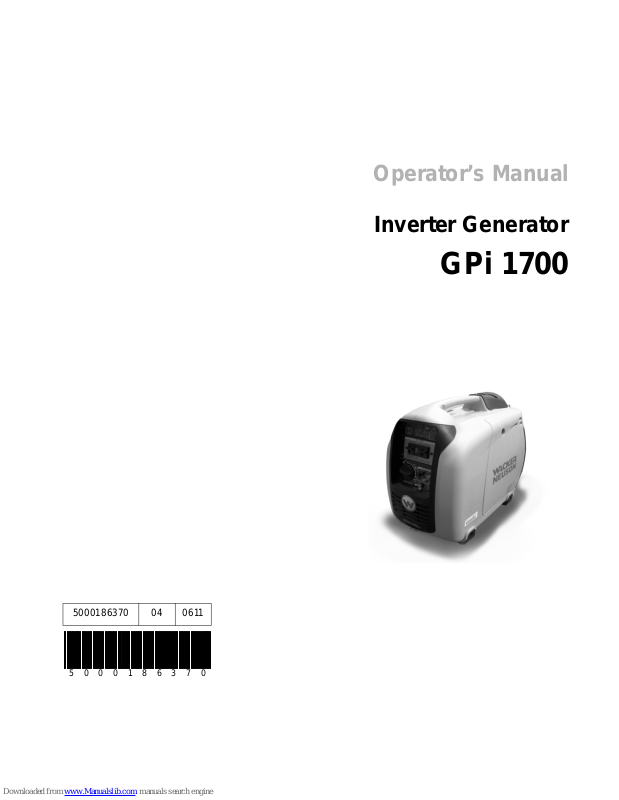

Page 1
Operator’s Manual
Inverter Generator
GPi 1700
5000186370 04 0611
5000186370
Page 2
Copyright
notice
© Copyright 2011 by Wacker Neuson Production Americas LLC
All rights, including copying and distribution rights, are reserved.
This publication may be photocopied by the original purchaser of the machine. Any
other type of reproduction is prohibited without express written permission from
Wacker Neuson Production Americas LLC.
Any type of reproduction or distribution not authorized by Wacker Neuson Production
Americas LLC represents an infringement of valid copyrights. Violators will be
prosecuted.
T ra d emarks
Manufacturer
All trademarks referenced in this manual are the property of their respective owners.
Wacker Neuson Production Americas LLC
N92W15000 Anthony Avenue
Menomonee Falls, WI 53051 U.S.A.
Tel: (262) 255-0500 · Fax: (262) 255-0550 · Tel: (800) 770-0957
www.wackerneuson.com
Original
instructions
This Operator’s Manual presents the original instructions. The original language of this
Operator’s Manual is American English.
Page 3
Foreword
Machines
covered in
this manual
Foreword
SAVE THESE INSTRUCTIONS—This manual contains important instructions for
the machine models listed below. These instructions must be followed during
installation and maintenance of the generator (and battery, if equipped).
Machine Item Number
GPi 1700 0620777, 0620778
Machine
Documentation
Expectations
for
information in
this manual
Keep a copy of the Operator’s Manual with the machine at all times.
Use the separate Parts Book supplied with the machine to order replacement
parts.
If you are missing either of these documents, please contact Wacker Neuson
Corporation to order a replacement or visit www.wackerneuson.com.
Contact Wacker Neuson Product Support for information on servicing and
repairing the machine.
When ordering parts or requesting service information, be prepared to provide
the machine model number, item number, revision number, and serial number.
This manual provides information and procedures to safely operate and
maintain the above Wacker Neuson model(s). For your own safety and to
reduce the risk of injury , carefully rea d, understand, and obse rve all instructions
described in this manual.
Wacker Neuson Corporation expressly reserves the right to make technical
modifications, even without notice, which improve the performance or safety
standards of its machines.
The information contained in this manual is based on machines manufactured
up until the time of publication. Wacker Neuson Corporation reserves the right
to change any portion of this information without notice.
CALIFORNIA
Proposition
65 Warning:
Laws
pertaining to
spark
arresters
Engine exhaust, some of its constituents, and certain vehicle components, contain
or emit chemicals known to the State of California to cause cancer and birth
defects or other reproductive harm.
NOTICE: State Health Safety Codes and Public Resources Codes specify that in
certain locations spark arresters be used on internal combustion engines that use
hydrocarbon fuels. A spark arrester is a device designed to prevent accidental discharge of sparks or flames from the engine exhaust. Spark arresters are qualified
and rated by the United States Forest Service for this purpose. In order to comply
with local laws regarding spark arresters, consult the engine distributor or the local
Health and Safety Administrator.
Manufacturer’s
approval
This manual contains references to approved parts, attachments, and
modifications. The following definitions apply:
Approved parts or attachments are those either manufactured or provided by
Wacker Neuson.
wc_tx001233gb.fm 3
Page 4
Foreword
Approved modifications are those performed by an authorized Wacker
Neuson service center according to written instructions published by Wacker
Neuson.
Unapproved parts, attachments, and modifications are those that do not
meet the approved criteria.
Unapproved parts, attachments, or modifications may have the following
consequences:
Serious injury hazards to the operator and persons in the work area
Permanent damage to the machine which will not be covered under warranty
Contact your Wacker Neuson dealer immediately if you have questions about
approved or unapproved parts, attachments, or modifications.
4 wc_tx001233gb.fm
Page 5
GPi 1700
Table of Contents
Foreword 3
1 Safety Information 7
1.1 Signal Words Found in this Manual ...................................................... 7
1.2 Machine Description and Intended Use ............................................... 8
1.3 Safety Guidelines for Operating the Machine ....................................... 9
1.4 Operator Safety While Using Internal Combustion Engines ............... 11
1.5 Guidelines for Service Safety ............................................................. 12
1.6 Label Locations .................................................................................. 13
1.7 Machine Labels .................................................................................. 14
2 Operation 17
2.1 Overview ............................................................................................ 17
2.2 Preparing the Machine for First Use ................................................... 17
2.3 Features and Components ................................................................. 18
2.4 Lifting and Transporting ...................................................................... 19
2.5 Installation .......................................................................................... 19
2.6 Power Requirements .......................................................................... 20
2.7 Use of Extension Cords ...................................................................... 21
2.8 Control Panel ...................................................................................... 22
2.9 Customer Connections ....................................................................... 24
2.10 Grounding the Generator ................................................................... 25
2.11 Fueling the Machine ........................................................................... 26
2.12 Before Starting ................................................................................... 27
2.13 Starting the Generator ........................................................................ 28
2.14 Using AC Power ................................................................................. 29
2.15 Using DC Power ................................................................................. 30
2.16 Stopping the Generator ...................................................................... 31
2.17 Emergency Shutdown Procedure ....................................................... 31
3 Maintenance 32
3.1 Periodic Maintenance Schedule ......................................................... 32
3.2 Checking the Engine Oil ..................................................................... 33
3.3 Cleaning and Checking the Spark Plug .............................................. 34
3.4 Cleaning the Air Cleaner Assembly .................................................... 35
3.5 Changing the Engine Oil .................................................................... 36
3.6 Cleaning the Spark Arrester ............................................................... 37
3.7 Cleaning the Fuel Filter ...................................................................... 38
3.8 Storing the Generator ......................................................................... 40
wc_bo5000186370_04TOC.fm
5
Page 6
Table of Contents
GPi 1700
4 Schematic 42
4.1 Schematic Components ......................................................................43
5 Basic Troubleshooting 44
6 Technical Data 45
6.1 Engine .................................................................................................45
6.2 Generator Data ....................................................................................46
7 Emission Control Systems Information and Warranty 47
6
Page 7
GPi 1700 Safety Information
1 Safety Information
1.1 Signal Words Found in this Manual
This manual contains DANGER, WARNING, CAUTION, NOTICE, and NOTE
signal words which must be followed to reduce the possibility of personal injury,
damage to the equipment, or improper service.
This is the safety alert symbol. It is used to alert you to potential personal hazards.
f Obey all safety messages that follow this symbol.
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in death
or serious injury.
To avoid death or serious injury from this type of hazard, obey all safety messages that
f
follow this signal word.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
f
To avoid possible death or serious injury from this type of hazard, obey all safety messages that follow this signal word.
CAUTION!
CAUTION indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury.
To avoid possible minor or moderate injury from this type of hazard, obey all sa fety mes-
f
sages that follow this signal word.
NOTICE: Used without the safety alert symbol, NOTICE indicates a situation
which, if not avoided, could result in property damage.
Note: A Note contains additional information important to a procedure.
wc_si000347gb.fm
7
Page 8
Safety Information GPi 1700
1.2 Machine Description and Intended Use
This machine is a portable electric power source. The Wacker Neuson Inverter
Generator consists of a gasoline engine, a fuel tank, and an electric alternator and
inverter. Contr ols and recept acles are provided on a control pa nel mounted on the
side of the machine. As the engine runs, the generator convert s mechanical energy
into AC power and DC power. The operator connects loads to the AC power
receptacles or DC terminals.
This machine is intended for the purpose of supplying electrical power to
connected loads. Refer to the product specifications for the output voltage and
frequency of this generator, and for the maximum output power limit of this
generator.
This machine has been designed and built strictly for the intended use described
above. Using the machine for any other purpose could permanently damage the
machine or seriously injure the operator or other persons in the area. Machine
damage caused by misuse is not covered under warranty.
The following practices are some examples of misuse:
Connecting a load that has voltage and frequency requirements that are
incompatible with the generator output
Overloading the generator with a load that draws excessive power during either
continuous running or start-up
Operating the generator in a manner that is inconsistent with all federal, state
and local codes and regulations.
Using the machine as a ladder, support, or work surface
Using the machine to carry or transport passengers or equipment
Operating the machine outside of factory specifications
Operating the machine in a manner inconsistent with all warnings found on the
machine and in the Operator’s Manual
This machine has been designed and built in accordance with the latest global
safety standards. It has been carefully engineered to eliminate hazards as far as
practicable and to increase operator safety through protective guards and labeling.
However, some risks may rema in even after protective measures have been t aken.
They are called residual risks. On this machine, they may include exposure to:
Heat, noise, exhaust, and carbon monoxide from the engine
Fire hazards from improper refueling techniques
Fuel and its fumes
Electric shock and arc flash
Personal injury from improper lifting techniques
To protect yourself and others, make sure you thoroughly read and underst and the
safety information presented in this manual before operating the machine.
8
wc_si000347gb.fm
Page 9
GPi 1700 Safety Information
1.3 Safety Guidelines for Operating the Machine
DANGER
Carbon monoxide. Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide (CO). This is a poison you cannot
see or smell. If you can smell the generator exhaust, you are breathing CO. But
even if you cannot smell the exhaust, you could be breathing CO.
f NEVER use a generator inside homes, garages, crawlspaces, or other partly
enclosed areas. Deadly levels of carbon monoxide can build up in these areas.
Using a fan or opening windows and doors does NOT supply enough fresh air.
f ONLY use a generator outside and far away from windows, doors, and vents.
These openings can pull in generator exhaust.
f Even when you use a generator correctly , CO may leak into the home. ALW AYS
use a battery-powered or battery-backup CO alarm in the home.
f If you start to feel sick, dizzy, or weak after the generator has been running,
move to fresh air RIGHT AW AY. See a doctor. You could have carbon monoxide
poison.
WARNING
Machines operated improperly or by untrained personnel can be hazardous.
f Read the operating instructions contained in both this Operator’s Manual and
the engine operator’s manual.
f Familiarize yourself with the location and proper use of all controls.
f Inexperienced operators should receive instruction from someone familiar with
the machine before being allowed to operate it.
Operator
qualifications
Personal
Protective
Equipment
(PPE)
Before
starting the
machine
Only trained personnel are permitted to start, operate, and shut down the machine.
They also must meet the following qualifications:
have received instruction on how to properly use the machine
are familiar with required safety devices
The machine must not be accessed or operated by:
children
people impaired by alcohol or drugs
Wear the following Personal Protective Equipment (PPE) while operating this
machine:
Close-fitting work clothes that do not hinder movement
Safety glasses with side shields
Hearing protection
Safety-toed footwear
Before starting this machine:
Follow starting and stopping instructions described in this manual. Know ho w to
operate and stop the generator before starting it.
Do not start a machine in need of repair.
wc_si000347gb.fm
9
Page 10
Safety Information GPi 1700
Make sure the machine is on a firm, level surface and will not tip, roll, slide, or
fall while operating.
Remove all tools, cords, and other loose items from the generator before
starting it.
Electrical
safety
To increase electrical safety while operating this machine:
Do not operate the generator , or tools att ached to the generator, with wet hands.
Do not use worn electrical cords. Severe electrical shock and equipment
damage may result.
Do not operate generator in standing water.
Make certain the machine is well-grounded and securely fastened to a good
earthen ground per national and local regulations.
Do not overload the generator. The total amperage of the tools and equipment
attached to the generator must not exceed the load rating of the generator.
.
WARNING
Backfeed from the generator into the public power distribution system can seriously
injure or kill utility workers!
f Improper connection of generator to a building’s electrical system can allow
electrical current from the generator to backfeed into utility lines. This may re sult
in electrocution of utility workers, fire, or explosion.
f Connections to a building’s electrical system must be made by a qualified elec-
trician and comply with all applicable laws and electrical codes.
f If connected to a building’s electrical system, the generator must meet the
power, voltage, and frequency requirements of the equipment in the building.
Generator
vibration
Operating
safety
Generators vibrate in normal use. During and after the use of the gene rator , inspect
the generator as well as extension cords and power supply cords connected to it
for damage from vibration.
Have damaged items repaired or replaced as necessary.
Do not use plugs or or cords that show signs of damage such as broken or
cracked insulation or damaged blades.
To increase operating safety while running this machine:
Do not operate the generator when open containers of fuel, paint, or other
flammable liquids are in the vicinity of the generator.
Do not place flammable material or liquids near the generator.
Do not operate the machine indoors.
Do not touch the hot engine, exhaust, or generator components. Burns will
result.
Always do the following:
Wear hearing protection when operating equipment.
Keep the machine at least one meter (three feet) away from structures,
buildings, and other equipment during use.
Keep the area immediately surrounding and underneath the machine clean,
neat, and free of debris and combustible materials. Make sure that the area
10
wc_si000347gb.fm
Page 11
GPi 1700 Safety Information
overhead is clear of debris that could fall onto or into the machine or exhaust
compartment.
Storing the
machine
Store the machine properly when it is not being used. The machine should be
stored in a clean, dry location out of the reach of children.
1.4 Operator Safety While Using Internal Combustion Engines
WARNING
Internal combustion engines present special hazards during operation and fueling.
Failure to follow the warnings and safety standards could result in severe injury or
death.
f Read and follow the warning instructions in the engine owner’s manual and the
safety guidelines below.
DANGER
f Carbon monoxide. Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide (CO). This is a poison you cannot
see or smell. If you can smell the generator exhaust, you are breathing CO. Bu t
even if you cannot smell the exhaust, you could be breathing CO.
Refueling
safety
When refueling the engine:
Do not smoke.
Do not refuel if the generator is sitting in a truck fitted with a plastic bed liner.
Static electricity can ignite the fuel or fuel vapors.
Do not refuel a hot or running engine.
Do not refuel the engine near an open flame.
Operating
safety
wc_si000347gb.fm
When refueling the engine, always:
Refill the fuel tank in a well-ventilated area.
Replace the fuel tank cap after refueling.
When operating the generator:
Check the fuel lines and the fuel tank for leaks and cracks before starting the
engine.
Do not run the machine if fuel leaks are present or the fuel lines are loose.
Do not run the engine near open flames.
Do not start the engine if fuel has spilled or a fuel odor is present. Move the
generator away from the spill and wipe the generator dry before starting.
Do not smoke while operating the machine.
11
Page 12
Safety Information GPi 1700
1.5 Guidelines for Service Safety
WARNING
A poorly maintained machine can be a personal injury hazard.
f Follow the Periodic Maintenance schedule in this Operator’s Manual.
f Repair or replace any damaged or defective components immediately.
Personal
Protective
Equipment
(PPE)
Prerequisites
Ground
connection
Wear the following Personal Protective Equipment (PPE) while servicing or maintaining
this machine:
Close-fitting work clothes that do not hinder movement
Safety glasses with side shields
Hearing protection
Safety-toed footwear
In addition, before servicing or ma intaining the machine:
Tie back long hair.
Remove all jewelry (including rings).
Before servicing this machine:
Stop the engine.
If the engine has an electric starter, disconnect the negative terminal on the battery.
Attach a “DO NOT START” sign to the machine. This will notify everyo ne that the
machine is being serviced and will reduce the chance of someone inadvertently
trying to start the machine.
The generator must be connected to a good earthen ground for proper operating
safety!
Ground the generator in accordance with the sta nd ards defined in national, state,
and local regulations.
Personal
injury
avoidance
Let the engine and muffler cool before transporting or servicing the machine.
Do not service the machine if your clothing or skin is wet.
Do not allow untrained personnel to service this machine. Only trained electrical
technicians should be allowed to service the electrical com ponents of this machine.
Service safety
Do not modify the machine without the express written approval of the ma nufacturer.
Do not allow water to accumulate around the base of the mach ine. If water is
present, move the machine and allow the machine to dry before servicing.
..
Replacing
parts and
labels
Replace worn or damaged component s.
Use only spare parts recommended by Wacker Neuson.
Keep the fuel lines in serviceable condition. Leaking fuel and fumes are extremely
explosive!
Replace all missing and hard-to-read labels. Labels provide important operating
instructions and warn of dangers and hazards.
Check all external fasteners at regular intervals.
12
wc_si000347gb.fm
Page 13
GPi 1700 Safety Information
1.6 Label Locations
C
A
D
E
H
F
G
B
wc_gr006811
wc_si000347gb.fm
13
Page 14
Safety Information GPi 1700
1.7 Machine Labels
Wacker Neuson machines use international pictorial labels where needed. These
labels are described below.
Ref. Label Definition
ADANGER
Using a generator indoors CAN KILL YOU IN
MINUTES. Generator exhaust contains
carbon monoxide. This is a poison you
cannot see or smell.
NEVER use inside a home or garage, EVEN
IF doors and windows are open.
Only use OUTSIDE and far away from
windows, doors, and vents.
B Oil fill location
14
wc_si000347gb.fm
Page 15
GPi 1700 Safety Information
Ref. Label Definition
C WARNING
To reduce the risk of injury, user must read
and understand instruction manual.
Exhaust gas contains poisonous carbon
monoxide.
Do not use in poorly ventilated area.
The operator may suffer severe elecrtric
shock.
Do not touch with wet hands.
The operator may suffer burns.
Do not touch hot muffler.
Potent ial da ng e r of ex plos ion or fire.
Stop engine during fuel supply. Keep
flammable things away.
Be careful not to spill fuel during refueling.
Use unleaded gasoline only.
Keep open flames away from the
generator.
Do not operate in rain or snow.
Do not connect to a household circuit.
D This equipment does not meet California
EVP emission regulations for small off-road
engines.
E WARNING
Improper connection of the generator to a
building’s electrical system can allow
electrical current from the generator to
backfeed into utility lines. This may result in
electrocution of utility workers, fire, or
explosion. Connections to a building’s
electrical system must be made by a
qualified electrician and comply with all
applicable laws and electrical codes.
F A nameplate listing the model number, item
number, revision number, and serial number
is attached to each unit. Please record the
information found on this nameplate so it will
be available should the nameplate become
lost or damaged. When ordering parts or
requesting service information, you will
always be asked to specify the model
number, item number, revision number, and
serial number of the unit.
wc_si000347gb.fm
15
Page 16
Safety Information GPi 1700
Ref. Label Definition
GWARNING
Hot surface! Do not touch.
DANGER
Risk of carbon monoxide poisoning.
Keep a safe distance away from the
machine.
HWARNING
Hot surface! Do not touch.
16
wc_si000347gb.fm
Page 17
GPi 1700 Operation
2 Operation
DANGER
Carbon monoxide. Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide (CO). This is a poison you cannot
see or smell. If you can smell the generator exhaust, you are breathing CO. But
even if you cannot smell the exhaust, you could be breathing CO.
f NEVER use a generator inside homes, garages, crawlspaces, or other partly
enclosed areas. Deadly levels of carbon monoxide can build up in these areas.
Using a fan or opening windows and doors does NOT supply enough fresh air.
f ONLY use a generator outside and far away from windows, doors, and vents.
These openings can pull in generator exhaust.
f Even when you use a generator correctly , CO may leak into the home. ALW AYS
use a battery-powered or battery-backup CO alarm in the home.
f If you start to feel sick, dizzy, or weak after the generator has been running,
move to fresh air RIGHT AW AY . See a doctor. You could have carbon monoxide
poison.
2.1 Overview
Generator
application
Safety notices
This generator is an exceptionally quiet, compact, and lightweight machine
designed to provide single phase power for construction, commercial, and
residential applications. State-of-the-art inverter technology ensures a consistent
flow of clean and stable power suitable for operating not only tools, but also
delicate electronic equipment.
Do not exceed the power output of the generator . Damage to tools or generator
will occur. Refer to Technical Data.
Do not exceed the rated current limit of any receptacle.
2.2 Preparing the Machine for First Use
Preparing for
first use
To prepare your machine for first use:
1. Make sure all loose packaging materials have been removed from the machine.
2. Check the machine and its components for damage. If there is visible damage,
do not operate the machine! Contact your Wacker Neuson dealer immediately
for assistance.
3. Take inventory of all items included with the machine and verify that all loose
components and fasteners are accounted for.
4. Attach component parts not already attached.
5. Add fluids as needed and applicable, including fuel, engine oil, and battery acid.
6. Move the machine to its operating location.
wc_tx001234gb.fm
17
Page 18
Operation GPi 1700
2.3 Features and Components
l
a
b
d
e
c
f
n
g
o
l
k
h m
j
i
wc_gr006650
wc_tx001234gb.fm
18
Page 19
GPi 1700 Operation
Ref. Description Ref. Description
a Recoil starter i OIl drain plug
b Control panel j Right side panel
c Left side panel k Oil filler / oil gauge
d Air cleaner l Spark plug cap
e Fuel drain screw m Spark arrester
f Carrying handle n Fuel filter
g Fuel tank cap cover o Rear cover
h Exhaust outlet — —
2.4 Lifting and Transporting
Lifting and
carrying the
machine
This generator is designed be lifted and carried by one person. However, its dry
weight of 20.5 kg (45 lbs.) is heavy enough to cause injury if proper lifting
techniques are not used. Observe the following guidelines when lif ting and carrying
the generator.
Use only the designated carrying handle.
Bend at the knees, not from the waist, when lifting the generator.
Transporting
the machine
Observe the following guidelines when transporting the generator to and from the
job site.
Drain the fuel tank before transporting the generator.
Ensure that the generator is securely strapped down in the transport vehicle to
prevent it from sliding or tipping.
Do not refuel the generator in or on the transport vehicle. Move the generator to
its operating location and then fill the fuel tank.
2.5 Installation
Locating the
generator
Follow the practices below when choosing an appropriate location for the
generator.
Place the generator in an area where it will not be exposed to rain, snow, or
direct sunlight.
Position the generator on firm, level ground so that it will not slide or shift.
Position the engine exhaust away from areas where people may be present.
The surrounding area must be free from water and moisture. All components
must be protected from excessive moisture.
NOTICE: The generator has a built-in forced air cooling system, and may beco me
overheated if it is enclosed. Therefore, do not enclose the generator or cover it with
a box.
wc_tx001234gb.fm
19
Page 20
Operation GPi 1700
2.6 Power Requirements
Application
About power
requirements
Approximate
starting power
requirements
This generator is designed to operate single-phase, 60 Hz equipment running at
120 VAC. It also provides DC power strictly intended for charging 12V automotive
style batteries.
Check the nameplate or label provided on tools and equipment to make sure their
power requirements are met by the power output of the gene rator. If the wattage is
not given for a particular tool or piece of equipment, contact the tool manufacturer
for wattage requirements.
NOTICE: Do not exceed the continuous rated output of the generator. Damage to
tools or generator can occur. See Technical Data.
Some pieces of equipment and tools require a surge of current when starting. This
means that the amount of power needed to initially start the equipment is larger
than the power required to keep it running. The generator must be capable of
supplying this "surge" current. Other equipment may require more power than is
actually stated on its nameplate.
The information in the following chart is offered only as a general guideline to help
you determine power requirements for different types of equipment. Contact your
nearest Wacker Neuson dealer, or the manufacturer or dealer of the tool or
equipment, with questions regarding power requirements.
Equipment type Wattage needed to start Comments
Incandescent lights
Appliances such as
irons and hot plates
Fluorescent and
mercury lamps
Electrical motors
Certain electrical tools
Most electrical tools 1.2–3 times their stated wattage
Submersible pumps
Air compressors
Other equipment Calculate by multiplying its
Same wattage as is stated on
their nameplates
1.2–2 times their stated wattage
Depends on motor type and use
3–5 times their stated wattage
voltage and amperage
requirements
These have resistivetype heating elements.
Volt s x Amps = Watts
20
wc_tx001234gb.fm
Page 21
GPi 1700 Operation
2.7 Use of Extension Cords
When a long extension cord is used to connect an appliance or tool to the
generator , a volt age loss occurs—the longer the cord, the greate r the volt ag e loss.
This results in less voltage being supplied to the appliance or tool and increases
the amount of current draw or reduces performance. A heavier cord with a larger
wire size will reduce the voltage loss.
WARNING
Electric shock hazard. Damaged extension cords can cause electrical shock,
resulting in serious injury or death. DO NOT use worn, bare, or frayed cords.
f Replace damaged cords immediately.
Use the chart below as a guide for selecting proper cable size.
Current Load in Watts Maximum Cable Length in Feet
(Amps) 120V 240V #10 #12 #14 #16
2.5 300 600 1000. 600 375 250
5 600 1200 500 300 200 125
7.5 900 1800 350 200 125 100
10 1200 2400 250 150 100 -
15 1800 3600 150 100 65 -
20 2400 4800 125 75 50 -
Use only extension cords rated for outdoor use and equipped with a third-wire
ground.
NOTICE: Operating equipment at low voltage can cause it to overheat.
wc_tx001234gb.fm
21
Page 22
Operation GPi 1700
2.8 Control Panel
p q r s t
u
v
Pilot indicator
light (p)
Overload
indicator light
(q)
CHOKE
w
xy
wc_gr006445
Ref. Description Ref. Description
p Pilot indicator light u GFI receptacle (120 VAC)
q Overload indicator light v DC terminals
r Oil sensor indicator light w DC circuit breaker
s Auto power save indicator light x Ground lug
t Auto power save switch y Engine switch
The pilot indicator light illuminates when the generator is operating normally.
The overload indicator light illuminates when the generator is operating in an
overload condition. An overload condition is defined as 120% of the available
power output of the generator.
After the indicator light has been illuminated for 20 seconds, an internal circuit
breaker will activate resulting in a no-load condition.
If the indicator light illuminates, stop and re-start the engine to clear the overload
condition and resume normal operation.
Oil sensor
indicator light
(r)
The oil sensor indicator light illuminates when the level of the engine oil falls below
the prescribed value. The engine stops automatically.
The engine cannot be re-started unless engine oil is added. Follow the
procedure described in Adding Engine Oil.
22
wc_tx001234gb.fm
Page 23
GPi 1700 Operation
Auto power
save indicator
light (s) and
switch (t)
GFI receptacle
(u)
DC terminals
(v)
DC circuit
breaker (w)
The auto power save indicator light illuminates when the auto power save switch (t)
is in positions 1 or 2.
With the switch in position 1 (“turtle”), the engine speed automatically adjusts
according to the generator load.
With the switch in position 2 (“rabbit”), the engine speed remains constant to
maintain stable AC power output. This position is ideal for heavy loads.
Turn the switch OFF when using DC power.
AC power is available through this receptacle. Use only a grounded, three-leg
electrical plug.
The generator provides DC power for charging batteries. The red terminal is
positive (+); the black terminal is negative (-). See topic Using DC Power.
The DC circuit breaker shuts off the electrical current when th e current exceeds its
limit, or a malfunction occurs in a piece of equipment connected to the generator.
The DC circuit breaker has activated when the button pops out.
To reset the DC circuit breaker, press the button.
CAUTION
Electric shock hazard. Repeated activation of the DC circuit breaker could signal a
potential malfunction with the generator or connected equipment.
f Never defeat the DC circuit breaker button or reset it without first investigating
the reason for the activation.
Ground lug (x)
Engine switch
(y)
The ground lug is the terminal for grounding the generator. See topic Grounding
the Generator for more information.
The engine switch controls the function of the choke and the fuel valve. There are
three positions:
Symbol Meaning Description
Choke valve is
closed
Normal operating
position
Fuel valve is
closed
Turn the switch to this position when starting a cold
engine.
Turn the switch to this position after the engine
starts.
Note: A warm engine can be started with the switch
in this position.
Turn the switch to this position to stop the engine.
wc_tx001234gb.fm
23
Page 24
Operation GPi 1700
2.9 Customer Connections
Description
Testing GFI
operation
The generator is equipped with :
one 120V duplex receptacle (u) with a ground fault circuit interrupt (GFI)
one pair of DC terminals (v) exclusively intended for charging 12V automotive-
style batteries. See Using DC Power for more information.
u2
u1
u
v
wc_gr006739
The GFI cuts power to the receptacle when a ground fault occurs to a piece of
equipment attached to the generator. Follow the procedure below to test the GFI
for proper operation every time the generator is used.
1. Disconnect all equipment from the generator.
2. Start the generator.
3. Push the blue TEST button (u1) on the receptacle. Pushing the TEST button in
cuts power to the receptacle and causes the red RESET button (u2) to pop out.
NOTICE: If the RESET button does not pop out, the GFI is not working. Do not
operate the generator until the problem can be corrected.
4. Push the RESET button to restore power to the receptacle.
If the RESET button pops out during operation, stop the generator and check the
equipment attached to the generator for defects.
24
wc_tx001234gb.fm
Page 25
GPi 1700 Operation
2.10 Grounding the Generator
Location
Function
The ground lug (x) is located below the DC terminals.
x
x1
wc_gr006652
This ground connection is used for electrically grounding the generator when
necessary to comply with the National Electrical Code and other federal, state, and
local regulations. For grounding requirements in you r area, consult with a qualified
electrician, electrical inspector, or local agency having jurisdiction over electrical
compliance.
If the generator is used at a construction site, there may be additional
regulations which must be observed.
In some areas, generators are required to be registered with local utility
companies.
Connection
Connect the ground lug to a good earthen ground for proper operating safety in
compliance with NEC and local standards. The following options may be used:
Connect the ground lug to a grounding spike (x1) and drive the grounding spike
into the earth.
Connect the ground lug to an existing grounded conductor.
wc_tx001234gb.fm
25
Page 26
Operation GPi 1700
2.11 Fueling the Machine
Fuel filler cap
The fuel filler cap (g1) is located beneath the fuel tank cap cover (g). Turn the fuel
filler cap counter-clockwise to open; clockwise to close.
g3
g
g1
a
g2
v
WARNING
Fire/burn hazards. Gasoline is flammable and can ignite or explode.
f Keep all open flames, sparks, and cigarettes away from the machine while refu-
eling.
f Do not refuel if the generator is sitting in a truck fitted with a plastic bed liner.
Static electricity can ignite the fuel or fuel vapors.
f Do not refuel when the engine is running or hot.
g
wc_gr006653
Filling the fuel
tank
Priming the
fuel system
Using
gasoline /
ethanol
blends
Follow the guidelines below when filling the fuel tank.
Turn the engine switch (v) to STOP before refueling.
Refuel only with clean, fresh unleaded gasoline.
Add fuel through the fuel filter screen (g2), making sure that dirt or water do not
enter the fuel tank.
Fill only until the fuel level reaches the red LEVEL indicator (g3) inside the fuel
tank neck. Do not overfill!
Clean up spilled fuel before operating the machine.
Fuel tank capacity = 3.5 L (0.92 gal.).
When using the generator for the first time, or if the fuel tank runs dry and the
engine stops as a result, the fuel system will require priming before re-start.
To prime the fuel system, pull the recoil starter handle (a) several times after
filling fuel up to the red marking inside the fuel tank neck.
This portable generator is not for use with gasoline / ethanol blends with over 15%
ethanol.
26
wc_tx001234gb.fm
Page 27
GPi 1700 Operation
2.12 Before Starting
DANGER
f Carbon monoxide. Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide (CO). This is a poison you cannot
see or smell. If you can smell the generator exhaust, you are breathing CO. Bu t
even if you cannot smell the exhaust, you could be breathing CO.
Explanation
Exterior
checks
Before putting the generator into service, review each item on the following
checklist. It is important to make sure that the machine is set up properly to reduce
the possibility of malfunction.
WARNING
Personal injury hazard. Failure to follow the listed procedures may cause injury to
personnel or damage to the generator.
f Make sure that all persons setting up the generator are certified or fully trained
on the installation and operation of the generator.
Before starting the generator:
check for damage that may have occurred during towing or travel to the jobsite
check for fuel leaks
check for loose or missing fasteners
make sure the exhaust pipe is not clogged with debris
make sure that the generator is level
make sure the generator is not resting on against any adjacent wiring
make sure that the generator air vents are not blocked
make sure that the generator is grounded to a good earthen ground per local
regulations and NEC standards
Internal and
pre-operation
checks
wc_tx001234gb.fm
check engine oil and fuel levels—fill as required
determine voltage needs
review and follow safety instructions found in the front of this Operator’s Manual
27
Page 28
Operation GPi 1700
2.13 Starting the Generator
CAUTION
Personal injury or machine damage hazards. S t arting the generator with equipme nt
attached can damage the generator or the equipment. Unexpected equipment
start-up can cause personal injury.
f Disconnect all equpment from the generator before starting it.
Starting
procedure
Follow the procedure below to start the machine.
1. Turn the engine switch (y) to the CHOKE position (or the RUN position if the
engine is warm or the ambient temperature is high).
p
a
y
wc_gr006656
2. Pull the recoil starter (a) slowly until you feel resistance.
3. After you feel resistance, return the recoil starter to its original position and pull
quickly. The engine will start.
4. If you started the machine with the engine switch in the CHOKE position, allow
the engine to run for 20–30 seconds and then turn the engine switch to the RUN
position.
5. Check to make sure that the pilot indicator light (p) is illuminated. This indicates
that the generator is operating properly.
Trou bles h ooting
If the engine does not start after several attempts, repeat the starting procedure
with the engine switch turned to the RUN position. If the engine still does not start,
refer to the Troubleshooting chapter in this Manual.
28
wc_tx001234gb.fm
Page 29
GPi 1700 Operation
2.14 Using AC Power
Prerequisites
Engine switch
position
Verify that the engine is operating.
Verify that pilot indicator light (p) is illuminated.
Turn off the equipment to be connected to the generator.
Confirm that the equipment to be connected to the generator does not exceed
the maximum rated power output and specifed amperage.
WARNING
Electric shock hazard. Failure to properly ground the generator could lead to
electrical sparks, especially if the connected electrical equipment is grounded.
f Make sure the generator is properly grounded. See Grounding the Generator.
Leave the engine switch (y) in the RUN position while the machine is operating.
p
u
u
y
Connecting
equipment
Disconnecting
equipment
wc_gr006657
1. Insert the equipment plug into the 120V AC GFI receptacle (u).
2. Turn on the power switch for the equipment.
3. Turn off the power switch for the equipment.
4. Remove the plug from the 120V AC GFI receptacle.
wc_tx001234gb.fm
29
Page 30
Operation GPi 1700
2.15 Using DC Power
Overview
Prerequisites
The DC terminals (v) are to be used only for charging 12V batteries. Maximum
available power is 12V–8.3A (100W).
Both AC and DC output can be used at the same time provided th at the total output
falls below the maximum rated output of the generator.
Verify that pilot indicator light (p) is illuminated.
Make sure that the charging cables to be used are rated for 12 V and the
maximum CCA rating of the battery.
WARNING
Personal injury hazard. Battery acid is corrosive to metallic surfaces and harmful to
human skin.
f Wear protective clothing, goggles and gloves when working near batteries.
f If battery acid contacts the skin or eyes, rinse immediately with clear water and
seek immediate medical attention.
WARNING
Explosion hazard. Explosive hydrogen gas is discharged through battery vent holes
during the charging process.
f Do not use open flames or smoke near batteries.
f Do not place metallic objects on or near the battery terminals. Metallic objects in
contact with both poles of the battery will generate extreme heat and potentially
ignite explosive battery gases.
Engine switch
position
Connecting
and charging
a battery
Leave the engine switch (y) in the RUN position while the generator is operating.
p
v2
v1
v
y
wc_gr006738
Follow the procedure below to connect and charge a battery.
1. Connect the positive terminal (v1) (red) on the generator to the positive (+)
battery terminal.
2. Connect the negative terminal (v2) (black) on the generator to the negative (-)
battery terminal.
3. Charge the battery for the recommended length of time prescribed by the
battery manufacturer.
30
wc_tx001234gb.fm
Page 31
GPi 1700 Operation
Disconnecting
the battery
When the battery is fully charged:
1. Disconnect the cable from the negative (-) terminals of the battery and the
generator.
2. Disconnect the cable from the positive (+) terminals of the battery and the
generator.
If the DC
circuit breaker
activates
The DC circuit breaker may activate while a battery is charging. This may occur for
either of the following reasons:
Defective battery—check the battery before replacing the DC breaker
Excessive current draw from a large capacity battery or a totally discharged
battery—use an AC battery charger to charge the battery instead of the
generator.
2.16 Stopping the Generator
Before
stopping
Check with other personnel on the jobsite and let them know that power is being
turned off. Make sure that the power shutdown will not create any hazards by
turning off devices such as pumps, heaters, or lights that may need to be kept on.
Stopping
procedure
To stop the generator:
1. Switch off and disconnect all equipment from the generator.
2. Allow the generator to run at no load for approximately 3 minutes.
3. Turn the engine switch to the STOP position.
2.17 Emergency Shutdown Procedure
Procedure
If a breakdown or accident occurs while the machine is operating, follow the
procedure below:
1. Stop the engine.
2. Turn off the fuel supply.
3. Disconnect tools from the machine.
4. Allow the machine to cool.
5. Contact the rental yard or machine owner for further instructions.
wc_tx001234gb.fm
31
Page 32
Maintenance GPi 1700
3 Maintenance
3.1 Periodic Maintenance Schedule
The table below lists basic machine and engine maintenance. Tasks designated
with check marks may be performed by the operator . Tasks designated with square
bullet points require special training and equipment.
Refer to the engine owner’s manual for additional information.
Clean generator enclosure
Check for loose or missing fasteners
Check engine oil level and refill as needed
Check AC receptacles for dirt or blockage;
test GFI
Check DC terminals for damage or dirt
Check engine switch for proper operation
Clean spark plug
Clean air cleaner
Change engine oil
Clean spark arrester
Replace air cleaner insert
Clean fuel filter
1
Every
8 hours
(daily)
3
3
3
3
3
3
Every
50 hours
(weekly)
3
3
Every
100 hours
(biweekly)
Every
200 hours
(monthly)
3
Every
500 hours
Every 1000
hours
Clean and adjust spark plug and electrodes
Replace spark plug
Remove carbon from cylinder head
Check and adjust valve clearance
Check and adjust carburetor
Replace fuel lines
Overhaul engine
Check generator rotor
Check generator stator
Replace engine mount
3
2
1 Perform initial oil change after first 20 hours of operation.
2 Refer to the engine service manual or consult an authorized Wacker Neuson service center
3 Replace yearly
2
2
2
3
wc_tx001235gb.fm
32
Page 33
GPi 1700 Maintenance
3.2 Checking the Engine Oil
When
Prerequisites
Procedure
Check engine oil daily before starting the engine, or more than 5 minutes after
stopping the engine.
Engine is stopped
Machine is on a level surface
Fresh oil is available (see Technical Data for type and quantity)
WARNING
Burn hazard. The engine and exhaust pipe become extremely hot during operation.
f Stop the engine and allow the machine to cool before checking the engine oil.
Follow the procedure below to check the engine oil level.
1. Using a flat screwdriver or a coin, unscrew and remove the right side cover (j)
from the generator enclosure.
k1
k
k2
j
2. Unscrew and remove the oil filler cap (k) with level gauge from the oil fill port.
3. Wipe the level gauge clean and insert it into the oil fill port.
4. Remove the level gauge from the oil fill port and check the oil level. The oil level
should fall between the upper and lower marks (k1, k2).
5. If the oil level is too low, add oil until the level reaches the upper mark (k1).
6. Re-install the oil filler cap and tighten it securely.
7. Re-install the right side cover.
Note: Change the oil if it appears dark, dirty, or contaminated. See “Changing the
Engine Oil.”
WARNING
Most used oil contains small amounts of materials that can cause cancer and other
health problems if inhaled, ingested, or left in contact with skin for prolonged
periods of time.
f Take steps to avoid inhaling or ingesting used engine oil.
f Wash skin thoroughly after exposure to used engine oil.
wc_tx001235gb.fm
33
Page 34
Maintenance GPi 1700
3.3 Cleaning and Checking the Spark Plug
When
Prerequisite
Removing and
cleaning the
spark plug
Clean the spark plug and check the electrode gap every 200 hours of operation
(monthly).
Engine is stopped and cool to the touch
WARNING
Burn hazard. Engine and exhaust pipe become extremely hot during operation.
f Stop the engine a nd allow the machine to cool before cleaning and adjusting the
spark plug.
Follow the procedure below to remove and clean the spark plug.
1. Using a flat screwdriver or a coin, unscrew and remove the right side cover (J)
from the generator enclosure.
L2
L1
L
Checking the
electrode gap
Re-installing
the spark plug
J
wc_gr006660
2. Disconnect the spark plug cap (L) from the spark plug (L2).
3. Using the provided spark plug wrench (L1), unscrew and remove the spark plug .
4. If the electrode is covered with carbon deposits, use a wire brush or spark plug
cleaner to remove the carbon.
NOTICE: If the spark plug is cracked or damaged, replace it. See Technical Data.
5. The electrode gap should measure between 0.6 to 0.7 mm (0.024 to 0.028 in.).
Adjust the gap if necessary.
6. Re-install the spark plug and tighten it securely.
NOTICE: A loose spark plug can become very hot and may cause engine
damage. Make sure that the spark plug is properly seated and tightened.
7. Re-connect the spark plug cap.
8. Re-install the right side cover.
34
wc_tx001235gb.fm
Page 35
GPi 1700 Maintenance
3.4 Cleaning the Air Cleaner Assembly
When
Prerequisite
Description
Procedure
Clean the air cleaner assembly every 50 hours of operation.
Engine is stopped and cool to the touch
The air cleaner assembly consists of a foam insert housed inside the air cleaner
body.
Follow the procedure below to clean the air cleaner assembly.
c
1. Using a flat screwdriver or a coin, unscrew and remove the left side cover (c)
from the generator enclosure.
d1
d
wc_gr006659
2. Lift and remove the air cleaner body cover (d).
3. Remove the foam insert (d1) from the air cleaner body.
4. Rinse the foam insert with clean water . Gently squeeze out excess water (do not
twist) and dry the foam insert thoroughly.
NOTICE: If the foam insert is damaged or heavily soiled, replace it.
5. Wipe the inside of the air cleaner body with a clean, dry cloth.
6. Re-install the foam insert inside the air cleaner body.
7. Re-install the air cleaner body cover and the left side cover.
wc_tx001235gb.fm
35
Page 36
Maintenance GPi 1700
3
3.5 Changing the Engine Oil
When
Prerequisites
Changing the
engine oil
Change the engine oil after the first 20 hours of operation, and every 50 hours
thereafter.
Engine is stopped, but still warm
Machine is on a level surface
Fresh engine oil (see engine operator’s manual)
Plastic cloth and a container of sufficient volume to collect drained oil
Note: Collect, store and dispose of drained oil in accordance with current
environmental protection regulations.
WARNING
Burn hazard. Engine and exhaust pipe become extremely hot during operation.
f Stop the engine and allow the machine to cool before changing the engine oil.
Follow the procedure below to change the engine oil
1. Place a plastic cloth and a collection container beneath the machine.
2. Using a flat screwdriver or a coin, unscrew and remove the right side cover (j)
from the generator enclosure.
k
k3
j
wc_gr00674
3. Unscrew and remove the oil filler cap (k) with level gauge from the oil fill port.
4. The oil drain plug (k3) is located on the underside of the machine. Remove the
oil drain plug. Drain the oil into a suitable container.
5. Re-install the oil drain plug.
6. Add new engine oil to the upper line of the level gauge. When the proper oil
level is reached, re-install the oil filler cap. See Checking the Engine Oil.
7. Re-install the right side cover.
WARNING
Most used oil contains small amount s of materials that ca n cause can cer and other
health problems if inhaled, ingested, or left in contact with skin for prolonged
periods of time.
f Take steps to avoid inhaling or ingesting used engine oil.
f Wash skin thoroughly after exposure to used engine oil.
36
wc_tx001235gb.fm
Page 37
GPi 1700 Maintenance
3.6 Cleaning the Spark Arrester
When
Prerequisite
Description
Procedure
Clean the spark arrester after every 100 hours of operation.
Engine is stopped and cool to the touch
The spark arrester is a cylindrical metal element fastened inside the muffler
exhaust port. If the spark arrester is not cleaned regularly, it will become clogged
with carbon deposits and impair engine performance.
Engine exhaust gases will not flow.
Engine output will be reduced.
More fuel will be consumed.
Starting will become difficult.
CAUTION
Personal injury hazards. The spark arrester screen is made of stiff metal wire.
Sharp wire ends can puncture or cut skin. Carbon dust can get into eyes.
f Wear protective gloves and eye protection when cleaning the spark arrester.
Follow the procedure below to clean the spark arrester.
o1
m1
h1
o
m
1. Remove the four screws (o1) from the rear cover (o). Remove the rear cover.
2. Remove the fastening screw (h1) from the exhaust outlet (h). Remove the spark
arrester (m).
3. Use a stiff brush to remove carbon deposits from the spark arrester screen
(m1).
NOTICE: Avoid damaging the screen during the cleaning process.
4. Inspect the spark arrester for holes or cracks. If the spark arrester is damaged,
replace it.
5. Re-insert the spark arrester into the muffler, and replace the fastening screw.
6. Replace the muffler cover and re-install the flange bolts.
h
wc_gr006813
wc_tx001235gb.fm
37
Page 38
Maintenance GPi 1700
3.7 Cleaning the Fuel Filter
When
Prerequisite
Description
Procedure
Clean the fuel filter monthly, or after every 200 hours of operation.
Engine is stopped and cool to the touch
The fuel filter (g2) is located beneath the fuel tank cap (g1). The fuel filter screen
removes sediment and other impurities from fuel added to the tank.
Follow the procedure below to clean the fuel filter.
g1
g2
g3
g
wc_gr006744
1. Lift the fuel tank cap cover (g). Unscrew and remove the fuel tank cap.
2. Remove the fuel filter from the fuel filling port (g3).
3. Using fresh, clean water , rinse the fuel filter thoroughly. If necessary, use a clean
cloth or compressed air to remove residual sediment from the inside of the fuel
filter.
NOTICE: Handle the fuel filter carefully to avoid damaging the screen. If the fuel
filter screen is torn or punctured, replace it.
4. Thoroughly dry the fuel filter, making sure that all water has been removed.
5. Re-insert the fuel filter into the fuel filling port.
6. Re-install the fuel tank cap, and close the fuel tank cap cover.
38
wc_tx001235gb.fm
Page 39
GPi 1700 Maintenance
Notes:
wc_tx001235gb.fm
39
Page 40
Maintenance GPi 1700
3.8 Storing the Generator
When
Tasks
Prerequisites
Follow the procedures described below if you intend to take your generator out of
service and store it for at least six months.
The following tasks must be performed in order to prepare the generator for
storage:
1. Drain fuel from the fuel tank.
2. Drain fuel from the carburetor.
3. Change the engine oil.
4. Check for loose or missing fasteners; tighten or replace as needed.
5. Clean generator body.
6. Store the generator.
Engine is stopped
Machine is on a level surface
Fresh engine oil (see engine operator’s manual)
Clean, dry shop cloths
Plastic cloth and containers of sufficient volume to collect drained fuel and oil
Note: Collect, store and dispose of drained fuel and oil in accordance with current
environmental protection regulations.
Draining the
fuel tank
WARNING
Fire/burn hazards. Gasoline is flammable and can ignite or explode.
f Keep all open flames, sparks, and cigarettes away from the machine while
draining the fuel tank and carburetor.
f Do not drain fuel while the engine is running or hot.
Follow the procedure below to drain the fuel tank.
g1
g2
g3
g
wc_gr006744
1. Open the fuel tank cap cover (g). Unscrew and remove the fuel tank cap (g1)
and fuel strainer (g2).
2. Insert a hand pump into the fuel filling port (g3) and pump out as much fuel as
possible.
40
wc_tx001235gb.fm
Page 41
GPi 1700 Maintenance
3. Re-install the fuel tank cap, and close the fuel tank cap cover.
Draining the
carburetor
4. Place a plastic cloth and a collection container beneath the machine.
5. Using a flat screwdriver or a coin, unscrew and remove the left side cover (c)
from the generator enclosure.
e
Change the
engine oil
Check
fasteners
Clean
generator
body
c
6. Locate and remove the fuel drain screw (e). Fuel will drain from the attached
plastic tube.
7. Collect and dispose of drained fuel.
8. Re-install the fuel drain screw.
9. Re-install the left side cover.
See Changing the Engine Oil.
Check the machine for loose or missing fasteners. Tighten or replace as needed.
10.Using a clean, dry shop cloth, wipe the outside of the machine thoroughly to
remove dust and contaminants.
11.Spray the machine with a protectant such as Armor-All®.
NOTICE: Do not use water to clean the machine! Water is corrosive and can
permanently damage the machine and operating electronics.
e
wc_gr006661
Store the
generator
wc_tx001235gb.fm
12.Pull the starter handle until resistance is felt. Leave the handle in this position.
13.Store the generator in a well-ventilated, low humidity area.
41
Page 42
Schematic GPi 1700
4 Schematic
AB
J
C
Q
D
E
F
G
H
K
P
O
N
L
M
R
wc_gr006649
wc_tx001236gb.fm
42
Page 43
GPi 1700 Schematic
4.1 Schematic Components
Component Component
A Engine K Inverter and engine control unit
B Control panel L DC circuit breaker
C Step mo tor M DC output terminal
D Ignition coil N Ground terminal
E Pickup coil O Engine switch
F Oil level sensor P Auto power save switch
G Main coil Q AC receptacle
H DC coil R Generator
J LED indicator
Wire Colors
Blk Black Brn Brown Org Orange
Blk/W Black/White Brn/W Brown/White Gry Gray
Blu Blue Grn Green R Red
LBlu Light Blue Grn/W Green/White W White
Y Yellow W/Blk White/Black Grn/Y Green/Yellow
Pur Purple
wc_tx001236gb.fm
43
Page 44
Basic Troubleshooting GPi 1700
5 Basic Troubleshooting
Problem Cause Remedy
Engine is difficult to
start
Engine does not start
Engine power output
is low
Engine stops
1. Fuel is contaminated
2. Spar k plug gap setting is
incorrect
1. Engine switch in wrong
position
2. No fuel
3. Equipment is connected
to the generator
4. Loose spark plug cap
5. Fouled spark plug
6. Low engine oil
1. Air cleaner is dirty
2. Engine is overheated
1. Engine malfunction
2. Fuel tank is empty
1. Clean fuel filter and fuel tank.
Remove water, dirt , and other
impurities.
2. Check and adjust spark plug
gap clearance if necessary.
1. Turn engine switch to CHOKE
position.
2. Refill fuel tank.
3. Switch off equipment and
disconnect from the generator.
4. Push spark plug cap firmly
onto spark plug.
5. Remove spark plug and clean
electrode.
6. Add engine oil.
1. Clean air cleaner.
2. Consult engine owner’s
manual.
1. Consult engine owner’s
manual.
2. Refill fuel tank.
No electricity is generated at receptacle
1. Overload fault (red
overload indicator light
illuminates)
2. DC circuit breaker is
OFF
3. GFI has activated
4. Loose connection at AC
receptacle or DC
terminals
5. Engine was started afte r
equipment was
connected
1. Stop engine and check
equipment and/or generator for
overloading.
2. Press the DC circuit breaker to
ON position after checking
equipment for normal
operation.
3. Press the RESET button on
the AC receptacle after
checking equipment for normal
operation.
4. Tighten connection.
5. Switch off equipment and
disconnect from the generator.
Reconnect after re-starting
engine.
44
wc_tx001237gb.fm
Page 45
GPi 1700 Technical Data
6 Technical Data
6.1 Engine
Engine Power Rating
Net power rating per SAE J1349. Actual power output may vary due to conditions
of specific use.
Model GPi 1700
Engine
Engine make Robin
Engine model EH09-2
Number of cylinders 1
Displacement cm³ (in³) 85.8 (5.23)
Engine speed rpm 3000–4200
Max. rated power @ rated
speed
Spark plug type NGK BM6A or BMR6A
Electrode gap mm (in.) 0.7–0.8 (0.028–0.031)
Engine oil type 4-stroke API SE, SG, SH, or SJ
Engine oil capacity L (qt.) 0.4 (0.36)
Fuel type type Unleaded gasoline
Fuel tank capacity L (gal) 4 (1.06)
Fuel consumption
@ continuous load
Running time
@ continuous load
kW (hp) 2.1 (2.82) @ 4200 rpm
SAE 10W-30 or 10W-40
L (gal)/hr. 1 (0.26)
hours 4
wc_td000354gb.fm
45
Page 46
Technical Data GPi 1700
6.2 Generator Data
Machine GPi 1700
Machine
Generator type Multi-pole revolving field inverter
Generator speed rpm 3000–4200
Rated AC voltage V 120
Rated frequency Hz 60
Rated AC current A 11.3
Rated AC output KVA 1.35
Rated power factor 1.0
Rated DC voltage V 12
Rated DC current A 8.3
Safety device type Current breaker
Grounding system Neutral ground (Neutral bonded to
frame)
AC outlet receptacles 1 NEMA 5 20R
DC connection Screw-on terminals (+/–)
Length mm (in.) 490 (19.3)
Width mm (in.) 295 (11.6)
Height mm (in.) 445 (17.5)
Dry weight kg (lb) 20.5 (45.2)
46
wc_td000354gb.fm
Page 47
Emission Control Systems Information and Warranty
7 Emission Control Systems Information and Warranty
The Emission Control Warranty and associated information is valid only for the
U.S.A., its territories, and Canada.
WARNING :
The engine exhaust from this product contains
chemicals known to the State of California to
cause cancer, birth defects or other reproductive
harm.
NOTICE
FEDERAL EMISSION COMPONENT DEFECT WARRANTY and CALIFORNIA
EMISSION CONTROL WARRANTY are applicable to only those engines/
generators complied with EPA (Environmental Protection Agency) and CARB
(California Air Resources Board) emission regulations in the U.S.A.
NOTICE
To the engines/generators exported to and used in the countries other than the
U.S.A., warranty service shall be performed by the distributor in each country in
accordance with the standard Robin engine/generator warranty policy as applicable.
AIR INDEX
To show compliance with California emission regulations, a hangtag has been
provided displaying the Air Index level and durability period of this engine.
The Air Index level defines how clean an engine’s exhaust is over a period of
time. A bar graph scaled from “0” (most clean) to “10” (least clean) is used to
show an engine’s Air Index level. A lower Air Index level represents cleaner
exhaust from an engine.
The period of time (in hours) that the Air Index level is measured is known as
the durability period. Depending on the size of the engine, a selection of time
periods can be used to measure the Air Index level (see below).
Descriptive Term Applicable to Emissions Durability Period
Moderate - 50 hours (engine from 0 to 80 cc)
125 hours (engine greater than 80 cc)
Intermediate - 125 hours (engine from 0 to 80 cc)
250 hours (engine greater than 80 cc)
Extended - 300 hours (engine from 0 to 80 cc)
500 hours (engine greater than 80 cc)
FRANÇAISEESPAÑOL
Notice : This hangtag must remain on this engine or piece of equipment, and
only be removed by the ultimate purchaser before operation.
wc_tx001790gb.fm
47
Page 48
Emission Control Systems Information and Warranty
FEDERAL EMISSIONS COMPONENT DEFECT WARRANTY
EMISSIONS COMPONENT DEFECT WARRANTY COVERAGE – This emission warranty is applicable in all States, except the state of
California.
Fuji Heavy Industries Ltd. and Robin America Inc., 905 Telser Road, Lake Zurich, Illinois 60047, (herein “ROBIN AMERICA”) warrant(s) to the initial retail
purchaser and each subsequent owner, that this Non-road engine (herein “engine”) has been designed, built, and equipped to conform at the time of initial
sale to all applicable regulations of the U.S. Environmental Protection Agency (EPA), and that the engine is free of defects in materials and workmanship
which would cause this engine to fail to conform with EPA regulations during its warranty period.
For the components listed under PARTS COVERED, the service dealer authorized by ROBIN AMERICA will, at no cost to you, make the necessary
diagnosis, repair, or replacement necessary to ensure that the engine complies with applicable U.S. EPA regulations.
EMISSION COMPONENT DEFECT WARRANTY PERIOD
The warranty period for this engine begins on the date of sale to the initial
purchaser and continues for a period of three years.
PARTS COVERED
Listed below are the parts covered by the Emission Components Defect
Warranty. Some of the parts listed below may require scheduled
maintenance and are warranted up to the first scheduled replacement
point for that part.
EXHAUST EMISSIONS
(1) Fuel Metering System
(i) Carburetor and internal parts (and/or pressure regulator or fuel
injection system).
(ii) Air/fuel ratio feedback and control system, if applicable.
(iii) Cold start enrichment system, if applicable.
(iv) Regulator assy (gaseous fuel, if applicable)
(2) Air Induction System
(i) Intake manifold, if applicable
(ii) Air filter.
(3) Ignition System
(i) Spark plugs.
(ii) Magneto or electronic ignition system.
(iii) Spark advance/retard system, if applicable.
(4) Catalyst or Thermal Reactor System
(i) Catalytic Converter, if applicable
(ii) Thermal Reactor, if applicable
(iii) Exhaust Manifold, if applicable
(5) Miscellaneous Items Used in Above Systems
(i) Electronic controls, if applicable
(ii) Hoses, belts, connectors, and assemblies.
(iii) Filter lock assy (gaseous fuel, if applicable)
EVAPORATIVE EMISSIONS
(1) Fuel Line
(2) Fuel Line Fittings
(3) Clamps
(4) Fuel Tank
(5) Fuel Cap
(6) Vapor Hoses
(7) Carbon Canister
(8) Carbon Canister Mounting Brackets
(9) Air Cleaner Purge Port Connector
*Fuji is not liable for the warranty on these parts if these parts are
prepared and equipped by the equipment manufacturer. Please refer to
the equipment manufacturer's warranty.
REPLACEMENT PARTS DISTRIBUTION CENTER
Replacement parts are provided to the market upon request by the
customers. Replacement parts distribution center is located at Robin
America Inc., 905 Telser Road, Lake Zurich, Illinois 60047. If you have a
question regarding your replacement part, you should contact Robin
America Inc. at 1-800-277-6246 (toll-free phone number)
website.warranty@robinamerica.com (e-mail address)
OBTAINING WARRANTY SERVICE
To obtain warranty service, take your engine to the nearest authorized
Robin America service dealer . Bring your sales receipts indicating date of
purchase for this engine. The service dealer authorized by ROBIN
AMERICA will perform the necessary repairs or adjustments within a
reasonable amount of time and furnish you with a copy of the repair order.
All parts and accessories replaced under this warranty become the
property of ROBIN AMERICA.
FUJI HONOR WARRANTY CLAIMING
For owners located more than 100 miles from an authorized service
center, the following will be provided to those applicable owners.
( excluding the states with high-altitude areas)
* Fuji will either pay for the shipping costs of replacement parts to and
from an authorized service center .
* Or Fuji will provides for a service technician to come to the owner to
make the warranty repair.
* Or Fuji will pay for the repair to be made at a local nonauthorized service
center.
WHAT IS NOT COVERED
*Conditions resulting from tampering, misuse, improper adjustment
(unless they were made by the service dealer authorized by ROBIN
AMERICA during a warranty repair), alteration, accident, failure to use
the recommended fuel and oil, or not performing required maintenance
services.
*The replacement parts used for required maintenance services.
*Consequential damages such as loss of time, inconvenience, loss of use
of the engine or equipment, etc.
*Diagnosis and inspection charges that do not result in warranty-eligible
service being performed.
*Any non-authorized replacement part, or malfunction of authorized parts
due to use of non-authorized parts.
OWNER’S WARRANTY RESPONSIBILITIES
As the engine owner, you are responsible for the performance of the
required maintenance listed in your owner’s manual. ROBIN AMERICA
recommends that you retain all receipts covering maintenance on your
engine, but ROBIN AMERICA cannot deny warranty solely for the lack of
receipts or for your failure to ensure the performance of all scheduled
maintenance.
As the engine owner, you should however be aware that ROBIN
AMERICA may deny warranty coverage if your engine or a part has failed
due to abuse, neglect, improper maintenance or unapproved
modifications.
You are responsible for presenting your engine to the nearest service
dealer authorized by ROBIN AMERICA when a problem exists.
If you have any questions regarding your warranty rights and
responsibilities, you should contact the Robin America customer service
department at 1-800-277-6246 (toll-free phone number)
website.warranty@robinamerica.com (e-mail address) for the information.
THINGS YOU SHOULD KNOW ABOUT THE EMISSION
CONTROL SYSTEM WARRANTY MAINTENANCE AND REPAIRS
You are responsible for the proper maintenance of the engine.
You should keep all receipts and maintenance records covering the
performance of regular maintenance in the event questions arise. These
receipts and maintenance records should be transferred to each
subsequent owner of the engine. ROBIN AMERICA reserves the right to
deny warranty coverage if the engine has not been properly maintained.
Warranty claims will not be denied, however, solely because of the lack of
required maintenance or failure to keep maintenance records.
MAINTENANCE, REPLACEMENT OR REPAIR OF EMISSION
CONTROL DEVICES AND SYSTEMS MAY BE PERFORMED BY ANY
REPAIR ESTABLISHMENT OR INDIVIDUAL;
HOWEVER, WARRANTY REPAIRS MUST BE PERFORMED BY A
SERVICE DEALER AUTHORIZED BY ROBIN AMERICA. THE USE OF
PARTS THAT ARE NOT EQUIVALENT IN PERFORMANCE AND
DURABILITY TO AUTHORIZED PARTS MAY IMPAIR THE
EFFECTIVENESS OF THE EMISSION CONTROL SYSTEM AND MAY
HAVE A BEARING ON THE OUTCOME OF A WARRANTY CLAIM.
If other than the parts authorized by ROBIN AMERICA are used for
maintenance replacements or for the repair of components affecting
emission control, you should assure yourself that such parts are warranted
by their manufacturer to be equivalent to the parts authorized by ROBIN
AMERICA in their performance and durability.
HOW TO MAKE A CLAIM
All repairs qualifying under this limited warranty must be performed by a
service dealer authorized by ROBIN AMERICA. In the event that any
emission-related part is found to be defective during the warranty period,
you shall notify Robin America customer service department at 1-800-2776246 (toll-free phone number) website.warranty@robinamerica.com
(e-mail address) and you will be advised of the appropriate warranty
service dealer or service providers where the warranty repair can be
performed.
48
wc_tx001790gb.fm
Page 49
Emission Control Systems Information and Warranty
MAINTENANCE SCHEDULE
MAINTENANCE, REPLACEMENT OR REPAIR OF THE EMISSION CONTROL DEVICES
AND SYSTEMS MAY BE PERFORMED BY ANY NONROAD ENGINE REPAIR
ESTABLISHMENT OR INDIVIDUAL.
DAILY INSPECTION
Before running the generator, check the following service items:
ENGLISHFRANÇAISE
Safe surroundings
Leakage of gasoline and engine oil
Enough clean engine oil
AC and DC terminals for damage
Enough gasoline
Excessive vibration,noise
Loose or broken bolts and nuts
Clean air cleaner element
PERIODIC MAINTENANCE
Periodic maintenance is vital to safe and efficient operation of your generator.
Check the table below for periodic maintenance intervals.
IT IS ALSO NECESSARY FOR THE USER OF THIS GENERATOR TO
CONDUCT THE MAINTENANCE AND ADJUSTMENTS ON THE EMISSIONRELATED PARTS LISTED BELOW TO KEEP THE EMISSION CONTROL
SYSTEM EFFECTIVE.
The emission control system consists of the following parts :
(1) Carburetor and internal parts
(2) Cold start enrichment system,
if applicable
(3) Intake manifold, if applicable
(4) Air cleaner elements
The maintenance schedule indicated in the table is based on the normal generator operation. Should the
generator be operated in extremely dusty condition or in heavier loading condition, the maintenance intervals
must be shortened depending on the contamination of oil, clogging of filter elements, wear of parts, and so on.
(5) Spark plug
(6) Magneto or electronic ignition
system
(7) Spark advance/retard
system, if applicable
(8) Exhaust manifold, if
applicable
(9) Hoses, belts, connectors, and
assemblies
wc_tx001790gb.fm
49
Page 50
Page 51
Page 52
Wacker Neuson SE, Preußenstraße 41, D-80809 München, Tel.: +49-(0)89-3 54 02-0 Fax: +49 - (0)89-3 54 02-390
Wacker Neuson Production Americas LLC, N92W15000 Anthony Ave., Menomonee Falls, WI 53051
Wacker Neuson Limited - Room 1701–03 & 1717–20, 17/F. Tower 1, Grand Century Place, 193 Prince Edward Road West, Mongkok, Kowloon, Hongkong.
Tel. : (262) 255-0500 Fax: (262) 255-0550 Tel.: (800) 770-0957
Tel: (852) 3605 5360, Fax: (852) 2758 0032
Loading...
