Wacker Neuson G 70, G 50, G 85, G 25 Operator's Manual

www.wackergroup.com

0162089en 008

1107

Mobile Generator

G 50
G 70
G 85

OPERATOR’S MANUAL

0162089EN

G 50/G 70/G 85 Table of Contents

1. Foreword 5

2. Safety Information 6

2.1 Operating Safety .................................................................................. 8

2.2 Service Safety .................................................................................... 10

2.3 Operator Safety while using Internal Combustion Engines ................ 11

2.4 Towing Safety ..................................................................................... 12

2.5 Reporting Trailer Safety Defects ........................................................ 13

2.6 Label Location .................................................................................... 14

2.7 Safety and Operating Labels .............................................................. 16

3. Operation 24

3.1 Control Panels .................................................................................... 24

3.2 Generator Monitoring ......................................................................... 26

3.3 Engine Monitoring .............................................................................. 27

3.4 Engine Shutdown Faults .................................................................... 28

3.5 Current Overload Fault ....................................................................... 29

3.6 Application .......................................................................................... 29

3.7 Voltage Selector Switch ..................................................................... 30

3.8 Emergency Stop Switch ..................................................................... 31

3.9 Main Line Circuit Breaker ................................................................... 32

3.10 Engine Start Switch ............................................................................ 33

3.11 Voltage Adjustment Rheostat ............................................................. 33

3.12 Warning Light ..................................................................................... 33

3.13 Connection Lugs ................................................................................ 34

3.14 Ground Connection ............................................................................ 35

3.15 Convenience Receptacles .................................................................. 35

3.16 Remote Run Terminal Block .............................................................. 35

3.17 Panel Door Interlock Switch ............................................................... 35

3.18 Terminal Connections ........................................................................ 36

3.19 Before Starting ................................................................................... 37

3.20 Manual Start-up .................................................................................. 38

3.21 Running the Generator ....................................................................... 40

3.22 Engine Power Correction Factors ...................................................... 40

3.23 Shutting Down Generator ................................................................... 42

3.24 Cold Weather Start-up ........................................................................ 42

3.25 Lifting .................................................................................................. 42

3.26 Overnight Storage .............................................................................. 42

3.27 Long-term Storage ............................................................................. 42

wc_bo0162089en_008TOC.fm 3

Table of Contents G 50/G 70/G 85

3.28 Automatic/Remote Start-up .................................................................43

3.29 Remote/Transfer Switch ......................................................................44

3.30 Towing .................................................................................................45

4. Maintenance 47

4.1 Periodic Maintenance Schedule ..........................................................47

4.2 New Machines .....................................................................................48

4.3 Resetting the Periodic Maintenance Timer .........................................48

4.4 Air Cleaner ..........................................................................................49

4.5 Engine Lubrication ...............................................................................50

4.6 Engine Coolant ....................................................................................51

4.7 Trailer Maintenance .............................................................................51

4.8 Troubleshooting Automatic Shutdown .................................................52

4.9 Wire Colors ..........................................................................................53

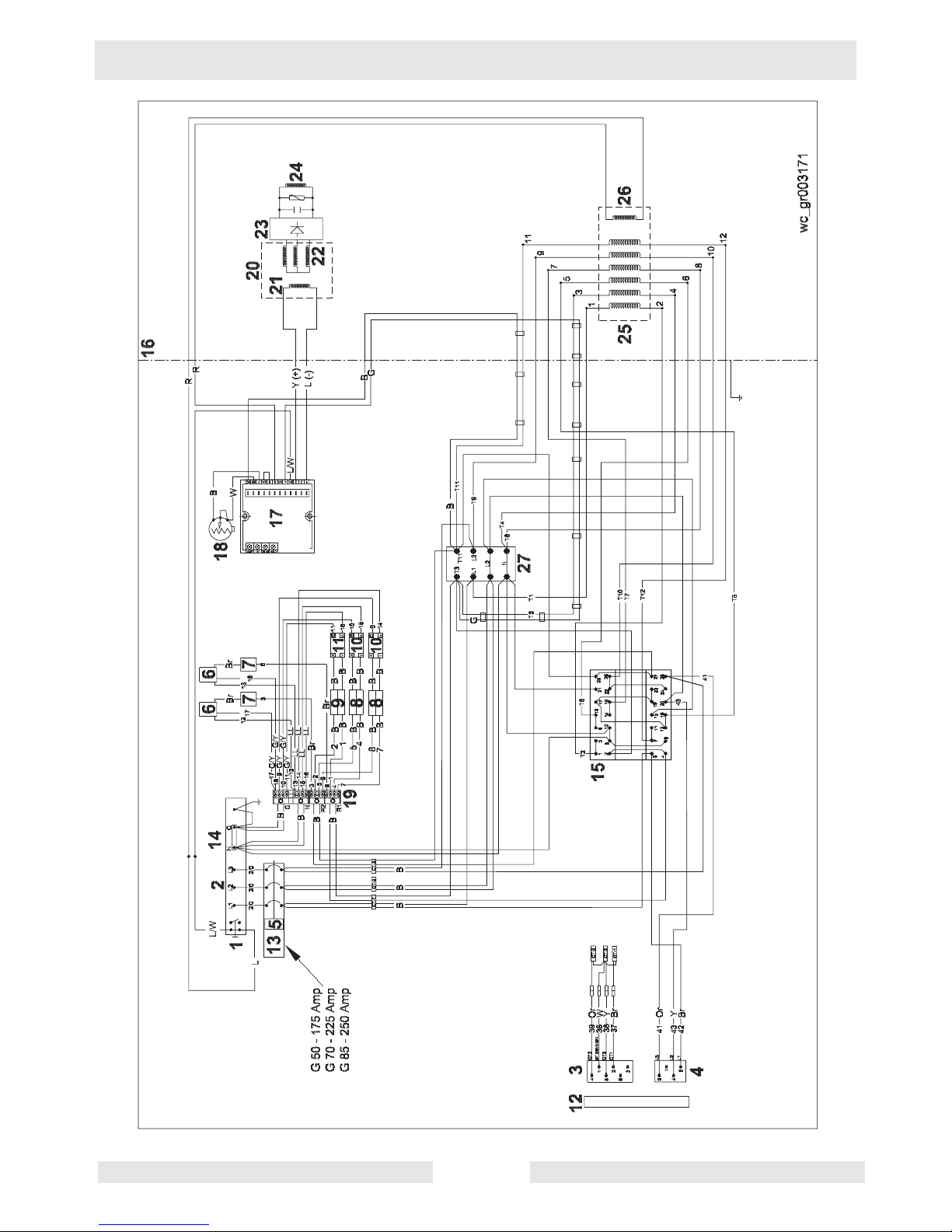

4.10 Generator and Receptacle Wiring .......................................................54

4.11 Trailer Wiring .......................................................................................60

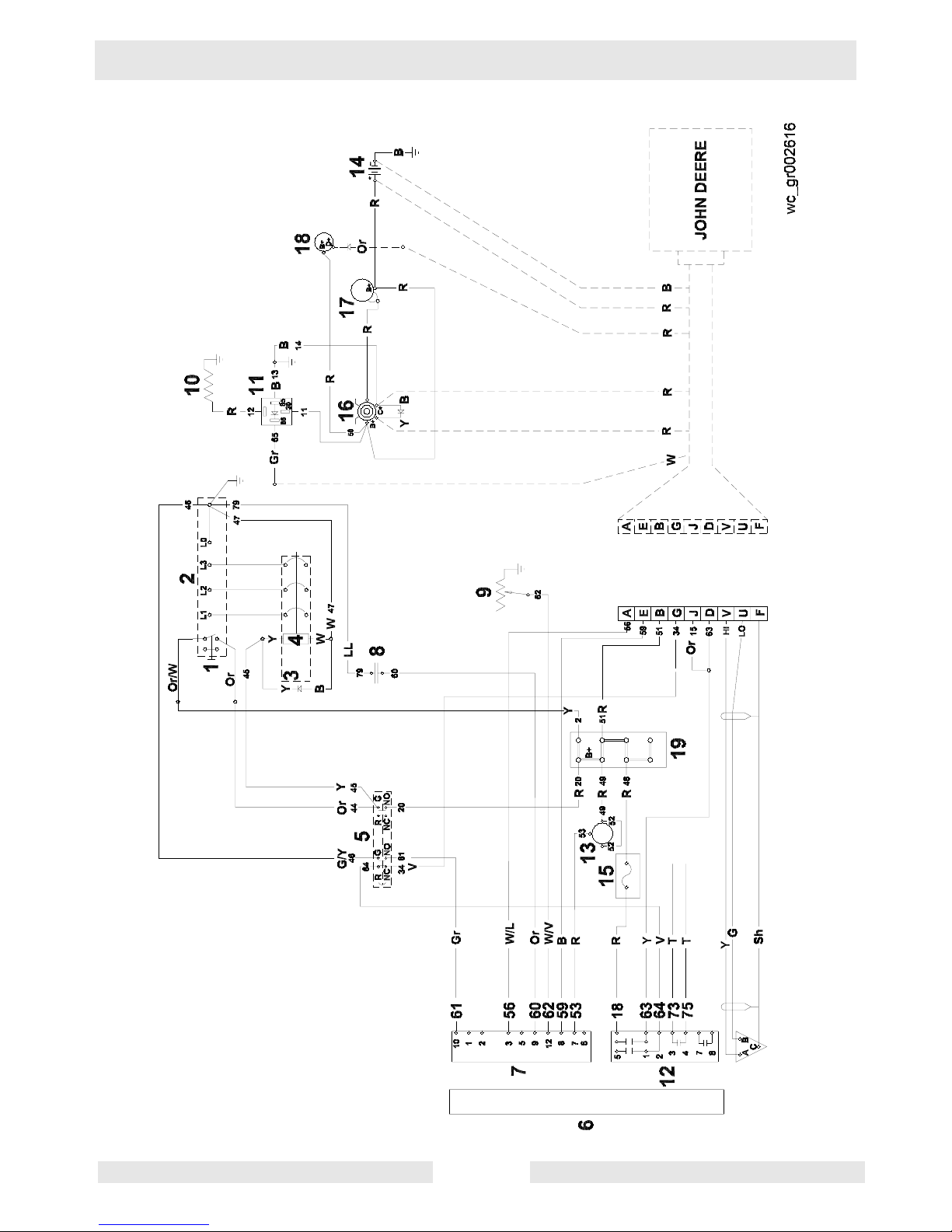

4.12 G 50/G 70 Engine Wiring ....................................................................62

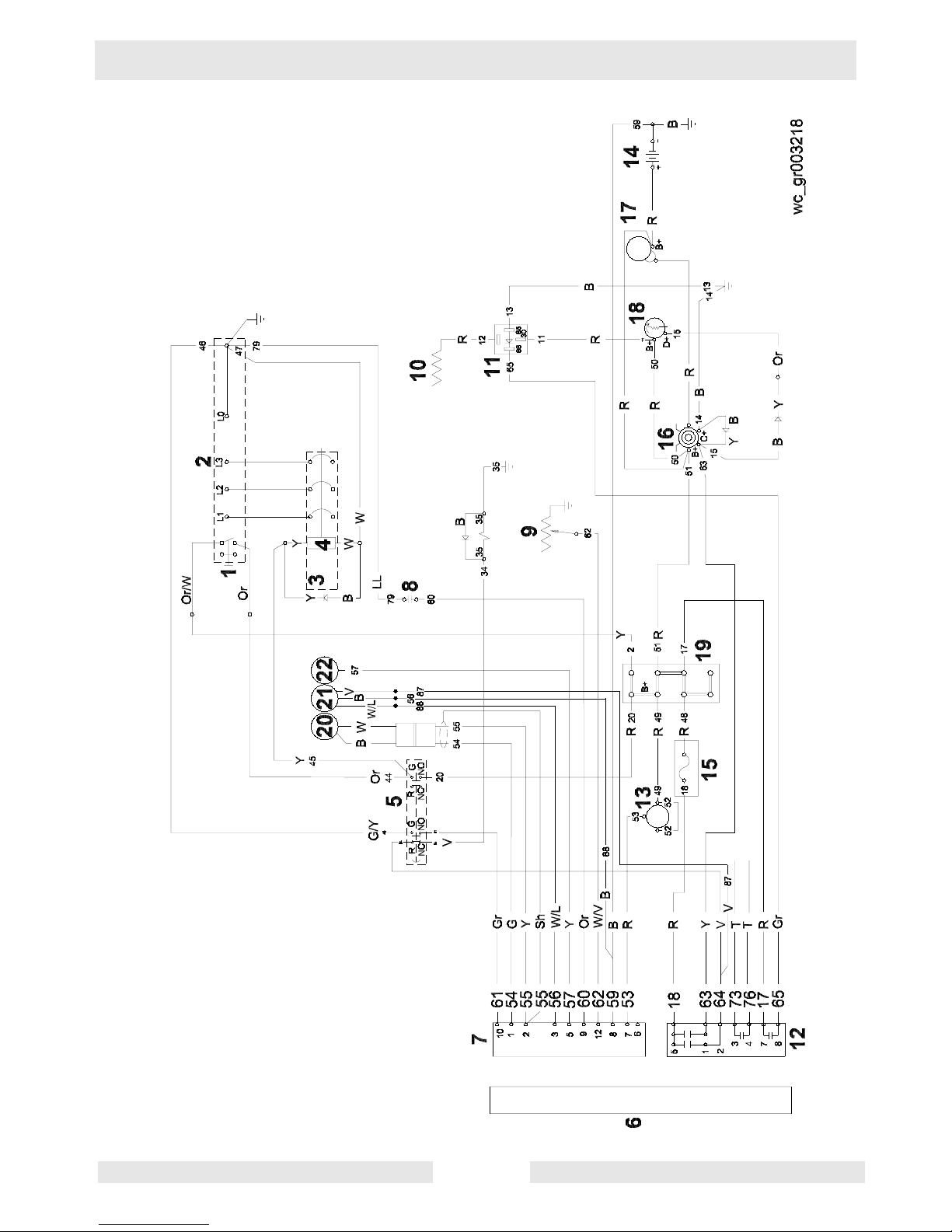

4.13 G 85 & G 70 w/ECU Engine Wiring .....................................................70

5. Factory-Installed Options 74

5.1 Block Heater ........................................................................................74

5.2 Fuel/Water Separator ..........................................................................75

5.3 Electronic Governor .............................................................................76

5.4 LCD Strip Heater .................................................................................77

5.5 Low Coolant Shutdown .......................................................................78

5.6 Lube Level Maintainer .........................................................................79

5.7 Temperature-Activated Shutters .........................................................80

5.8 Lockable Battery Disconnect ...............................................................80

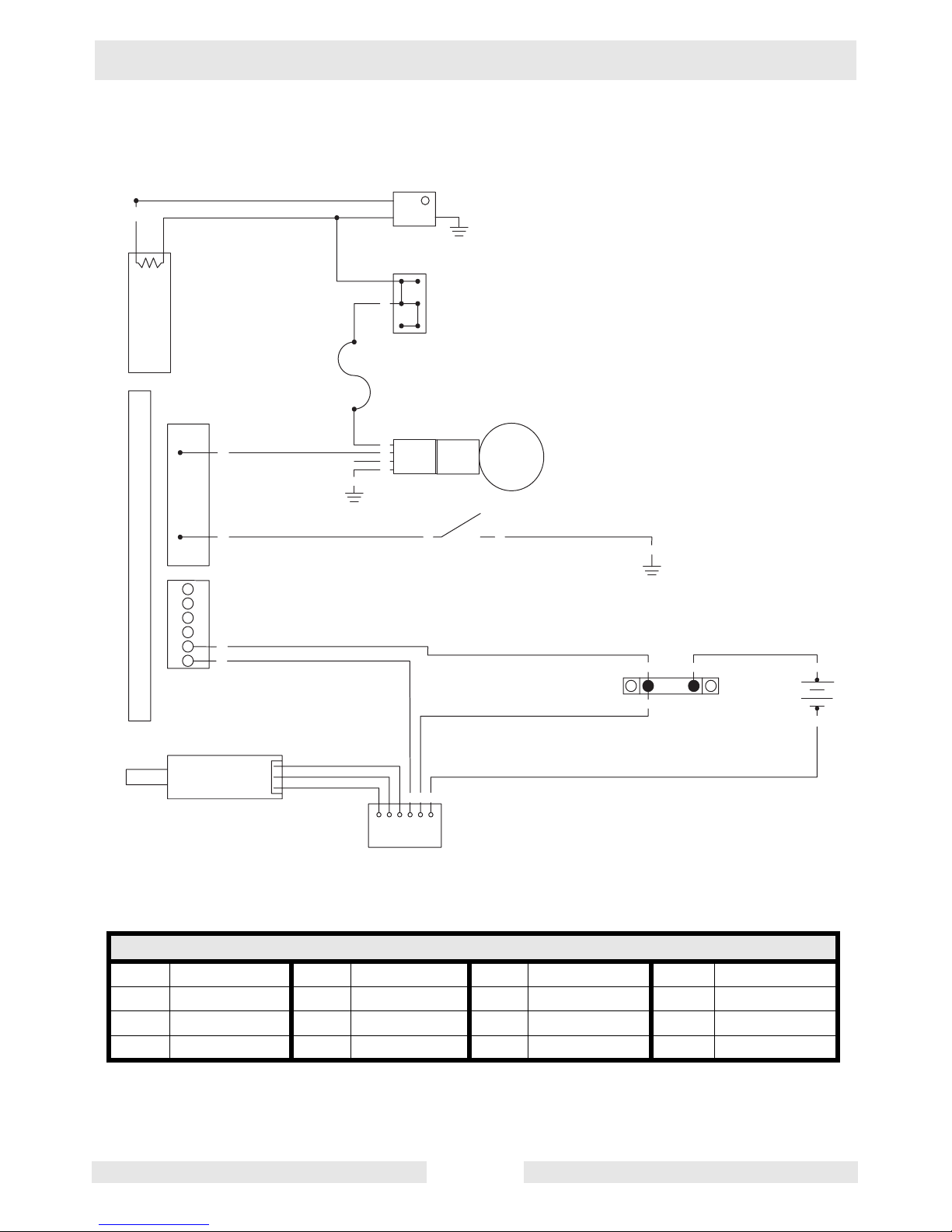

5.9 Wiring Diagram ....................................................................................82

5.10 Wiring Diagram Components ..............................................................83

5.11 Cam-Lock ............................................................................................84

5.12 Containment System ...........................................................................85

6. Technical Data 86

6.1 Engine Data .........................................................................................86

6.2 Generator Data ....................................................................................88

6.3 Trailer and Skid Data ...........................................................................89

6.4 Dimensions ..........................................................................................90

wc_bo0162089en_008TOC.fm 4

1 Foreword

Foreword

This manual provides information and procedures to safely operate
and maintain this Wacker model. For your own safety and protection
from injury, carefully read, understand and observe the safety
instructions described in this manual.

Keep this manual or a copy of it with the machine. If you lose this
manual or need an additional copy, please contact Wacker
Corporation. This machine is built with user safety in mind; however,
it can present hazards if improperly operated and serviced. Follow
operating instructions carefully! If you have questions about operating
or servicing this equipment, please contact Wacker Corporation.

The information contained in this manual was based on machines in
production at the time of publication. Wacker Corporation reserves the
right to change any portion of this information without notice.

All rights, especially copying and distribution rights, are reserved.

Copyright 2007 by Wacker Corporation.

No part of this publication may be reproduced in any form or by any
means, electronic or mechanical, including photocopying, without
express written permission from Wacker Corporation.

Any type of reproduction or distribution not authorized by Wacker
Corporation represents an infringement of valid copyrights and will be
prosecuted. We expressly reserve the right to make technical
modifications, even without due notice, which aim at improving our
machines or their safety standards.

wc_tx000001gb diesel.fm 5

Safety Information G 50/G 70/G 85

2. Safety Information

This manual contains DANGER, WARNING, CAUTION, NOTICE and
NOTE callouts which must be followed to reduce the possibility of
personal injury, damage to the equipment, or improper service.

This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.

DANGER indicates a hazardous situation which, if not avoided, will
result in death or serious injury.

DANGER

WARNING indicates a hazardous situation which, if not avoided, could
result in death or serious injury.

WARNING

CAUTION

DANGER

CAUTION indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.

NOTICE: Used without the safety alert symbol, NOTICE indicates a
hazardous situation which, if not avoided, could result in property
damage.

Note: Contains additional information important to a procedure.

Danger of Electrocution!

Danger of electrocution or severe electrical shock is present
throughout the generator any time the engine is running! Read all
safety notes contained in this section before operating or servicing this
equipment.

No one except a trained electrician, familiar with this equipment,
should attempt repairs to the generator! Test procedures which require
that the generator be running must be performed using extreme
caution.

wc_si000158gb.fm 6

G 50/G 70/G 85 Safety Information

This machine is built with user safety in mind; however, like any
electrical device it can present serious hazards if improperly operated
and serviced. Follow instructions carefully! Should questions arise
during operation or service of this equipment, contact Wacker
Corporation.

wc_si000158gb.fm 7

Safety Information G 50/G 70/G 85

2.1 Operating Safety

Familiarity and proper training are required for the safe operation of the
machine. Machines operated improperly or by untrained personnel
can be dangerous. Read the operating instructions contained in both

WARNING

2.1.1 NEVER operate the generator when open containers of fuel, paint, or

2.1.2 NEVER place flammable material or liquids near the generator.

2.1.3 NEVER operate the generator, or tools attached to the generator, with

2.1.4 NEVER use worn electrical cords. Severe electrical shock and

2.1.5 NEVER operate the machine indoors unless exhaust fumes can be

this manual and the Engine Manual and familiarize yourself with the
location and proper use of all controls. Inexperienced operators should
receive instruction from someone familiar with the machine before
being allowed to operate it.

other flammable liquids are near.

wet hands.

equipment damage may result.

adequately ventilated.

2.1.6 NEVER overload the generator. The total amperage of the tools and
equipment attached to the generator must not exceed the load rating
of the generator.

2.1.7 NEVER allow untrained personnel to operate or service the generator.
The generator set should be set up by a certified electrician.

2.1.8 NEVER operate generator in standing water.

2.1.9 NEVER touch the hot engine, exhaust, or generator components.
Burns will result.

2.1.10 NEVER start a unit in need of repair.

2.1.11 Use the emergency stop button only in an actual emergency. DO NOT
restart the engine until the cause of the trouble has been determined
and fixed.

2.1.12 ALWAYS wear hearing protection when operating equipment.

2.1.13 ALWAYS follow starting and stopping instructions described in this
manual. Know how to operate and stop generator before starting it.

2.1.14 ALWAYS make a walk-around inspection of the generator set before
starting it. Open side doors and visually inspect engine compartment
for obvious damage or the presence of foreign objects which might
affect operation.

2.1.15 ALWAYS keep the machine at least one meter (three feet) away from
structures, buildings, and other equipment during use.

2.1.16 ALWAYS store the machine properly when it is not being used. The
machine should be stored in a clean, dry location out of the reach of
children.

wc_si000158gb.fm 8

G 50/G 70/G 85 Safety Information

2.1.17 ALWAYS keep the area immediately surrounding and underneath the
machine clean, neat, and free of debris and combustible materials.
Make sure that the area overhead is clear of debris that could fall onto
or into the machine or exhaust compartment.

2.1.18 ALWAYS be sure the machine is on a firm, level surface and will not
tip, roll, slide, or fall while operating.

2.1.19 ALWAYS remove all tools, cords, and other loose items from the
generator before starting it.

2.1.20 ALWAYS make certain the machine is well-grounded and securely
fastened to a good earthen ground per national and local regulations.

BACKFEED FROM THE GENERATOR INTO THE PUBLIC POWER
DISTRIBUTION SYSTEM CAN CAUSE SERIOUS INJURY OR
DEATH TO UTILITY WORKERS!

DANGER

Improper connection of generator to a building’s electrical system can
allow electrical current from the generator to backfeed into utility lines.
This may result in electrocution of utility workers, fire, or explosion.
Connections to a building’s electrical system must be made by a
qualified electrician and comply with all applicable laws and electrical
codes.

If connected to a building’s electrical system the generator must meet
the power, voltage, and frequency requirements of the equipment in
the building. Differences in power, voltage, and frequency
requirements may exist and improper connection may lead to
equipment damage, fire, and personal injury or death.

wc_si000158gb.fm 9

Safety Information G 50/G 70/G 85

2.2 Service Safety

A poorly maintained machine can become a safety hazard! In order
for the machine to operate safely and properly over a long period of
time, periodic maintenance and occasional repairs are necessary.

WARNING

2.2.1 NEVER perform even routine service (oil/filter changes, cleaning,
etc.) unless all electrical components are shut down. Before

servicing this machine, make sure the engine start switch is turned to
off “O”, the circuit breakers are open (off), the emergency stop switch
is closed (pushed in), and the negative terminal on battery is
disconnected. Attach a “DO NOT START” sign to the control panel.
This will notify everyone that the unit is being serviced and will reduce
the chance of someone inadvertently trying to start the unit. If the unit
is connected to a remote start or transfer switch, make sure the remote
switch is also off and tagged.

2.2.2 Ground Connection

The generator must be connected to a good earthen ground for
proper operating safety!

A central “equipment ground” is provided at the customer connection
lugs. This point is connected directly to the generator set base. All
other system grounds are connected to this central point. Ground the
generator in accordance with the standards defined in national, state
and local regulations.

2.2.3 DO NOT attempt to open the radiator cap while the unit is running or
before the engine has cooled down. Severe burns may result!

2.2.4 DO NOT allow water to accumulate around the base of the machine.
If water is present, move the machine and allow the machine to dry
before servicing.

2.2.5 DO NOT service the machine if your clothing or skin is wet.

2.2.6 DO NOT allow untrained personnel to service this equipment. Only
trained electrical technicians should be allowed to service the electrical
components of this equipment.

2.2.7 DO NOT modify the machine without the express written approval of
the manufacturer.

2.2.8 DO NOT pressure wash the control panel, generator end, or any other
electrical components when cleaning the unit. Never allow water to
accumulate around the base of the generator set. If water is present,
DO NOT service!

2.2.9 ALWAYS replace the safety devices and guards after repairs and
maintenance.

2.2.10 ALWAYS let the engine cool before transporting or servicing it.

wc_si000158gb.fm 10

G 50/G 70/G 85 Safety Information

2.2.11 ALWAYS remain aware of moving parts and keep hands, feet, and
loose clothing away from the moving parts of the machine.

2.2.12 ALWAYS replace all guards, fasten doors and make sure all safety
devices operate properly after making repairs or servicing the
equipment.

2.2.13 ALWAYS keep hands, feet, and loose clothing away from the moving
parts on the generator and engine.

2.2.14 ALWAYS keep the machine clean and labels legible. Replace all
missing and hard-to-read labels. Labels provide important operating
instructions and warn of dangers and hazards.

2.2.15 ALWAYS check all external fasteners at regular intervals.

2.2.16 ALWAYS make sure slings, chains, hooks, ramps, jacks and other
types of lifting devices are attached securely and have enough weight­bearing capacity to lift or hold the machine safely. Always remain
aware of the location of other people in the area when lifting the
machine.

2.3 Operator Safety while using Internal Combustion Engines

Internal combustion engines present special hazards during operation
and fueling. Read and follow the warning instructions in the engine
Owner’s Manual and the safety guidelines below. Failure to follow the

DANGER

2.3.1 DO NOT run engine indoors or in an area with poor ventilation unless

2.3.2 DO NOT fill or drain the fuel tank near an open flame, while smoking,

2.3.3 DO NOT refuel a hot or running engine.

2.3.4 ALWAYS refill the fuel tank in a well-ventilated area.

2.3.5 DO NOT touch or lean against hot exhaust pipes.

2.3.6 ALWAYS replace the fuel tank cap after refueling.

2.3.7 DO NOT start the engine if fuel has spilled or a fuel odor is present.

2.3.8 DO NOT remove the radiator cap when the engine is running or hot.

warnings and safety standards could result in severe injury or death.

exhaust hoses are used.

or while the engine is running.

Move the generator away from the spill and wipe the generator dry
before starting.

The radiator fluid is hot and under pressure and may cause severe
burns!

wc_si000158gb.fm 11

Safety Information G 50/G 70/G 85

2.4 Towing Safety

Towing a large trailer requires special care. Both the trailer and vehicle
must be in good condition and securely fastened to each other to
reduce the possibility of an accident.

WARNING

2.4.1 ALWAYS check that the hitch and coupling on the vehicle are rated
equal to, or greater than, the trailer's “gross vehicle weight rating”
(GVWR).

2.4.2 ALWAYS inspect the hitch and coupling for wear or damage. DO NOT
tow the trailer using defective parts.

2.4.3 ALWAYS make sure the coupling is securely fastened to the vehicle.

2.4.4 ALWAYS check the tires on the trailer for tread wear, inflation, and
condition. Replace worn tires.

2.4.5 ALWAYS connect the safety chains.

2.4.6 ALWAYS connect the breakaway cable safety hook to the bumper or
rear of the vehicle. DO NOT attach it to the hitch.

2.4.7 ALWAYS test the surge brakes on the trailer and the brakes on the
vehicle that will be used for towing.

2.4.8 ALWAYS make sure directional and trailer lights are connected and
working properly.

2.4.9 ALWAYS check that the lug nuts holding the wheels are tight and that
none are missing.

wc_si000158gb.fm 12

G 50/G 70/G 85 Safety Information

2.5 Reporting Trailer Safety Defects

If you believe your trailer has a defect which could cause a crash or
could cause injury or death, you should immediately inform the
National Highway Traffic Safety Administration (NHTSA) in addition to
notifying Wacker Corporation.

If NHTSA receives similar complaints, it may open an investigation;
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual problems between you, your dealer, or
Wacker Corporation.

To contact NHTSA, you may either contact the Auto Safety Hotline toll­free at 1-800-424-9393 (or 366-0129 in Washington DC area),
www.nhtsa.com, or write to NHTSA, U.S. Department of
Transportation, 400 7th Street SW, (NSA-11), Washington, DC 20590.
You can also obtain other information about motor vehicle safety from
the Auto Safety Hotline.

wc_si000158gb.fm 13

Safety Information G 50/G 70/G 85

2.6 Label Location

wc_si000158gb.fm 14

G 50/G 70/G 85 Safety Information

wc_si000158gb.fm 15

Safety Information G 50/G 70/G 85

2.7 Safety and Operating Labels

Ref. Label Meaning

A

TOWING INSTRUCTIONS ABSCHLEPPINSTRUKTIONEN INSTRUCCIONES DE REMOLQUE

1. READ OPERATOR'S MANUAL.

2. USE HITCH RATED FRO TRAILER'S
"GROSS VEHICLE WEIGHT RATING".

3. SECURELY ATTACH TRAILER TO TOW
VEHICLE.

4. ATTACH SAFETY CHAINS USING CROSS
PATTERN.

5. ATTACH BREAKDOWN CHAIN TO VEHICLE.

6. CHECK TRAILER LIGHTS.

1. BETRIEBSVORSCHRIFT LESEN.

2. ANHANGEVORRICHTUNG VERWENDEN,
DIE DER GESAMTBETRIEBSGEWICHTSKLASSE
ENTSPRICHT.

3. ANHANGER SICHER AM ZUGFAHRZEUG
BEFESTIGEN.

4. SICHERHEITSKETTEN KREUZWEISE ANBRINGEN.

5. ABREISSKETTE AM FAHRZEUG ANBRINGEN.

6. ANHANGERLEUCHTEN PRUFEN.

1. LEA EL MANUAL DEL OPERARIO.

2. UTILICE UN ACOPLE CORRECTAMENTE
CLASIFICADO PARA LA "CLASE DE PESO BUTO"
DEL VEHICULO DEL REMOLQUE.

3. ASEGURESE DE AMARRAR CORRECTAMENTE
EL REMOLQUE AL VEHICULO DE REMOLQUE.

4. FIJE EN CRUZ LAS CADENAS DE SEGURIDA D.

5. FIJE EN EL VEHICULO DE REMOLQUE LA CADENA
DE DESPRENDIMIENTO.

6. CONTROLE LAS LUCES DEL REMOLQUE.

B WARNING!

Pressurized contents. Do not open when
hot!

C WARNING!

Lock doors. Access can cause electric
shock or injury.

D CAUTION!

Lifting point.

INSTRUCTIONS DE REMORQUAGE

1. LIRE LA NOTICE D'EMPLOI.

2. UTILISER UN GROCHET D'ATTELAGE CONFORME AU
DEBIT NOMINAL DU POIDS BRUT DE VEHICULE DU
TRACTEUR.

3. ATTACHER LA REMORQUE FERMEMENT AU VEHICULE
TRACTEUR.

4. ATTACHER LES CHAINES DE SURETTE EN UTILISANT
UNE METHODE CROISEE.

5. ATTACHER LA CHAINE DE REMORQUAGE AU VEHICULE.

6. VERIFIER LES LAMPES DE LA REMORQUE.

114894

E CAUTION!

Never change switch position with engine
running. Results in damage to machine.

WARNING!
Electric shock will cause serious injury or
death.

wc_si000158gb.fm 16

G 50/G 70/G 85 Safety Information

Ref. Label Meaning

F DANGER!

Asphyxiation hazard. Read the Opera­tor’s Manual for instructions. No sparks,
flames, or burning objects near machine.
Stop the engine before adding fuel. Use
only diesel fuel.

G Tie-down point.

H WARNING!

To prevent hearing loss, wear hearing
protection.
Hand injury if entangled in moving belt.
Rotating machinery! Do not reach inside
with engine running.
WARNING!
Hot surface!
CAUTION!
Avoid spraying water into generator.

I WARNING!

Hot surface!

J Electrical ground

K WARNING!

Electric shock will cause serious injury or
death.

wc_si000158gb.fm 17

Safety Information G 50/G 70/G 85

Ref. Label Meaning

L

M Operator’s Manual must be stored on

N DANGER!

wc_si000158gb.fm 18

machine. Replacement Operator’s
Manual can be ordered through your

a

local Wacker distributor.

Electric shock will cause serious injury or
death. Danger of asphyxiation!

G 50/G 70/G 85 Safety Information

Ref. Label Meaning

O WARNING!

Generator can automatically start which
can cause serious injury. Disconnect
battery before servicing.

P WARNING!

Read and understand the supplied
Operator’s Manual before operating the
machine. Failure to do so increases the
risk of injury to yourself or others.

Q WARNING!

To reduce the risk of electrical shock,
read the operator’s manual. Improper
connection of the generator to a
building’s electrical system can allow
electrical current from the generator to
backfeed into utility lines. This may result
in electrocution of utility workers, fire or
explosion. Connections to a building’s
electrical system must be made by a
qualified electrician and comply with all
applicable laws and electrical codes.

R Remote start operation. Read operator’s

REMOTE START
FERNSTART
ARRANQUE REMOTO
DEMARRAGE A
DISTANCE

114897

S CAUTION!

wc_si000158gb.fm 19

manual for instructions.

Receptacles not to be used when:
Selector switch set to 208/120V and
voltage greater than 228V.
Selector switch set to 480/277V and
voltage greater than 457V.

Safety Information G 50/G 70/G 85

Ref. Label Meaning

T WARNING!

W A R N I N G

W A R N U N G

A D V E R T E N C I A

A D V E R T I S S E M E N T

U

TRAILER WIRING

G - RIGHT BRAKE LIGHT AND DIRECTIONAL
Y - LEFT BRAKE LIGHT AND DIRECTIONAL
Br -TAIL, SIDE AND LICENSE PLATE LIGHTS
W - GROUND

L - ELECTRIC BRAKES
B - BATTERY CHARGE

ANHÄNGER-VERDRAHTUNG

G - RECHTES BREMSLICHT UND BLINKER
Y - LINKES BREMSLICHT UND BLINKER
Br -SCHLUSS-, SEITEN- UND

KENNZEICHENLEUCHTE

W - ERDUNG

L - ELEKTRISCHE BREMSE
B - BATTERIE-LADUNG

V Operator’s Manual must be stored on

Disconnect battery before servicing.
Read the Operator's Manual.

DE REMOLQUE

G - LUZ FRENO Y GIRO DERECHA
Y - LUZ FRENO Y GIRO IZQUIERDA
Br -LUZ TRASERA, LATERAL Y PLACA

DE MATRICULA

W - TIERRA

L - FRENOS ELECTRICOS
B - CARGA BATERIA

DISPOSITION DES CABLES CANALISATION ELECTRICA
POUR REMORQUE

G - FEUX DE STOP ET DE DIRECTION D
Y - FEUX DE STOP ET DE DIRECTION G
Br -FEUX D'ARRIERE, DE POSITION ET

DE PLAQUE D'IMMATRICULATION

W - MISE A TERRE

L - FREINS ELECTRIQUES
B - CHARGE DE LA BATTERIE

machine. Replacement Operator’s
Manual can be ordered through your
local Wacker distributor.

115681

W Drain containment system.

X WARNING!

To prevent hearing loss, wear hearing
protection when operating the machine.
WARNING!
Pressurized contents. Do not open when
hot!
WARNING!
Hand injury if entangled in moving belt.
WARNING!
Rotating machinery! Do not reach inside
with engine running.

Y Operating the main circuit breaker

supplies or interrupts power to the

114893

customer connection lugs.

L1 L2 L3

wc_si000158gb.fm 20

G 50/G 70/G 85 Safety Information

Ref. Label Meaning

Z Neutral bonded to frame.

AA Fuses

Read the operator's manual for machine
information.
1 - Controller
2 - Not used
3 - Not used
4 - Not used

BB WARNING!

Electric shock at cooling fins.

CC G 50 / G 70 / G 85

Generator and Receptacle Wiring

wc_si000158gb.fm 21

Safety Information G 50/G 70/G 85

Ref. Label Meaning

DD G 50 / G 70 - Engine Wiring

G 70 w/ECU & G 85 - Engine Wiring

EE WARNING!

Hot surface!

FF A nameplate listing the model number,

item number, revision number, and serial
number is attached to each unit. Please
record the information found on this plate
so it will be available should the
nameplate become lost or damaged.
When ordering parts or requesting
service information, you will always be
asked to specify the model number, item
number, revision number, and serial
number of the unit.

wc_si000158gb.fm 22

G 50/G 70/G 85 Safety Information

..

..

CAUTION

VORSICHT

PRECAUCION

PRECAUTION

..

173394

DONOTUSETHEBATTERYDISCONNECTSWITCHWHILEENGINEIS
RUNNING.DAMAGETOTHEELECTRICALCOMPONENTSMAYOCCUR.

BATTERIETRENNSCHALTERNICHTBENUTZEN,WAHRENDMOTORLAUFT!
BESCHADIGUNGDERELEKTRISCHENBESTANDEILEKANNAUFTRETEN.

NOUTILICEELINTERRUPTORDELADESCONEXIONDELABATERIA
MIENTRASQUEELMOTORESTAFUNCIONANDO.DANOSALOS
COMPONENTESELECTRICOSPUEDENOCURRIR.

NUTILISERPASLECOMMUTATEURDEDEBRANCHEMENTDEBATTERIE
TANDISQUELEMOTEURTOURNE.DESDOMMAGESAUXCOMPOSANTS
ELECTRIQUESPEUVENTSEPRODUIRE.

Ref. Label Meaning

GG CAUTION: Do not use battery disconnect

DONOTUSETHEBATTERYDISCONNECTSWITCHWHILEENGINEIS
RUNNING.DAMAGETOTHEELECTRICALCOMPONENTSMAYOCCUR.

BATTERIETRENNSCHALTERNICHTBENUTZEN,WAHRENDMOTORLAUFT!
BESCHADIGUNGDERELEKTRISCHENBESTANDEILEKANNAUFTRETEN.

NOUTILICEELINTERRUPTORDELADESCONEXIONDELABATERIA
MIENTRASQUEELMOTORESTAFUNCIONANDO.DANOSALOS
COMPONENTESELECTRICOSPUEDENOCURRIR.

NUTILISERPASLECOMMUTATEURDEDEBRANCHEMENTDEBATTERIE
TANDISQUELEMOTEURTOURNE.DESDOMMAGESAUXCOMPOSANTS

ELECTRIQUESPEUVENTSEPRODUIRE.

switch while engine is running. Damage
to electrical components may occur.

This machine may be covered by one or
more patents.

Certification Label (VIN Number)
Also attached to each unit is a
Certification Label. This label specifies
that the trailer conforms with all Federal
Motor Vehicle Standards in effect at the
time of manufacture. The label includes
the Vehicle Identification Number (VIN)
for the trailer.

wc_si000158gb.fm 23

Operation G 50/G 70/G 85

3. Operation

3.1 Control Panels

wc_tx000483gb.fm 24

G 50/G 70/G 85 Operation

Ref. Description Ref. Description

a Main Circuit Breaker l Twist-Lock Receptacle

(120/240 VAC, 50Amp) - two

b Voltage Adjustment Rheostat m Twist-Lock Receptacle

(120/240 VAC, 30 Amp)

c Shutdown LED n GFI Receptacle

(120 VAC, 20 Amp) - two

d Pre-alarm LED o Remote Run Terminal Block

e LCD Panel p Emergency Stop Switch

f Engine Start Switch q Interlock Switch

g Engine Hours Switch r Customer Connection Terminal Lugs

h Circuit Breaker

s Ground Connection

(240V, 50 Amp)

j Circuit Breaker

t Bond bar

(240V, 30 Amp)

k Circuit Breaker

(120V, 20 Amp) - two

wc_tx000483gb.fm 25

Operation G 50/G 70/G 85

3.2 Generator Monitoring

Generator information is displayed on the top line of the LCD panel and
is scrolled continuously while the generator is operating, to show the
voltage, amperage and frequency of each phase.

Note: To prevent the display from scrolling, press the ENG HRS switch
down.

Volts “V”- Displays the AC output voltage being produced by the
generator.

Phase “Ø” - Indicates which phase is currently being displayed.
Amps “A” - Displays the AC output amperage produced by the

generator. If the generator is operating at no-load, output amperage
will display a 0.

Hertz “Hz” - Displays output frequency.

Sample display with engine running.

208 1 24 60
78 85% 175 14.3

UNIT IN AUTO

Ø 100% 85 13.2

Sample display in “Auto” mode.

wc_tx000483gb.fm 26

G 50/G 70/G 85 Operation

3.3 Engine Monitoring

With the engine start switch set to “RUN/START” or “REMOTE
START”, engine information will be continuously displayed on the
bottom line of the LCD panel.

OIL - Displays engine oil pressure. The gauge registers oil
pressure between 0–100 psi. Normal operating pressure is between
60–80 psi. If oil pressure drops below 15 psi, the engine will
automatically shut down.

FUEL - Indicates the relative fuel level in the fuel tank. If fuel
level drops to 5% the engine will automatically shut down.

TEMPERATURE - Displays the temperature of the engine's
coolant. If the coolant temperature gets too high, the engine will
automatically shut down.

BATTERY - This gauge measures the engine starting battery
voltage. A normal reading is 13.5–14.5V. If the gauge falls much
below or above these values, the engine charging system should be
checked. With the engine switch set to “REMOTE START” and the
generator in stand-by mode, actual battery voltage is displayed.

ENGINE HOURS - Pressing the switch UP causes the engine’s
running hours, the periodic maintenance timer, and the Engine
Diagnostic Trouble Codes set points to be displayed. Engine hours are
accumulated only while the engine is actually running.

Note: When held down, this switch can be used to lock in a specific
display for a single phase.

RUNNING HOURS

135.2

TIME TO SERVICE

180.2 hrs.

SPN.FMI 100.01

Sample display of engine hours.

Sample display of periodic maintenance timer.

G 85 & G 70 w/ECU only

Sample display showing Engine Diagnostic
Trouble Codes.
SPN = Suspect Parameter Number
FMI = Failure Mode Identifier.

wc_tx000483gb.fm 27

Operation G 50/G 70/G 85

3.4 Engine Shutdown Faults

The engine control module (ECM) continuously monitors vital engine
functions for fault conditions. When a fault condition occurs, the engine
will shut down and the LCD panel will display the fault causing the
shutdown. To reset the Engine Control Module and resume operation,
return the Engine Start Switch manually to off “O”. Also refer to Section

Warning Light.

Indicates that the emergency stop button has
been depressed. This display will remain on

EMERGENCY

STOP

SPN.FMI 100.01

until the emergency stop button is pulled back
out.

G 70 w/ECU & G 85 only

Sample display showing Engine Diagnostic
Trouble Codes.
SPN = Suspect Parameter Number
FMI = Failure Mode Identifier.

FAULT

OVERSPEED 2200

FAULT

OVERCRANK

LOW FUEL

FAULT

UNDERSPEED

Indicates that the engine speed exceeded
approximately 2000 rpm (110% of its rated
speed of 1800 rpm) and the ECM has auto­matically shut the engine down.

An overcrank fault is displayed when the
engine fails to start during the normal cranking
cycle, and the Engine Control Module has
automatically shut down the generator due to
an overcrank condition.

A low fuel fault condition will be displayed
when the fuel tank drops to 5% and the Engine
Control Module has shut the engine down.
This fault condition prevents the fuel lines from
running completely dry and avoids the need to
bleed the lines when the tank is refilled.

Indicates that the engine speed dropped below
55 Hz for more than 15 seconds and the ECM
has automatically shut the engine down.

wc_tx000483gb.fm 28

G 50/G 70/G 85 Operation

Normal operating pressure is between 40–80
psi. If oil pressure drops below 15 psi, the

LOW OIL LEVEL

FAULT

LOW WATER LEVEL

3.5 Current Overload Fault

Along with engine functions the ECM continuously monitors the current
load in each phase. The values for current overload are programmed
into the ECM at the factory and are different for each generator size.

engine will automatically shut down.

For machines with the Low-Coolant Shutdown
Option only. This fault will be displayed when
the ECM has picked up a signal from the sen­sor that a low-coolant level exists. During such
a condition, the ECM shuts the engine down.

When an overload condition is sensed in any leg, the engine will shut
down and the LCD panel will display the fault condition shown above.

Before restarting the generator, the cause of the overload should be
determined and eliminated. Review all loads attached to the generator
and make sure they do not exceed the power rating of the unit.

3.6 Application

Heavy-duty, compact, sound-attenuated generators designed to
provide single and three-phase power for construction, commercial,
and industrial applications where reliable power is needed.

NOTICE: Do not exceed the power output of the generator. Damage
to tools or generator will occur. Refer to Technical Data.

When using the generator as a standby or substitute power supply,
make sure the voltage and phase rotation of the line connections
match those of the utility lines or of any other power source normally
used. Failure to match phase rotation and voltage may cause

equipment connected to the generator to operate incorrectly!
This could create unsafe operating conditions.

FAULT

OVERLOAD

NOTICE: DO NOT exceed the rated current limit of any receptacle.

wc_tx000483gb.fm 29

Operation G 50/G 70/G 85

3.7 Voltage Selector Switch

See Graphic: wc_gr001682

The voltage selector switch is located in a separate enclosure on the
generator on the opposite side of the machine.

The selector switch is a three-position switch which mechanically
changes the connections between the generator output leads and the
terminal lugs on the generator. This allows three different volt ranges
to be selected.

120/240 VAC 1Ø
120/208 VAC 3Ø
139/240 VAC 3Ø (Refer to Section Voltage Adjustment Rheostat.)
277/480 VAC 3Ø
Voltage ranges are selected by rotating the handle on the switch to the

desired voltage. The switch is equipped with a locking mechanism.
This allows the voltage setting to be locked in place to prevent
unauthorized personnel from changing the voltage selection. To lock
switch in position, push lock up and attach a padlock through the
openings in the locking strip.

DANGER

NOTICE: NEVER CHANGE THE VOLTAGE SELECTOR SWITCH
WITH THE ENGINE RUNNING. This can cause arcing and can
severely damage the switch and the generator windings.

DANGER OF ELECTROCUTION! High voltage is present inside this
panel when the generator is operating!

wc_tx000483gb.fm 30

G 50/G 70/G 85 Operation

3.8 Emergency Stop Switch

See Graphic: wc_gr001677

The emergency stop switch (p) is the red button located below the
receptacle panel and can be accessed with the panel doors closed.

Activate the emergency stop switch by pushing the red button in.
Pushing the emergency stop switch opens the main circuit breaker and
the fuel solenoid and results in the engine shutting down. The switch
will remain in until the button is rotated and it pops out.

NOTICE: PRESS THE EMERGENCY STOP BUTTON ONLY IN THE
CASE OF AN ACTUAL EMERGENCY WHERE THE GENERATOR
MUST BE STOPPED IMMEDIATELY! In all other instances, open the
main line circuit breaker and then turn the engine start switch to off “O”.

wc_gr001677

wc_tx000483gb.fm 31

Operation G 50/G 70/G 85

3.9 Main Line Circuit Breaker

See Graphic: wc_gr002611

The main line circuit breaker (a) is located on the control panel.
In the “off” position, this breaker interrupts power from the selector

switch to the terminal lugs at the bottom of the generator panel.
NOTICE: Before shutting down the generator or performing any

service to the generator unit, make sure the main circuit breaker is in
the off “O” position.

NOTICE: The convenience receptacles are not connected through the
main line circuit breaker but are connected directly to the generator
windings. As a result, the receptacles are powered even with the main
breaker in the “off” position. To turn off power to receptacles, open the
individual circuit breakers provided for each.

DANGER OF ELECTROCUTION! High voltage is present inside this
panel when the generator is operating!

DANGER

wc_tx000483gb.fm 32

G 50/G 70/G 85 Operation

3.10 Engine Start Switch

See Graphic: wc_gr002611

The engine start switch (f) is a three-position switch: “REMOTE
START”, off “O”, and “START/RUN”. The “REMOTE START” position
is the normal setting used when using the generator as a back-up
power supply connected to a remote switch. In the REMOTE START
position, the generator is in stand-by mode and will not start until the
remote switch closes. In the “START/RUN” position, the switch
immediately starts the engine start cycle and activates the starter
motor to crank the engine. When set in the “REMOTE START” or
“START/RUN position, the switch applies battery power to the control
module to turn on the LCD panel, and also energizes the engine’s
electrical system. In the off “O” position, power to the engine’s
electrical system, including the fuel solenoid, is disconnected.

3.11 Voltage Adjustment Rheostat

See Graphic: wc_gr002611

Just left of the controller display window is the voltage adjustment
rheostat (b). Use the rheostat to adjust the AC voltage output. Loosen
locking nut and turn adjusting screw clockwise to increase voltage,
counter-clockwise to decrease voltage. The voltage can be monitored
at the LCD panel.

3.12 Warning Light

See Graphic: wc_gr002611

The amber warning light (d) on the metering panel will turn on prior to
an engine fault condition occurring. This acts as a pre-alarm to call
attention to a potential fault condition. At the same time the warning
light goes on, the LCD panel will begin blinking to indicate which
engine function is approaching its fault value.

Engine Pre-alarm Set Points:

• Fuel Level = 25%

• High Temperature = 226°F

• Low Oil Pressure = 20 psi

• Time to Service = 0 hours

• Sender Failure = engine coolant and oil pressure senders.
Note: Time to Service and Sender Failure faults will not shut down the

generator.

wc_tx000483gb.fm 33

Operation G 50/G 70/G 85

3.13 Connection Lugs

See Graphic: wc_gr002611

The customer connection lugs (r) are located on left at the bottom of
the panel behind a hinged door. The lugs provide connection points for
attachment of outside loads.

A large label like the one shown in section Terminal Connections is
attached to the inside of the terminal door. It shows the correct terminal
connections for selected voltages.

Connections to the lugs should be made by running the power cables
up under the lug door in the bottom of the panel and into the lug. Use
a 3/8 in. Allen wrench to tighten cable connections in place.

DANGER OF ELECTROCUTION! High voltage is present inside this
panel when the generator is operating!

DANGER

wc_tx000483gb.fm 34

G 50/G 70/G 85 Operation

3.14 Ground Connection

See Graphic: wc_gr002611

A ground connection (s) is located next to the terminal lugs. The unit
must have this ground lug connected to a good earthen ground for
proper operating safety in compliance with NEC and local standards.

3.15 Convenience Receptacles

See Graphic: wc_gr002611

The generator is equipped with two 120V/240V twist lock receptacles
(l) rated at 50A, and one 120V/240V twist lock receptacles (m) rated
at 30A. The two 120V duplex receptacles (n) are equipped with
ground fault interrupts (GFI). Receptacles do not connect through the
main line circuit breaker. Each receptacle is protected by its own circuit
breaker (h, j, k) which is located directly above it. Power to the
receptacles is available any time the generator engine is running, even
with the main line circuit breaker open.

Note: When the voltage selector switch is in the 480 V / 3Ø position,
voltage at the duplex receptacles is 139 V, and voltage at the 30/50 A
receptacles is 139/240 V. When the voltage selector switch is in the
208 V / 3Ø position, voltage at the 30/50 A receptacles is 120/208 V.
When the voltage selector switch is in the 208 V / 3Ø position, the
voltage can be adjusted with the voltage adjustment rheostat (f) to 240
V / 3Ø. The voltage at the duplex receptacles is 139 V, and voltage at
the 30/50 A receptacles is 139/240 V.

3.16 Remote Run Terminal Block

See Graphic: wc_gr002611

The remote run terminal block (o) is located just to the right of the 120V
duplex receptacles. It provides connection points for installation of a
remote start switch. When it is connected to a transfer switch, it allows
the generator to be used as a standby power supply.

3.17 Panel Door Interlock Switch

See Graphic: wc_gr002611

The customer connection lugs panel access door is equipped with an
interlock switch (q). When the door is opened this switch automatically
trips the main circuit breaker. Voltage to the receptacles will not be cut.

wc_tx000483gb.fm 35

Operation G 50/G 70/G 85

3.18 Terminal Connections

DANGER

DANGER

ALL CONNECTIONS TO THE TERMINALS MUST BE MADE BY A
TRAINED ELECTRICIAN.

BACKFEED FROM THE GENERATOR INTO THE UTILITY’S
DISTRIBUTION SYSTEM CAN CAUSE A SERIOUS INJURY OR
DEATH TO UTILITY WORKERS!

Improper connection of generator to a building’s electrical system can
allow electrical current from the generator to backfeed into utility lines.
This may result in electrocution of utility workers, fire or explosion.
Connections to a building’s electrical system must be made by a
qualified electrician and comply with all applicable laws and electrical
codes.

DANGER OF ELECTROCUTION! ALWAYS OPEN MAIN CIRCUIT
BREAKER AND SET ENGINE STOP SWITCH TO OFF “O”
BEFORE INSPECTING OR ATTEMPTING ANY CONNECTIONS TO
THE TERMINAL BLOCK! LETHAL VOLTAGE COULD BE
PRESENT ON THE TERMINAL LUGS!

wc_tx000483gb.fm 36

G 50/G 70/G 85 Operation

3.19 Before Starting

Before putting the generator into service, review each item on the
following checklist. Because generators are often run for long periods
of time unattended, it is important to make sure that the unit is set up
properly to reduce possible problems.

Failure to follow the procedures listed may cause injury to personnel or
damage to the generator. Be certain that all persons setting up the

WARNING

generator are certified or fully trained on the installation of the
generator.

• Check for any damage that might have been caused during shipping
or towing.

• Check to make sure no debris has lodged in vents, near radiator or
around fan. Check to make sure that the exhaust compartment is
clean and nothing is touching the muffler or exhaust pipes.

• Check that generator is level.

• Chock trailer wheels.

• Check that generator is grounded to a good earthen ground per local
regulations and NEC standards.

• Check engine oil, coolant and fuel levels, and fill as required.

• Determine voltage needs. Set voltage selector switch and make
correct terminal connections.

• Check that all electrical connections were made in compliance with
local regulations and NEC standards.

• Check fan belt and hoses on engine for loose connections or fraying.
Tighten or replace as required.

• Close and secure side panel access doors.

• Review and follow safety instructions found in the front of this manual.

wc_tx000483gb.fm 37

Operation G 50/G 70/G 85

3.20 Manual Start-up

See Graphic: wc_gr001682, wc_gr001677, wc_gr002611

Before starting the generator set, thoroughly review the pre-start-up
checklist in the previous section. Proceed with generator start-up only
after checking each item in that section.

Thoroughly read and make sure you understand the engine Operator’s
Manual supplied with the generator. Follow the steps below and the
illustration on the opposite page in the order listed.

When using the generator as a standby or substitute power supply,
make sure the voltage and phase rotation of the line connections

WARNING

3.20.1 Check position of Voltage Selector Switch and make sure it is set for

match those of the utility lines or of any other power source normally
used. Failure to match phase rotation and voltage may cause

equipment connected to the generator to operate incorrectly!
This could create unsafe operating conditions.

the desired voltage output. Lock the switch in place.

3.20.2 Make sure the Engine Start Switch (f) is in the off “O” position.

3.20.3 Turn main line circuit breaker (a) and convenience receptacle circuit
breakers to off “O”. This will disconnect all loads from the generator.

3.20.4 Move Engine Start Switch (f) to “REMOTE START” to check operation
of engine control module. The LCD panel should momentarily display
“SYSTEM OK” followed by “UNIT IN AUTO” and engine information.
Check fuel level and battery values.

Note: The amber Warning Light (d) will come on if the fuel level is
below 25%, or engine temperature is below 70°F. This will not prevent
the engine from starting.

3.20.5 Press in the Emergency Stop Button (p). The LCD panel should read
“EMERGENCY STOP”. Release the stop button after verifying the

display and return the Engine Start Switch to off “O”.

3.20.6 Start engine by moving the Engine Start Switch to the “START/RUN”
position.

After displaying “GLOW PLUG ON” sequence, the LCD display will
read “STARTING ENGINE” as the engine begins its crank cycle. The
normal cycle is for the engine to crank for 15 seconds, then rest for 10
seconds. This cycle will repeat three (3) times. If the engine does not
start within this time, the Engine Control Module will shut down the
engine and “FAULT OVERCRANK” will be displayed on the LCD
panel. To repeat crank cycle, return start switch to off “O” to reset
Engine Control Module. Allow starter motor to cool between start-up
attempts.

wc_tx000483gb.fm 38

G 50/G 70/G 85 Operation

3.20.7 After engine starts, allow it to warm up for a few minutes and check
readouts on LCD panel. The “TIME TO SERVICE” interval will be
displayed. Make sure battery charging system, oil pressure and engine
temperature readings are within normal ranges.

3.20.8 Check that AC voltage is correct. Voltage can be fine-adjusted by
turning the voltage adjustment rheostat (b) on the metering panel.

3.20.9 Check frequency. Under no-load conditions, frequency should read
around 61.5 Hz, dropping to near 60 Hz as the generator load is
switched on.

wc_gr001677

wc_tx000483gb.fm 39

Operation G 50/G 70/G 85

3.21 Running the Generator

See Graphic: wc_gr002611

Leave the Engine Start Switch (f) in the “START/RUN” position while
the generator is operating. If the generator was started using a remote
switch, leave Engine Start Switch in the “REMOTE START” position.
Let the generator run for a few minutes to warm engine before closing
main circuit breaker.

Before closing breakers, make sure that any electrical devices
attached downstream from the generator will not start up

WARNING

WARNING

unexpectedly.

While the generator is running, check for excessive vibration, oil leaks,
or coolant leaks.

Before placing the Engine Start Switch (f) in the “REMOTE
START” position, verify that the contacts on any remote switch linked

to the generator set are OPEN. This will prevent the generator from
immediately starting when the Engine Start Switch is moved to the
“REMOTE START” position.

3.22 Engine Power Correction Factors

Performance data on John Deere engines are measured at the
following standard conditions:

• 29.31 inches of mercury dry air pressure

• 600 feet altitude

• 0 % relative humidity

• 77°F air intake temperature

• 104°F fuel inlet temperature
Refer to the table to estimate the engine power decrease in percent,

as environmental factors vary from the standard conditions.

MODEL FUEL TEMP

RISE of 1.8°F

G 50 0.17 1.50 3.00 0.10

G 70
G 85

0.19 0.50

AIR TEMP

RISE of 10°F

ALTITUDE

RISE of 305 m

(1000 ft)

see chart

below

RELATIVE
HUMIDITY

RISE of 10%

0.07

wc_tx000483gb.fm 40

G 50/G 70/G 85 Operation

36

34

32

30

28

26

24

22

20

18

16

14

12

10

8

Engine Power Deration (%)

6

4

2

0

78 9 1011121314 15 161718

(2,1) (2,4) (2,75) (3,0) (3,3) (3,6) (4,0) (4,3) (4,6) (4,9) (5,2) (5,5)

Altitude x 1000 Feet

wc_gr001227

wc_tx000483gb.fm 41

Operation G 50/G 70/G 85

3.23 Shutting Down Generator

Check with other personnel on the jobsite and let them know that
power is being turned off. Make sure that the power shutdown will not
create any hazards by turning off devices such as pumps, heaters, or
lights that may need to be kept on.

3.23.1 Remove all loads from generator.

3.23.2 Open (turn to off “O”) main line circuit breaker.

3.23.3 Let engine run for approximately 5 minutes to allow it to cool down.

3.23.4 Move Engine Start Switch to the off “O” position.

3.24 Cold Weather Start-up

Good cold-weather starting requires that the battery be at peak power,
the correct weight motor oil is used, and the starter motor is in good
condition. The ECM will automatically activate the cold starting aid
when the temperature is low enough and will display “AIR INTAKE
HEATER” during the time the cold starting aid is activated.

3.25 Lifting

A central lifting eye is located at the top of the generator and is
attached to a lifting frame inside the housing.

Refer to the Technical Data for the proper operating weight of the
generator. Make sure the lifting devices have sufficient capacity to lift
the unit safely.

When lifting the generator, attach a hook or sling securely to the lifting
eye.

3.26 Overnight Storage

When storing unit overnight, make sure all access doors are closed
and padlocked.

DO NOT store generator overnight in a low lying area that might fill with
water during a heavy storm.

3.27 Long-term Storage

If the generator is being stored for several months, follow the engine
manufacturer’s recommendations for long-term storage. These
procedures are designed to help minimize engine corrosion.

wc_tx000483gb.fm 42

G 50/G 70/G 85 Operation

3.28 Automatic/Remote Start-up

See Graphic: wc_gr002611

In the “REMOTE START” position the generator can be started
remotely, either through a transfer switch or some other type of remote
start switch. “REMOTE START” is the normal setting when using the
generator as a standby power supply. Before placing the generator in
the automatic start-up mode, review the pre-start and manual Start-up
sections in this manual and follow procedure below.

Before placing the Engine Start Switch (f) in the “REMOTE
START” position, verify that the contacts on any remote switch linked

WARNING

3.28.1 Perform a manual start at least once to verify that the metering panel

to the generator set are OPEN. This will prevent the generator from
immediately starting when the Engine Start Switch is moved to the
“REMOTE START” position.

is operating correctly. Refer to Section Before Starting and Manual
Start-up sections in this manual.

3.28.2 If a check of auto start-up circuit is desired, attach a short jumper wire
(minimum 16 gauge insulated) between the two terminals on the
remote run terminal block. This applies a ground to the Engine Control
Module to complete the start circuit. The engine should crank, start and
run.

Move the Engine Start Switch to off “O” to stop engine. Remove jumper
from remote run terminals after testing is complete.

3.28.3 Secure generator by closing and locking all doors.

3.28.4 Set Engine Start Switch to “REMOTE START” and close main line
circuit breaker.

The generator is now ready for automatic start-up.
If the generator is to be used as a stand-by power supply for more than

a month, provisions must be made to maintain battery charge. This can
be done either by attaching a battery charger to the battery or by
starting generator manually and running engine periodically to
maintain charge. See Section Manual Start-up.

wc_tx000483gb.fm 43

Operation G 50/G 70/G 85

3.29 Remote/Transfer Switch

See Graphic: wc_gr002611

When the generator is used as a standby power supply, it must be
equipped with a device which isolates it from the utility’s distribution
system.

DANGER

Failure to isolate the generator from the utility’s electrical
distribution system could cause output from the generator to
backfeed into the utility lines and cause injury or death to utility
workers!

The same is true if using the generator as a backup to some other type
of power supply system.

A transfer switch is designed to transfer electrical loads from the
normal power source (utility) to the emergency power source
(generator) when normal voltage falls below a prescribed level.

The transfer switch automatically returns the load back to the normal
source when power is restored back to operating levels.

WARNING

DANGER

Installation of a transfer switch or other type of remote starting device
is the responsibility of the generator user. Installation of such devices
must be performed by a qualified electrician following all directions
supplied by the manufacturer of the switch. If attaching generator to a
power supply normally serviced by a utility company, notify the utility
company and check local and state regulations. Familiarize yourself
with all instructions and warning labels supplied with the switch.

The bond bar (t), connecting the neutral and ground lugs, may need to
be removed for standby power applications. Check with NEC and local
regulations for compliance requirements.

When using the generator as a standby or substitute power supply,
make sure the voltage and phase rotation of the line connections
match those of the utility lines, or of any other power source normally
used. Failure to match phase rotation and voltage may cause

equipment connected to the generator to operate incorrectly!
This could create unsafe operating conditions.

Lethal voltage is always present in the transfer switch once it has been
properly installed!

wc_tx000483gb.fm 44

G 50/G 70/G 85 Operation

3.30 Towing

See Graphic: wc_gr000510

The generator trailer is equipped with brakes, lights, and coupler
connection. Before towing the generator, perform the following:

3.30.1 Check that the towing vehicle and hitch have a rating equal to or
greater than the GVWR. Refer to the Technical Data.

3.30.2 Check the condition of both the coupler and hitch. DO NOT tow the
trailer if the coupler or hitch is damaged.

3.30.3 Make sure that the hitch and coupler are compatible. The generator
trailer is equipped with either a pintle type coupler (a) or 50 mm (2 in.)
ball coupler.

3.30.4 Check that the directional and running lights on the trailer are working.

3.30.5 Connect the safety chains (c) using a crossed pattern under the trailer
tongue.

3.30.6 On trailers with surge or electric brakes, connect the breakaway cable
(b) on the trailer coupler to the rear bumper or frame of the vehicle.
This cable will actuate the brake system on the trailer if both the
coupling and safety chains have failed. The breakaway cable is not a
parking brake and should not be used as one.

3.30.7 Check that all fasteners on the coupling are secure.

3.30.8 Check the tread wear and inflation on tires. Make sure that all lug nuts
are in place and are tight.

3.30.9 Check the operation of the optional surge brakes by braking the
vehicle at a slow speed before entering traffic. Both the vehicle and the
trailer should brake smoothly. If the trailer seems to be pushing, check
the fluid level (d) in the surge brakes or the operation of the electric
brakes.

A film of grease on the coupler will extend coupler and ball life and
eliminate squeaking. Wipe the coupler and ball clean and apply fresh
grease each time the trailer is towed.

NOTICE: When towing, maintain extra space between vehicles and
avoid soft shoulders, curbs and sudden lane changes. If you have not
pulled a trailer before, practice turning, stopping, and backing up in an
area away from heavy traffic.

DO NOT exceed 55 mph when towing a trailer.
In most states, large trailers must be registered and licensed by the

State Department of Transportation. Before towing, be sure to check
licensing requirements.

wc_tx000483gb.fm 45

Operation G 50/G 70/G 85

d

a

c b

w c _ g r 0 0 0 5 1 0

wc_tx000483gb.fm 46

G 50/G 70/G 85 Maintenance

4. Maintenance

4.1 Periodic Maintenance Schedule

The Periodic Maintenance Schedule below lists basic maintenance
intervals for the engine and generator. For detailed maintenance
procedures on the engine, refer to the engine Operator's Manual.

Check engine oil and coolant level

Check engine air filter gauge & air
cleaner dust cap *

Visual walkaround inspection

Check tire inflation, tread wear and lug
nuts before towing

Check fuel filter

Drain containment system

Service the battery

Change engine oil and replace oil
filter**

Clean unit inside and out

Check air intake hoses, connections,
and system

Replace fuel filter element

Check automatic belt tensioner and
belt wear

Daily 50 Hrs

or 2

weeks













250 Hrs 600 Hrs

or

12 Mo













1200

Hrs or

24 Mo

2000

Hrs

Other

Check cooling system

Perform coolant solution analysis &
add SCA's

Grease axle

Pressure test cooling system

Flush cooling system***

Check and adjust engine valve
clearance

Check brake fluid level in trailer at least
monthly

Replace crankcase ventilation filter
every 750 hours

*Replace the air filter cartridge when yellow indicator of the engine air filter gauge reaches the red line.
**Change the oil after the first 100 hours, then every 250 hours.
***If John Deere antifreeze is used, the flushing interval may be extended. See engine Operator’s Manual.

wc_tx000484gb.fm 47

















Maintenance G 50/G 70/G 85

4.2 New Machines

4.2.1 Run generator at least 60–100% of continuous load for the first 100
hours.

4.2.2 Change engine oil and replace oil filter after the first 50 hours.

4.3 Resetting the Periodic Maintenance Timer

After maintenance has been performed on the generator, it is
necessary to reset the periodic maintenance timer.

• If the periodic maintenance timer is at zero, press the ENG. HRS
switch UP and hold for 10 seconds until the “TIME TO SERVICE”
resets to 250 hours.

• If the service time is greater than zero (maintenance was performed
prior to the timer running out) press and hold the ENG. HRS switch UP
and hold for 30 seconds. This will reset the “TIME TO SERVICE” to
250 hours.

wc_tx000484gb.fm 48

G 50/G 70/G 85 Maintenance

4.4 Air Cleaner

See Graphic: wc_gr000511

Replace the air filter cartridge when yellow indicator of the engine air
filter gauge reaches the red line.

The air cleaner assembly contains a one-piece single element air filter
cartridge (c).

To replace the air filter cartridge:

• Remove the end cover (d), then discard the entire air filter cartridge.

• Insert a new air filter cartridge, then

• Re-install the end cover, making sure that the dust cap (e) is clean
and is pointing downward.

Periodically, make sure the inlet pipe (f) is free from obstructions.
Check all connections and make sure they are snug. An air leak at the

neck clamp, gauge connection, or intake pipe can quickly lead to
expensive engine repairs.

• Make sure that the intake piping (a) is fully engaged over the neck
of the filter to ensure a good seal.

• If the filter housing, gauge connection (b), neck, or inlet pipe are
crushed or damaged, replace them immediately.

a

b

f

c

d

e

w c _ g r 0 0 0 5 1 1

wc_tx000484gb.fm 49

Maintenance G 50/G 70/G 85

4.5 Engine Lubrication

Check engine oil daily before starting engine.
DO NOT operate engine if oil level is below ADD mark on dipstick.

Always keep oil level within the crosshatch pattern or “full” mark on
dipstick.

Change oil after first 100 hours of operation and every 250 hours
thereafter. Refer to the engine manufacturer’s Operator’s Manual for
lubrication specifications.

Break-in Service

4.5.1 This engine is factory-filled with John Deere Engine Break-in Oil.
Operate the engine at heavy loads with minimal idling during the
break-in period. DO NOT exceed 100 hours of operation with break-in
oil.

4.5.2 If the engine has significant operating time at light load, or makeup oil
is required in the first 100 hour period, a longer break-in period may be
required. In these situations, an additional 100 hour break-in period is
recommended using a new change of John Deere Engine Break-In Oil
and a new John Deere oil filter.

NOTICE: DO NOT add makeup oil until the oil level is BELOW the
ADD mark on dipstick. John Deere Engine Break-In Oil (TY22041)
should be used to make up any oil consumed during the break-in
period.

4.5.3 During the first 20 hours, avoid prolonged periods of no load or
sustained maximum load operation. If engine is to run for longer than
5 minutes without a load, shut unit down.

4.5.4 After the first 100 hours, change engine oil and replace engine oil filter.
Fill crankcase with seasonal viscosity grade oil.

wc_tx000484gb.fm 50

G 50/G 70/G 85 Maintenance

4.6 Engine Coolant

Check the coolant level of the radiator with the engine cold. After initial
filling of radiator to 3/4" below bottom of filler neck, maintain proper
level in overflow bottle daily.

NEVER remove radiator cap or drain plug while engine is hot!
Pressurized coolant can cause serious burns.

WARNING

Shut off engine. Only remove radiator cap when it is cool enough to
touch with bare hands. Slowly loosen cap to relieve pressure first,
before removing it completely.

Solutions of antifreeze and supplemental coolant additives MUST be
used year-round. Automotive-type coolants do not contain the correct
coolant additives to protect heavy-duty diesel engines. They often
contain a high concentration of silicates which can damage the engine
and cooling system. Refer to engine Operator’s Manual for coolant
recommendations.

4.7 Trailer Maintenance

Tires - Keep tires inflated to the proper pressure as shown on the tire

sidewall, and check tread periodically for wear. Replace tires as
required.

Wheels - Check that lug nuts holding wheels are tight. Replace any
missing nuts immediately.

Axle Hubs - Grease axle hubs through grease fittings using a good
wheel bearing grease.

Brakes - Check operation of brakes before each trip.
Check level of brake fluid in actuator at front of trailer at regular

intervals. Fill to approximately 1" below top of reservoir using DOT-3
heavy-duty brake fluid. Tighten filler plug securely.

Note: If fluid level has fallen too low, bleed brake lines to remove any
air trapped in lines.

wc_tx000484gb.fm 51

Maintenance G 50/G 70/G 85

4.8 Troubleshooting Automatic Shutdown

There are several automatic shutdown conditions: low oil pressure,
high coolant temperature, engine overspeed, engine underspeed,
engine overcrank, and low fuel. When these occur, the operator can
perform certain diagnostic tests to help identify the problem. Most of
these diagnostics deal with the engine.

The generator, however, can also cause problems. Consult a qualified
electrician or your nearest WACKER Dealer for possible causes of
generator problems. For SPN.FMI Diagnostic Codes, contact
WACKER or John Deere service departments.

Anytime the generator is down for service, secure it by closing and
locking all doors, and hang a "DO NOT RUN" sign on the metering

WARNING

panel.

Low Oil Pressure Shutdown

4.8.1 Check engine oil level using dipstick. Add oil if required.

4.8.2 Carefully inspect engine for oil leaks.

4.8.3 If oil level is good, start engine and verify loss of oil pressure. Shut
down engine immediately if oil pressure value does not read at least
15 psi within 5 seconds.

Check the oil pressure shutdown sender and connecting wiring on the
engine block. Check for Diagnostic Trouble Codes.

4.8.4 If oil level, oil pressure sender and connecting wiring are good, the fault
could be caused by an engine failure.

High Coolant Temperature Shutdown

4.8.1 Restart engine and read water temperature. Stop engine if
temperature is above 226°F. Normal engine operating temperature is
between 170°-190° F.

4.8.2 Allow engine to cool to a safe temperature and inspect coolant level in
radiator. Add coolant as needed.

4.8.3 Carefully inspect coolant hoses and engine block for leaks.

4.8.4 Check that fan belt for water pump is tight.

4.8.5 Check the high temperature shutdown sender and connecting wiring
on engine block. Check for Diagnostic Trouble Codes.

4.8.6 If sender and wiring are good, consult engine manufacturer’s
Operator’s Manual or Service Manual for possible causes of engine
overheating.

wc_tx000484gb.fm 52

G 50/G 70/G 85 Maintenance

Overspeed or Underspeed Shutdown

Restart engine and read the AC frequency meter. Meter should read
60 Hz under no-load condition.

Overcrank Shutdown

4.8.1 Check fuel level.

4.8.2 Check for proper operation of fuel pump.

4.8.3 If engine still does not start, refer to engine manufacturer’s Operator’s
Manual or Service Manual for possible engine problems.

Low Fuel Level Shutdown

4.8.1 Check fuel level.

Note: Warning light will come on when fuel level drops below 25%.
Engine will shut down only when level drops below 5%.

4.8.2 Check for leaks in fuel tank.

4.8.3 Check for Diagnostic Trouble Codes.

4.8.4 If fuel level is good, check fuel level sender and connecting wiring on
engine. Check for continuity between sender on tank and engine
control module. See wiring diagrams.

4.9 Wire Colors

Wire Colors

B Black R Red Y Yellow Or Orange
G Green T Tan Br Brown Pr Purple

L Blue V Violet Cl Clear Sh Shield

P Pink W White Gr Gray LL Light blue

wc_tx000484gb.fm 53

Maintenance G 50/G 70/G 85

4.10 Generator and Receptacle Wiring

BOM Revision See

Graphic:

Revision See

Graphic:

Revision See

Graphic:

0009366 123 & higher wc_gr004692 106–122 wc_gr003171 105 & lower wc_gr002614
0009367 124 & higher wc_gr004692 106–123 wc_gr003171 105 & lower wc_gr002614
0009369 124 & higher wc_gr004692 106–123 wc_gr003171 105 & lower wc_gr002614
0009467 131 & higher wc_gr004692 107–130 wc_gr003171 106 & lower wc_gr002614
0009468 133 & higher wc_gr004692 107–132 wc_gr003171 106 & lower wc_gr002614
0009459 133 & higher wc_gr004692 107–132 wc_gr003171 106 & lower wc_gr002614
0620001 127 & higher wc_gr004692 106–126 wc_gr003171 105 & lower wc_gr002614

0620002 129 & higher wc_gr004692 106–128 wc_gr003171 105 & lower wc_gr002614
0620003 129 & higher wc_gr004692 107–128 wc_gr003171 106 & lower wc_gr002614
0620350 wc_gr004692
0620351 wc_gr004692
0620352 wc_gr004692

Ref. Description Ref. Description

1 Lug safety limit switch 15 Voltage selector switch
2 Mechanical lugs 16 Generator
3 Plug 3 - current transformer inputs 17 Voltage regulator
4 Plug 4 - line voltage inputs 18 Voltage adjustment rheostat
5 Shunt 19 Terminal Block
6 120V 20A GFI receptacle 20 Exciter
7 120V breaker 21 Stator
8 240V 50A breaker 22 Rotor

9 240V 30A breaker 23 Rectifier
10 240V 50A receptacle 24 Rotor winding
11 240V 30A receptacle 25 Main stator windings
12 Engine control module 26 Auxiliary Stator Winding
13 Main breaker 27 Stator
14 Bond bar 28 Terminal Strip

wc_tx000484gb.fm 54

G 50/G 70/G 85 Maintenance

RECTIFIER

ROTOR

STATOR

R

Y (+)

V

5C

5BW65A5A

543A3A

34A4A

7

AMP

STAB

VOLT

HZ

L/W

60HZ JUMPER

L (-)

B

G

1

T11

B

L3

T11

T3

2

(POWER)

(SENSING)

(EXCITER)

11

9

7

3

1

5

10

8

12

2

6

4

T4

N

L2

T8

T1

GROUND GENERATOR

HOUSING TO FRAME

STATOR

MAIN

WINDINGS

L1

T9

26

6

25

18

13

12

17

3

17

9

10

12

14

13

11

18

GROUND TO

ENCLOSURE BOX

STUD

6GA

GN

BOND

BAR

G

G/Y

LL

W

G

Y

X

W

G

Y

X

G

W

X

Y

22

19

20

21

23

24

G

1

2

16

2

3

5

1

6

7

4

8

4

5

7

8

R1

R2

N

BR

B

15

L3

2/0

2/0

L1

L2

2/0

SHUNT

L

LUG SAFETY

LIMIT

SWITCH

MAIN BRKR

L/W

CT-2

CT-1

PAIR BLK 4 GA

PAIR BLK 4 GA

PAIR BLK 4 GA

MECHANICAL LUGS

CT-3

T3

T6

25

21

17

13

9

26

22

18

10

14

T2

51

62

28

24

27

23

20

19

43

11

15

41

SWITCH

PHASE

7

8

4

3

12

CT-3

36B

CT-1

36A

CT-2

36

W

38

1

4

3

2

5

6

CURRENT TRANSFORMER

PLUG 3

INPUTS

CT3

CT2

CT1

CT COMMON

43

BR

Y

2

1

LINE VOLTAGE

PLUG 4

INPUTS

3

4

L3

T5

T12T7T7

T10

G/Y

G/Y

G/Y

G/Y

LL

LL

LL

LL

BR

B

B

B

B

B B

B

B

B

B

B

B

B

B

B

B

B

B

B

OR

YBRBR

W

R

BR

BR

11

16

9

10

15

14

RECTIFIER

ROTOR

STATOR

(POWER)

(EXCITER)

Y (+)

L (-)

(SENSING)

60HZ JUMPER

L/W

5B

5C

T11

11

T9

27

12

10

WINDINGS

STATOR

MAIN

wc_gr004692

GROUND GENERATOR

HOUSING TO FRAME

T4

T8

STAB

VOLT

AMP

BR

26

BR

25

BOND

L3

MECHANICAL LUGS

L2

L1

L/W

LUG SAFETY

LIMIT

BAR

SWITCH

18

13

17

12

HZ

GROUND TO

ENCLOSURE BOX

STUD

6GA

2/0

2/0

2/0

G/Y

G/Y

G/Y

17

18

SHUNT

MAIN BRKR

G/Y

15

14

16

10

11

19

20

BR

LL

LL

LL

LL

BR

LL

G/Y

11

12

14

16

15

10

13

R1

R2

21

24

23

22

CT-3

CT-2

CT-1

PAIR BLK 4 GA

PAIR BLK 4 GA

PAIR BLK 4 GA

L3

T11

L2

T3

L1

28

T1

T3

25

21

T6

17

13

T2

CT-3

36B

OR

393936

CT3

CT COMMON

26

22

18

14

10

CT-2

CT2

T10

CT-1

36A

373738

CT1

INPUTS

PLUG 3

T12

SWITCH

PHASE

27

28

23

24

20

19

161615

11

12

ORORBR

4141424243

CURRENT TRANSFORMER

L2L2L1L1L3

43

INPUTS

LINE VOLTAGE

PLUG 4

T5

41

wc_tx000484gb.fm 55

Maintenance G 50/G 70/G 85

BOM Revision See

Graphic:

Revision See

Graphic:

Revision See

Graphic:

0009366 123 & higher wc_gr004692 106–122 wc_gr003171 105 & lower wc_gr002614
0009367 124 & higher wc_gr004692 106–123 wc_gr003171 105 & lower wc_gr002614
0009369 124 & higher wc_gr004692 106–123 wc_gr003171 105 & lower wc_gr002614
0009467 131 & higher wc_gr004692 107–130 wc_gr003171 106 & lower wc_gr002614
0009468 133 & higher wc_gr004692 107–132 wc_gr003171 106 & lower wc_gr002614
0009459 133 & higher wc_gr004692 107–132 wc_gr003171 106 & lower wc_gr002614
0620001 127 & higher wc_gr004692 106–126 wc_gr003171 105 & lower wc_gr002614
0620002 129 & higher wc_gr004692 106–128 wc_gr003171 105 & lower wc_gr002614
0620003 129 & higher wc_gr004692 107–128 wc_gr003171 106 & lower wc_gr002614
0620350 wc_gr004692
0620351 wc_gr004692
0620352 wc_gr004692

Ref. Description Ref. Description

1 Lug safety limit switch 15 Voltage selector switch

2 Mechanical lugs 16 Generator

3 Plug 3 - current transformer inputs 17 Voltage regulator

4 Plug 4 - line voltage inputs 18 Voltage adjustment rheostat

5 Shunt 19 Terminal Block

6 120V 20A GFI receptacle 20 Exciter

7 120V breaker 21 Stator

8 240V 50A breaker 22 Rotor

9 240V 30A breaker 23 Rectifier
10 240V 50A receptacle 24 Rotor winding
11 240V 30A receptacle 25 Main stator windings
12 Engine control module 26 Auxiliary Stator Winding
13 Main breaker 27 Stator
14 Bond bar 28 Terminal Strip

wc_tx000484gb.fm 56

G 50/G 70/G 85 Maintenance

wc_tx000484gb.fm 57

Maintenance G 50/G 70/G 85

BOM Revision See

Graphic:

Revision See

Graphic:

Revision See

Graphic:

0009366 123 & higher wc_gr004692 106–122 wc_gr003171 105 & lower wc_gr002614
0009367 124 & higher wc_gr004692 106–123 wc_gr003171 105 & lower wc_gr002614
0009369 124 & higher wc_gr004692 106–123 wc_gr003171 105 & lower wc_gr002614
0009467 131 & higher wc_gr004692 107–130 wc_gr003171 106 & lower wc_gr002614
0009468 133 & higher wc_gr004692 107–132 wc_gr003171 106 & lower wc_gr002614
0009459 133 & higher wc_gr004692 107–132 wc_gr003171 106 & lower wc_gr002614
0620001 127 & higher wc_gr004692 106–126 wc_gr003171 105 & lower wc_gr002614
0620002 129 & higher wc_gr004692 106–128 wc_gr003171 105 & lower wc_gr002614
0620003 129 & higher wc_gr004692 107–128 wc_gr003171 106 & lower wc_gr002614
0620350 wc_gr004692
0620351 wc_gr004692
0620352 wc_gr004692

Ref. Description Ref. Description

1 Lug safety limit switch 15 Voltage selector switch

2 Mechanical lugs 16 Generator

3 Plug 3 - current transformer inputs 17 Voltage regulator

4 Plug 4 - line voltage inputs 18 Voltage adjustment rheostat

5 Shunt 19 Terminal Block

6 120V 20A GFI receptacle 20 Exciter

7 120V breaker 21 Stator

8 240V 50A breaker 22 Rotor

9 240V 30A breaker 23 Rectifier
10 240V 50A receptacle 24 Rotor winding
11 240V 30A receptacle 25 Main stator windings
12 Engine control module 26 Auxiliary Stator Winding
13 Main breaker 27 Stator
14 Bond bar 28 Terminal Strip

wc_tx000484gb.fm 58

G 50/G 70/G 85 Maintenance

wc_tx000484gb.fm 59

Maintenance G 50/G 70/G 85

4.11 Trailer Wiring

Ref. Description

1 Front right side amber light

2 Front left side amber light

3 Trailer plug

4Battery

5 Brake solenoid

6 Right rear taillight

7 License plate holder lights

8 Left rear taillight

9 Rear right side red light

10 Rear left side red light

Ref. Wire Colors Rear Lights Side Lights Harness

B BLACK Ground Ground Battery charge

Br BROWN Taillight Tail, side and license plate

L BLUE

R RED Brake light Power Electric brakes

Y YELLOW Left brake light and directional

G GREEN Right brake light and directional

W WHITE Ground

wc_tx000484gb.fm 60

G 50/G 70/G 85 Maintenance

Standard and Hydraulic Brakes







 



Electric Brakes



 



 



 

    

          



 





 



 





 





G
Y
Br
W

R

10

9

W

Br

Br W

wc_gr000523

G
Br
W

Br

Br

Y
Br
W

6

7

7

8

1

Br W

W

R

3

R
R

Br W

R

4

W

+–

2

5

R

W

5

R

wc_tx000484gb.fm 61

Maintenance G 50/G 70/G 85

4.12 G 50/G 70 Engine Wiring

BOM Revision See

Graphic:

0009366 123 & higher wc_gr004613 109-122 wc_gr003218 108 wc_gr003172

0009367 124 & higher wc_gr004613 110-123 wc_gr003218 109 wc_gr003172

0009467 131 & higher wc_gr004613 112-130 wc_gr003218 111 wc_gr003172

0009468 133 & higher wc_gr004613 114-132 wc_gr003218 113 wc_gr003172

0620001 127 & higher wc_gr004613 109-126 wc_gr003218 108 wc_gr003172

0620002 129 & higher wc_gr004613 110-128 wc_gr003218 109 wc_gr003172

Revision

See
Graphic:

Rev. See

Graphic:

Engine

Ref. Description Ref. Description

1 Safety interlock switch 12 Plug 2 - engine start outputs

2 Mechanical lugs 13 Run/off/auto switch

3 Main circuit breaker 14 Battery

4 Shunt 15 10A fuse

5 Emergency stop switch 16 Starter relay

6 Engine control module 17 Starter

Revision

107 & lower

108 & lower

110 & lower

112 & lower

107 & lower

108 & lower

See
Graphic:

wc_gr002615

wc_gr002615

wc_gr002615

wc_gr002615

wc_gr002615

wc_gr002615

7 Plug 1 - engine sender inputs 18 Alternator

8 Remote start contacts 19 Terminal block

9 Fuel level sender 20 Magnetic pickup

10 Intake heater 21 Oil pressure sender

11 Intake heater relay 22 Water temperature sender

Wires

Ref. Description Ref. Description

17 Battery + 61 E-Stop

18 Battery + 62 Fuel level

53 Battery + 63 Crank

54 Speed sensor 64 Run/Fuel

56 Cold crank delay 65 Preheat

57 Water temperature 73 Remote annunciator

59 Battery - 75 Remote annunciator

60 Remote start 87 Oil pressure

wc_tx000484gb.fm 62

G 50/G 70/G 85 Maintenance

46

GROUND TO

ENCLOSURE

BOX STUD

79

47

R

12

13

11

86

85

30

L0

L3

L2

L1

2

OR

Y

44

Y

35

47

79

60

LL

B

34

35

35

W

B

RELAY

65

59

+ -

B

+

B

11

13

D

+

15

14

B

+

R

14

B

B

+

50

51

C

63

+

15

62

Y

R

Y

B

OR

50

Y

45

B

V

88

56

87

44

OR

B

20

G

NO

W/L

W

55

54

G/Y

46

V

61

34

G

NO

R

NC

64

R

NC

57

61

10

55

55

54

2

1

B

+

2

20

TERM

BLOCK

17

10 A FUSE

48

51

49

53

88 OIL PRESSURE

TOGGLE

SWITCH

18

52

52

49

+

-

62

60

57

12

9

5

53

59

786

+

18

5

63

1

73

756464

4

3

2

+

17

65

8

7

87 OIL PRESSURE

CRANK

FUEL

REMOTE ANNUNCIATOR

REMOTE ANNUNCIATOR

BATTERY

PREHEAT

BATTERY

E-STOP

MAG PICKUP

OIL PRESSURE

WATER TEMP

REMOTE START

FUEL LEVEL

BATTERY

BATTERY

56

3

OR

W

R

R

R

R

RRR

Y

B

B

GRGY

SH

W/L

Y

OR

W/V

B

B

R

T

T

R

R

GR

V

V

Y

G 50/G 70 Engine Wiring

59

R

13

85

GROUND TO

ENCLOSURE

46

BOX STUD

79

47

L0

OR

L3

L2L2L2

L1

OR

44

45

47

LL

79

57

W/L

44

OR

46

G/Y

60

87

88

56

55

54

NO

20

NC

NO

64

NC

61

34

12

35

35

34

30

86

65

35

GR

11

RELAY

SH

11

50

62

W/L

OR

20

53

88 OIL PRESSURE

W/V

TOGGLE

SWITCH

51

49

49

TERM

BLOCK

52

52

15

50

17

48

18

14

51

63

10 A FUSE

13

14

OR

15

GR

87 OIL PRESSURE

wc_tx000484gb.fm 63

55

OIL PRESSURE

56

55

WATER TEMP

57

REMOTE START

FUEL LEVEL

BATTERY

60

59

62

12

BATTERY

53

E-STOP

MAG PICKUP

61

54

10

BATTERY

18

CRANK

63

FUEL

REMOTE ANNUNCIATOR

REMOTE ANNUNCIATOR

BATTERY

PREHEAT

17

65

73

75

Maintenance G 50/G 70/G 85

BOM Revision See

Graphic:

0009366 123 & higher wc_gr004613 109-122 wc_gr003218 108 wc_gr003172

0009367 124 & higher wc_gr004613 110-123 wc_gr003218 109 wc_gr003172

0009467 131 & higher wc_gr004613 112-130 wc_gr003218 111 wc_gr003172

0009468 133 & higher wc_gr004613 114-132 wc_gr003218 113 wc_gr003172

0620001 127 & higher wc_gr004613 109-126 wc_gr003218 108 wc_gr003172

0620002 129 & higher wc_gr004613 110-128 wc_gr003218 109 wc_gr003172

Revision

See
Graphic:

Rev. See

Graphic:

Engine

Ref. Description Ref. Description

1 Safety interlock switch 12 Plug 2 - engine start outputs

2 Mechanical lugs 13 Run/off/auto switch

3 Main circuit breaker 14 Battery

4 Shunt 15 10A fuse

5 Emergency stop switch 16 Starter relay

6 Engine control module 17 Starter

Revision

107 & lower

108 & lower

110 & lower

112 & lower

107 & lower

108 & lower

See
Graphic:

wc_gr002615

wc_gr002615

wc_gr002615

wc_gr002615

wc_gr002615

wc_gr002615

7 Plug 1 - engine sender inputs 18 Alternator

8 Remote start contacts 19 Terminal block

9 Fuel level sender 20 Magnetic pickup

10 Intake heater 21 Oil pressure sender

11 Intake heater relay 22 Water temperature sender

Wires

Ref. Description Ref. Description

17 Battery + 61 E-Stop

18 Battery + 62 Fuel level

53 Battery + 63 Crank

54 Speed sensor 64 Run/Fuel

56 Cold crank delay 65 Preheat

57 Water temperature 73 Remote annunciator

59 Battery - 75 Remote annunciator

60 Remote start 87 Oil pressure

wc_tx000484gb.fm 64

G 50/G 70/G 85 Maintenance

G 50/G 70 Engine Wiring

wc_tx000484gb.fm 65

Maintenance G 50/G 70/G 85

BOM Revision See

Graphic:

0009366 123 & higher wc_gr004613 109-122 wc_gr003218 108 wc_gr003172

0009367 124 & higher wc_gr004613 110-123 wc_gr003218 109 wc_gr003172

0009467 131 & higher wc_gr004613 112-130 wc_gr003218 111 wc_gr003172

0009468 133 & higher wc_gr004613 114-132 wc_gr003218 113 wc_gr003172

0620001 127 & higher wc_gr004613 109-126 wc_gr003218 108 wc_gr003172

0620002 129 & higher wc_gr004613 110-128 wc_gr003218 109 wc_gr003172

Revision

See
Graphic:

Rev. See

Graphic:

Engine

Ref. Description Ref. Description

1 Safety interlock switch 12 Plug 2 - engine start outputs

2 Mechanical lugs 13 Run/off/auto switch

3 Main circuit breaker 14 Battery

4 Shunt 15 10A fuse

5 Emergency stop switch 16 Starter relay

6 Engine control module 17 Starter

Revision

107 & lower

108 & lower

110 & lower

112 & lower

107 & lower

108 & lower

See
Graphic:

wc_gr002615

wc_gr002615

wc_gr002615

wc_gr002615

wc_gr002615

wc_gr002615

7 Plug 1 - engine sender inputs 18 Alternator

8 Remote start contacts 19 Terminal block

9 Fuel level sender 20 Magnetic pickup

10 Intake heater 21 Oil pressure sender

11 Intake heater relay 22 Water temperature sender

Wires

Ref. Description Ref. Description

17 Battery + 61 E-Stop

18 Battery + 62 Fuel level

53 Battery + 63 Crank

54 Speed sensor 64 Run/Fuel

56 Cold crank delay 65 Preheat

57 Water temperature 73 Remote annunciator

59 Battery - 75 Remote annunciator

60 Remote start 87 Oil pressure

wc_tx000484gb.fm 66

G 50/G 70/G 85 Maintenance

G 50/G 70 Engine Wiring

wc_tx000484gb.fm 67

Maintenance G 50/G 70/G 85

BOM Revision See

Graphic:

0009366 123 & higher wc_gr004613 109-122 wc_gr003218 108 wc_gr003172

0009367 124 & higher wc_gr004613 110-123 wc_gr003218 109 wc_gr003172

0009467 131 & higher wc_gr004613 112-130 wc_gr003218 111 wc_gr003172

0009468 133 & higher wc_gr004613 114-132 wc_gr003218 113 wc_gr003172

0620001 127 & higher wc_gr004613 109-126 wc_gr003218 108 wc_gr003172

0620002 129 & higher wc_gr004613 110-128 wc_gr003218 109 wc_gr003172

Revision

See
Graphic:

Rev. See

Graphic:

Engine

Ref. Description Ref. Description

1 Safety interlock switch 12 Plug 2 - engine start outputs

2 Mechanical lugs 13 Run/off/auto switch

3 Main circuit breaker 14 Battery

4 Shunt 15 10A fuse

5 Emergency stop switch 16 Starter relay

6 Engine control module 17 Starter

Revision

107 & lower

108 & lower

110 & lower

112 & lower

107 & lower

108 & lower

See
Graphic:

wc_gr002615

wc_gr002615

wc_gr002615

wc_gr002615

wc_gr002615

wc_gr002615

7 Plug 1 - engine sender inputs 18 Alternator

8 Remote start contacts 19 Terminal block

9 Fuel level sender 20 Magnetic pickup

10 Intake heater 21 Oil pressure sender

11 Intake heater relay 22 Water temperature sender

Wires

Ref. Description Ref. Description

17 Battery + 61 E-Stop

18 Battery + 62 Fuel level

53 Battery + 63 Crank

54 Speed sensor 64 Run/Fuel

56 Cold crank delay 65 Preheat

57 Water temperature 73 Remote annunciator

59 Battery - 75 Remote annunciator

60 Remote start 87 Oil pressure

wc_tx000484gb.fm 68

G 50/G 70/G 85 Maintenance

G 50/G 70 Engine Wiring

wc_tx000484gb.fm 69

Maintenance G 50/G 70/G 85

4.13 G 85 & G 70 w/ECU Engine Wiring

BOM Revision See Graphic: Revision See Graphic:

0009369 124 & higher wc_gr004614 123 & lower wc_gr002616

0009459 133 & higher wc_gr004614 132 & lower wc_gr002616

0620003 129 & higher wc_gr004614 128 & lower wc_gr002616

0620350 wc_gr004614

0620351 wc_gr004614

0620352 wc_gr004614

Engine

Ref. Description Ref. Description

1 Safety interlock switch 11 Intake heater relay
2 Mechanical lugs 12 Plug 2 - engine start outputs
3 Main circuit breaker 13 Run/off/auto switch
4 Shunt 14 Battery
5 Emergency Stop switch 15 10A fuse
6 Engine control module 16 Starter relay
7 Plug 1 - engine sender inputs 17 Starter
8 Remote start contacts 18 Alternator
9 Fuel level sender 19 Terminal block

10 Intake heater

Wires

Ref. Description Ref. Description

18 Battery + 62 Fuel Level
53 Battery + 63 Crank
56 Cold Crank Delay 64 Run/Fuel
59 Battery - 73 Remote Annunciator
60 Remote Start 75 Remote Annunciator
61 E-Stop

Wire Colors

B Black R Red Y Yellow Or Orange

G Green T Tan Br Brown Pr Purple

L Blue V Violet Cl Clear Sh Shield

P Pink W White Gr Gray LL Light blue

wc_tx000484gb.fm 70

G 50/G 70/G 85 Maintenance

14

B

B

-

+

R

OR

B+

D+

B+

N2

12

R

11

86

85

30

B

13

GR

65

L0

46

L1

L2

L3

47

79

B

Y

C+

B+

50

47

R

B

R

R

JOHN DEERE

ENGINE ECU

B

W

JD429

R

62

B

+

+

B

-

CRANK DELAY

B SWITCHED

START RELAY

21 POSITION

CONNECTOR

AEBGJDVUF

AEBGJDVUF

ALT / CHARGE

DASHED LINES ARE PART OF

JOHN DEERE ENGINE HARNESS

OR

2

OR

45

Y

44

Y

79

LL

60

44

45

Y

OR

20

G

NO

46

G/Y

V

61

34

G

NO

R

NC

64

R

NC

W

B

61

10

2

1

2

Y

OR

R

51

R

20

53

R

48

52

52

R

49

49

B+

-

+

+

60

62

12

9

5

53

59

786

18

5

63

1

64

4

3

2

BATTERY

Y

G

SH

73

75

8

7

C

BA

CAN

J1939

CRANK

RUN/FUEL

REMOTE ANNUNCIATOR

REMOTE ANNUNCIATOR

10 A FUSE

E-STOP

COLD CRANK

DELAY

REMOTE START

FUEL LEVEL

BATTERY

BATTERY

56

3

W

15

34

59

51

HI

63

LO

R

R

GR

W / L

OR

W / V

B

R

R

Y

V

T

T

wc_gr004614

G 85 & G 70 w/ECU Engine Wiring

B

14

JOHN DEERE

DASHED LINES ARE PART OF

JD429

B SWITCHED

ALT / CHARGE

15

51

34

OR

19

RUN/FUEL

64

12

ENGINE ECU

JOHN DEERE ENGINE HARNESS

START RELAY

HI

63

LO

SH

REMOTE ANNUNCIATOR

REMOTE ANNUNCIATOR

73

75

J1939

CAN

21 POSITION

CONNECTOR

wc_gr004614

D+

18

B+

OROROR

B+

17

R

62

OR

REMOTE START

60

W / V

FUEL LEVEL

62

12

BATTERY

59

20

BATTERY

53

53

B+

13

51

49

49

52

52

15

BATTERY

18

CRANK DELAY

565659

48

10 A FUSE

CRANK

63

10

N2

46

79

OR

47

L0

L3

2

L2L2L2

L1

OR

1

44

14

13

11

85

30

12

45

11

86

65

16

50

C+

B+

GR

47

4

LL

8

60

79

3

45

OR

46

G/Y

NO

44

20

NC

5

NO

64

NC

61

34

9

GR

E-STOP

61

10

W / L

COLD CRANK

DELAY

56

7

wc_tx000484gb.fm 71

6

Maintenance G 50/G 70/G 85

BOM Revision See Graphic: Revision See Graphic:

0009369 124 & higher wc_gr004614 123 & lower wc_gr002616

0009459 133 & higher wc_gr004614 132 & lower wc_gr002616

0620003 129 & higher wc_gr004614 128 & lower wc_gr002616

0620350 wc_gr004614

0620351 wc_gr004614

0620352 wc_gr004614

Engine

Ref. Description Ref. Description

1 Safety interlock switch 11 Intake heater relay
2 Mechanical lugs 12 Plug 2 - engine start outputs
3 Main circuit breaker 13 Run/off/auto switch
4 Shunt 14 Battery
5 Emergency Stop switch 15 10A fuse
6 Engine control module 16 Starter relay
7 Plug 1 - engine sender inputs 17 Starter
8 Remote start contacts 18 Alternator
9 Fuel level sender 19 Terminal block

10 Intake heater

Wires

Ref. Description Ref. Description

18 Battery + 62 Fuel Level
53 Battery + 63 Crank
56 Cold Crank Delay 64 Run/Fuel
59 Battery - 73 Remote Annunciator
60 Remote Start 75 Remote Annunciator
61 E-Stop

Wire Colors

B Black R Red Y Yellow Or Orange

G Green T Tan Br Brown Pr Purple

L Blue V Violet Cl Clear Sh Shield

P Pink W White Gr Gray LL Light blue

wc_tx000484gb.fm 72

G 50/G 70/G 85 Maintenance

wc_tx000484gb.fm 73

Factory-Installed Options Mobile Generators

5 Factory-Installed Options

This machine may be equipped with one or more of the following factory-installed
options. To verify if any of these options are installed on your machine, contact the
WACKER Corporation at 1-800-770-0957. A nameplate listing the Model Number, Item
Number, Revision, and Serial Number is attached to each unit. Please have this
information available when contacting WACKER Corporation.

5.1 Block Heater

See Graphic: wc_gr001709

The engine block heater option includes a block heater (a) with a cord
(b). The function of the block heater is to heat the engine coolant/

engine block to improve cold-weather engine starting. Plug the cord
into a 120V power supply.

wc_tx000380gb.fm 74

Mobile Generators Factory-Installed Options

5.2 Fuel/Water Separator

See Graphic: wc_gr001705

The fuel/water separator separates water from the fuel on models with
Isuzu engines. Empty the separator water bowl (a) as needed by
opening the water bowl drain (b). The separator element should be
changed each time the fuel filter is changed—approximately every 600
hours of operation.

To change the element:

5.2.1 Loosen the element retainer (d) and remove the retainer and element
(c) from the separator head.

5.2.2 Unscrew the water bowl from the element.

wc_tx000380gb.fm 75

Factory-Installed Options Mobile Generators

5.3 Electronic Governor

See Graphic: wc_gr001714, wc_gr001715, wc_gr001716, wc_gr001717

The electronic governor option consists of an electronic module (a or
b) and an electronic actuator (c or d). The module senses rotation of

the flywheel, then sends a signal to the electronic actuator that governs
the fuel injection system. The system is designed to precisely regulate
engine rpm, and thus frequency, to within approximately 0.25%. See
electronic governor manufacturer's literature for detailed information.

wc_tx000380gb.fm 76

Mobile Generators Factory-Installed Options

5.4 LCD Strip Heater

See Graphic: wc_gr001724, wc_gr001725

The LCD strip heater option includes a thermostat module (a) and a
clear heater strip that is bonded to the LCD (b) of the ECM. The
purpose of the strip heater is to prevent the LCD from being damaged
by extremely cold temperatures. The resistance of the coiled element
of the heater is sensed by the thermostat. The resistance of the
element changes with temperature. At approximately -30°C, the
resistance value triggers the thermostat to send power to the element.
The LED (c) of the thermostat module flashes during operation.

It is important to note that the LCD strip heater is always on and thus
draws power (a very small amount) from the battery even when the unit
is not running. If the battery should fail, the heater will also fail. Be sure
to keep the battery charged when the generator is not in use.

wc_tx000380gb.fm 77

Factory-Installed Options Mobile Generators

5.5 Low Coolant Shutdown

See Graphic: wc_gr001708

The low-coolant shutdown system consists of an electronic sensor that
monitors coolant level. The sensor (a) is mounted to the radiator and
wired into the ECM. The sensor probe (b) is submerged in radiator
coolant. If the probe senses no coolant, it sends a signal to the ECM.
The ECM program includes a 10-second timer to protect from
nuisance shutdowns. If after the ten seconds coolant levels are still
sensed as being low, the ECM shuts down the engine. The ECM will
then display the “FAULT LOW WATER LEVEL”. Allow the engine to
cool before adding additional coolant.

NEVER remove the radiator cap while the engine is hot! Pressurized

WARNING

coolant can cause serious burns.

If it is necessary to open the radiator, only do so with the engine off,
and only when coolant is cool enough to touch with bare hands. Slowly
loosen the radiator cap to relieve pressure first, before removing it
completely.

Note: The sensor may be disabled by unplugging the wire harness.
This action will not shut down the machine.

wc_tx000380gb.fm 78

Mobile Generators Factory-Installed Options

5.6 Lube Level Maintainer

See Graphic: wc_gr001711, wc_gr001712, wc_gr001713

The lube level maintainer system protects the engine from low oil
levels by providing an additional 6-quart oil reservoir. Oil from the
reservoir is gravity-fed from the oil reservoir (a) through the control
valve (b) and into the engine oil pan as needed. The valve includes a
sightglass (c) through which the oil level can be seen. This oil level is
the same as that measured by the engine dipstick. A float inside the
valve detects low oil levels and opens the valve to supply the needed
oil. The system is wired to the ECM and includes a low oil shutdown in
case the oil in the reservoir is depleted. If the engine shuts down due
to low oil, the ECM will display “FAULT LOW OIL LEVEL”. Fill the
engine and the additional oil reservoir with oil before placing the
generator back into service.

Note: On machines with the Isuzu engine, the reservoir is mounted to
the enclosure door.

NOTICE: To prevent overfilling the engine with oil, place the shutoff
valve (d) in the closed position when moving or towing the generator.
Once the generator is in position, open the valve.

wc_tx000380gb.fm 79

Factory-Installed Options Mobile Generators

5.7 Temperature-Activated Shutters

See Graphic: wc_gr001706, wc_gr001707

The shutters (a) are mounted to the top of the generator enclosure.
The shutters are designed to keep the engine compartment warm, thus
increasing engine temperature during cold weather operation. The
shutters are activated through a wax-pellet actuator (b) that is
connected to the generator's cooling system. As radiator coolant
warms, the wax-pellet actuator engages a linkage (c) that opens the
shutters. As the coolant cools, the shutters close.

a

wc_gr001707

5.8 Lockable Battery Disconnect

See Graphic: wc_gr004338

A lockable ON/OFF switch is available which disconnects the battery.
A padlock (not included) securely locks the switch in the OFF position.
If equipped, the battery disconnect switch is mounted to the upper skid
beneath the access door on either the right or left side of the machine.

NOTICE: Do not use the battery disconnect switch while the engine is
running. Damage to electrical components may occur.

wc_tx000380gb.fm 80

Mobile Generators Factory-Installed Options

Notes:

wc_tx000380gb.fm 81

Factory-Installed Options Mobile Generators

–

5.9 Wiring Diagram

10

Or

R

R

11

R

R

R

1

B

B+

86

2

3

R

Bl

4

82

84
82
85

G

83

B

83

4

9

W

80

R

91

87

89

6

12V

87

+

88

NO

11

NC

B

81

81

80

5

C

Or

90

Y

91

8

R

R

W

B

B

88

89

90

7

12

Wire Colors

B Black R Red Y Yellow Or Orange
G Green T Tan Br Brown Pr Purple

L Blue V Violet Cl Clear Sh Shield

P Pink W White Gr Gray LL Light blue

wc_tx000380gb.fm 82

wc_gr001868

Mobile Generators Factory-Installed Options

5.10 Wiring Diagram Components

See Graphic: wc_gr001868

Ref Description Ref Description

1 Thermostat module 7 Positive air shutoff solenoid

actuator

2 Terminal block 8 Auxiliary relay terminals

3 1 Amp fuse 9 Plug 1, engine sensor inputs

4 Water level sensor 10 Electronic control board

5 Lube level maintainer low level

11 LCD heater

switch

6 30 Amp circuit breaker 12 Positive air shutoff relay module

wc_tx000380gb.fm 83

Factory-Installed Options Mobile Generators

5.11 Cam-Lock

See Graphic: wc_gr002584

A second optional outlet panel features cam-lock connectors (u) for
easy tool changes. The door is equipped with an interlock switch (q).
When the door is opened this switch automatically trips the main circuit
breaker.

wc_tx000380gb.fm 84

Mobile Generators Factory-Installed Options

5.12 Containment System

See Graphic: wc_gr002647

Overspills and leaks are captured in the containment system. The
containment system holds over 110% of the fluid contained in the
machine.

The containment system should be checked every 50 hours or 2
weeks and drained when necessary. If fluid is found in the containment
tank, trace the cause of the leak and correct.

Note: In the interests of environmental protection, place impermeable
sheeting and a container under the machine to collect the liquid which
drains off. Dispose of this liquid in accordance with environmental
protection legislation.

wc_tx000380gb.fm 85

Technical Data G50 /G 70/G 85

6. Technical Data

6.1 Engine Data

Item Number:

G 50

0009366
0009467
0620001

Rev.

112 & lower

G 70

0009367
0009468
0620002

Rev.

113 & lower

G 70

0620350
0620352

G 85

0009369
0009459
0620003

Rev.

114 & lower

Engine

Engine make /
type

John Deere / 4.5L

Model 4045DF270 4045TF270 4045TF285 4045TF275

Number of
cylinders

Displacement

Engine speed

Power @ 1800
rpm

l (in3)

rpm

kW/Hp

50/67 74.5/100 74/99 84.2/113

4

4.5 (274.6)

1800

Coolant capacity

Oil capacity

Battery

l (qts.)

l (qts.)

Volts/

CCa

22.7 (24) 22.7 (24) 26.5 (28) 22.7 (24)

15 (15.9)

12/720

Fuel type Diesel

Fuel tank capacity

Fuel
consumption,
continuous load

Running time,
continuous load

l (gal.)

l/hr

(gal./

hr)

Hours

337 (89)

12.5 (3.3) 17.4 (4.6) 18.7 (4.9) 21.2 (5.6)

27 19.3 18.2 16

86

G50 /G 70/G 85 Technical Data

Item Number:

G 50

0620001

Rev.

113 & above

G 70

0620002

Rev.

114 & above

G 70

0620351

G 85

0620003

Rev.

115 & above

Engine

Engine make /
type

John Deere / 4.5L

Model 4045DF270 4045TF270 4045TF285 4045TF275

Number of
cylinders

Displacement

Engine speed

Power @ 1800
rpm

Coolant capacity

Oil capacity

l (in3)

rpm

kW/Hp

l (qts.)

l (qts.)

50/67 74.5/100 74/99 84.2/113

22.7 (24) 22.7 (24) 26.5 (28) 22.7 (24)

4

4.5 (274.6)

1800

15 (15.9)

Battery

Volts/

CCa

12/1000

Fuel type Diesel

Fuel tank capacity

Fuel
consumption,
continuous load

Running time,
continuous load

l (gal.)

l/hr

(gal./

hr)

Hours

12.5 (3.3) 17.4 (4.6) 18.7 (4.9) 21.2 (5.6)

27 19.3 18.2 16

337 (89)

87

Technical Data G50 /G 70/G 85

6.2 Generator Data

Item Number:

G 50

0009366
0009467
0620001

G 70

0009367
0009468
0620002

G 70

0620350
0620351
0620352

Generator

Make/Type Mecc Alte / Brushless

Model

Generator speed

Voltage selector
switch

AC voltages
available

ECO32-3S/4 ECO32-2L/4

rpm

ECO32-3L/4

1800

3 position

120/240 zig-zag

120/208 low-wye

277/480 Hi-wye

Frequency 60 Hz

Power factor

1ø
3ø

1.0

0.8

G 85

0009369
0009459
0620003

ECO32-3L/4

Voltage regulation ±1.00%

Insulation class H

Sound level at 7 m
(23 ft.)

dB(A)

66 68 69

AC receptacles 2 duplex, 3 twist-lock

1ø 120 GFI duplex

1ø 120/240 V twist
lock

Standby Output

Continuous Output

Main breaker

Amps

Amps

kW/
kVA

kW/
kVA

Amps

42/53 63/79 74/92

38/48 58/72 67/84

175 225 250

2-20

1-30A 2-50A

88

G50 /G 70/G 85 Technical Data

6.3 Trailer and Skid Data

Item
Number:

Dry
weight of
skid

Operating
weight of
skid

Trailer
weight

Single axle

Tandem axle

GVWR

Single axle

kg

(lbs.)

kg

(lbs.)

kg

(lbs.)

kg

(lbs.)

G 50

0009366

1432

(3157)

1720

(3793)

G 50

0009467
0620001

1473

(3247)

1761

(3883)

G 70

0009367

G 70

0009468
0620002

Trailer and Skid

1509

(3328)

1798

(3964)

1550

(3418)

1839

(4054)

442 (975)

499 (1100)

2304 (5080)

G 70

0620350

1608

(3544)

1896

(4180)

G 70

0620351
0620352

1648

(3634)

1937

(4270)

G 85

0009369

1580

(3484)

1868

(4120)

G 85

0009459
0620003

1621

(3574)

1909

(4210)

Surge
brakes

Tires

Tandem axle

Fluid

type

size

2722 (6000)

DOT3

ST225/75D-15D

89

Technical Data G50 /G 70/G 85

6.4 Dimensions

mm (inches)

90

Wacker Construction Equipment AG · Preußenstraße 41 · D-80809 München · Tel.: [phone] - 0 · Fax: +49 - (0)89-3 54 02-3 90
Wacker Corporation · P.O. Box 9007 · Menomonee Falls, WI 53052-9007 · Tel. : [phone] · Fax: [phone] · Tel. : [phone]
Wacker Asia Pacific Operations · Skyline Tower, Suite 2303, 23/F · 39 W ang Kwong Road, Kowloon Bay, Hong Kong · Tel. [phone] · Fax: [phone]
