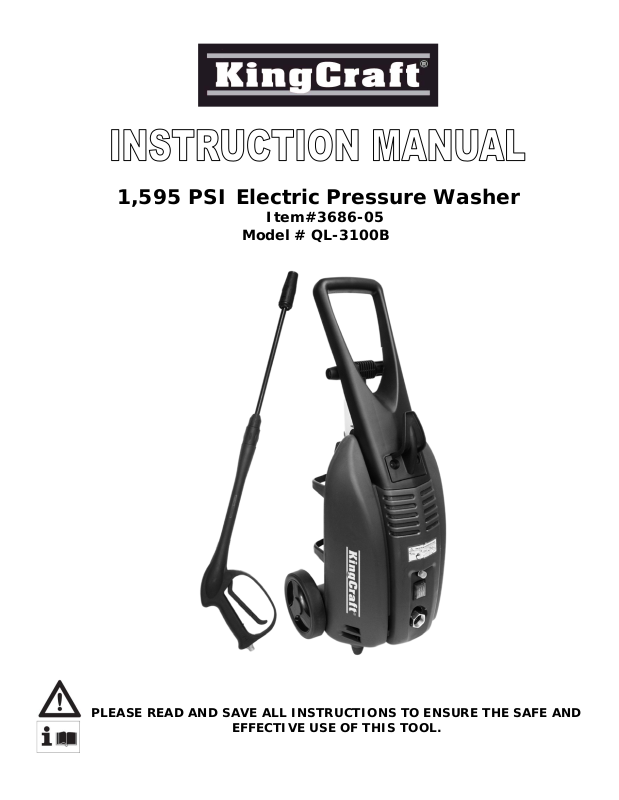

Wachsmuth & Krogmann QL-3100B User Manual
1,595 PSI Electric Pressure Washer
Item#3686-05
Model # QL-3100B
PLEASE READ AND SAVE ALL INSTRUCTIONS TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS TOOL.
TABLE OF CONTENTS
Index P. 1
Important Safety Instructions P. 2-3
General Safety Instructions P. 4-6
List of Main Parts P. 7-8
Tech. Specifications Contents of Packaging P. 9
Assemby P. 10-14
Operation P. 15-19
Maintenance P. 20
Trouble Shooting P. 21
Warranty Information P. 22
Warranty Card P. 23
Spare Part Order Form P. 24
1
IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ AND SAVE THESE INSTRUCTIONS. Read carefully before
attempting to assemble, install, operate or maintain this product. Protect
yourself and others by observing all safety information. Failure to comply with
instructions could result in personal injury and/or property damage! Retain
instructions for future reference. Follow the safety warnings.
1. Read this manual carefully, know your equipment. Consider the applications,
limitations, and the potential hazards specific to your unit.
2. Outlets with a third prong ground are required. Do not use without a grounded
prong.
3. Do not touch plug or outlet with wet hands.
4. Avoid accidental starts. Move switch on unit to “OFF” position before connecting or
disconnecting cord to electrical outlets.
5. Water spray must never be directed towards any electrical wiring or directly towards
the pressure washer itself or fatal electric shock may occur.
6. Never carry your pressure washer by the cord. Do not pull on the cord to disconnect
from the outlet.
7. To prevent damage, the cord should not be crushed, placed next to sharp objects or
near a heat source.
8. Stay alert, watch what you are doing.
9. Follow maintenance instruction specified in this manual.
10. Check power cords before using. Damaged cords can reduce performance of
pressure washer or cause a fatal electric shock.
11. The narrow pin point stream is very powerful, it is not recommended for use on
painted surfaces, wood surfaces or items attached with adhesive backing.
12. Keep operating area clear of all persons.
13. To reduce the risk of injury, close supervision is necessary when this product is used
near children.
14. Always use both hands when operating pressure washer to maintain complete control
of wand.
15. Do not touch nozzle or water spray while operating.
16. Wear safety goggles while operating.
17. Always wear anti-slip shoes to prevent slipping.
SAVE THESE INSTRUCTIONS!
2
18. Disconnect power plug from the outlet when not in use and prior to the detaching of
the pressure hose.
19. Never tie knots or kinks the pressure hose as damage can result.
20. Prior to starting the pressure washer in cold weather, be sure ice has not formed in
any part of the appliance.
21. The pressure washer should not be used in areas where gas vapors may be present.
An electric spark can cause an explosion or fire.
22. To minimize the amount of water getting into the pressure washer, the motor
housing should be placed as far as possible from the cleaning site during operating.
23. To prevent accidental discharge, the spray gun should be secured by locking trigger
when not in use.
24. Do not operate this product when fatigued or under the influence of alcohol or drugs.
25. To allow free air circulation, the pressure washer should NOT be covered during
operation.
26. Know how to stop the product and bleed pressure quickly. Be thoroughly familiar
with the controls.
27. Do not over reach or stand on unstable support. Keep good footing and balance at
all times.
28. WARNING – Risk of injection or injury- Do not direct discharge stream at
persons.
29. This product is provided with a ground fault circuit interrupter built into the power
cord plug. If replacement of the cord or plug is needed use only identical
replacement parts. Tool service must be performed only by qualified repair
personnel. Service or maintenance performed by unqualified personnel could result
in a risk of injury.
GROUNDING INSTRUCTION
This product must be grounded. If it should malfunction or breakdown, grounding
provides a path of least resistance for electric current to reduce the risk of electric
shock. This product is equipped with a cord having an equipment-grounding conductor
and a grounding plug. The plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local codes and ordinances.
DANGER
Improper connection of the equipment grounding conductor can result in risk of
electrocution. Check with a qualified electrician or service personnel if you are in doubt
whether the outlet is properly grounded. Do not modify the plug provided with the
product. If it will not fit the outlet have a proper outlet installed by a qualified
electrician. Do not use any type of adapter with this product.
GROUND FAULT CIRCUIT INTERRUPTER PROTECTION
This pressure washer is provided with a ground fault circuit interrupter (GF CI) built into
the plug of the power supply cord. This device provides additional protection from the
risk of electrical shock. Should replacement of the plug or cord become necessary use
only identical replacement parts that include GFCI protection.
3
GENERAL SAFETY RULES
WARNING! Read, understand and save all instructions. Failure to follow all
instructions listed below may result in electric shock, fire or serious personal inju ry. The
warnings, cautions, and instructions discussed in this instruction manual cannot cover all
possible conditions and situations that may occur. It must be understood by the operator
that common sense and caution are a factor which cannot be built into this product, but
must be supplied by the operator.
SAVE ALL INSTRUCTIONS!
WORK AREA
1. Keep your work area clean and well organized. Cluttered benches and dark areas
invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power tools create sparks which may ignite the
dust or fumes.
3. Keep bystanders, children and visitors away while operating a power tool.
Distractions can cause you to lose control.
ELECTRICAL SAFETY
Do not abuse the cord. Never use the cord to carry the tool. Keep cord away from heat,
oil, sharp edges or moving parts. Replace damaged cords immediately. Damaged cords
may create a risk of fire.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use tool while tired or under the influence of drugs, alcohol or
medication. A moment of inattention while operating power tools may result in
serious personal injury.
2. Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your
hair, clothing and gloves away from moving parts. Wear protective goggles when
operating the machine. It is recommended to wear protective goggles, gloves, sturdy
non-slipping shoes and an apron.
3. Avoid accidental starting. Be sure switch is in OFF position before connecting to a
power outlet. Carrying tools with your finger on the switch when the switch is ON
invites accidents. Disconnect tool from power outlet before carrying out any work on
the machine.
4. Do not overreach. Keep proper footing and balance at all times. Proper footing and
balance enables better control of the tool in unexpected situations.
5. Use safety equipment. Always wear eye protection. Dust mask, non-skid safety
shoes, hard hat, or hearing protection must be used for
appropriate conditions.
TOOL USE AND CARE
1. Do not force tool. Use the correct tool for your application. The correct tool will do
the job better and safer at the rate for which it is designed.
2. Do not use tool if switch does not turn ON or OFF. Any tool that cannot be controlled
with a switch is dangerous and must be repaired.
3. Place the switch in locked or OFF position before making any adjustments, changing
accessories or storing the tool. Such preventive safety measures reduce the risk of
starting the tool accidentally.
4
4. Store idle tools out of reach of children and other untrained persons. Tools are
dangerous in the hands of untrained users. They should be kept away from work
area.
5. Check for misalignment or binding of moving parts, breakage of parts and any other
condition that may affect the tools operation. If damaged, have the tool serviced
before using. Many accidents are caused by poorly maintained tools.
6. Use only accessories that are recommended by the manufacturer for your model.
Accessories that may be suitable for one tool may become hazardous when used on
another tool.
SERVICE
1. Tool service must be performed only by qualified repair personnel. Service or
maintenance performed by unqualified personnel could result in a risk of injury.
2. When servicing a tool, use only identical replacement parts. Follow instructions in the
maintenance section of this manual. Use of unauthorized parts or failure to follow
Maintenance Instructions may create a risk of electric shock or injury.
ELECTRICAL REQUIREMENTS
General Electrical Connections
DANGER: To reduce the risk of electrocution:
1. Use only identical replacement parts when servicing. Servicing should be
performed by a qualified service technician.
2. Do not use in rain or where floor is wet.
This tool is intended for indoor residential use only.
WARNING: Do not permit fingers to touch the terminals of plug when installing
or removing the plug to or from the outlet.
110-120 Volt, 60Hz. Tool Information
NOTE: The plug supplied on your tool may not fit into the outlet you are planning to
use. Your local electrical code may require slightly different power cord plug connections.
If these differences exist refer to and make the proper adjustments per your local code
before your tool is plugged in and turned on.
In the event of a malfunction or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This tool is equipped
with an electric cord having an equipment grounding conductor and a grounding plug, as
shown. The plug must be plugged into a matching outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
Do not modify the plug provided. If it will not fit th e outlet, have the proper outlet
installed by a qualified electrician.
A temporary adapter may not be used with this item.
5
WIRE SIZES
Make sure the proper extension cord is used and is in good condition. The use of any
extension cord will cause some loss of power. To keep this to a minimu m and to prevent
overheating and motor burnout, use the table below to determine the minimum wire size
(A.W.G.) extension cord.
EXTENSION CORD
Use only 3-wire extension cords which have 3-prong grounding type plugs and 3-
pole receptacles which accept the tools plug.
Use only extension cords intended for outside use. These extension cords are
identified by a marking “acceptable for use with outdoor appliances, store indoors
while not in use.”
Use only extension cords having an electrical rating not less than the rating of
the product.
Do not use damaged extension cords. Examine extension cords before using and
replace if damaged.
Do not abuse extension cord and do not yank on any cord to disconnect.
Keep cord away from heat and sharp edges.
Always disconnect the extension cord from the receptacles before disconnecting
the product from the extension cord.
WARNING: To reduce the risk of electrocution keep all connectors dry and off the
ground. Do not touch plug with wet hands.
Extension Cord Length Gauge (A.W.G.)
0-25 ft. 12
25-50 ft. 10
SAVE THESE INSTRUCTIONS!
6
LIST OF MAIN PARTS
PARTS DESCRIPTION
1. Motor Housing
2. Black Plastic Hooks
3. Handle
4. High Pressure Hose
5. Handle Frame
6. Gun Lance
7. Back Wheel
8. Soap Spray Bottle
9. Turbo Nozzle
10. Spray Nozzle
11. GFCI Power Plug
12. Power Cord
13. Rubber Feet
14. Rubber Foot Screws
15. 7/8” Black Screws
16. Wheel Clips
17. Wheel Covers
18. Wheel Axle
19. Plastic Strap
20. Tip Cleaner
FIG. 1
21. Male high pressure
connector
22. Trigger Lock
23. Trigger
24. Female Screw Connector
26. Male Screw Connector
27. Spray Nozzle
28. Turbo Nozzle
FIG. 2
FIG. 3
FIG. 4
7
