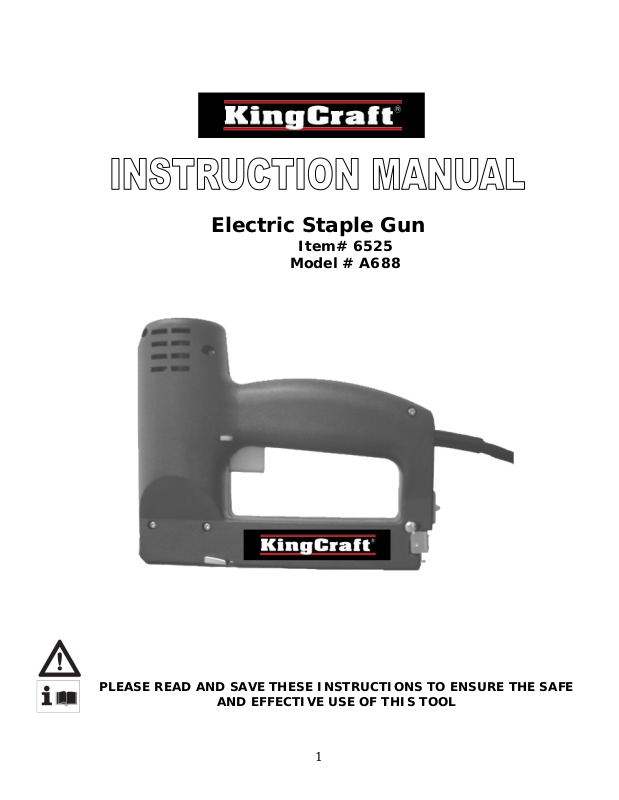

Wachsmuth & Krogmann A688 User Manual

Electric Staple Gun

Item# 6525

Model # A688

PLEASE READ AND SAVE THESE INSTRUCTIONS TO ENSURE THE SAFE

AND EFFECTIVE USE OF THIS TOOL

1

TABLE OF CONTENTS

Index P. 2

Important Safeguards P. 3

General Safety Rules P.3, 4

List of Main Parts P.5

Tech. Specifications, Contents of Packing P.5

Operation P.6

Determining Proper Staple or Nail Length P.7

Maintenance P.7

Trouble Shooting P.8

Warranty Information P.9

Warranty Card P.11

2

IMPORTANT SAFEGUARDS

1. Staple Gun must not be loaded with staples and nails at the same time.

2. Do not lubricate. The Staple Gun has been lubricated at the factory. Under normal
use it will not need further lubrication

3. Do not hold the Staple Gun toward people, it could invite serious inju ries.

4. Store Staple Gun a dry locked cabinet and keep it out of reach of children.

SAVE ALL INSTRUCTIONS

GENERAL SAFETY RULES

WARNING!

listed below may result in electric shock, fire or serious personal injury. The warnings,
cautions, and instruction discussed in this instru ction manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that
common sense and caution are a factor which cannot be built into this product, but must
be supplied by the operator.

WORK AREA

1. Keep your work area clean and well organized. Cluttered benches and dark areas
invite accidents.

2. Do not operate power tools in explosive atmosphere, such as in the presence of
flammable liquids, gases, or dust. Power tools create sparks which may ignite the
dust or fumes.

3. Keep bystanders, children and visitors away while operating a power tool.
Distractions can cause you to lose control.

ELECTRICAL SAFETY

1. Double insulated tools are equipped with a polarized plug (one blade is wider than
the other.) This Plug will fit in a polarized outlet only one way. If the plug dose not
fit fully in the outlet, reverse the plug. If it still dose no t fit, contact a qualified
electrician to install a polarized outlet. Do no change the plug in any way.

2. Do not abuse the cord. Never use the cord to carry the tool. Keep cord away from
heat, oil, sharp edges or moving parts. Replace damaged cords immediately.
Damaged cords may create a risk of fire.

3. Avoid body contact with grounded surfaces such as pipes, radiators, ranges and
refrigerators.

4. Don’t expose Staple Gun to rain or wet conditions . Water entering a power tool will
increase the risk of electric shock.

5. During normal operation, if anything happens, the power should be cut off at once
and the tool should be checked and repaired

Read and understand all instructions. Failure to follow all instructions

3

PERSONAL SAFETY

1. Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use tool while tired or under the influence of drugs, alcohol or
medication. A moment of inattention while operating power tools may result in
serious personal injury.

2. Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your
hair, clothing and gloves away from moving parts. It is recommended to wear
protective goggles, gloves, sturdy non-slipping shoes and an apron while operating
the machine.

3. Avoid accidental starting. Be sure switch is in LOCK position before connecting the
unit to a power outlet. Carrying tools with your finger on the switch invites accidents.

4. Remove adjusting wrench before turning th e tool on. A wrench or a key that is left
attached to a rotating part of the tool may result in personal injury.

5. Do not overreach. Keep proper footing and balance at all times. Proper footing and
balance enables better control of the tool in unexpected situations.

6. Use safety equipment. Always wear eye protection. Dust mask, non-skid safety
shoes, hard hat, or hearing protection must be used for

appropriate conditions.

TOOL USE AND CARE

1. Use clamps or other practical way to secure and support the work piece to a stable
platform. Holding the work by hand or against your body is unstable and may lead to
loss of control.

2. Do not force tool. Use the correct tool for your application. The correct tool will do
the job better and safer at the rate for which it is designed.

3. Do not use tool if switch does not turn ON or OFF. Any tool that cannot be controlled
with a switch is dangerous and must be repaired.

4. Disconnect battery pack from tool or place the switch in locked or OFF position
before making any adjustments, changing accessories or storing the tool. Such
preventive safety measures reduce the risk of starting the tool accidentally.

5. Store idle tools out of reach of children and other untrained persons. Tools are
dangerous in the hands of untrained users. They should be kept away from work
area.

6. Check for misalignment or binding of moving parts, breakage of parts and any other
condition that may affect the tools operation. If damaged, have the tool serviced
before using. Many accidents are caused by poorly maintained tools.

7. Use only accessories that are recommended by the manufacturer for your model.
Accessories that may be suitable for one tool may become hazardous when used on
another tool.

SERVICE

1. Tool service must be performed only by qualified repair personnel. Service or
maintenance performed by unqualified personnel could result in a risk of injury.

2. When servicing a tool, use only identical replacement parts. Follow instructions in the
maintenance section of this manual. Use of unauthorized parts or failure to follow
Maintenance Instructions may create a risk of electric shock or injury.

SAVE AND READ ALL INSTRUCTIONS!

4
