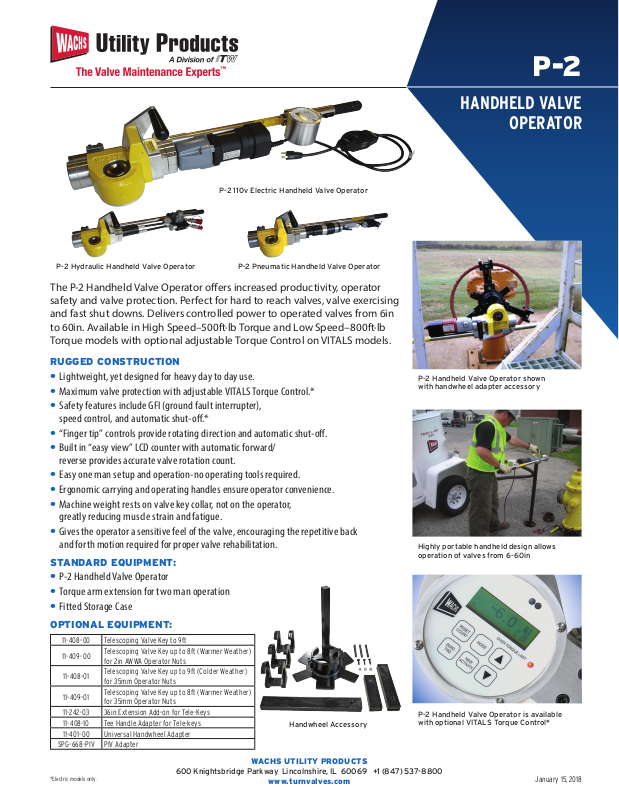

Wachs P-2 User Manual
P-2 110v Electric Handheld Valve Operator
P-2 Hydraulic Handheld Valve Operator P-2 Pneumatic Handheld Valve Operator
The P-2 Handheld Valve Operator oers increased productivity, operator
safety and valve protection. Perfect for hard to reach valves, valve exercising
and fast shut downs. Delivers controlled power to operated valves from 6in
to 60in. Available in High Speed–500ft·lb Torque and Low Speed–800ft·lb
Torque models with optional adjustable Torque Control on VITALS models.
RUGGED CONSTRUCTION
• Lightweight, yet designed for heavy day to day use.
• Maximum valve protection with adjustable VITALS Torque Control.*
• Safety features include GFI (ground fault interrupter),
speed control, and automatic shut-o.*
• “Finger tip” controls provide rotating direction and automatic shut-o.
• Built in “easy view” LCD counter with automatic forward/
reverse provides accurate valve rotation count.
• Easy one man setup and operation-no operating tools required.
• Ergonomic carrying and operating handles ensure operator convenience.
• Machine weight rests on valve key collar, not on the operator,
greatly reducing muscle strain and fatigue.
• Gives the operator a sensitive feel of the valve, encouraging the repetitive back
and forth motion required for proper valve rehabilitation.
STANDARD EQUIPMENT:
• P-2 Handheld Valve Operator
• Torque arm extension for two man operation
• Fitted Storage Case
P-2
HANDHELD VALVE
OPERATOR
P-2 Handheld Valve Operator shown
with handwheel adapter accessory
Highly portable handheld design allows
operation of valves from 6-60in
OPTIONAL EQUIPMENT:
11-408-00 Telescoping Valve Key to 9ft
11-409-00
11-408-01
11-409-01
11-242-03 36in Extension Add-on for Tele-Keys
11-408-10 Tee Handle Adapter for Tele-keys
11-401-00 Universal Handwheel Adapter
SPG-668-PIV PIV Adapter
*Electric models only.
Telescoping Valve Key up to 8ft (Warmer Weather)
for 2in AWWA Operator Nuts
Telescoping Valve Key up to 9ft (Colder Weather)
for 35mm Operator Nuts
Telescoping Valve Key up to 8ft (Warmer Weather)
for 35mm Operator Nuts
600 Knightsbridge Parkway Lincolnshire, IL 60069 +1 (847) 537-8800
Handwheel Accessory
WACHS UTILITY PRODU CTS
www.turnvalves.com
P-2 Handheld Valve Operator is available
with optional VITALS Torque Control*
January 15, 2018
SPECIFICATIONS
Machine Capacity:
Operates all gate valves 6in to 60in
(15.3 to 152.4cm) and other equipment
requiring mechanized turning.
Drive:
Sealed lightweight aluminum gearbox
Two state reduction
Planetary primary
Bronze/Steel secondary (12:01 reduction)
Electric Requirements:
110 V AC/220 V AC (15 amp or 3500 W)
Hydraulic Requirements:
8 gpm @ 1800 psi
Pneumatic Requirements:
70 cfm @ psi
Peak Torque:
800 ft/lb (1084 N-m)
Finish:
Hard Chrome Plating
ELECTRIC 110 VOLTS
TORQUE
(FT/ LB)
100 10 8.6 6 4
200 8* 8* 6.5 6
300 7 11 4 7
375 6 12 4** 8**
500 5 15 4 10
600 3.6 12
700 3 12.5
800 3 13.5
RPM AMPS RPM AMPS
(HIGH SP EED / LOW TORQUE ) ( LOW SPEED / HIGH TO RQUE)
ELECTRIC 220 VOLTS
TORQUE
(FT/ LB)
100 10.2 3.1
175 9.9* 4.4* 5.2 3.2
300 7.4 6.1 4.8 3.5
375 5 7. 5 4.5** 4.5**
500 2 10 3.6 5.5
600 2.8 6.2
700 1.5 7.5
800 .5 10
1
Charts only apply to models 11-000-02, 11-000-05, 11-000-12, 11-000-15
*Factory rated continuous load high speed/low torque
** Factory rated continuous load low speed/high torque
† Factory rated continuous load
RPM AMPS RPM AMPS
(HIGH SP EED / LOW TORQUE ) ( LOW SPEED / HIGH TO RQUE)
1
P-2
HANDHELD VALVE
OPERATOR
MODELS
11-000-07
11-000-10
11-000-08
Telescoping Valve Key 4-9 feet
11-000-09
11-000-02
11-000-05
11-000-03
HYDRAULIC
Based on 8 gpm @ 1800 psi
FT·LB RPM
100 12
175 12
300 12
375 12
500 12
600 12
700 12
800 11
1
PNEUMATIC
†
11-000-04
VITALS TORQUE CONTROL
MODELS
11-000-17
11-000-20
11-000-19
11-000-12
11-000-15
11-000-14
Based on 90 psi @ 70 cfm
FT·LB RPM
100 13
200 11
300 7
400 5
500 4
600 3
700 2
800 1
†
CONTACT US TODAY
FOR A DEMONSTRATION
OR QU OTATIO N
E-mail: info@ehwachs.com
Telephone: +1.847.537.8800
Fax: +1.815.943.5098
Visit our website: www.turnvalves.com
©2018 DSE-P2-0118
Electric 110V 500 ft·lb 20rpm
Electric 220V 500 ft·lb 20rpm
Pneumatic 500 ft·lb 26rpm
Hydraulic 500 ft·lb 24rpm
Electric 110V 800 ft·lb 10rpm
Electric 220V 800 ft·lb 10rpm
Pneumatic 800 ft·lb 13rpm
Hydraulic 800 ft·lb 12rpm
Electric 110V 500 ft·lb 20rpm
Electric 220V 500 ft·lb 20rpm
Hydraulic 500 ft·lb 20rpm
Electric 110V 800 ft·lb 10rpm
Electric 220V 800 ft·lb 10rpm
Hydraulic 800 ft·lb 12rpm
