WABECO D2000E, D3000 E, D2400 E Operating Instructions Manual

Operating instructions

Universal Lathes

D2000 E

D2400 E D3000 E

Walter Blombach GmbH

Tool and Machine Factory

D-42899 Remscheid Am Blaffertsberg 13 Phone: [phone] Fax: [phone] E-Mail: [e-mail]
D-54673 Neuerburg WABECO Str. 1-10 Phone: [phone] Fax: [phone] E-Mail: [e-mail]

www.wabeco-remscheid.de

2

Index

EC-Conformity Declaration 4

1. Product range 6

1.1 Universal Lathe D2000 E 6

1.2 Universal Lathe D2400 E 7

1.3 Universal Lathe D3000 E 8

2. Drawings and list of parts 9

2.1 Headstock 9

2.2 Support with motor and cover for D2400 E, D3000 E 10

2.3 Leading spindle drive for D2000 E, D2400 E 12

2.4 Leading spindle drive for D3000 E 14

2.5 Antrieb mit Vorgelege zu D2000 W 16

2.6 Cross table 18

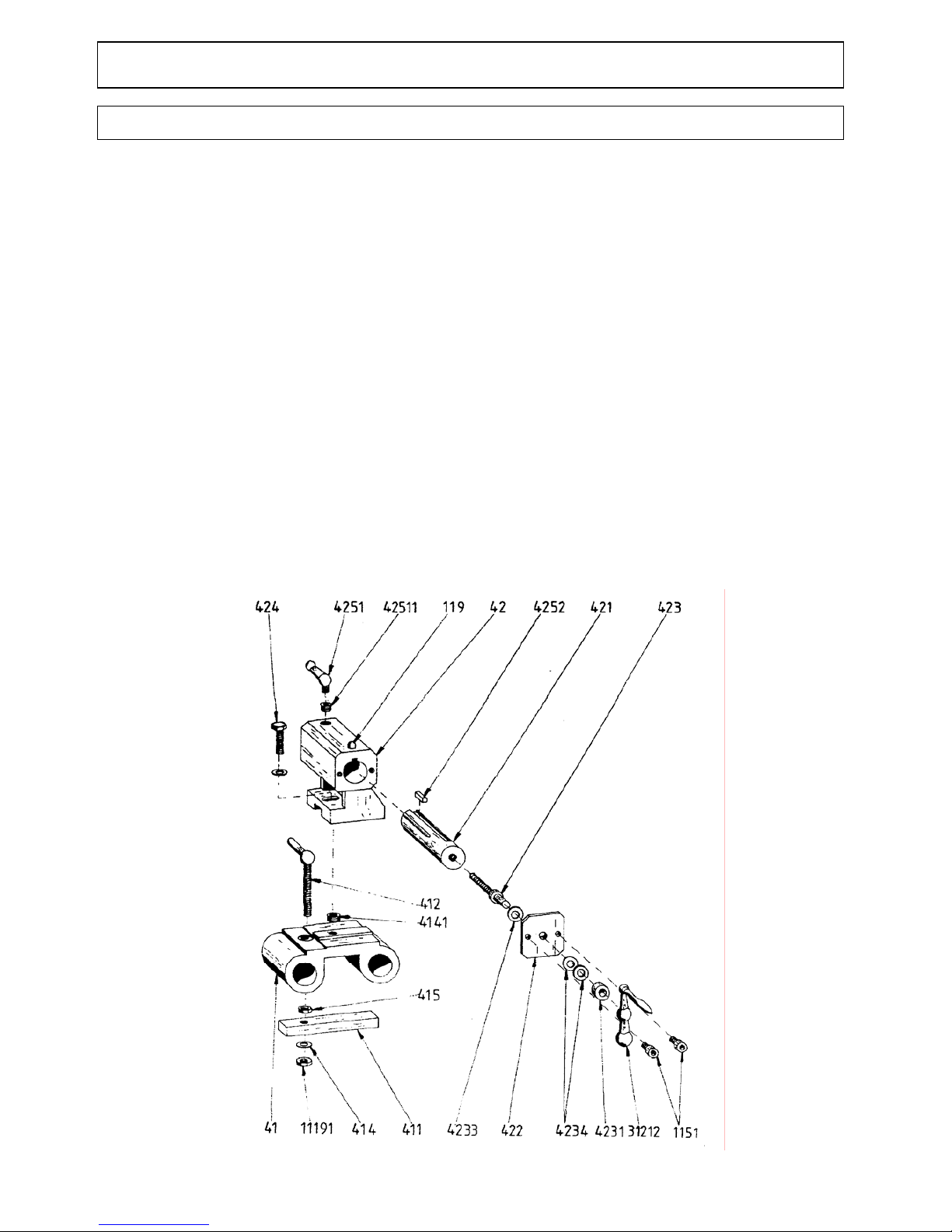

2.7 Tailstock 20

2.8 Rear support with guide rods 21

3. Circuit diagram 22

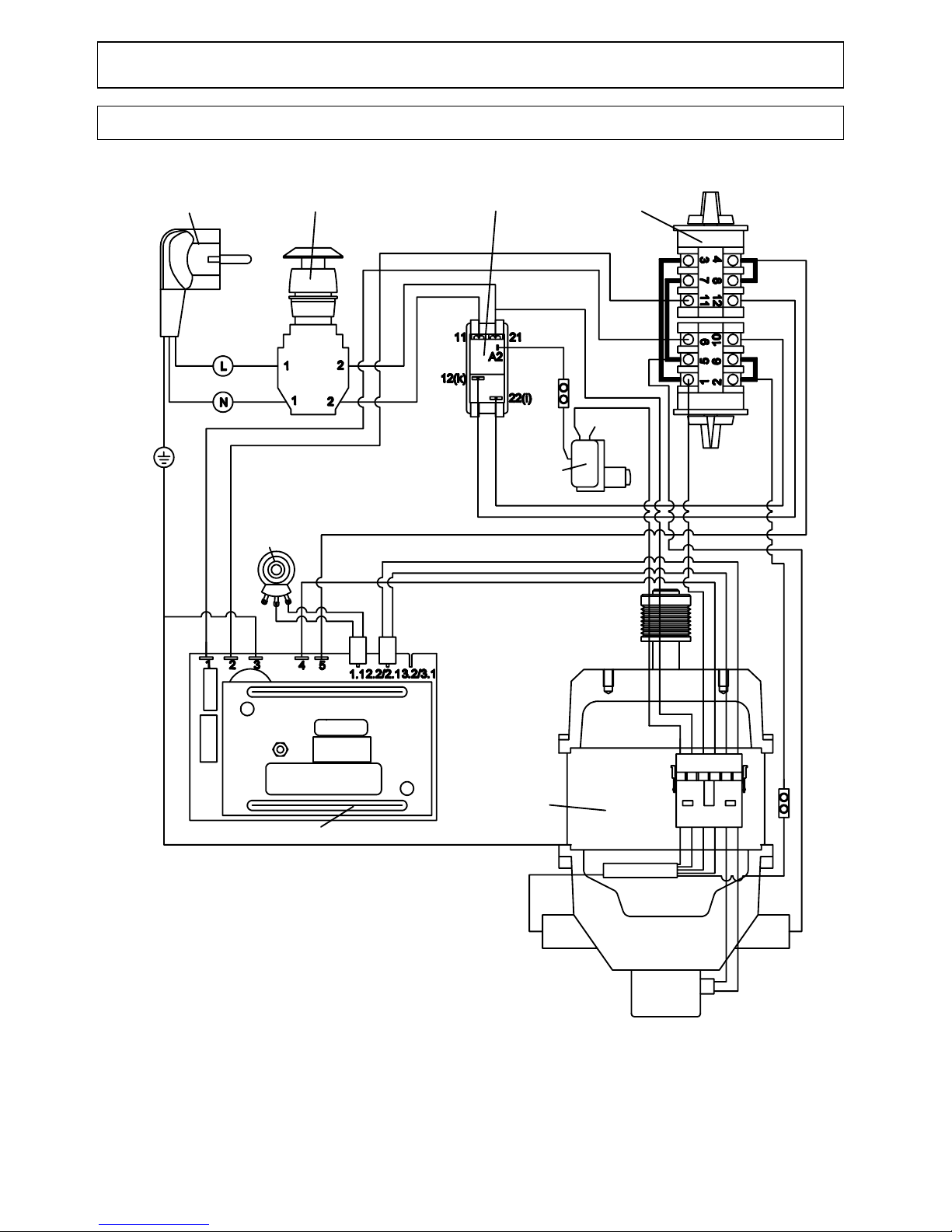

3.1 Circuit diagram for D2000 E, D2400 E 22

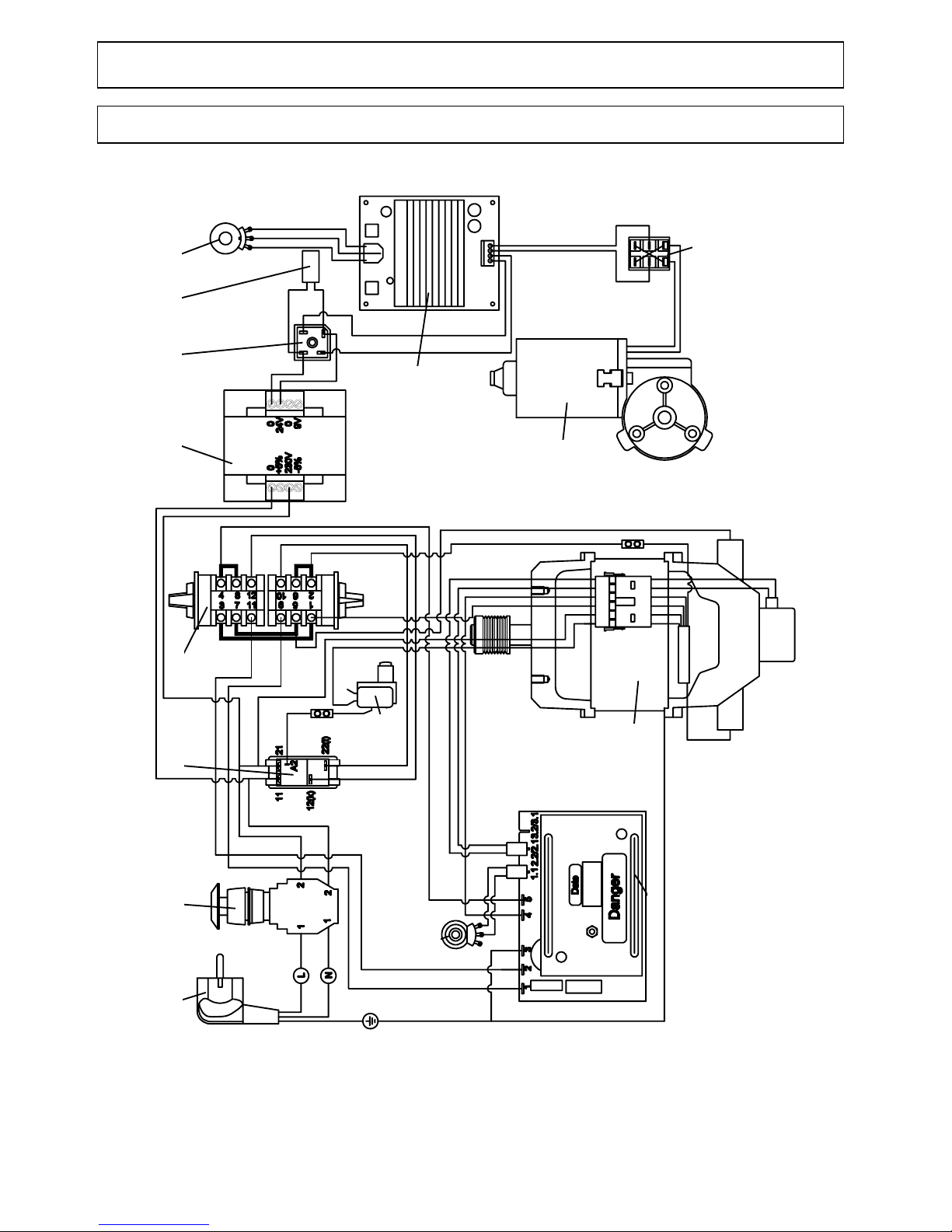

3.2 Circuit diagram for D3000 E 23

4. Delivery and installation 24

5. Starting-up and maintenance 25

6. Overload protection 25

7. Safety devices and recommendations 26

8. Startup and Maintenance 27

8.1 Electrical equipment 27

8.2 Startup 27

8.3 Maintenance 28

8.4 Lubrication 29

8.5 Initial cleaning of the machine 29

8.6 Spindle head 30

8.7 Compound rest 31

8.8 Tailstock 29

9. Speed regulation 32

9.1 Speed election 32

9.1.1 Speed setting for working with aluminium 32

9.1.2 Speed setting for working with steel 32

9.1.3 Speed setting for working with Brass, Copper 33

9.2 Changing of speed 33

10. Applications 34

10.1 Longitudinal and transverse turning 34

10.2 Thread cutting and automatic feed 35

3

Index

10.2.1 General note 36

10.2.2 Application of change gears 36

10.2.3 Altering the feeds or thread pitches 37

10.2.4 Changing of feeds or thread pitche D3000 E 39

11. Pair of toothed wheels for left-hand thread 40

12. Angle plate with milling table 41

13. Three jaw-chuck and four jaw-chuck 42

14. Tool holder with conical sleeve 42

15. Steady and follow rest 43

16. Square turret head 43

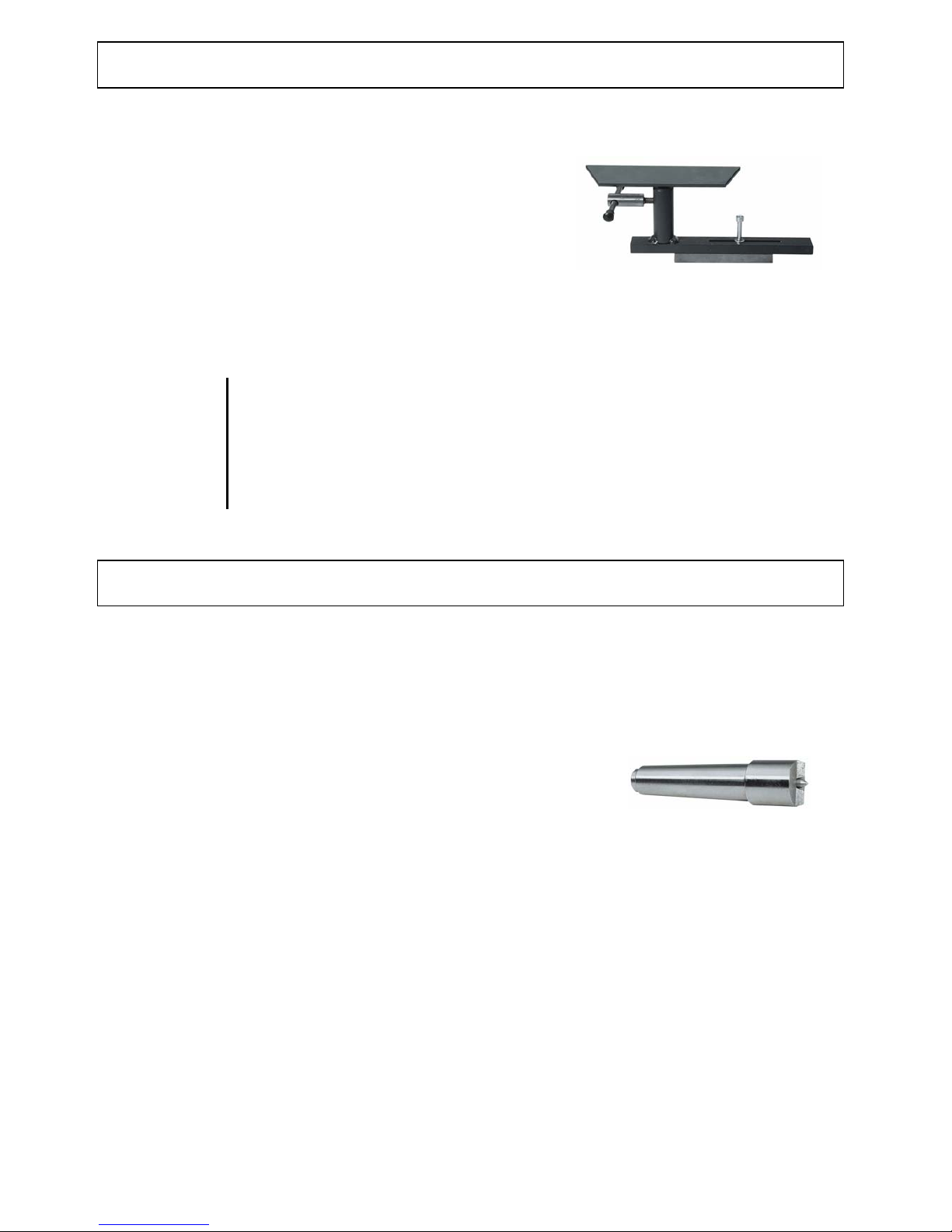

17. Hand tool rest for turning wood 44

18. Wood turning lathe centre 44

19. Unit for lubrication coolant 45

20. Declaration of noise levels in accordance with DIN EN 24871 46
(German Industrial Standard)

21. Disposal of the lathe 46

4

EC – Conformity Declaration

In the name of the manufacturer

Walter Blombach GmbH

Tool and Machine Factory

based in Remscheid and Neuerburg

D-42871 Remscheid Postfach 12 01 61 Phone: [phone] Fax: [phone]

D-54673 Neuerburg WABECO Str. 1-10 Phone: [phone] Fax: [phone]

We hereby declare that the universal milling and drilling machines specified below

Universal Lathes Typ:

D2000E – D2400 E – D3000 E

meet the following regulation requirements for standard serie production

- EC directive for machines EWG 91/68 and 89/392

- EC low voltage directive 73/23/EWG

In order to meet / implement the requirements of the above mentioned directives, the following
applicable and previously published standards have been adhered to:

EN 292-1
EN 292-2
EN292-2 Enclosure I
EN 294
EN 349
EN 418
EN 60204

D-54673 Neuerburg
________________________________
City

Signature

5

Outlay

Dear customer!

Congratulations on choosing the WABECO Universal Lathe. We have taken great care in its
manufacture and we have given it a thorough quality control test. These operating instructions are
to help you to work with it safely and properly.
After unpacking the machine please check to see if any kind of damage has occurred during
transportation. Any complaints must be made immediately. Complaints made at a later date

cannot

be accepted.

If you have any questions or need any spare parts, please quote the machine number
located on the front of the motor.

Wir können Ihnen wahlweise unsere Bedienungsanleitungen und Prospekte in englischer und
französischer Sprache kostenlos zusenden.

We are able to send you free of charge our Operating Instructions and leaflets in French
and/or English translation.

Nous avons la possibilité de vous donner nos Instructions de Service et prospectus aussi en
traduction francaise et/ou anglaise, sans frais.

6

1

.

Technical Data

1.1 Universal Lathe D2000 E

Working range

Centre distance.......................................................... 350 mm

Centre height.............................................................. 110 mm

Work spindle

Power......................................................................... 1,4 kW, 230 V, 50 Hz

Spindle speed infinetely variable................................ 30 – 2300 r.p.m.

Spindle bore...............................................................

20 mm optional 30 mm

Taper in spindle nose................................................. MT3 – only for spindle bore 20 mm

Cross table

diameter of chuck work above cross slide rest..........

126 mm

Travel of cross slide ................................................... 110 mm

Travel of longitudinal slide 58 mm

Swivel range of the upper slide rest........................... 360°

Height of turning tools max. ....................................... 20 mm

Guideways

Longitudinal support................................................... ground guiding bars

Cross support................................................................ adjustable dovetail guide

Stripping rings ............................................................... protection of the guides

Length of guides............................................................ 575 mm

Width of guides.............................................................. 130 mm

diameter of chuck work, measured above the guiding

bars ...............................................................................

220 mm
Tail stock

Tail spindle´s range of displacement ............................ 65 mm

Tail spindle´s hole bore................................................. cone2

lateral displacement of the tailstock to both sides ........

±10 mm
Advance

Automatic advance........................................................

0,085mm/r.p.m. optional 0,16

Screw cutting attachment - optional

- metric thread........................................................... 0,4 - 4,0 mm

- inch thread .............................................................. 10 - 32 thread per inch (TPI)

Noise values according DIN 45635 - part 1
Emission data:

no-load running LpA = 63 dB(A)
load running

LpA = 67 dB(A)

- Subject to technical alterations -

7

1

.

Technical Data

1.2 Universal Lathe D2400 E

Working range

Centre distance............................................................. 500 mm

Centre height................................................................. 110 mm

Work spindle

Main drive...................................................................... electronic adjustable motor

Power............................................................................ 1,4 Kw, 230V, 50 Hz

Spindle speed infinetely variable................................... 30 – 2300 r.p.m.

Spindle bore..................................................................

20 mm optional 30 mm

Taper in spindle nose................................................. MT3 – only for spindle bore 20 mm

Cross table

diameter of chuck work above cross slide rest.............

126 mm

cross table range of displacement................................ 110 mm

turning carriage´s range of displacement...................... 58 mm

swivel-feature of the upper slide rest............................ 360°

Height of turning tools max. .......................................... 20 mm

Guideways

Longitudinal support...................................................... ground guiding bars

Cross support................................................................ adjustable dovetail guide

Stripping rings ............................................................... protection of the guides

Length of guides............................................................ 740 mm

Width of guides.............................................................. 130 mm

Ø of guides.................................................................... 30 mm

diameter of chuck work, measured above the guiding

bars ...............................................................................

220 mm

Tailstock

Tail spindle´s range of displacement ............................ 65 mm

Tail spindle´s hole bore................................................. cone2

lateral displacement of the tailstock to both sides ........

±10 mm
Advance

Automatic feed ..............................................................

0,085 mm/r.p.m. Optional 0,16

Screw-cutting attachment Optional

- metric thread........................................................... 0,4 - 4,0 mm

- inch thread .............................................................. 10 - 32 thread per inch (TPI)

Noise values according DIN 45635 - part 1
Emission data:

no-load running LpA = 63 dB(A)
load running

LpA = 67 dB(A)

- Subject to technical alterations -

8

1

.

Technical Data

1.3 Universal Lathe D3000 E

Working range

Centre distance............................................................. 500 mm

Centre height................................................................. 110 mm

Work spindle

Main drive...................................................................... electronic adjustable motor

Power............................................................................ 1,4 Kw, 230V, 50 Hz

Spindle speed infinetely variable................................... 30 - 2300 r.p.m.

Spindle bore..................................................................

20 mm Optional 30 mm

Taper in spindle nose................................................. MT3 – only for spindle bore 20 mm

Advance

Automatic advance........................................................ 0 - 250

Cross table

diameter of chuck work above cross slide rest.............

126 mm

cross table range of displacement................................ 100 mm

turning carriage´s range of displacement...................... 58 mm

swivel-feature of the upper slide rest............................ 360°

Height of turning tools max. .......................................... 20 mm

Guideways

Longitudinal support...................................................... ground guiding bars

Cross support................................................................ adjustable dovetail guide

Stripping rings ............................................................... protection of the guides

Length of guides............................................................ 740 mm

Width of guides.............................................................. 130 mm

Ø of guides.................................................................... 30 mm

diameter of chuck work, measured above the guiding

bars ...............................................................................

220 mm
Tailstock

Tail spindle´s range of displacement ............................ 65 mm

Tail spindle´s hole bore................................................. cone2

lateral displacement of the tailstock to both sides ........

±10 mm
Advance

Automatic advance........................................................ 0-250 mm/min

Screw cutting attachment

metric thread ..........................................................................

0,4 - 3,0 mm

inch thread..............................................................................

10 - 32 thread per inch

Noise values according DIN 45635 - part 1
Emission data:

no-load running LpA = 63 dB(A)
load running

LpA = 67 dB(A)

- Subject to technical alterations -

9

2. Drawings and list of parts

2.1 Headstock for D2000 E, D2400 E and D3000 E

Part-No. Order-No. Designation

11 10200011

Headstock

1124 10201124

Bronze bushing

1128 10201128

Bronze bushing

111 10200111

Spindle with flange

1118 10201118

Bearing cap

11181 10211181

Hexagon socket screw

11121 10211121

Feather key

1115 10201115

Spacer sleeve

1116 10201116

Tapered roller bearing

11141 10211141

Starter pulley

1114 10201114

Toothed belt pulley

1113 10201113

Spacer sleeve
1112 10101112 Belt pulley for Universal Lathe D2000
1112 10201112 Belt pulley for Universal Lathe D2400 E
1111 10201111

Regulating nut
128 10200128

Plexiglass cover
1281 10201281

Adjusting ring
1282 10201282

Shaft
1283 10201283

Eccentric
1284 10201284

Stop
1285 10201285

Bracket
1286 10201286

Angle piece
1287 10201287

Hexagon bolt with nut
1288 10201288

Pressure spring
1289 10201289

Lock washer
1290 10201290

Pin

10

2.

Drawings and list of parts

2.2 Support with motor and protective cover for D2400 E and D3000 E

Part-No. Order-No. Designation

125 10200125 Cover
1251 10201251 Stud bolt + radial nut
1252 10201252 Support
1253 10201253 Potentiometer
1254 10201254 Master switch with undervoltage release
1255 10201255 Switch right/left
1256 10201256 Motor
1260 10201260 Limit switch, protective cover
1258 10201258 Circuit board
1257 10201257 Motor cover
1259 10201259 Screws
10201200 Collecting reservoir for chips

11

2.

Drawings and list of parts

2.2 Support with motor and protective cover for D2400 E and D3000 E

12

2. Drawings and list of parts

2.3 Leading spindle drive for D2000 E and D2400 E

Part-No. Order-No. Designation

1119 10201119 Lubricating nipple
1145 10201145 Toothed belt Z 120 XL037
1146 10201146 Toothed belt Z 140 XL037
1147 10201147 Hexagon socket screw + washer
1149 10201149 Quadrant holder
11491 10211491 Hexagon socket screw + washer
1261 10201261 Clamping piece
126111 102126111 Feather key
12611 10212611 Axis
126112 102126112 Ball bearing
126113 102126113 Spacer sleeve
126114 102126114 Drive belt with belt pulley
126115 102126115 Drive belt with belt pulley
126118 102126118 Drive belt J 8-559 suitable for Universal Lathe D2400 E
126116 102126116 Washer
126117 102126117 Stop nut
12612 10212612 Spindle guide, complete
112 10200112 Feed spindle
11212 10211212 Feather key
11213 10211213 Bushing
11214 10211214 Toothed belt pulley
1122 10201122 Washer
1123 10201123 Nut
1125 10201125 Adjusting ring
1126 10201126 Pressure spring
1127 10201127 Coupling
1131 10201131 Eccentric shaft, complete
11311 10211311 Stud bolt + nut
11315 10211315 Ball bearing
114 10200114 Change gear quadrant
1141 10201141 Hexagon bolt
11411 10211411 Bronze bushing
11215 10211215 Nut
114114 102114114 Toothed belt pulley Z 14
1142 10201142 Washer
1143 10201143 Washer
114816 102114816 Change gear Z16 (without picture) optional
114818 102114818 Change gear Z18 (without picture) optional
114820 102114820 Change gear Z20 (without picture) optional
114822 102114822 Change gear Z22 (without picture) optional
114824 102114824 Change gear Z24 (without picture) optional
114828 102114828 Change gear Z28 (without picture) optional
114832 102114832 Change gear Z32 (without picture) optional
114834 102114834 Change gear Z34 (without picture) optional
114836 102114836 Change gear Z36 (without picture) optional
114840 102114840 Change gear Z40 (without picture) optional
10201100 Belt set compl. 5 pieces for Lathe D2400 E

consists of:

Part-No. 1145 (2x)

Part-No. 1146 (1x)

Part-No. 126118 (2x)
10201101 Change gears 1 set 10 pieces Z16 - Z40

13

2.

Drawings and list of parts

2.3 Leading spindle drive for D2000 E and D2400 E

14

2.

Drawings and list of parts

2.4 Leading spindle drive for D3000 E

Part-No. Order-No. Designation

1 10300001 D.c. Motor
2 10300002 Toothed belt
3 10300003 Toothed belt pulley
4 10300004 Motor bearing
5 10300005 3 screws
6 10300006 Bracket
7 10300007 2 scres
8 10300008 2 adjusting nuts
9 10300009 Pressure ring
10 10300010 Bushing
11 10300011 2 thrust bearing
12 10300012 Run-on-ring
13 10300013 2 screws
14 10300014 Needle bearing
15 10300015 Distance ring
16 10300016 Needle bearing
17 10300017 Toothed belt pulley
18 10300018 Clutch disk
19 10300019 Handle
20 10300020 Operating pin
21 10300021 Threadcutting coupling

15

2.

Drawings and list of parts

2.4 Leading spindle drive for D3000 E

1

2
3

4

5

7

6

21

20

19

18

17

16

15

14

13

12

11

10

9

8

16

2.

Drawings and list of parts

2.5 Leading spindel drive with gear motor for D2000 E

Part-No. Order-No. Designation

1152 10101152

Support
119 10100119

with A.C. motor
119 10101120

with rotary current motor
11912 10111912

Bearing plate
116 10100116

Mounting support of quadrant
1161 10101161

Hexagon socket screw
11471 10111471

Washer
114114 102114114

Toothed belt pulley Z 14
11823 10111823

Toothed belt
11914 10111914

Drive belt J 610
11911 10111911

Screw with washer
1173 10101173

Bearing plate
11811 10111811

Nut and washer
11712 10111712

Adjusting rod
1171 10101171

Axle
1128 10101128

Ball bearing
11722 10111722

Roller
11721 10111721

Retaining ring
1181 10101181

Axle
11824 10111824

Retaining ring
11822 10111822

Toothed belt pulley
182 10100182

Belt pulley
11821 10111821

Feather key
11825 10111825

Retaining ring

17

2.

Drawings and list of parts

2.5 Leading spindle drive with gear motor for D2000 E

18

2.

Drawings and list of parts

2.6 Cross table

Part-No. Order No. Designation

311 10200311 Lower part of cross slide
3111 10203111 Nut holder
31111 10231111 Bolts + washers
31112 10231112 Bronze nut
3112 10203112 Bronze nut
3113 10203113 Shim
31131 10231131 Clamping bolt
3114 10203114 Wiper ring
3115 10203115 Lubricating nipple
312 10200312 Upper part of cross-slide
3121 10203121 Spindle bearing compl. with graduated ring
31211 10231211 Spindle
31212 10231212 Ball-ended crank
1141 102W1141 Hexagon socket
3122 10203122 Threaded pin + plain nut
3124 10203124 Threaded pin with thrust piece
3125 10203125 Readjusting gib
321 10200321 Lower part of turning carriage
322 10200322 Upper part of turning carriage
3221 10203221 Spindle bearing compl. with graduated ring
32211 10232211 Spindle for turning carriage
32212 10232212 Ball-ended crank
3222 10203222 Readjusting gib
3223 10203223 Stud bolt
32231 10232231 Clamping plate
32232 10232232 Hexagon bolt
32233 10232233 Pressure spring
32234 10232234 Thick nut
10200300 Longitudinal support compl.
Parts-No. 321 - 3112 - 3122 - 32211 - 32212 - 1141 - 3221 - 3222 - 322

- 3223 - 32232 - 32233 - 32231 - 32234
10200301 Transversal support compl.
Parts-No. 3124 - 31131 - 3112 - 3114 - 3115 - 31112 - 3111 - 31111 -

3122 - 312 - 3125 - 311 - 3113 - 31211 - 3121 - 31212 - 1141
10200302 Cross table compl
10200303 Spindle compl. with transversal support
Parts-No. 3121 - 31212 – 31211
10200304 Spindle compl. with longitudinal support
Parts-No. 3221 - 32211 – 32212

19

2.

Drawings and list of parts

2.6 Cross table

20

2.

Drawings and list of parts

2.7 Tailstock

Part-No. Order-No. Designation

41 10200041 Lower part of tailstock
411 10200411

Shim
412 10200412

Capstan with stud bolt
414 10200414

Washer
415 10200415

Hexagon nut
42 10200042

Upper part of tailstock
421 10200421

Quill
422 10200422

Flange
1151 10201151

Hexagon socket screw
423 10200423

Spindle
4231 10204231

Adjusting ring
4234 10204234

Spring washer
4233 10204233

Washer
31212 10231212

Ball-ended crank
424 10200424

Hexagon bolt with washer
4251 10204251

Capstan with clamping bolt
42511 10242511

Insert
4141 10204141

Insert
4252 10204252

Feather key
119 10200119

Lubricating nipple
10200400

Tailstock compl. without lathe center

21

2

Drawings and list of parts

2.8 Rear support with guide rods

Part-No. Order-No. Designation

5 10200005 Rear support (only the cast iron part)
51 10200051

Guide rods
52 10200052

Feed spindle
522 10200522

Washer
523 10200523

Axial needle bearing
31212 10231212

Ball-ended crank
4231 102H4231

Spacer sleeve
524 10200524

Bronze bushing
53 10200053

Protective channel
531 10200531

Screw + washer
4232 10204232

Graduated ring
4233 10204233

Retaining ring
533 10200533

Lubricating ring
541 10200541

Hexagon bolt
542 10200542

Washer
543 10200543

Serrated lock washer
544 10200544

Hexagon nut
10200500 Rear bearing compl.

22

3.

Block circuit diagram

3.1 for D2000 E and D2400 E

mains plug emergency OFF main switch reversing switch

switch for
protection cap

potentiometer

Date

Danger

control electronics

motor

23

3.

Block circuit diagram

3.2

for D3000 E

p

otentiomete

r

ca

p

acito

r

rectifie

r

transforme

r

reversin

g

switch

main switch emer

g

enc

y

OFF mains

p

lu

g

p

otentiomete

r

control electronics

motor

feed motor

control

electronics

reversing

Switch fo

r

Protection

cap

24

4. Delivery and installation

The lathes are carefully packed in our factory.

Please check the following on delivery:

1. whether the packaging has been damaged and/or:

2. whether the lathes shows signs of transport damage or if there are grounds for

complaint. In this case we request your immediate notification. Claims made at a later
date cannot

be acknowledged.

The lathe must be installed on an appropriate, level and firm base.

This would be, for example:

 a base cabinet such as in our accessories programme
 own work bench as long as it is strong enough to carry the weight of the machine without

warping (see technical data and check with spirit level) and has an even surface.

 a steel plate

The lathe must be firmly screwed down onto the base. To facilitate this, there are 9 mm holes in the
machine base. Good results and a minimum of vibration during operation can only be guaranteed if
the above mentioned requirements for secure mounting have been kept to.

The installation of the machine should take place where there is sufficient lighting, electrical cables
with earthed sockets and O-conductors are installed adequately near to the machine so that the
mains connection lead is not subject to any tension whatsoever. The mains lead should be such
that, by means of a multiple socket, a coolant or lubrication unit can also be connected.

25

5.

Starting-up and maintenance

i

Fix the machine on a sturdy, level support
Use sharp processing tools
Adjust speed setting and feed to fit the material and diameter of the tool
Clamp the tools so that the clamping position is as near possible to the
workpiece
Clamp the workpieces fast and without vibrations.
Long pces. support with tailstock or with fixed stay.
Apply coolant and lubricant for better surface quality (finish) and
dimensional accuracy
Fix processing tools and workpieces on clean clamping surfaces
Grease the machine sufficiently
Use the correct tools for removing the material from the workpieces
Set correct bearing clearances and align guides early enough

6.

Overload protection

i

Wait approx. 1 second after switching off the machine manually or after an
automatic switchdown follow ing an overload before you sw itch on again.
This will ensure that the motor is protected effectively in all work situations.
Otherwise it is possible that the machine will not come on because the
relay for the electronics has not been able to function.

26

7. Safety Instructions

1. The feed line for the motor may only be connected to a shock-proof socket or junction box.

(Have the socket or junction box checked by an electrician beforehand; protection against
children being able to put into operation).

The socket or junction box must be close enough to the equipment, that the current-carrying

cable is subjected to no tensile strain whatsoever.

2. The three-phase A.C. motor must be connected by an electrician over a protective switch of 1

ampere to the 380 V mains supply.

3. When maintenance or cleaning work is being done, the machine must be shutdown and the

mains plug pulled out.

4. Do not brake workpieces or chuck by hand or any other objects.

5. Wear safety goggles when working the machine.

6. Do not remove the chips with the hand. Use corresponding aids (hand brush, hook, paint

brush).

7. Always keep the protective hood on the driving mechanism closed.

8. The turning tools must be firmly tightened at the correct height and as short as possible.

9. The turning tools must never be exchanged when the machine is running.

10. Never leave the clamping chuck key in (even when not in operation).

11. Observe the bearing distance of the turning chuck. (Turning jaws max. 40mm ∅, Drilling jaws

max. 100mm ∅).

12. Never take measurements on work pieces being turned (danger of accidents and damage

to the measuring gauges)

13. Do not wear loose items of clothing (ties, shirt sleeves, jewellery etc.).

14. When working between centres, always centre well in order to avoid a flying-out of the

workpiece. In addition, check the tightening screw of the tailstock to make sure it is tight.

15. When working with automatic advance take care that the cross table does not touch the chuck

or the tailstock.

16. Never leave the machine when in operation.

17. When turning wood, use the lathe centre fort he slaving of the work piece instead of the

lathe chuck.

18. The machine must be secured so that it cannot be swichted on by children. Make sure that

other people do not come in contact with the machine.

19. The machine must be kept dry at all times.

20. Check the machine frequently for damage. Any damage parts must be replaced with original

parts and should be fitted by an expert or by us.

27

8. Startup and Maintenance

8.1 Electrical equipment

The lathes are fitted with a master switch w ith undervoltage release, i.e. this switch must be

switched on before the machine can be switched on via the reserving switch. The master switch
must also be switched on again following a power failure.

RUECKW

VORW

0

AUS

NOT

potentiometer

master switch

NOT-AUS

switch right - left

ON - OFF lever

for automatic feed

i

All lathes can only switched on with closed plexiglass bonnet.

If you want to change the turning direction through the switch right-left the switch must stay for 1
sec. on 0-position for the reason that the relay of the potentiometer has enough time to react.

8.2 Start up

i

Prior its putting into operation the machine must once more be cleaned with
great care. All lubricating points have to be furnished with grease while the
cross slide, the threaded spindles, the guide bars and the quill are thoroughly
oiled.
Turn by hand all spindles in order to check for their smooth turning.
Run in the lathe with the lowest possible rotary speed being switched on. A
full load to start with must be avoided!

8.3 Maintenance

The longtime serviceability is vitally dependent upon a corresponding serving attendance. The lathe
needs to be cleaned after every turning job.

i

In case the lathe is being erected within a moist cellar, all naked parts need to
be oiled after completed usage to avoid corrision.
An overall and constant lubrication of all moving parts is highly signeficant.
In case backlash within the bearings or within the guideways of the slides
should occur, readjust in time to avoid the bearing or the guideways of the
slides being destroyed.

28

8. Startup and Maintenance

8.4 Lubrication

Prior to every putting into operation all lubricating points of the lathe must receive a grease for roller
bearings having commercial quality.

Both guiding bars have to be greased, too, preceding every putting into operation. The two dovetail
guides of the cross slide, the threaded spindles of the cross slide accessible from below, the feed
rod as well as the tailstock quill have to be greased at intervals of 100 service tours each using
lubricating oil.

When greasing make sure to put the slide of the cross slide to its hindmost position while extending
the tailstock quill to its foremost posision. Greasing the tailstock spindle is performed via the hollow
borehole within the quill.

RUECKW

VORW

0

AUS

NOT

apply engine oil prior to
every putting into operation

apply grease prior to every
putting into operation

apply grease prior to
every putting into operation

29

8. Startup and Maintenance

8.5 Initial cleaning of the machine

Prior to putting the machine into operation for the first time all maked parts have to be cleaned
applying petroleum or gasoline used for cleaning, because these parts have been treated with
slushing oil before leaving the factory.

8.6 Spindle head

The spindle head is firmly attached to the slide bars. In the spindle head, the work spindle is run on
two adjustable precision tapered roller bearings.

adjustment nut

ON -OFF lever
for automatic feed

Should a readjustment of the bearings be neccessary, please proceed in the following
manner:

1. Loosen the locking screw in the adjustment nut. The adjustment nut is located at the rear end of

the work spindle.

2. Turn the adjustment nut in a clockwise direction until the bearings again run free of play (the

work spindle being easily able to be turned by hand).

3. Tighten the locking screw again.

i

Roller bearing adjusted too tightly become useless after a short period

Automatic feed:

Likewise, the is an on-off lever for the automatic forward feed on the front side of the spindle head.
When supplied the wheels for the forward feed 0.085 mm/rev. are attached.

30

8. Startup and Maintenance

8.7 Compound rest

The compound rest consists of a longitudinal and a transverse slide rest. Its dovetail guides are
ajustable.

counter nuts
longitudinal slide

counter nuts
transverse

hexagon socket screw
for tightening the

compound rest

take-up screw +

take-up screw +

8.7 Compound rest

Should a readjustment be necessary, please proceed in the following manner:

1. Counter nuts must be loosened.

2. By using a socket head wrench, tighten the readjustment screws until the carriage can just be

turned to and from by means of the crank.

3. adjustment tighten the counter nuts again.

Longitudinal slide:

The longitudinal slide rest is mounted on the transverse slide rest and can be pivoted through 360°
degrees. Thus, it is suitable for the turning of tapers. For adjustment, the 4 mm Allen key is used
to loosen the two screws located on the outer sides of the transverse slide rest. The arrow on the
transverse slide rest. There is a scale of the degrees on the longitudinal slide rest. The distance
between two graduation marks represents one degree.

Scale rings:

To set the turning tools, the slide rest spindles have graduation collars with graduation marks. One
graduation mark represents a 0.05 mm feed adjustment which corresponds to a 0.1 mm chip
removal on the work piece.
The hexagon socket screw is provided for cases where the compound rest is to be fixed to the slide
bars (e.g. in the case of transverse turning.) It screws down the clamped piece at the lower side of
the transverse slide rest against the two slide bars.

31

8. Startup and Maintenance

8.8 Tailstock

The tailstock is attached to the slide bars in such a way that it is slidable. It can be easily tightened
in any position by screwing the lower T-handle (4251). It can be separated into barrel and base. By
loosening the spanner bolt (424), the tailstock barrel can be pushed to either side by up to 10 mm
and is, therefore, suitable for the turning of slight tapers. After completing the taper work, the
tailstock is to be returned to its original position.
The central position of the tailstock is indicated by the mark on the side. By making a trial turning
operation establish whether the working piece is cylindrical and if necessary correct the position of
the tailstock.

Solid tailstock sleeve:

The solid tailstock sleeve, which is provided with a millimetre scale, is designed in such a way that
the lathe centre, drill barrel or chuck are automatically ejected when turning back.

Tool clamping:

An inner cone MT 2 which is worked into the tailstock sleeve serves to accept the tools. By
screwing the upper T-handle (4251), the tailstock sleeve can easily be clamped in any position. The
tailstock sleeve can be moved axialy over a threaded spindle by using the crank (31212) located at
the rear end.

spanner bolt (424)

T-handle (4251)

T-handle (4251)

crank (31212)

to move the tailstock sleeve

for tightening the tailstock

for tightening the

tailstock

32

9. Speed regulation

9.1 Speed selection

The spindle speed is to be selected according to the type of material and the diameter of the work
piece:

Small diameter

⇒

relatively high speed

Large diameter

⇒

low speed

The cutting speed is the result of speed and diameter.

With a known and required cutting speed, the necessary spindle speed can be calculated in the
following way:

Example: An aluminium workpiece which has a diameter of 20 mm is to be turned

with a cutting speed of 100 m/min.

Now, from those speeds available, the one is selected which is nearest to
the ideal speed of 1592 1/min. (in our case 1600 1/min.).

9.1.1 Speed Setting for Working with Aluminium

workpiece- Ø approx. r.p.m. cutting speed

m/min

10 mm 2300 75
20 mm 1600 100
40 mm 800 100
60 mm 530 100
80 mm 400 100

100 mm 320 100

9.1.2 Speed setting for working with steel

workpiece- Ø approx. r.p.m. cutting speed

m/min

10 mm 1600 50
20 mm 800 50
40 mm 400 50
60 mm 270 50
80 mm 200 50

100 mm 160 50

speed(n) =

cutting speed (V) x 1000
diameter of workpiece (d) x 3,14

100 x 1.000
20 x 3,14

=

100.000
62,8

= 1592 1/min

33

9. Speed regulation

9.1.3 Speed Setting for Working with Brass, Copper

workpiece- Ø approx. r.p.m..

cutting speed m/min

10 mm 2300 80
20 mm 1270 80
40 mm 640 80
60 mm 425 80
80 mm 320 80

100 mm 250 80

9.2 Changing of speed

Rotational speed 45 - 2300 min-1:

The rotational speed of the work spindle can be infiniely varied between 45 and 400 rpm in the 1.
Step or in the 2. Step between 200-2300 rpm. using the potentiometer on the front of the machine.

speed setting at the

potentiometer

1. step r.p.m.

2. step r.p.m.

10 45 200
20 105 350
30 175 740
40 260 1050
50 325 1440
60 360 1650
70 400 1860
80 460 2120
90 490 2160

100 500 2300

Rotational speed 45 - 400 rpm:

The drive belt must be relocated if the lower speed stage with a minimum speed of 45 rpm is
required.

Proceed as follows:
Remove the protective cover and release the drive belt by unscrewing the clamping nut and turning
the star handle clockwise until the drive belt can be relocated. Then re-tighten the drive belt in the
reverse sequence of steps.

clamping nut

star handle

potentiometer

rotational speed 45-400 rpm

34

10

.

Applications

10.1 Longitudinal and transverse turning

Longitudinal turning:

In the case of longitudinal turning tool moves parallel to the axis of the workpiece. For roughing at
longitudinal turning the use of either a straight or arcuated turning tool is favourably.

Transverse turning:

The tooling of the face is known as transverse turning. In the case of transverse turning, the turning
tool is moved at 90 degrees to the turning axis of the piece being turned. In so doing the compound
rest is to be locked. The main cutting edge of the turning tool is to be exactly centred so that no scar
remains in the middle of the workpiece. The arcuated tool is used for transverse turning.

6

54

32

1

to 1+2: Roughing tools arcuated to the left and or right: By using them a maximum on

material is to be cut off in as short a time as possible (without paying attention to the
finish on the surface of the work piece). They can be used for longitudinal and transverse
turning.

to 3: Offset side turning tool: Used for smoothing (clean surface) in the case of longitudinal

and transverse turning.

to 4: Outside thread turning tool: Used for cutting of outside threads.
to 5: Narrow square-nose cutting tool: Used for the cutting of grooves and slicing of

workpieces.

i

When inserting the slicing tool No. 5, pay careful attention to the exactness
of the centre height of the turning tool. Work with low speed and cool the
tool (use soluble oil or emulsion for cooling: serves to lubricate and for the
removal of chips.) The slicing tool is to be clamped as short as possible and
at 90° degrees to the workpiece.

to 6: Right side tool: Used for the hollowing-out of boreholes. Clamp as short as possible in

order to avoid ascillations of the turning tool which might otherwise occur (uneven
surface).

35

10

.

Applications

10.1 Longitudinal and transverse turning

i

For the reason of the power at the turning chisel take care that the tool is short
and fast fixed. If the lever arm is to long the turning chisel curves and springs
back. The cutting part enters uneven into the workpiece and is producing a
waved surface.
Take care that the turning chisel is placed on the middle of the turning piece.
The control of the height position of the middle of the workpiece is done w ith the
live lathe center in the tailstock.
For the regulation of the height position of the turning chisel use with straight
sheet steel pieces.

10.2 Thread cutting and automatic feed

10.2.1 General note

The tread turning chisel is a form turning chisel with the profile of the thread to be cut.. It is ground
according to jigs (diagram 1) and must be adjusted exactly to the middle of the workpiece as,
otherwise, the profile of the thread would be distorted.

In order to obrain the correct position of the flanks of the thread to the axis of the workpiece, the
grinding jig is put against the work piece and the turning tool is adjusted in accordance with it
(diagram 1). For this purpose the jig is pushed successively on to both flanks of the turning tool.
The feed of the thread turning tool is effected over the lead screw and must correspond to the
thread pitch.

Setting the thread turning chisel

90°

Change gears:

The connection between the feed gear mechanism and the lead screw is made by the translating
gear wheels (extras at D2000, D2000E and D2400) included in the attachments. By setting various
combinations of gears it is possible to cut a metric right-hand thread with a pitch of 0,4 mm - 3 mm
and an inch-system right-hand thread with a pitch of 10Z/1" - 32 Z/1" (see table). (For left hand
threads see the section "Gear pair, left-hand thread"). The various distances of the axes between
the gears can be adjusted by swiveling the quadrant and readjusting the quadrant bolts.

36

10

.

Applications

10.2.1 General note

Feed:

The feed is switched on by means of the T-handle on the front side of the spindle head.

i

When cutting threads it must be remembered that the feed remains on
throughout to ensure that the turning chisel always returns to the same
positon when cutting more than one thread. For this reason, after completing
the cut the turning chisel with the transverse carriage is cammed out as,
otherwise, the flanks and cutting edges could be damaged and is returned to
its original position by altering the turning direction of the motor over the
reversing switch. It is advisable to make a 4-5 mm wide grove at the end of
the thread in order to enable a better camming out of the threading tool.

Long thread:

In the case of long thread diameters, the revolving lathe centre should always be used in order to
prevent the work piece from being pushed away.

Overload clutch:

To avoid damage at the advance system the main spindle and the leading spindle drive are
connected with an overload clutch.

10.2.2 Application of change gears - optional for D2000 and D2400 E

For the purpose of automatic longitudinal turning there are two feed rates, being at your disposal:
0,085 mm and 0,16 mm/revolution. (Upon delivery, the gears producing a feed of 0,085
mm/revolution have been put on).

Putting on different combinations of gears enables you to cut metric thread ranging from 0,4 to 3,0
mm in pitch. The same applies to inch thread ranging from 10 threads/" to 32 threads/" in pitch.

Table on thread cutting

* = Extras

mm 0,4 0,5 0,7 0,75 0,8 1,0 1,25 1,5 1,75 2,0 2,5 3,0

A 48 48 48 48 48 48 48 48 48 48 48 48
B 16 20 14 18 16 14 20 36 28 40 40 48
C 40 40 20 24 20 14 16 24 16 20 16 16

Z/1" 10 11 12 13 14 16 18 19 20 24 28 32

A 34 34 34 34 34 34 34 34 34 34 34 34
B 36 36 36 36 36 36 14 34* 18 24 18 18
C 20 22 24 26* 28 32 14 36 20 32 28 32

37

10

.

Applications

10.2.2 Application of change gears - optional for D2000 and D2400 E

Table automatic longitudinal feed for D2000 - D2400 E

mm/ 0,085 0,16
A1 48 48
A2 14 18
B1 48 48
B2 14 20
C 48 48

10.2.3 Altering the feeds or thread pitches for D2000 E and D2400 E

When altering the feeds or thread pitches, proceed as follows:

1. Changing the feed from 0,085 mm to 0,16 mm

a. Loosen the fixing screw D of the change gear quadrant.
b. Loosen and remove the hexagonal nuts and washers from the bolts A and B.
c. Loosen the hexagonal bolts A and B. Remove the toothed belt connecting A and B. Unscrew

the bolt B together with the 2 tooth belt pulleys from the quadrant and remove it by slightly
tilting upwards the bolt. This at the same time leaves free the toothed belt connecting the
main spindle with A by placing the toothed belt onto the great driving pulley E.

d. Remove both tooth belt pulleys Z 14 from their bolts A and B and change them for tooth belt

pulley Z 18 or tooth belt pulley Z 20, respectively. Then, tighten bolt A. Mount and tighten the
washers and nuts of A and B.

e. Mount bolt B, together with both tooth belt pulleys into the change gear quadrant again by

slightly tilting the bolt and screwing it into the square nut located behind the quadrant. Put on
the toothed belt connecting B and C, pull bolt B upwards imparting tension to the toothed
belt. Then, tighten bolt B.

f. Put on toothed belt from main spindle to bolt A and from bolt A to bolt B. Then tense the belt

between main spindle and bolt A by means of the change gear quadrant and tighten the
change gear quadrant with fixing screw D.

g. Close the cover of the headstock and tighten again the screw with hexagonal recessed hole.

fixing screw D

bolt A

bolt B

driving pulley E

C

38

10

.

Applications

10.2.3 Altering the feeds or thread pitches for D2000 E and D2400 E

2. Changing the feed from 0,085 mm to a metric pitch of 1,5 mm

a. - c. Start the procedure exactly as already described under pos. 1, a-c, expect for the hexagonal

nut being removed as well from the shearing bushing C, as described under pos. 1 b.

d. Pull off the bushing and the tooth belt Z 48 from the shearing bushing C. Put the bushing and

the tooth belt pulley Z 24 onto the shearing bushing but, make sure that the bushing

precedes the tooth belt pulley. Bolt B with toothed belt will not be needed w ith thread
cutting!

e. Pull off tooth belt pulley Z 14 from bolt A and put on tooth belt pulley Z 36. Put on toothed belt

connecting the main spindle with bolt A and from A to C.

f. - g. Proceed as described under pos. 1, f-g!

Z 14

bolt B escape

Z 48

Z 48
C
Z 48

i

Only the two short toothed belts (1145) are required for cutting metric threads.
The slightely longer toothed belt (1146), which connects the main spindle with
wheel A The toothed belt (1145) connects wheel B with wheel C.

3. Changing the feed from 0,085 mm to thread pitch 12 threads/"

Proceed exactly as already described under pos. 2. The procedure differs merely in
additionally changing the tooth belt pulley Z 48 running on bolt A for the tooth belt pulley Z 34.

bolt B escape

to change Z 48 against Z 34

i

As when cutting metric threads, only the two shorter toothed belts (1145) are
normally required. Exeption: For a lead of 13. 14. 16 or 19 threads/inch. In this
case, the longer toothed belt (1146) is required to connect wheels A and C.

39

10

.

Applications

10.2.4 Changing of feeds or thread pitch for D3000 E

1. Working with the automatic longitudinal feed

a. Turn the handle (19) on the symbol longitudinal turning. For the connection of the clutch disk

turn with with the handle (31212) a little.

b. Switch-on the direction switch on the right of the substructure.

middle position = off
left injected = advance to the spindle
right injected = advance to the tailstock
With the potentiometer adjust the feed speed.

c. After the automatic longitudinal turning but the direction switch on the middle position.

2. Working with the thread cutting unit

a At first for the desired thread pitch the changing wheels must be mounted. Your receive the

machine from our factory with yet mounted wheels Z 36 and Z 24 for a thread pitch of 1,5 mm.
During putting of metric threads the toothed wheel Z 48 is placed on the change gear quadrant
as shown on the picture 6.22. During cutting of inch thread this wheel has to be replaced
through the tooth wheel Z 34.
For the different thread pitches only the tooth wheels B (beside Z 48) and C ( on the main
spindle) according to picture 6.22 have to been changed.

b. Select slowest spindle feed.

c. Turn the handle (19) on the symbol thread turning. The handle must be in function till the

thread is ready produced. For the cutting of several cuts to produce the thread the machine
must be stopped with the reversing switch at the end of the thread and at the same time the
threadcutting tool separated. Now turn the reversing switch on left turning and the carriage
runs in the direction of the tailstock. If the threadcutting tool is placed approx. 5 mm in front of
the beginning of the thread, stop again the machine, turn the cross-slide ahead like the before
made cut plus the desired removal of material. Then turn the reversing switch on right turning
and execute the cutting of the thread. Only when the thread is finished the handle (19) can be
put out again.

RUECKW

VORW

0

AUS

NOT

direction switch

potentiometer

handle (19)

handle (31212)

40

11. Pair of toothed wheels for left-hand thread

To cut left-hand threads, the toothed belt gear No. 11214 on bolt A is to be exchanged for the
toothed gear Z 75 and the toothed belt gear No. 1114 on the work spindle exchanged for the
toothed gear Z 50.

To do this, proceed in the following manner:

a. Pull out the mains plug, loosen the hexagon socket screw at the front side of the headstock

and open the cover. Remove the belt from the workspindle.

b. Loosen the screw D of the quadrant. Loosen bolt A and B on the quadrant and remove toothed

belt.
c. Remove bolt A on the quadrant upwards and bolt B on the quadrant downwards.
d. Loosen nut and washer from bolt A and remove. Loosen toothed belt gear No. 114114 and No.

11214 from bolt A and remove.
e Loosen the headless pin on the adjustment nut No. 1111 on the workspindle. Loosen the

adjustment nut and remove from the workspindle.
f. Remove the V-belt pulley No. 1112, the separator bush No. 1113 and the toothed belt gear No.

1114 from the workspindle. Mount the toothed belt from the workspindle and tighten firmly with

the adjustment nut.
g. Mount toothed gear Z 75 and the toothed belt pulley No. 114114 on to the bolt A and tighten

with the washer and the hexagon nut.
h. Mount toothed gear Z 50, separator bush No. 1113 and V-belt pulley No. 1112 on to the

workspindle and tighten with the adjustment nut.
i. Pay attention to the correct adjustment of the tapered roller bearings see section“headstock“
j. Lay the toothed belt from A to B, cam in the toothed gear Z 75 with Z 50 by swivelling the

quadrant, tighten the screw D. Tense the toothed belt from A to B through removing B.
k. Lay the drive belt on the workspindle and tense . Close the cover and tighten with the hexagon

socket screw at the headstock.

bolt B

11214 change against Z 75

1112
1111

D

1114 change against Z 50

41

12

.

Angle plate with milling table

for drilling and milling

The milling is used to produce flat surfaces and
grooves. When milling the advance and feed motion
are effected with the angle plate from the workpiece.
If the angle plate is correctly mounted on the
compound rest (see assembly instructions), the
workpiece can be rigidly and firmly attached to the
clamping plate. This should be cleaned of dirt and
chips beforehand in order to guarantee a good rest.
The clamping screws used are inserted into the T­groove of the clamping plate. In addition, a machine
vice can be attached to the clamping plate. The tool is
to be clamped as short as possible in the collet chuck
(danger of breaking). If the tool is firmly clamped, the
depth adjustment can be made over the feed shaft.

Assembly of the angle plate with the milling table
At first you remove the longitudinal slide rest from the transversal slide rest of the lathe. Then the
angle is screwed on to the carriage of the transversal slide rest with the delivered hexagon screw.
After removing the clamping plate and the spring from the longitudinal slide rest you fix the
longitudinal slide rest as indicated against the clamping angle.

42

13

.

Three jaw-chuck and four jaw-chuck

The three-jaw chuck

serves to clamp circular, triangular and hexagonal workpieces centrically to the spindle axis.

The four-jaw chuck

serves to clamp square workpieces centrically to the spindle axis.

i

Danger of accident

Do not try to clamp larger workpieces. The chucking power is then too low
and the jaws can detach themselves.

Mounting of turning jaws:

The jaws and guides are numbered from 1-3. Open the chuck by means of the chuck key until the
jaws loosen. (order: 3, 2, 1 bzw. 4, 3, 2, 1).
Now, take the inner jaws beginning with the number 1 and put this in the guide number 1. Push the
jaw number 1 in the direction of the centre point of the chuck and at the same time turn the chuck
key (direction "tighten"). When the transverse spiral has taken hold of number 1, number 2 must be
put in the guide provided. The same now happens to number 2 as to number 1. Proceed with
number 3 and number 4 in the same way. Subsequently, examine the position of the jaws.

Mounting of drilling jaws:

If, afterwards, you again want to work with outer jaws, the process repeats itself in the same order
(first jaw 1, then 2, then 3, then 4).

14

.

Collet chuck

Mounting of the tool holder:

When working with the collet chuck, the concentric chuck must be
removed from the workspindle. In order to do this, loosen the three
tightening screws by means of the Allan key SW6 included in the
accessories. Now, the chuck can beremoved from the concentric
flange of the workspindle and the collet chuck can be fixed in the
same way as the lathe chuck.

Collets:

Then press the collet into the union nut and screw it on the collet
chuck.

i

Only those workpieces may be used which accord to the nominal diameter
of the collet chuck.

43

15

.

Steady and follow rest

Steady and follow rest compensate for the deflection of long shafts caused by resultant
cutting forces. The roller jaws of the rests prevent the pieces to be turned form deflection.

They are to be adjusted in such a manner that the turning axis of the workpiece is in true alignment
with the height of the centres of the machine. At the point of support, the pieces to be turned must
be completely round.

Steady rest:

The steady rest can be firmly clamped to any
position on the slide bars. It is put on the slide
bars with its half shells and fixed to the slide bars
by means of the clamping plate.

Follow rest:

The follow rest is used particularly for turning thin,
long shafts and for turning threaded spindles. It is
screwed firmly on to the threaded drilled holes of
the compound rest provided for this purpose, so
that it holds the workpiece as near as possible to
the turning tool.

16

.

Square turret head

The square turret head is used instead of the clamping plate in order to clamp the tools.

Four turning tools can be changed simultaneously. By swivelling the turret head by 90 degrees
each time, the required turning tool can quickly be brought into its working position

There are four centering holes on the bottom for
securing the square turret head in its four
positions. For this purpose, the screw supplied
with the springmounted steel ball must first be
screwed into the threaded hole in the upper part
of the turning carriage.

44

17

.

Hand tool rest

for turning wood

Die Handstahlauflage wird auf die Führungsstangen der Drehmaschine montiert.
There are two alternative adjustments:

1. By loosening the lower part by means of the

knurled screw, the hand tool rest can be adjusted to
any position or be swivelled to the workpiece.

2. By loosening the upper part by means of the

knurled screw, it can be centred or by
corresponding turning adapted to match the shape
of the workpiece.

i

To avoid accidents during operating with chisels on the hand steel rest and the
fixing of the workpiece into the chuck please use for wood turning the fix lathe
centre.
To avoid accidents, the hand tool rest is to be pushed as near as possible to the
workpiece and readjusted in the course of machining.

18

.

Wood turning lathe centre

The wood turning centre serves to accept w orkpieces out of w ood between the centres and
enables a machining of the piece throughout its entire length without any reclamping being
necessary.

It is contained in the inner taper of the workspindle. Pay carful
attention to cleanliness when inserting the wood turning lathe
centre since dirt or metal chips could damage the taper. By
feeding forward the tailstock sleeve to the workpiece and the
cutting edges of the turning lathe centre are pushed into the
front side of the workpiece. The correct degree of pressure
depends upon the firmness of the workpiece, the diameter and
the cutting section (chisel advance).

45

19

.

Unit for lubrication coolant

The unit for lubrication coolant consists of:

1. Tray with lubrication coolant sump which collects the lubrication coolant mixture for the feed pump.

Contents generally 19 litres.

2. Feed pump with the following electrical data

- nominal voltage 230 V

- frequency 50 Hz

- nominal current input 0,4A

- nominal output 0,07 kW

- ON-OFF switch and mains lead with a length of 2 m complete with earthed plug.

3. Adjustable, felxible pressure tubing with stop valve and nozzle for transporting the lubrication

coolant to the processing point.
An increasing number of customers wish to include this fixture in their order so as to take
advantage of “wet processing” for the production of their goods / workpieces and to:

- to cool and lubricate, in particular during lengthy processing

- when processing high alloy stell an aluminium

- to increase the tool life

- to inporove the surface finish and accuracy of the workpieces

- to reduce friction heat

- to prevent built-up edges

When using lubrication coolants, especially water based emulsios, a number of health and safety
measures must be observed, which we would like to recommend as follows:

1. Use concentrated products free of nitrates.

2. Use concentrates without secondary amins.

3. Use products with the lowest possible allergy potential.

4. When mixing a refill of lubrication coolant, please observe the following:

-clean / rinse the circulation system (tray / filter)

-determine the concentration necessary to meet the technical demands
(concentrate: water 1:5 – 1:30)

-check the water has a low level of nitrates (< 50 mg NO 3-, test strip)

5. A cleaning plan should determine at what intervals the system should be cleaned of swarf and

other waste.

6. A service plan should determine the following.

-when to check the concentration in use (daily / weekly)

-when to check the pH values (weekly)

-when to check / assess the bacteria count (monthly)

-when to check the nitrate content (weekly)
(The information in brackets can be varied according to the production circumstances.

7. In order to reduce splashing, we recommend the attachment of a splash guard and / or reducing

the amount sprayed from the nozzle.

8. Since steps to protect the skin must be taken, it is advisable to wear gloves and aprons. The skin

sould be cleaned with acidic syndets without abrasive ingredients and rich cream should be
applied to regenrate the skin.

9. Please also take note of the enclosed information on the general operating instructions.

46

20

.

Declaration of noise levels in accordance with

DIN EN 24871 (German Industrial Standard)

Noise levels while running idle

Acoustic capacity level 67 dB (A)
Sound pressure level on operator’s ear 63 dB (A)

The stated values reflect emission levels and not necessarily working levels. Although there is a
correlation between the level of emission and the level of stress, this cannot be used reliably in order
to determine whether additional safety measures are necessary or not.
Other factors which influence the actual stress level or employees are the characteristics of the
working area, other sources of noise, i.e. the number of machines and other processes going on
nearby and so on. Apart from that, the permitted stress levels may vary from country to country. This
information is to allow the user of the machine to assess the dangers and risks more accurately.

21.

Disposal of the lathe

The transport and protective packaging made up of the following materials:

- corrugated cardboard

- polystyrene free of freon

- polyethelene foil

- non-returnable wooded pallet (untreated)

- Euro pallet (deposit)

If you have no further need of these articles or do not wish to use them again, please dispose of them
at the public recycling facilties.

The lathe consists of up to 98% of recyclable materials, i.e. steel, cast iron, aluminium and 2% of
chemical materials, e.g. the coating of electrical leads, printed circuits.
If you have trouble disposing of these parts in a proper manner, we would be pleased to help you.
Upon mutual agreement we will take the complete machine back and dispose of it. However, the costs
for transporting the machine to our plant must be at your expense.
