V-ZUG Ltd
Glass ceramic hob
Induction with multi-slider
Operating instructions
Page 2
Thank you for choosing to buy one of our products. Your appliance is made
to high standards and is easy to use. Nevertheless, please take the time to
read these operating instructions in order to familiarize yourself with the
appliance and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance at the time these operating instructio ns went to p ress. The right to make
technical modifications for the purpose of the further development of the
appliance is reserved.
Validity
The model number corresponds to the first 3 digits on the identification plate.
These operating instructions apply to the models:
Type Model no.
GK46TIABS/C/F/U 028
GK46TIPS/C/F 973
GK46TIAS/C/F/U 974
GK36TIPS/C/F 975
Deviations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6301 Zug, 2011
2
Page 3
Contents
1 Safety precautions 4
1.1 Symbols used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 General safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.3 Appliance-specific safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4 Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.5 Instructions for use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.6 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2 Using for the first time 11
2.1 Where is the identification plate? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3 Your appliance 12
3.1 Appliance overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.2 Operating and display elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.3 How induction hobs function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.4 Pan detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.5 Cookware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4 Operating the appliance 18
4.1 Switching the appliance on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.2 Selecting a cooking zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.3 Overview of power levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.4 Switching a cooking zone off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.5 Keep warm setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.6 PowerPlus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.7 Automatic boost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.8 Operating time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.9 Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.10 Childproof lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4.11 Restore function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4.12 Pause cooking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4.13 Wipe protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
5 User settings 30
5.1 Changing user settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
5.2 Cancelling user settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6 Care and maintenance 32
6.1 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7 Trouble-shooting and error messages 33
7.1 What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
8Index 37
9 Repair service 39
3
Page 4
1 Safety precautions
1.1 Symbols used
Denotes important safety precautions. Failure to observe said
precautions can result in injury or damage to the appliance or
fittings!
Information and precautions to observe.
Information and precautions to observe.
Tips for ease of use.
Read the operating instructions before using the appliance for the first
time!
➤ Indicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
• Indicates a list.
4
Page 5
1 Safety precautions
1.2 General safety precautions
• Read the operating instructions before using
the appliance for the first time!
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and/or knowledge, unless
they are supervised or have been given
instruction concerning use of the appliance by
a person responsible for their safety.
• Children should be supervised to ensure that
they do not play with the appliance.
• WARNING: If the mains cable of this
appliance is damaged, it must be replaced by
the manufacturer or its Customer Services or
a similarly qualified person in order to avoid
hazard.
5
Page 6
1 Safety precautions
1.3 Appliance-specific safety precautions
• WARNING: If the surface is cracked, switch
the appliance off and disconnect it from the
mains to avoid possible electric shock.
• WARNING: The appliance and its accessible
parts get hot during use. Be careful not to
touch the heating elements. Children under 8
must be kept away unless constantly
supervised.
• Do not use a steam cleaner.
• Do not place metal objects such as knives,
forks, spoons, lids and aluminium foil on the
hob as they can get hot.
6
Page 7
1 Safety precautions
• WARNING: It can be dangerous to leave the
hob unattended when cooking with fat or oil,
as this can lead to fires. NEVER attempt to
extinguish a fire with water. Instead, switch the
appliance off and then carefully smother the
flames with a lid or a fire blanket.
• WARNING: Never store objects on top of the
hob because of fire hazard.
• Do not operate the appliance using an
external time switch or a separate remote
control system.
• After use, switch the hob off using the controls
and do not rely on the pan detector.
7
Page 8
1 Safety precautions
1.4 Disclaimer
• Any repairs, modifications or manipulations to the appliance, especially
any live parts, may only be carried out by the manufacturer, its Customer
Services or similarly qualified persons. Repairs if carried out incorrectly
may cause serious injury, damage to the appliance and fittings, as well as
affect the functioning of the appliance. If the appliance is not working
properly or in case of a repair order, follow the instructions given in the
REPAIR SERVICE section. If necessary, please contact Customer Services.
• Make sure no water gets inside the appliance: Do not spray the appliance
with water. If water gets inside it can damage the appliance.
• Retain these operating instructions for future reference. If you sell or pass
the appliance on to a third party, please ensure these operating instructions accompany the appliance, together with the instructions on
installation.
• The appliance is designed for use in the home for preparing food. No
liability is assumed for any damage caused by improper or incorrect use.
1.5 Instructions for use
• The appliance corresponds to recognised technology standards and the
relevant safety regulations. Proper use of the appliance is however
essential to avoid damage and accidents. Please therefore follow the
precautions given in these operating instructions.
• The heated surface remains hot for some time after it is switched off and
cools down only slowly to room temperature. Please allow sufficient time
for the appliance to cool down before, for instance, cleaning it.
• In case of overheating, switch the appliance off and allow it to cool down
completely. Under no circumstances use cold water to cool it down quickly!
• If the appliance can no longer be operated, remove the fuse or switch the
circuit breaker off.
8
Page 9
1 Safety precautions
• Do not climb onto the appliance.
• Do not put hot cookware on the hob frame in order not to damage the
silicon joints.
• Always ensure that the base of the cookware and the surface of the hob
are clean and dry before use.
• Do not cut or prepare food on the surface. Avoid impact with hard objects.
Do not drag cookware across the surface.
• Take particular care that sugary foods or juices do not get onto the hot
cooking zones as they can damage the surface. If sugary foods or juices
do get onto hot cooking zones, clean away immediately (while still hot) with
a scraper for glass ceramic hobs.
• Do not leave the appliance unattended when in use.
• Keep animals away from the appliance.
• Induction hobs produce a high frequency magnetic field around the
cooking zones. Standing near the cooking zones can under unfavourable
circumstances have an adverse effect on or affect the working of
pacemakers, hearing aids or metallic implants.
• Tests have shown that under normal circumstances there is no risk to
cardiac pacemaker users. If, as the user of a cardiac pacemaker (or a
hearing aid or another type of implant), you would like to be reassured that
using the appliance does not pose a risk, you are advised to consult a
competent medical authority.
9
Page 10
1 Safety precautions
1.6 Disposal
Packaging
Danger of suffocation! Packaging materials (e.g. plastic,
polystyrene) can be dangerous for children. Keep packaging
materials away from children.
All packaging material is marked and should be collected for
recycling and disposed of in an environmentally friendly way.
Disconnection
➤ Pull the plug out of the mains socket or have the appliance disconnected
from the mains supply by an electrician. Then cut off the mains cable.
➤ Disable the appliance after disconnecting it.
Appliance disposal
• The symbol on the identification plate warns that the appliance may
not be disposed of in normal household waste.
• The appliance must be disposed of in accordance with local regulations
on waste disposal. For more information on the handling, disposal and
recycling of the product, please contact the local authorities, the local
recycling facilities for household waste or the retailer from whom you
purchased the appliance.
10
Page 11
2 Using for the first time
• The appliance must be installed and connected to the mains supply in
accordance with the separate installation instructions. Have a qualified
fitter/electrician carry out the necessary work.
• A cooking zone can give off an unpleasant smell during the first few hours
of use. This is normal for brand new appliances. Ensure that the room is
well ventilated.
2.1 Where is the identification plate?
The identification plate and the connection plate are located on the underside
of the hob element.
2
1
1 Identification plate with serial number (FN)
2 Connection plate
A second identification plate is supplied and should be affixed in the fitted unit
underneath the hob.
Note down the serial number (FN) of your appliance on the back page of
these operating instructions.
11
Page 12
3 Your appliance
3.1 Appliance overview
GK36TIPS, GK36TIPSC, GK36TIPSF
• 1 dual ring cooking zone ø 180/260 mm
• 1 cooking zone ø 210 mm
• 1 cooking zone ø 145 mm
GK46TIPS, GK46TIPSC, GK46TIPSF
• 1 cooking zone ø 210 mm
• 2 cooking zones ø 180 mm
• 1 cooking zone ø 145 mm
12

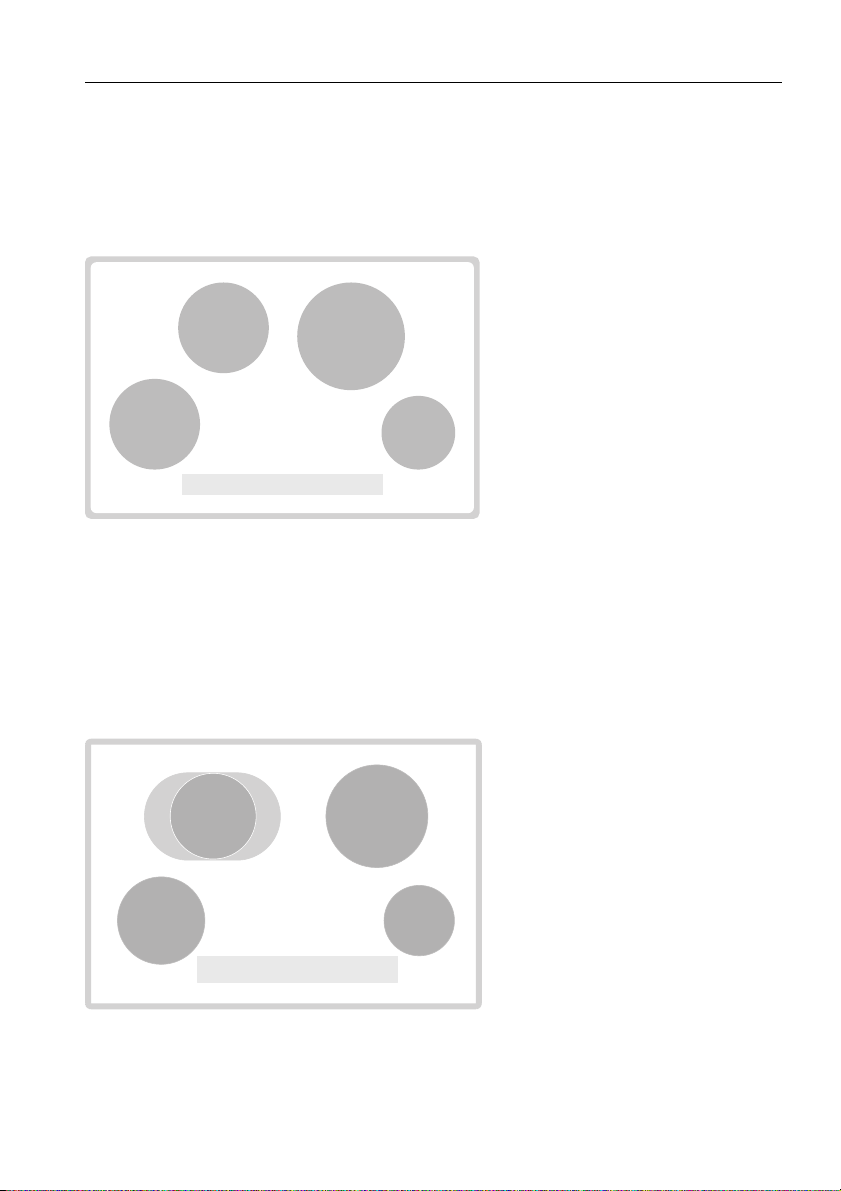

Page 13
GK46TIAS, GK46TIASC, GK46TIASF, GK46TIASU
• 1 cooking zone ø 210 mm
• 2 cooking zones ø 180 mm
• 1 cooking zone ø 145 mm
GK46TIABS, GK46TIABSC, GK46TIABSF, GK46TIABSU
• 1 frying zone ø 180/280 mm
• 1 cooking zone ø 210 mm
• 1 cooking zone ø 180 mm
• 1 cooking zone ø 145 mm
3 Your appliance
13
Page 14
3 Your appliance

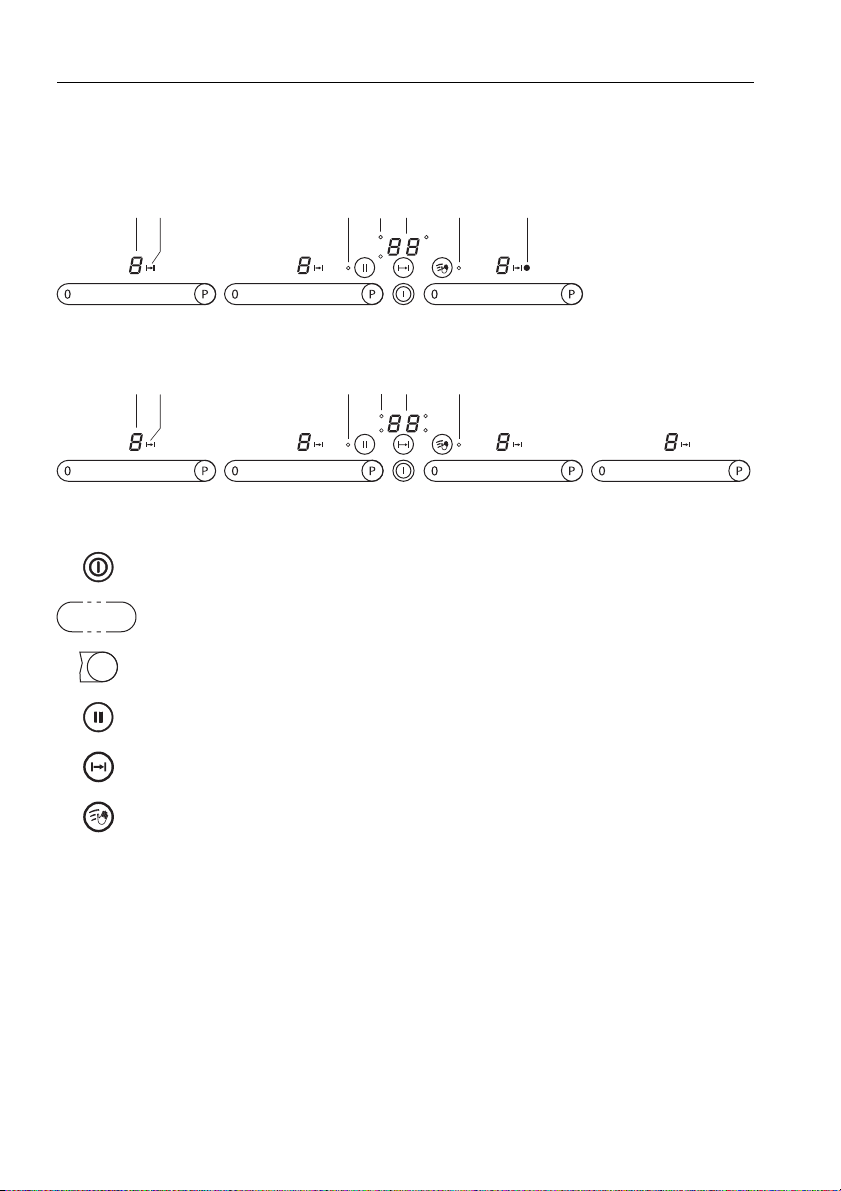

3.2 Operating and display elements
GK36TI…
1 2 3 65 7
GK46TI…
1 2
Touch buttons
Appliance ON/OFF
4
4
3 6
5
0
Displays
1 Cooking zone power level
2 Operating time activated
3 Pause activated/possibility for restoring saved settings
4 Cooking zone indicator lights for the operating time
5 Operating time/timer
6 Wipe protection activated
7 Dual ring cooking zone activated
14
Slider (for setting the power level)
PowerPlus
P
Pause cooking ON/OFF and restore function
Operating time/timer
Wipe protection ON/OFF
Page 15
3 Your appliance
3.3 How induction hobs function
Induction hobs work very differently from conventional hobs or hot plates. The
induction coils under the glass ceramic plate produce a rapidly changing
magnetic field which directly heats up the magnetic base of the cookware.
The glass ceramic plate is only warmed by the hot cookware.
Removing the cookware from the cooking zone immediately interrupts the
supply of energy.
Induction hobs are:
– quick reacting
– finely adjustable
–powerful
– energy-efficient
– safe.
Induction hobs can only be used with cookware with a magnetic base.
15
Page 16
3 Your appliance
3.4 Pan detection
Each cooking zone is equipped with pan detection.
This detects:
– suitable induction compatible cookware with a magnetic base
– the magnetic base of the cookware and switches on the outer cooking
ring of the dual ring cooking zone.
• If the cookware is removed during operation or if unsuitable cookware is
used,
– the power level selected flashes alternately with .
• If no suitable cookware is placed on the cooking zone before the pan
detection time (10 minutes) elapses,
– the cooking zone switches off
– the display changes from to
– the appliance switches off automatically after 10 seconds if no other
cooking zone is in use.
3.5 Cookware
Suitable cookware
Only cookware with a magnetic base is suitable for use with the induction
hob.
This can be tested in the following ways:
• A magnet sticks anywhere on the base of the cookware.
• On the hob, the power level set illuminates and does not alternate with
the power level.
Do not heat any unsuitable cookware using aids such as metal rings
and the like. This can damage the hob.
16
Page 17
3 Your appliance
Energy-efficient cooking
For maximum energy efficiency and even heat distribution note the following:
• The base of the cookware must be clean, dry and smooth.
• The diameter of the base of the cookware should as far as possible correspond to the diameter of the cooking zone.
• Centre the cookware in the middle of the cooking zone.
• Use a well-fitting lid.
• Match the diameter of the cookware to the quantity of food to be cooked.
Coated cookware
• Coated cookware when empty may never be heated at a higher power
level than .
– The coating may otherwise become overheated and damaged.
• For frying, do not use a higher power level than 9.
Never use PowerPlus with coated frying pans.
Noise during cooking
Cookware can make noise during cooking. This does not indicate any
malfunction, nor does it affect the functioning of the appliance in any way.
Noise depends on the cookware used. If the noise causes considerable disturbance, it can help to change the cookware.
17
Page 18
4 Operating the appliance
The individual cooking zones are all operated in the same way. When the
appliance is switched off, all the displays are dark (stand-by mode), except
for the residual heat indicator should any cooking zone still be hot.
4.1 Switching the appliance on and off
➤ Switch the appliance on: Press and hold the touch button for about
1 second.
– flashes in all the power level displays.
– If no other entry is made, the appliance switches off after about
10 seconds for safety reasons.
➤ Switch the appliance off: Press the touch button.
4.2 Selecting a cooking zone
➤ Press the slider for the required cooking zone or slide your finger along it
to set the power level.
4.3 Overview of power levels
Power level Cooking method Use
L Keep warm Sauces, keeps food ready for serving at 65 °C
1
2
3 Swelling Rice
4
5
6 Simmering, braising Pasta, soup, braised meat
7 Gentle frying
8 Frying, deep frying Meat, chips
9 Flash frying Steak
P Fast heating Boiling water
18
Melting,
gentle warming
Simmering,
reducing, stewing
Butter, chocolate, gelatine, sauces
Vegetables, potatoes, sauces, fruit, fish
Rösti (hash browns), omelettes, breaded food,
sausages
Page 19
4.4 Switching a cooking zone off
4 Operating the appliance
➤ Press on the slider.
0
– If no other entry is made and none of the other cooking zones are in use,
the appliance switches off automatically after 10 seconds.
Residual heat indicator
After the cooking zone is switched off, remains illuminated in the display
as long as a burn hazard exists.
4.5 Keep warm setting
The keep warm setting keeps food that has been cooked warm at approximately 65 °C. This is between power levels and .
4.6 PowerPlus
All the cooking zones are equipped with the PowerPlus booster. When
PowerPlus is switched on, the cooking zone selected works at extra high
power for 10 minutes. PowerPlus can be used, for instance, to heat a large
quantity of water.
Switching PowerPlus on
➤ Press on the slider.
P
– illuminates in the display.
– After 10 minutes it automatically switches back to power level .
Removing the cookware interrupts PowerPlus. PowerPlus is resumed
as soon as the cookware is returned to the cooking zone.
Switching PowerPlus off before time
➤ Press the required power level on the slider.
19
Page 20
4 Operating the appliance
Power management
GK36TIPS, GK36TIPSC, GK36TIPSF
2
1
B
3
A

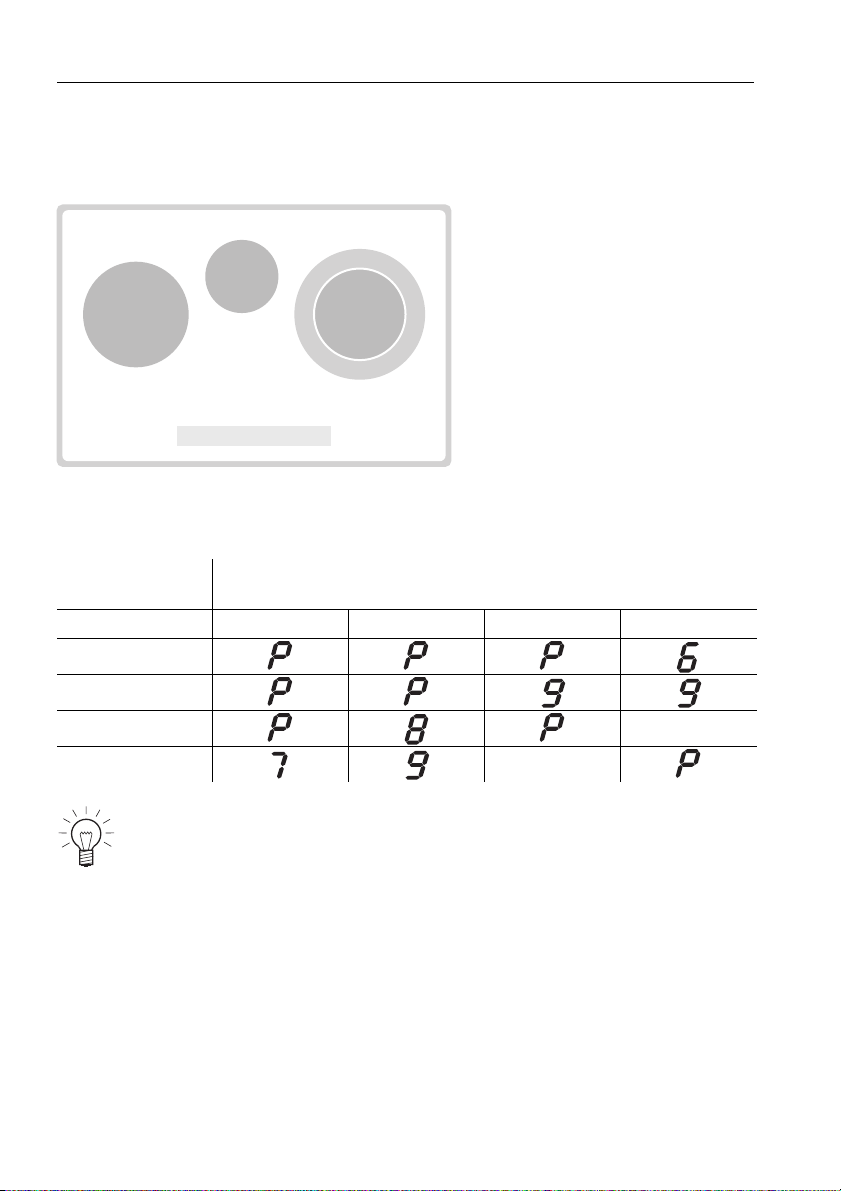

PowerPlus cannot be used with all the cooking zones at the same time. When
PowerPlus is activated, the other cooking zones work at reduced power.
PowerPlus with
cooking zone
1
2
3A
3A + B
Maximum available power level with cooking zone
1 2 3A 3A + B
–
–
If the power level is increased above these levels, PowerPlus switches
off.
20
Page 21

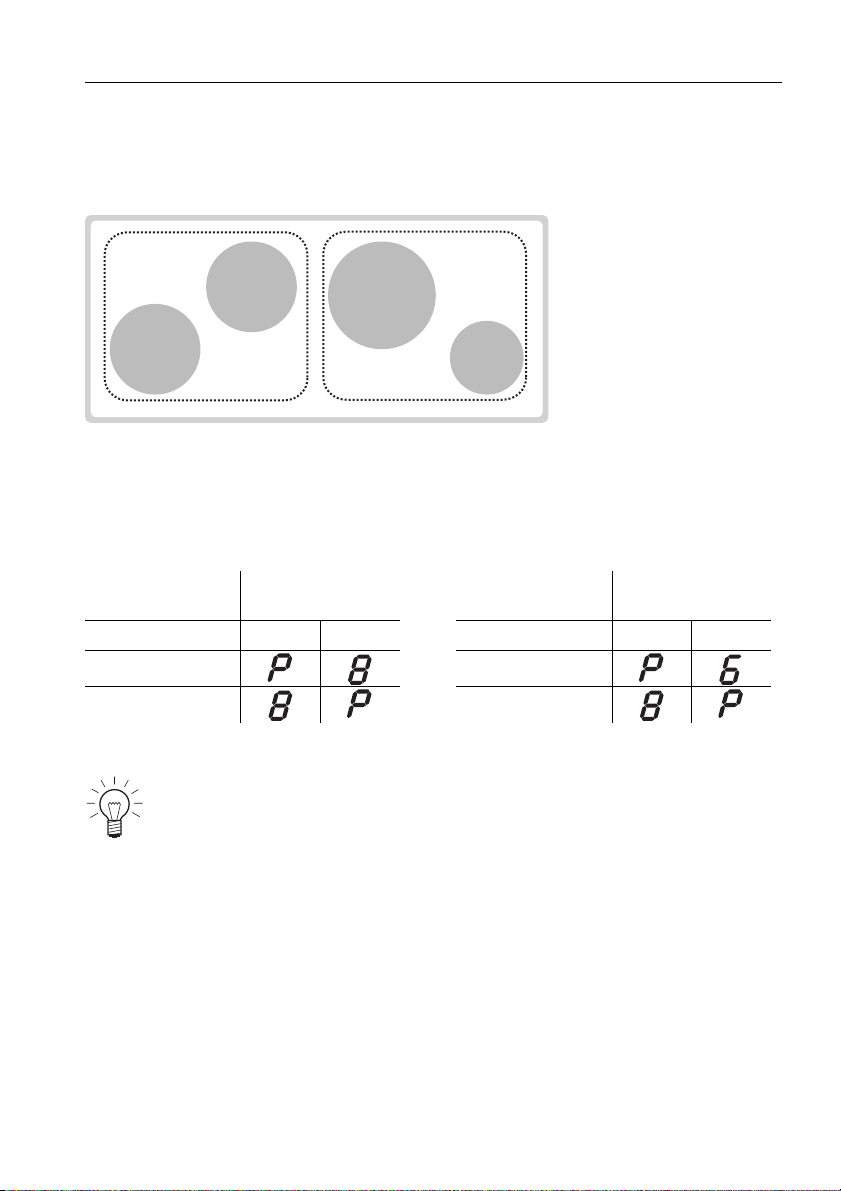

GK46TIPS, GK46TIPSC, GK46TIPSF,
GK46TIAS, GK46TIASC, GK46TIASF, GK46TIASU
4 Operating the appliance
A
2
1
B
3
4

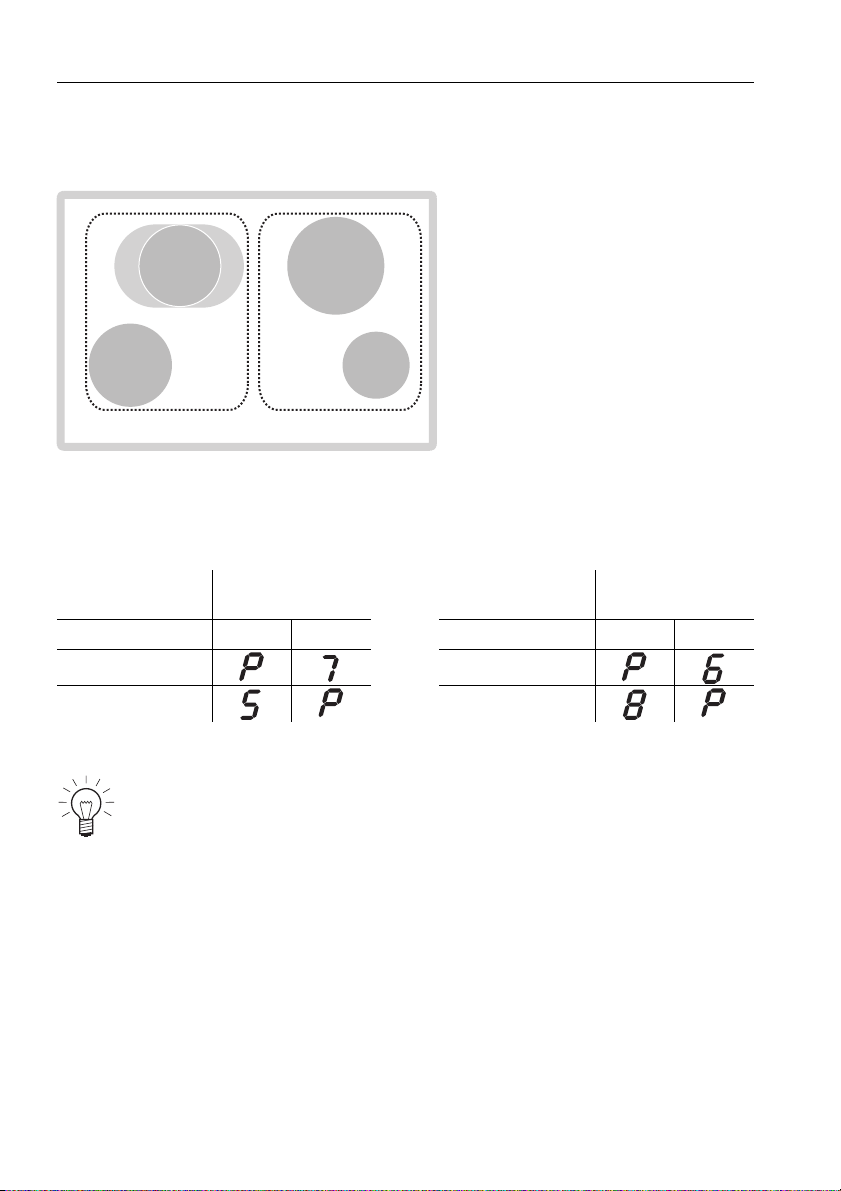

PowerPlus cannot be used with both cooking zones of any group (A or B) at
the same time. If PowerPlus is activated with both cooking zones of any
group, then the power output is reduced for the cooking zone that was
selected first.
PowerPlus with
cooking zone
Group A * PowerPlus with
cooking zone
Group B *
12 34
13
24
* Maximum available power level with cooking zones
If the power level is increased above these levels, PowerPlus switches
off.
21
Page 22
4 Operating the appliance
GK46TIABS, GK46TIABSC, GK46TIABSF, GK46TIABSU
A
2
1
B
3
4
PowerPlus cannot be used with both cooking zones of any group (A or B) at
the same time. If PowerPlus is activated with both cooking zones of a group,
then the power output is reduced for the cooking zone that was selected first.
PowerPlus with
cooking zone
Group A * PowerPlus with
cooking zone
Group B *
12 34
13
24
* Maximum available power level with cooking zones
22
If the power level is increased above these levels, PowerPlus switches
off.
Page 23
4 Operating the appliance
4.7 Automatic boost
Do not leave the hob unattended while using the automatic boost.
Risk of boiling over, burning on and igniting!
All the cooking zones are equipped with a selectable automatic boost. With
this function, a cooking zone works at power level 9 for a certain length of
time (see table). Then it automatically goes back to the power level set.
Whenever a cooking zone is switched on, the automatic boost must
be activated anew.
When the appliance is delivered from the factory, the automatic boost
is switched off. If required, the P3 user setting must be changed from
0 to 1, see the
Power level 12345678
Boost in mins:secs 0:40 1:15 2:00 3:00 4:15 7:15 2:00 3:15
If during the automatic boost a higher power level is selected, the
duration of the boost will change automatically.
Switching the automatic boost on
➤ Press and hold the required power level on the slider for 3 seconds.
– and the power level illuminate alternately in the display while the
automatic boost is activated.
– After the automatic boost, the power level is reduced back to the level
selected.
USER SETTINGS section.
Switching the automatic boost off before time
➤ Using the slider, set a lower power level.
23
Page 24
4 Operating the appliance
4.8 Operating time
Do not leave the hob unattended during use. Risk of boiling over,
burning on and igniting!
With the operating time function, a cooking zone switches off automatically
after a set time (between 1–99 minutes).
Setting the operating time
➤ Select the required cooking zone.
➤ Press the touch button.
– flashes in the display.
➤ Touch the slider for the required cooking zone and slide your finger along
it to set the operating time.
– The symbol illuminates.
To change the operating time, press and hold .
Changing the operating time
➤ Press the touch button.
– flashes in the display.
➤ Press the slider for the required cooking zone.
– The remaining operating time for the cooking zone selected is displayed.
– The indicator light for the cooking zone flashes.
➤ Using the slider, change the operating time.
P
Switching the operating time function off before time
➤ Press the touch button.
➤ Press on the slider for the required cooking zone.
0
– illuminates in the display for the operating time/timer.
– The cooking zone continues to run.
24
Page 25
4 Operating the appliance
End of the operating time
When the operating time is up
– the relevant cooking zone switches off
– an acoustic signal is emitted
– and the power level flash.
While the power level flashes, a new operating time can be set and
the cooking zone resumes operation using the previous settings.
➤ Press any touch button to switch off the acoustic signal and the displays.
Several operating times
If operating times are set for several cooking zones,
– the shortest operating time illuminates in the display
– the corresponding cooking zone indicator light illuminates
– the symbol illuminates with a set operating time for each cooking
zone.
To display another operating time:
➤ Press the touch button.
➤ Press the slider for the required cooking zone.
– The operating time is displayed and can be changed.
25
Page 26
4 Operating the appliance
4.9 Timer
The timer functions like an egg timer (1–99 minutes). It can be used at any
time and independently of all other functions.
Setting the timer
➤ Switch the appliance on.
➤ Press the touch button 2×.
– flashes in the display.
➤ The required duration of the timer can be set using any slider.
To change the duration of the timer, press and hold .
When the display for the operating time/timer illuminates, the power
level can be set using the sliders.
If the hob is switched off, a timer that is active continues to run.
Changing the timer
If no cooking zone is in use, first switch the appliance on.
➤ Press the touch button 2×.
– The time left on the timer flashes.
➤ The duration of the timer can be changed using any slider.
P
Switching the timer off before time
If no cooking zone is in use, first switch the appliance on.
➤ Press the touch button 2×.
➤ Press on any slider.
0
– flashes in the display.
26
Page 27
4 Operating the appliance
4.10 Childproof lock
The childproof lock is to prevent the appliance from being accidentally
switched on.
Switching the childproof lock on
➤ Switch the appliance on.
Ensure all cooking zones are switched off.
➤ Press the and touch buttons at the same time.
– An acoustic signal is emitted.
➤ Press the touch button again.
– An acoustic signal is emitted.
– illuminates in all the power level displays for 10 seconds.
Operating the appliance with the childproof lock activated
➤ Switch the appliance on.
➤ Press the and touch buttons at the same time.
– An acoustic signal is emitted.
– The childproof lock is overridden. The appliance can now be used as
normal.
The childproof lock is automatically reactivated 10 minutes after the hob has
been switched off.
Switching the childproof lock off
➤ Switch the appliance on.
Ensure all cooking zones are switched off.
➤ Press the and touch buttons at the same time.
– An acoustic signal is emitted.
➤ Press the touch button again.
– A double acoustic signal is emitted.
– flashes in all the power level displays for 10 seconds.
27
Page 28
4 Operating the appliance
4.11 Restore function
If the appliance has been inadvertently switched off, the settings can be
restored within 6 seconds.
➤ Switch the appliance on.
– The indicator light at the touch button flashes.
➤ Press the touch button.

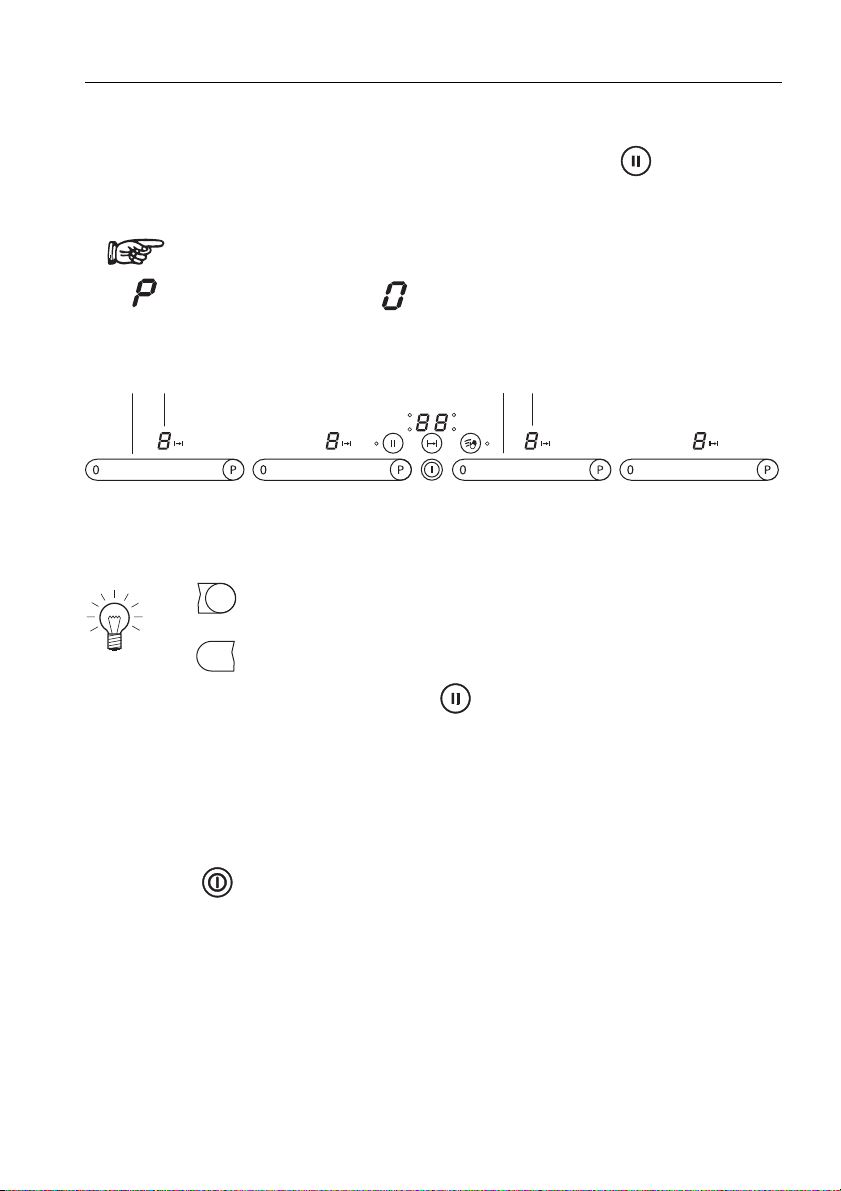

4.12 Pause cooking
With this function, the power level of all cooking zones that are switched on
can be temporarily reduced to for a maximum of 10 minutes. Thereafter,
the appliance can continue to be operated using the previous settings.
➤ Press the touch button.
– The indicator light for the touch button illuminates.
– The power levels of the cooking zones that are switched on change
to .
– The operating time is interrupted.
– The timer continues to run.
– All touch buttons are inactive except for , and .
If the pause cooking function is not turned off within 10 minutes, the
appliance switches off completely.
➤ To resume cooking, press the touch button again.
– The cooking zones resume operation using the previous settings.
28
Page 29
4 Operating the appliance
4.13 Wipe protection
This function prevents inadvertently changing the power level, e.g. when
wiping the control panel with a cloth.
➤ Press the touch button.
– The indicator light for the touch button illuminates.
➤ Wipe protection is switched off by pressing the touch button again or
automatically after 30 seconds.
Press the touch button to switch the appliance off at any time.
29
Page 30
5 User settings
The following user settings can be set and stored individually.
User setting Setting value Factory setting
Loudness of acoustic
P0
P1
P2
P3 Automatic boost
P4
P6
P7
signal
Acoustic signal at end
of operating time/timer
Operating time
PowerPlus
Default time
operating time/timer
Acoustic signal
emitted when touch
button is pressed
Restore factory
settings
0 No acoustic signal
1–8 Adjustable (1 = quiet, 8 = loud)
0 No acoustic signal
2 Automatically off after 1 minute
0Ends after 5minutes
2 Ends after 15 minutes
0 Automatic boost off
1 Automatic boost on
0 Default time 0 minutes
1–9 Adjustable from 10–90 minutes
0 Acoustic signal off
1 Acoustic signal on
Restoring factory settings:
0
Press the
touch button 2×.
7
21 Automatically off after 10 seconds
11 Ends after 10 minutes
0
1
1
30
Page 31
5 User settings
5.1 Changing user settings
➤ With the induction hob switched off, press and hold the touch button
and touch three slider fields from left to right within 1 second.
– An acoustic signal confirms each time a slider is touched.
If an entry is invalid, a double acoustic signal is emitted.
– flashes alternately with in display 2.
– The current user setting value appears in display 4.
1 2
➤ Using slider 1, select a user setting.
➤ Using slider 3, change the setting value.
Use to select the next higher user setting or a higher setting
P
4
3
value.
0
Use to select the next lower user setting or a lower setting value.
➤ To save entries: Press and hold the touch button for 2 seconds.
– An acoustic signal is emitted.
– The «User settings» mode is ended.
5.2 Cancelling user settings
➤ Press the touch button.
– Any changes made to setting values are not saved.
– The «User settings
» mode is ended.
31
Page 32
6 Care and maintenance
Clean the appliance when it has cooled down, as otherwise it could
be a burn hazard.
6.1 Cleaning
Always clean the hob after use. This prevents food residues from burning on.
Dried-on or burned-on food residue is harder to clean off.
Use of improper cleaning techniques can result in damage to the markings
or surface.
Avoid cleaning the surface of the glass ceramic hob with abrasive
cleaning agents, scouring pads, wire wool, etc. which can damage the
surface.
➤ Use only a soft cloth or sponge with water and a suitable detergent for
cleaning everyday soiling. Always follow the detergent manufacturer's
instructions for use. Using a detergent with a protective additive is
recommended.
➤ Remove stubborn soiling, e.g. boiled-over milk, while still warm using a
glass ceramic hob scraper.
Always follow the scraper manufacturer's instructions for use.
➤ Foods with a high sugar content, e.g. marmalade, that boil over should be
removed while still hot using a glass ceramic hob scraper. The surface of
the glass ceramic hob could otherwise become damaged.
➤ Remove melted plastic while still warm using a glass ceramic hob scraper.
The surface of the glass ceramic hob could otherwise become damaged.
➤ Remove limescale stains when cool with a small amount of limescale
remover (e.g. vinegar, lemon juice, descaler). Then wipe clean with a damp
cloth.
32
Page 33
7 Trouble-shooting and error messages
7.1 What to do if …
… the appliance is not working and the displays are not illuminated
Possible cause Solution
• The fuse or circuit breaker
for electrical installations
in the home is defective.
• The fuse or circuit breaker
keeps blowing.
• An interruption in the
power supply.
… flashes alternately with the power level in the display
Possible cause Solution
• Cookware is not suitable
for use with induction
hobs.
• The cookware is too small
for the cooking zone
selected.
➤ Change the fuse.
➤ Reset the circuit breaker.
➤ Call Customer Services.
➤ Check the power supply.
➤ Use suitable magnetic cookware. See
COOKWARE section.
➤ Ensure the cookware corresponds to the
size of the cooking zone.
… illuminates in the displays
Possible cause Solution
• The childproof lock is
activated.
➤ For operating the appliance with the
childproof lock activated, see the section
on
➤ Switch the childproof lock off.
OPERATING THE APPLIANCE.
33
Page 34
7 Trouble-shooting and error messages
… a continuous acoustic signal is emitted, flashes in a display and the
appliance switches off
Possible cause Solution
• A touch button or slider
was touched for longer
than 10 seconds.
➤ Remove object or food that has boiled over.
➤ The appliance can be used again as
normal.
• Object (e.g. pan, dish) on
the control panel.
• Food boiled over onto the
control panel.
… and flash alternately in the display
Possible cause Solution
• The automatic safety
shut-off was triggered.
➤ Switch the cooking zone back on again if
required.
If a cooking zone has been running for longer without any settings
being changed, the appliance switches the cooking zone off
automatically. It is switched off irrespective of the power level set.
Power level L123456789
Safety shut-off after
hrs:mins
2:00 8:30 6:30 5:30 4:30 3:30 3:00 2:30 2:00 1:30
34
Page 35
7 Trouble-shooting and error messages
… flashes in the display
Possible cause Solution
• The excess temperature
protection of a cooking
zone was triggered.
➤ Allow the cooking zone to cool down.
➤ Resume cooking on a different cooking
zone.
➤ Check the cookware.
… flashes in the display
Possible cause Solution
• An interruption in the
power supply.
➤ Press any touch button to cancel the error
message.
➤ The appliance can be used again as
normal.
… and illuminates in the display
Possible cause Solution
• An object, e.g. paper,
underneath the hob is
affecting the air intake.
➤ Remove any objects in the drawer
underneath the hob.
➤ Press any touch button to cancel the error
message.
➤ After 10 minutes the appliance can be used
again as normal.
• Ventilation is defective.
➤ Note down the error number.
➤ Note down the serial number (FN) of the
appliance. See the identification plate for
this.
➤ Call Customer Services.
35
Page 36
7 Trouble-shooting and error messages
… or and a number illuminate in the display
Possible cause Solution
• Internal error occurred. ➤ Note down the error number.
➤ Note down the serial number (FN) of the
appliance. See the identification plate for
this.
➤ Call Customer Services.
36
Page 37
8Index
A
Accessories
Ordering . . . . . . . . . . . . . . . . . . . 39
Appliance
Switching off . . . . . . . . . . . . . 18, 40
Switching on . . . . . . . . . . . . . 18, 40
Appliance overview . . . . . . . . . . . . 12
Automatic boost . . . . . . . . . . . . . . 23
C
Care. . . . . . . . . . . . . . . . . . . . . . . . 32
Childproof lock . . . . . . . . . . . . . . . 27
Cleaning . . . . . . . . . . . . . . . . . . . . 32
Cooking zone . . . . . . . . . . . . . 18, 40
Cookware . . . . . . . . . . . . . . . . . . . 16
D
Disclaimer . . . . . . . . . . . . . . . . . . . . 8
Displays . . . . . . . . . . . . . . . . . . . . . 14
Disposal
Appliance disposal . . . . . . . . . . . 10
Disconnection . . . . . . . . . . . . . . . 10
Packaging . . . . . . . . . . . . . . . . . . 10
E
Energy-efficient cooking. . . . . . . . . 17
Error messages . . . . . . . . . . . . . . . 33
H
How induction hobs function . . . . . 15
I
Identification plate . . . . . . . . . . 11, 39
Instructions for use . . . . . . . . . . . . . 8
K
Keep warm setting. . . . . . . . . . . . . 19
L
«L» . . . . . . . . . . . . . . . . . . . . . . . . . 19
M
Maintenance . . . . . . . . . . . . . . . . . 32
Malfunctions . . . . . . . . . . . . . . . . . 34
Model no.. . . . . . . . . . . . . . . . . . . . . 2
N
Noise during cooking . . . . . . . . . . 17
O
Operating elements . . . . . . . . . . . . 14
Operating the appliance . . . . . . . . 18
Operating time. . . . . . . . . . . . . . . . 24
Orders . . . . . . . . . . . . . . . . . . . . . . 39
P
«P» . . . . . . . . . . . . . . . . . . . . . . . . 19
Pan detection . . . . . . . . . . . . . . . . 16
Pause cooking. . . . . . . . . . . . . . . . 28
Power levels
«L». . . . . . . . . . . . . . . . . . . . . . . . 19
«P» . . . . . . . . . . . . . . . . . . . . . . . 19
Overview . . . . . . . . . . . . . . . . . . . 18
Power management . . . . . . . . . . . 20
PowerPlus . . . . . . . . . . . . . . . . . . . 19
Q
Queries . . . . . . . . . . . . . . . . . . . . . 39
Quick instructions . . . . . . . . . . . . . 40
R
Repair service . . . . . . . . . . . . . . . . 39
Residual heat indicator . . . . . . 18, 19
Restore function . . . . . . . . . . . . . . 28
S
Safety precautions. . . . . . . . . . . . . . 4
Appliance-specific . . . . . . . . . . . . . 6
General . . . . . . . . . . . . . . . . . . . . . 5
Safety shut-off
Overview . . . . . . . . . . . . . . . . . . . 34
Serial number (FN) . . . . . . . . . 11, 39
Service agreement . . . . . . . . . . . . 39
Spare parts
Ordering . . . . . . . . . . . . . . . . . . . 39
Symbols. . . . . . . . . . . . . . . . . . . . . . 4
37
Page 38
8 Index
T
Timer. . . . . . . . . . . . . . . . . . . . . . . 26
Touch buttons . . . . . . . . . . . . . . . . 14
Trouble-shooting . . . . . . . . . . . . . . 33
Type . . . . . . . . . . . . . . . . . . . . . . . . . 2
U
User settings . . . . . . . . . . . . . . . . . 30
Using for the first time. . . . . . . . . . 11
V
Validity . . . . . . . . . . . . . . . . . . . . . . . 2
W
Wipe protection. . . . . . . . . . . . . . . . 29
38
Page 39
9 Repair service
The
TROUBLE-SHOOTING AND ERROR MESSAGES section will help you
to carry out small repairs yourself, saving you the time and trouble of
calling out a service technician and the cost that goes along with it.
Whether you contact us about a malfunction or an order, please always state
the serial number (FN) and the model type of your appliance. Enter these
details below and also on the service sticker which comes with the appliance.
Stick it in a conspicuous place or in your telephone or address book.
FN
You will also find the same details on the certificate of guarantee, the original
sales invoice and the identification plate of the appliance.
If the appliance is not working properly, contact your nearest V-ZUG Ltd
Service Centre using freephone 0800 850 850 and stand in close proximity
to the appliance.
Queries, orders, service agreement
For administrative and technical queries or problems, as well as for ordering
spare parts and accessories, please contact our head office in Zug on
telephone number +41 (0)41 767 67 67.
As regards the maintenance of all our products, when the warranty expires
you have the option of taking out a service agreement. We will be happy to
send you the necessary forms.
Appliance
39
Page 40
Quick instructions
Please first read the safety precautions in the operating instructions!
To switch appliance on
➤ Press the touch button pressed for about 1 second.
To select cooking zone
➤ Press the slider for the required cooking zone or slide your finger along it
to set the power level.
Alternatively
➤ Press to heat a large amount of water quickly.
P
To switch cooking zone off
➤ Press on the slider.
0
To switch appliance off
➤ Press the touch button.
V-ZUG Ltd
Industriestrasse 66, 6301 Zug
Tel. +41 (0)41 767 67 67, Fax +41 (0)41 767 61 61
vzug@vzug.ch, www.vzug.ch
Service Centre: Tel. 0800 850 850
J973.013-2
Loading...
