V-ZUG GK35TEPS C, GK55TES C, GK35TEPS F, GK55TES, GK55TES F Operating Instructions Manual
...Page 1
Operating instructions
GK35TEPS | GK55TES
Toptronic hob
Page 2
Thank you for choosing to buy one of our products. Your appliance is made to
high standards and is easy to use. Nevertheless, please take the time to read
these operating instructions in order to familiarise yourself with the appliance
and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance
at the time these operating instructions went to press. The right to make technical modifications for the purpose of the further development of the appliance
is reserved.
Validity
The product family (model number) corresponds to the first alphanumerics on
the identification plate. These operating instructions apply to:
Type Product family
GK35TEPS/C/F 31032
GK55TES/C/F 31042
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6301 Zug, 2017
2
Page 3
Contents
1 Safety precautions 4
1.1 Symbols used ........................................................................................................ 4
1.2 General safety precautions ................................................................................. 5
1.3 Appliance-specific safety precautions............................................................... 6
1.4 Instructions for use ............................................................................................... 7
2 Disposal 9
3 Using for the first time 10
4 Your appliance 11
4.1 Appliance overview.............................................................................................11
4.2 Operating and display elements ......................................................................12
4.3 Cookware .............................................................................................................13
5 Operating the appliance 14
5.1 Switching the appliance on and off.................................................................14
5.2 Selecting a cooking zone..................................................................................14
5.3 Overview of power levels...................................................................................14
5.4 Switching a cooking zone off ...........................................................................14
5.5 Residual heat indicator ......................................................................................14
5.6 PowerTronic .........................................................................................................15
5.7 Switching the dual ring zone on and off.........................................................15
5.8 Automatic boost ..................................................................................................16
5.9 Operating time.....................................................................................................17
5.10 Timer......................................................................................................................19
5.11 Childproof lock ....................................................................................................20
5.12 Restore function ..................................................................................................21
5.13 Pause cooking.....................................................................................................21
5.14 Wipe protection ...................................................................................................21
6 User settings 22
6.1 Changing user settings......................................................................................23
6.2 Cancelling user settings ....................................................................................23
7 Care and maintenance 24
8 Trouble-shooting 25
9 Technical data 27
9.1 Product fiche........................................................................................................27
10 Index 28
11 Service & Support 31
3
Page 4
1 Safety precautions
1.1 Symbols used
Denotes important safety precautions.
Failure to observe said precautions can result in injury or in damage
to the appliance or fittings!
Information and precautions that should be observed.
Information on disposal
Information about the operating instructions
▸ Indicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
▪ Indicates a list.
4
Page 5
1 Safety precautions
1.2 General safety precautions
▪ Read the operating instructions before using the appliance for
the first time!
▪ This appliance can be used by children aged 8 and above
and by persons with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge, provided
they are supervised or have been instructed on the safe use
of the appliance and have understood the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be undertaken by children without supervision.
▪ If an appliance is not equipped with a mains cable and a plug
or other means for disconnecting from the mains with a contact opening on each pole complying with the conditions of
overvoltage category III for full isolation, an isolating device
must be incorporated into the permanently installed electrical
installation in accordance with the installation regulations.
▪ If the mains cable of this appliance is damaged, it must be re-
placed by the manufacturer or its Customer Services or a similarly qualified person in order to avoid hazard.
5
Page 6
1 Safety precautions
1.3 Appliance-specific safety precautions
▪ WARNING: If the surface has a crack running through the
thickness of the material, switch the appliance off and disconnect it from the mains to avoid possible electric shock.
▪ WARNING: The appliance and its accessible parts get hot
during use. Be careful not to touch the heating elements.
▪ Under no circumstances use a steam cleaner to clean the ap-
pliance.
▪ Do not place metal objects such as knives, forks, spoons, lids
or aluminium foil on the hob as they can get hot.
▪ WARNING: It can be dangerous to leave the hob unattended
when cooking with fat or oil, as this can lead to fires. NEVER
attempt to extinguish a fire with water. Instead, switch the appliance off and then carefully smother the flames with, for example, a lid or a fire blanket.
▪ WARNING: Never store objects on the hob due to the risk of
fire.
▪ WARNING: The cooking process should always be super-
vised. Shorter cooking processes, in particular, must be supervised the entire time.
▪ Do not operate the appliance using an external time switch or
a separate remote control system.
6
Page 7
1 Safety precautions
1.4 Instructions for use
Before using for the first time
▪ The appliance must be installed and connected to the electricity supply in
accordance with the separate installation instructions. Have a qualified fitter/
electrician carry out the necessary work.
Correct use
▪ The appliance is designed for use in the home for preparing food. No liabil-
ity is assumed for any damage caused by improper use or incorrect handling.
▪ Any repairs, modifications or manipulations to the appliance, especially any
electrically live parts, may only be carried out by the manufacturer, its Customer Services or a similarly qualified person. Repairs if carried out incorrectly may cause serious injury, damage to the appliance and fittings, as
well as affect the functioning of the appliance. If the appliance is not working properly or in case of a repair order, follow the instructions given in the
'Repair service' section. Contact our Customer Services if necessary.
▪ Use original spare parts only.
▪ Retain these operating instructions for future reference. If you sell the appli-
ance or pass it on to a third party, please ensure these operating instructions accompany the appliance, together with the installation instructions.
▪ The appliance corresponds to recognized technology standards and the rel-
evant safety regulations. However, proper use of the appliance is essential
to avoid damage and accidents. Please therefore follow the precautions
given in these operating instructions.
▪ The heated surface will remain hot for some time after it is switched off and
will cool down only slowly to room temperature. Please allow sufficient time
for the appliance to cool down before, for instance, cleaning it.
Caution: Burns hazard
▪ Overheated fat and oil can easily catch fire. Never attempt to extinguish
burning oil or fat with water. Danger of explosion! Smother the flames with a
fire blanket. Keep doors and windows closed.
Caution: Risk of injury
▪ Keep pets away from the appliance.
7
Page 8
1 Safety precautions
Caution: Risk to life
▪ Packaging materials, e.g. plastic film and polystyrene, can be dangerous for
children. Danger of suffocation! Keep packaging material away from children.
How to avoid damaging the appliance
▪ In case of overheating, switch the hotplate off and allow it to cool down
completely. Do not put any dishes on it. Under no circumstances use cold
water to cool it down quickly.
▪ Do not climb on to the appliance.
▪ Do not put hot cookware on the hob frame in order not to damage the silic-
one joints.
▪ Do not cut or prepare food on the surface and avoid impact with hard ob-
jects. Do not drag cookware across the surface.
▪ Take particular care that sugary foods or juices do not get onto the hot
cooking zones as it can damage them. If sugary foods or juices do get on
to the hot cooking zones clean away immediately (while still hot) with a
scraper.
▪ Pots with pure copper or aluminium bases should not be used for cooking
as they can leave behind traces that can be difficult to clean. If the traces
are not removed immediately after cooking with a suitable cleaning agent,
they can be permanently burned on and therefore permanently ruin the
visual appearance of the appliance.
▪ Sliding pans and cookware across the glass ceramic causes scratches.
This can be largely prevented by lifting pans and cookware up and then placing them down in position.
▪ The hob is designed to be used – signs of use, such as scratches or the
wear and tear from pans and cookware, are normal. The more intensively it
is used, the greater the signs of use; however, the appliance remains in perfect working order and therefore does not give a right of complaint. Safety is
guaranteed at all times.
▪ There is no such thing as completely scratch-proof glass; scratches can
even develop on sapphire glass, which is used in watches. The glass
ceramic used is of the best quality available on the market.
8
Page 9
2 Disposal
Packaging
▪ All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS))
are marked and should, if possible, be collected for recycling and disposed
of in an environmentally friendly way.
Disconnection
▪ Disconnect the appliance from the mains. With a fixed appliance, this is to
be carried out by a qualified electrician!
Safety
▪ Disable the appliance to prevent accidents caused by improper use, espe-
cially through children playing.
▪ Pull the plug out of the mains socket or have the appliance disconnected
from the mains by an electrician. Then cut the mains cable off flush with the
appliance.
Disposal
▪ The old appliance should not be discarded as worthless rubbish. If dis-
posed of correctly, the raw materials can be recovered for recycling.
▪ The symbol on the identification plate warns that the appliance may not
be disposed of in normal household waste.
▪ The appliance must be disposed of in accordance with local regulations on
waste disposal. For more information on the handling, disposal and recycling of the product, please contact the local authorities, the local recycling
facilities for household waste or the retailer from whom you purchased the
appliance.
9
Page 10
3 Using for the first time
The appliance must be installed and connected to the electricity supply in accordance with the separate installation instructions. Have a
qualified fitter/electrician carry out the necessary work.
During the first few hours of use, a cooking zone can give off an unpleasant smell. This is normal for brand new appliances. Ensure that
the room is well ventilated.

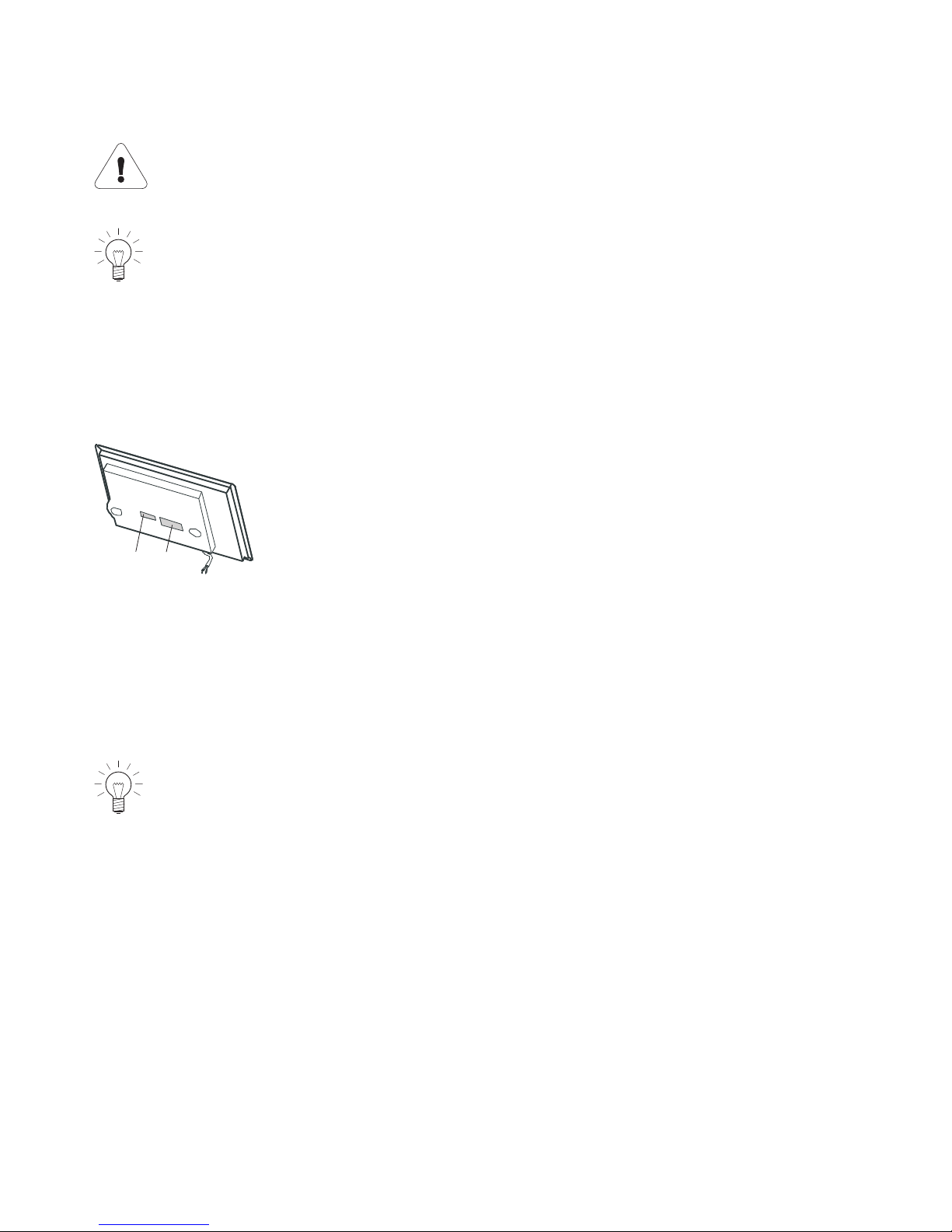

Where is the identification plate?
The identification plate and the connection plate are located on the underside
of the hob.
1 2
1
Identification plate with serial number (FN)
2
Connection plate
A second identification plate is supplied and should be affixed in the fitted unit
underneath the hob.
Note down the serial number (FN) of your appliance on the back page of
these operating instructions.
The serial number is required for identifying the appliance. Only then
can customer services guarantee a faultless service.
10
Page 11
4 Your appliance

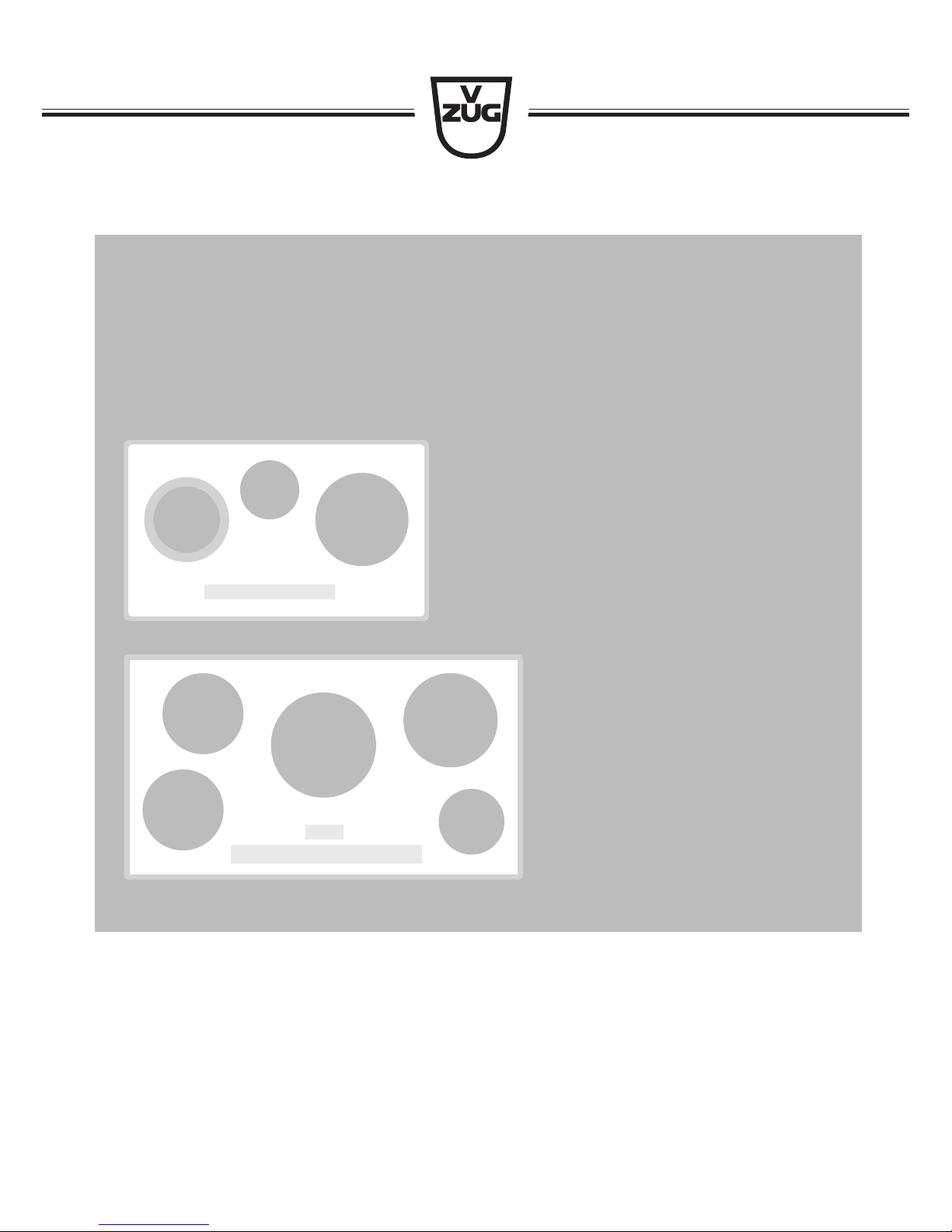

4.1 Appliance overview
GK35TEPS, GK35TEPSC, GK35TEPSF
▪ 1 cooking zone Ø 230mm with PowerTronic
▪ 1 dual ring cooking zone Ø 175/210mm
▪ 1 cooking zone Ø 140mm
GK55TES, GK55TESC, GK55TESF
▪ 1 cooking zone Ø 230mm with PowerTronic
▪ 1 cooking zone Ø 210mm
▪ 2 cooking zones Ø 180mm
▪ 1 cooking zone Ø 140mm
11
Page 12
4 Your appliance

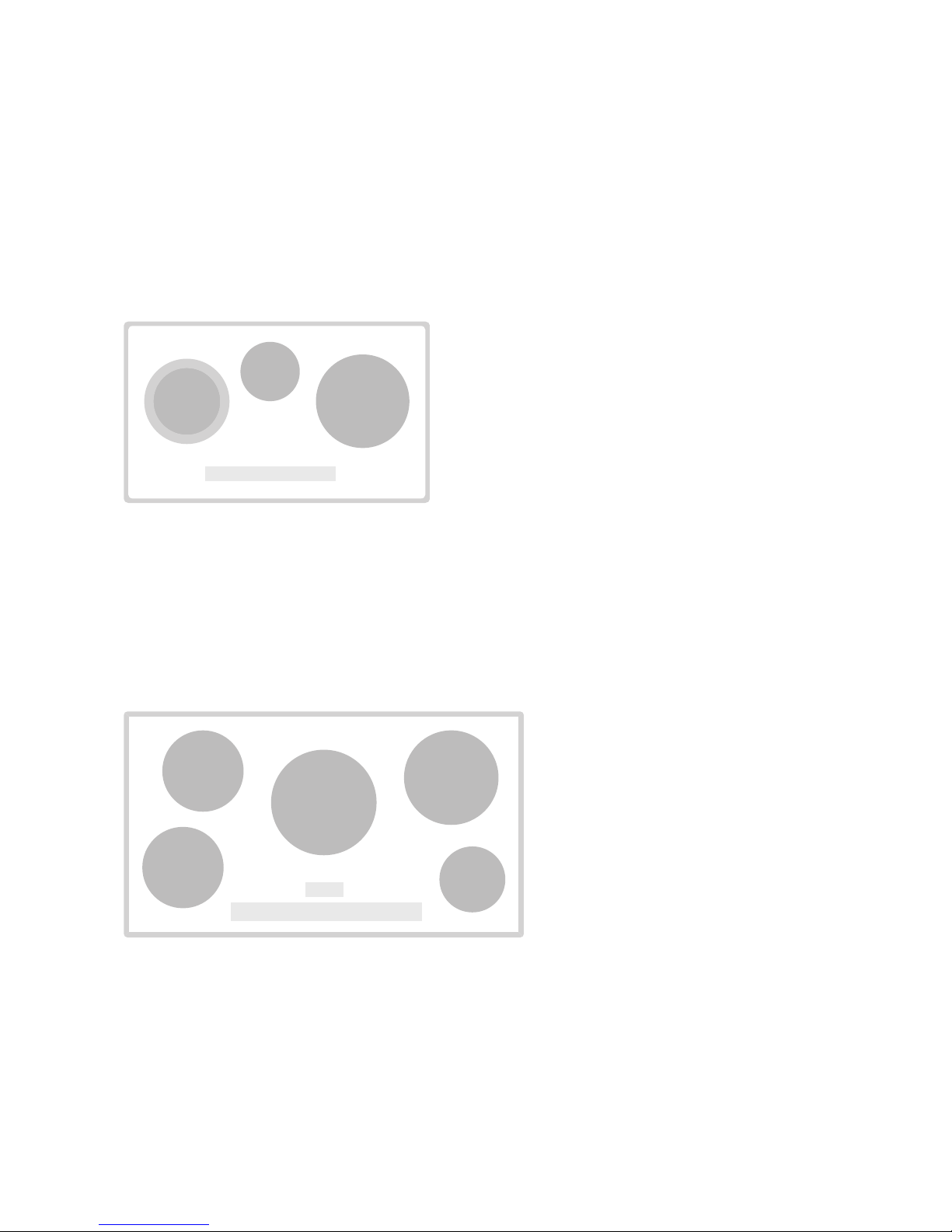

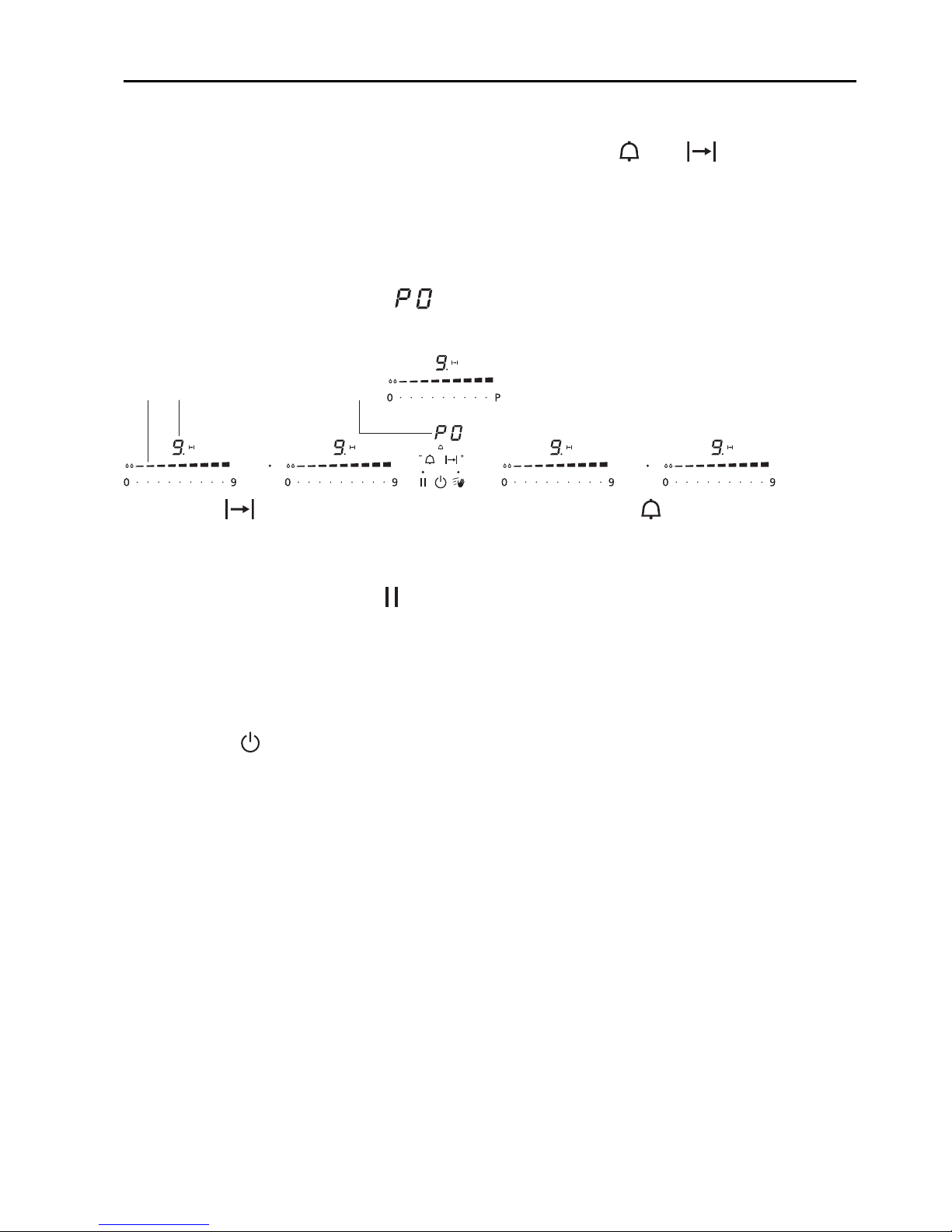

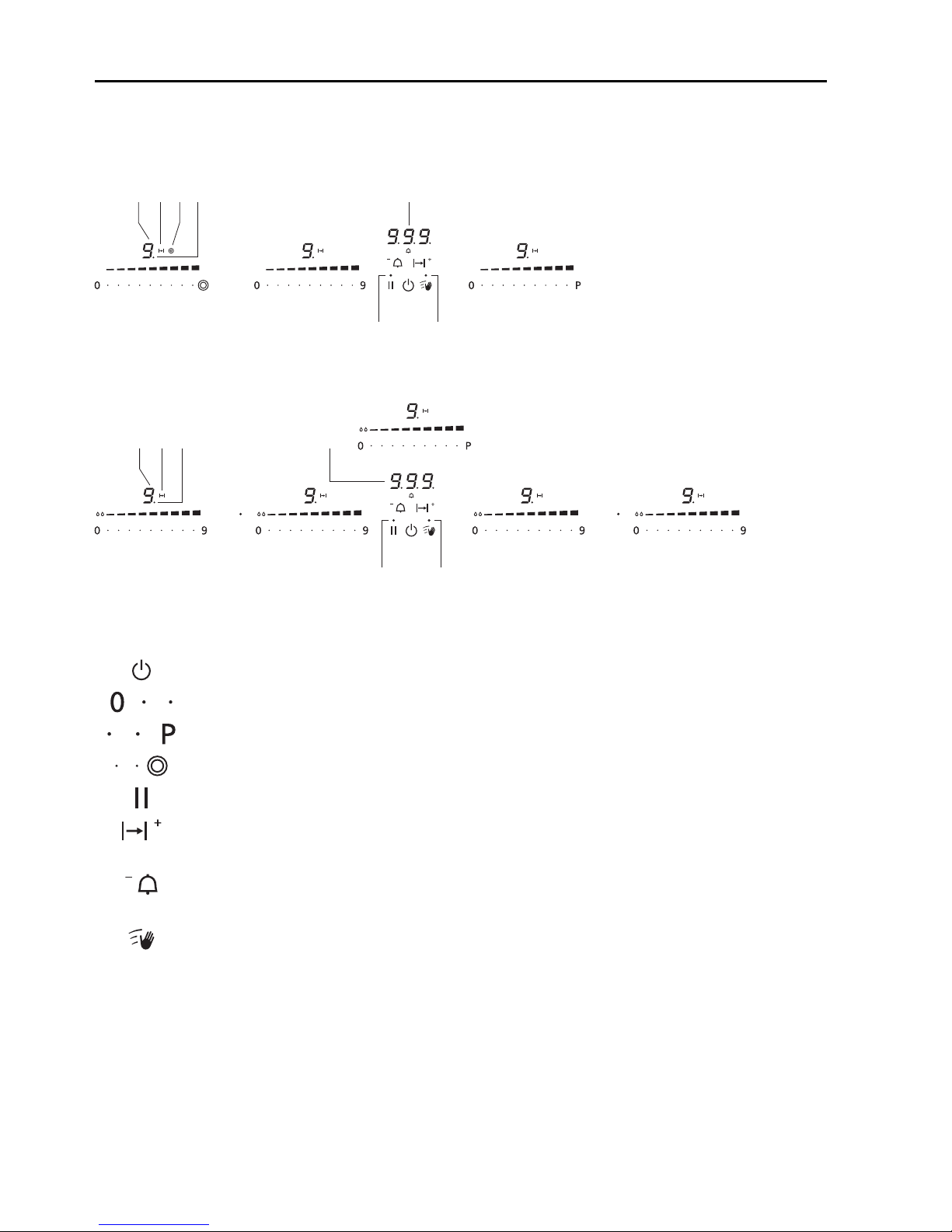

4.2 Operating and display elements
GK35TEPS …
421
7
6
53
GK55TES …
7
6
421 5
Buttons
Device ON/OFF
Slider (to set the power level)
PowerTronic
Dual ring cooking zone ON/OFF
Pause cooking ON/OFF and restore function
Operating time
Function as plus button in operating time/timer mode
Timer
Function as minus button in operating time/timer mode
Wipe protection ON/OFF
12
Page 13
4 Your appliance
Displays
1
Power level of the cooking zone
2
Operating time activated
3
Dual ring cooking zone activated
4
Cooking zone indicator light for the operating time
5
Operating time/timer
6
Pause activated/restoration of saved settings possible
7
Wipe protection activated
4.3 Cookware
Suitable cookware
Cookware should have a stable bottom. When heated, the base of the cookware must lie flat on the surface of the cooking zone.
Cookware made of metal is more suitable than that made of glass or ceramic
as with metal the heat is distributed evenly quicker.
Cookware bases made of aluminium or aluminium alloys can leave stubborn
marks on the glass ceramic surface that are very difficult to remove.
Energy-efficient cooking
For maximum energy efficiency and even heat distribution note the following:
▪ The base of the cookware must be clean, dry and smooth.
▪ Centre the cookware in the middle of the cooking zone.
▪ Use a well-fitting lid.
▪ Match the diameter of the cookware to the quantity of food to be cooked.
13
Page 14
5 Operating the appliance
5.1 Switching the appliance on and off
All the appliances are operated in the same way.
▸ To switch the appliance on: Depress the button for 1second.
– If no other entry is made, the appliance switches off again after about
10seconds for safety reasons.
▸ To switch the appliance off: Press the button.
5.2 Selecting a cooking zone
▸ Touch the slider of the required cooking zone or swipe it to set the
power level.
5.3 Overview of power levels
Power level Cooking method Practical use
1
Melting, careful
heating
Butter, chocolate,
gelatine, sauces
2
3
Swelling Rice
4
Simmering,
reducing,
stewing
Vegetables, potatoes, sauces,
fruit, fish
5
6
Simmering, braising Pasta, soups, braised meats
7
Gentle frying Rösti, omelettes, breaded fried food,
sausages
8
Frying, deep frying Meat, potato chips
9
Searing Steaks
P
Fast heating Boiling water
5.4 Switching a cooking zone off
▸ Touch power level « » on the slider.
– If no other entry is made and the other cooking zones are switched off,
the appliance switches off after 10seconds.
5.5 Residual heat indicator
After a cooking zone is switched off, remains illuminated as long as there is
a risk of burns.
14
Page 15
5 Operating the appliance
5.6 PowerTronic
The cooking zone Ø 230mm is equipped with the PowerTronic power
booster. When PowerTronic is switched on, this cooking zone operates with an
extra-high level of power. You can use PowerTronic to heat up large quantities
of water quickly, for example.
Switching on PowerTronic
▸ Touch on the slider of the corresponding cooking zone.
– is illuminated in the display.
Switching off PowerTronic
Touch the required power level on the slider of the corresponding cooking
zone.
5.7 Switching the dual ring zone on and off
Only applicable for GK35TEPS …
When the dual ring zone is switched on, only the inner cooking zone A is
switched on initially. The outer heating ring B can be switched on if necessary.
A
B
Switching the outer heating ring on
▸ Touch the slider of the dual ring zone or swipe it to set the power level.
▸ Touch on the slider.
– The symbol is illuminated next to the corresponding power level.
Switching the outer heating ring off
▸ Touch on the slider.
– The outer heating ring B is switched off and the inner cooking zone
A
remains in operation.
– The symbol next to the corresponding power level goes out.
15
Page 16
5 Operating the appliance
5.8 Automatic boost
Do not leave the hob unattended when using the automatic boost.
Risk of boiling over, burning on and igniting!
All the cooking zones are equipped with a selectable automatic boost. With
this function, a cooking zone heats at power level for a certain length of time
(see table). Then it automatically switches back to the power level set.
The automatic boost function must be activated anew each time a
cooking zone is switched on.
Power level
1 2 3 4 5 6 7 8
Boost in mins.:secs.
1:00 3:00 4:45 6:30 8:30 2:30 3:30 4:30
Switching the automatic boost on
▸ Hold the desired power level on the slider depressed for 3seconds.
– and the power level illuminate alternately in the display when the
automatic boost is activated.
– When the automatic boost is over, the heat output is reduced again to
the power level selected.
Switching the automatic boost off before time
▸ Use the slider to set a lower power level.
16
Page 17
5 Operating the appliance
5.9 Operating time
Do not leave the hob unattended during use. Risk of boiling over,
burning on and igniting!
With the operating time function, a Cooking zone switches off automatically
after a set time 1 min.–1 h 59 min..
Setting the operating time
▸ Select the required cooking zone.
▸ Touch the button.
– flashes in the display.
▸ Touch the slider of the required cooking zone.
– The symbol illuminates.
▸ Use the button to increase the operating time or use the button to
reduce the operating time.
– The indicator light for the cooking zone illuminates.
– The first time the button is touched, illuminates in the display.
– The first time the button is touched, illuminates in the display.
To quickly change the operating time, press and hold the or
button.
Changing the operating time
▸ Touch the button.
– flashes in the display.
▸ Touch the slider of the required cooking zone.
– The remaining operating time for the cooking zone selected is dis-
played.
– The indicator light for the cooking zone illuminates.
▸ Use the or button to change the operating time.
17
Page 18
5 Operating the appliance
Switching the operating time function off before time
▸ Press the button.
▸ Touch the slider of the required cooking zone.
▸ Press the and buttons at the same time.
– flashes in the display.
– The cooking zone continues to run.
End of the operating time
When the operating time is up
– the relevant cooking zone switches off
– an acoustic signal is emitted
– and the power level flash.
▸ Press the and button to switch off the acoustic signal and the display.
Several operating times
If operating times are set for several cooking zones,
– the shortest operating time illuminates in the display
– the corresponding cooking zone indicator light illuminates
– the symbol illuminates with the set operating time for each cooking
zone.
To display another operating time:
▸ Press the button.
▸ Touch the slider of the required cooking zone.
– The operating time is displayed and can be changed.
18
Page 19
5 Operating the appliance
5.10 Timer
The timer functions like an egg timer (1 min.–9 h 59 min.).
Setting the timer
▸ Switch the appliance on.
▸ Touch the button.
– The symbol illuminates.
– flashes in the display.
▸ Use the button to increase the duration of the timer or use the but-
ton to reduce the duration of the timer.
– The first time the button is touched, illuminates in the display.
– The first time the button is touched, illuminates in the display.
To quickly change the duration of the timer, press and hold the or
button.
Changing the timer
If no cooking zone is in use, first switch the appliance on.
▸ Press the button.
– The time left on the timer flashes.
▸ Use the or button to change the duration of the timer.
Switching the timer off before time
If no cooking zone is in use, first switch the appliance on.
▸ Press the button.
▸ Press the and buttons at the same time.
– flashes in the display.
19
Page 20
5 Operating the appliance
5.11 Childproof lock
The childproof lock is to prevent the appliance from being accidentally
switched on.
Switching the childproof lock on
▸ Switch the appliance on.
Ensure all cooking zones are switched off.
▸ Touch the and buttons at the same time.
– An acoustic signal is emitted.
▸ Touch the button again.
– An acoustic signal is emitted.
– The childproof lock is now switched on.
– illuminates in all the power level displays for 10seconds.
Operating the appliance with the childproof lock activated
▸ Switch the appliance on.
▸ Touch the and buttons at the same time.
– An acoustic signal is emitted.
– The childproof lock is overridden. The appliance can now be used as
normal.
The childproof lock is automatically activated again after switching off the hob.
Switching the childproof lock off
▸ Switch the appliance on.
Ensure all cooking zones are switched off.
▸ Touch the and buttons at the same time.
– An acoustic signal is emitted.
▸ Touch the button again.
– A double acoustic signal is emitted.
– The childproof lock is now switched off.
– flashes in all the power level displays for 10seconds.
20
Page 21
5 Operating the appliance
5.12 Restore function
If the appliance has been inadvertently switched off with the button, the settings can be restored within 6seconds.
▸ Switch the appliance on.
– The indicator light for the button flashes.
▸ Touch the button.
5.13 Pause cooking
With this function, the power level of all cooking zones that are switched on
can be temporarily reduced to for up to 10minutes.
After pause cooking, the appliance can continue to be operated using the previous settings.
▸ Touch the button.
– The indicator light for the button illuminates.
– The power level of the cooking zone switched on changes to .
– The operating time is interrupted.
– The timer continues to run.
– All buttons except , and are inactive.
If the pause cooking function is not turned off within 10minutes, the
appliance switches off completely.
▸ Touch the button again to resume cooking.
– The cooking zones resume operation using the previous settings.
5.14 Wipe protection
This function prevents the power level from being changed accidentally, for instance when wiping the control panel with a cloth.
▸ Touch the button.
– The indicator light for the button illuminates.
▸ Wipe protection is switched off by touching the button again or automat-
ically after 30seconds.
Press the button to switch the appliance off at any time.
21
Page 22
6 User settings
The following user settings can be set and stored individually:
User setting Setting value Factory
setting
P0
Loudness of
acoustic signal
0 Quiet 2
1 Medium
2 Loud
P1
Acoustic signal at
end of operating
time / timer
0 No acoustic signal 2
1 Automatically off after
10seconds
2 Automatically off after
1minute
P3
Automatic boost 0 Automatic boost off 1
1 Automatic boost on
P4
Default time
operating time /
timer
0 Default time 0minutes 3
1–9 Adjustable in steps from
10–90minutes
P5
Acoustic signal
when buttons are
pressed
0 Acoustic signal off 1
1 Acoustic signal on
P6
Restoring factory
settings
0 Restoring factory settings:
Hold the button
depressed for 2 seconds.
0
22
Page 23
6 User settings
6.1 Changing user settings
▸ With the hob switched off, simultaneously hold the and buttons de-
pressed for 3seconds.
– An acoustic signal is emitted.
▸ Press both left sliders at the same time.
– An acoustic signal is emitted.
– The user setting, e.g. , appears in display 3.
– The current user setting value is shown in display 2.
21 3
▸ Use the button to select the next highest and the button the next low-
est user setting.
▸ Touch or swipe slider 1 to select a higher or lower setting value.
▸ To save entries: Hold the button depressed for 2seconds.
– An acoustic signal is emitted.
– The «User settings» mode is ended.
6.2 Cancelling user settings
▸ Press the button.
– Any changes made to the default values are not saved.
– The «User settings» mode is ended.
23
Page 24
7 Care and maintenance
Clean the appliance only when it has completely cooled down.
Burns hazard!
Always clean the hob after use. This prevents food residue from burning on.
Dried-on or burned-on food residue is harder to clean off.
Use of improper cleaning techniques can result in damage to the markings or
surface.
Avoid cleaning the surface of the glass ceramic hob with abrasive
cleaning agents, scouring pads, wire wool, etc. as it can damage
them. Refer to the homepage for tips on suitable cleaning materials.
▸ Use only a soft cloth or sponge with water and a suitable detergent for
cleaning everyday soiling. Always follow the detergent manufacturer’s instructions for use. Using a detergent with a protective additive is recommended.
▸ Remove stubborn soiling, e.g. boiled-over milk, while still warm using a
glass ceramic hob scraper. Always follow the scraper manufacturer's instructions for use.
▸ Foods with a high sugar content, e.g. marmalade, that boil over should be
removed while still hot using a glass ceramic hob scraper. The surface of
the glass ceramic hob could otherwise become damaged.
▸ Remove melted plastic while still warm using a glass ceramic hob scraper.
The surface of the glass ceramic hob could otherwise become damaged.
▸ Remove limescale stains when cool with a small amount of limescale re-
mover, e.g. vinegar or lemon juice. Then wipe clean with a damp cloth.
24
Page 25
8 Trouble-shooting
What to do if …
… the appliance is not working and all the displays are dark?
Possible cause Solution
▪ The fuse or circuit breaker
for electrical installations
in the home is defective.
▸ Change the fuse.
▸ Reset the circuit breaker.
▪ The fuse or circuit breaker
keeps blowing.
▸ Call Customer Services.
▪ An interruption in the
power supply.
▸ Check the power supply.
... illuminates in the displays?
Possible cause Solution
▪ The childproof lock is
activated.
▸ For operating the appliance with the
childproof lock activated, see «Operating
the appliance» section.
▸ Switch the childproof lock off.
... A continuous acoustic signal is emitted, flashes in a display and the appliance switches off?
Possible cause Solution
▪ A button or a slider was
touched for longer than
10seconds.
▸ Remove object or food that has boiled over.
▸ The appliance can be used again as
normal.
▪ Object (e.g. pan, dish) on
the control panel.
▪ Food boiled over onto the
control panel.
25
Page 26
8 Trouble-shooting
... and flash alternately in the display?
Possible cause Solution
▪ The automatic safety shut-off
was triggered.
▸ Switch the cooking zone back on again
if required.
If a cooking zone has been running for longer without any settings being changed, the appliance switches the cooking zone off automatically, after how much time depends on the power level set.
Power level
L 1 2 3 4
Safety shut-off after hrs.:mins.
2:00 8:30 6:30 5:30 4:30
Power level
5 6 7 8 9
Safety shut-off after hrs.:mins.
3:30 3:00 2:30 2:00 1:30
... flashes in the display?
Possible cause Solution
▪ Excess temperature
protection was triggered.
▸ Allow the cooking zone to cool down.
▸ Check cookware.
... flashes in the display?
Possible cause Solution
▪ An interruption in the power
supply.
▸ Press any button to quit the error
message.
▸ The appliance can be used again as
normal.
… or and a number illuminate in the display?
Possible cause Solution
▪ Internal error occurred. ▸ Note down the error number.
▸ Note down the serial number (FN) of the
appliance. See the identification plate for
this.
▸ Call Customer Services.
26
Page 27
9 Technical data
9.1 Product fiche
In accordance with EU Regulation No. 66/2014
Model number GK 31032
Type designation GK GK35TEPS/C/F
Number of cooking zones 3
Heating technology Radiant cooking zone
Diameter of round cooking
zones
cm 21 15 24
Energy consumption per
cooking zone
Wh/kg 177.2 191.8 179.1
Energy consumption for
hob EC
Wh/kg 180.8
Model number GK 31042
Type designation GK GK55TES/C/F
Number of cooking zones 5
Heating technology Radiant cooking zone
Diameter of round cooking
zones
cm 18 18 24 21 15
Energy consumption per
cooking zone
Wh/kg 186 187.6 179.2 181 186.6
Energy consumption for
hob EC
Wh/kg 184.1
27
Page 28
10 Index
A
Appliance
Switching off....................................... 32
Switching on....................................... 32
Switching on and off......................... 14
Appliance overview ...................................... 11
Appliance-specific safety
precautions ............................................... 6
Automatic boost............................................ 16
Switching off before time ................. 16
Switching on....................................... 16
C
Care and maintenance ................................ 24
Childproof lock .............................................. 20
Operating the appliance with the
childproof lock activated.................. 20
Switching off....................................... 20
Switching on....................................... 20
Connection plate........................................... 10
Cooking zone ......................................... 14, 32
Cookware ....................................................... 13
Energy-efficient cooking................... 13
Suitable cookware............................. 13
D
Disconnection.................................................. 9
Disposal............................................................ 9
Dual ring zone
Switching on and off......................... 15
I
Instructions for use ......................................... 7
M
Model number ................................................. 2
N
Notes............................................................... 30
O
Operating and display elements
Buttons ................................................ 12
Displays............................................... 13
Operating time............................................... 17
Changing ............................................ 17
Finished............................................... 18
Setting ................................................. 17
Several operating times ................... 18
Switching off before time ................. 18
Overview of power levels ............................ 14
P
Packaging ........................................................ 9
Pause cooking............................................... 21
PowerTronic ................................................... 15
Switching off....................................... 15
Switching on....................................... 15
Product family.................................................. 2
Product fiche.................................................. 27
Q
Queries ........................................................... 31
Quick instructions ......................................... 32
R
Residual heat indicator................................ 14
Restore function............................................ 21
S
Safety ................................................................ 9
Safety precautions
General...................................................5
Safety shut-off ................................................ 26
Serial number (FN) ....................................... 10
Service & Support......................................... 31
Service agreement........................................ 31
Switching the dual ring zone on and off
Switching the outer heating ring
off ......................................................... 15
Switching the outer heating ring
on ......................................................... 15
Symbols ............................................................ 4
28
Page 29
10 Index
T
Technical data ............................................... 27
Timer ............................................................... 19
Changing ............................................ 19
Ending before time............................ 19
Setting ................................................. 19
Trouble-shooting ........................................... 25
Type................................................................... 2
U
User settings.................................................. 22
Changing ............................................ 23
Switching off before time ................. 23
Using for the first time.................................. 10
V
Validity............................................................... 2
W
Where is the identification plate?............... 10
Wipe protection ............................................. 21
29
Page 30
30
Notes
Page 31
11 Service & Support
The «Troubleshooting» section provides valuable tips for dealing with minor oper-
ating faults. This saves you the time, effort and potential cost of having to call out
a service technician.
Information on the V-ZUG warranty can be found at www.vzug.com →Service →Warranty information. Please read this information carefully.
Please register your V-ZUG appliance immediately:
▪ online via www.vzug.com →Service →Warranty registration, or
▪ using the enclosed registration card.
This will allow you to take advantage of the best possible support in the event of a fault in
the appliance during the guarantee period. You will require the serial number (FN) and appliance designation to complete the registration process. This information can be found on
the identification plate for your appliance.
My appliance information:
FN:
___________________
Appliance:
_____________________
Always have this appliance information to hand when you contact V-ZUG. Thank you.
The identification plate and connection plate are located on the underside of the hob.
Your repair order
Call the free service number 0800 850 850 to contact your nearest
V-ZUG service centre. You can arrange an onsite visit by us by phone if you wish.
General queries, accessories and service agreement
V-ZUG will be happy to help you with any general administrative or technical queries, to
accept your orders for accessories and spare parts and to inform you about our progress-
ive service agreements. You can contact us by calling Tel. + 41 58 767 67 67 or by going
to our website at www.vzug.com.
31
Page 32
Quick instructions
Please first read the safety precautions in the operating instructions!
To switch appliance on
▸ Hold the button depressed for 1second.
To set a cooking zone
▸ Touch the slider for the required cooking zone or swipe it to set the power
level.
Or:
▸ Touch to heat a large quantity of water quickly.
To switch cooking zone off
▸ Touch on the slider.
To switching appliance off
▸ Touch the button.
V-ZUG Ltd, Industriestrasse 66, CH-6301 Zug
Tel. +41 58 767 67 67, Fax +41 58 767 61 61
[email protected], www.vzug.com
Service Centre: Tel. 0800 850 850
J31032013-R05
Loading...
