V-Zug DW-M12-CSS User Manual

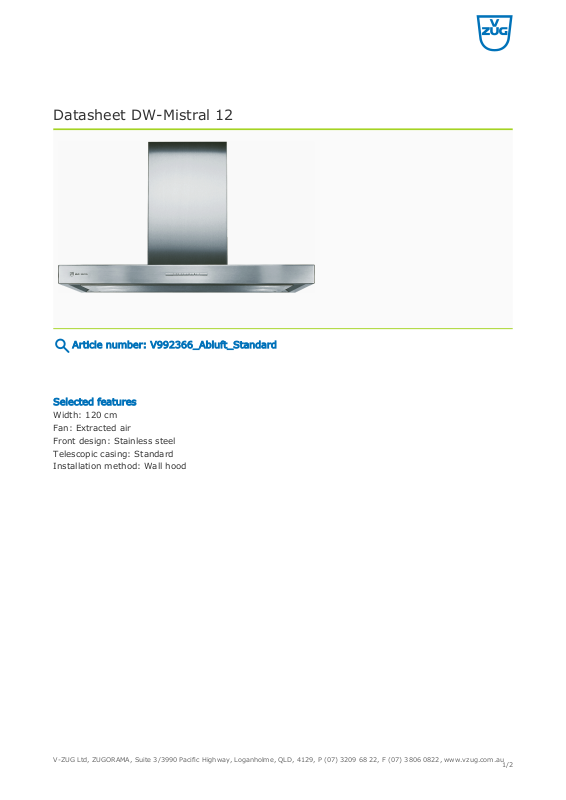

Datasheet DW-Mistral 12

Article number: V992366_Abluft_Standard

Selected features

Width: 120 cm
Fan: Extracted air
Front design: Stainless steel
Telescopic casing: Standard
Installation method: Wall hood

V-ZUG Ltd, ZUGORAMA, Suite 3/3990 Pacific Highway, Loganholme, QLD, 4129, P (07) 3209 68 22, F [phone], www.vzug.com.au

1/2

Details DW-Mistral 12

Range hood features

Metal grease filter: 1­Extracted air­Side exhaust­Halogen spotlights: 4.0­Automatic after-running time­Intensive setting­Grease filter cleaning indicator­Dimmable light­Connection for fresh air/exhaust

­air flap
Connection for window contact

­switch
Power levels: 4­of which: number of intensive

­levels: 1
Fan power level display­Air delivery rate: 825.0 m³/hr­Static pressure: 419.0 pascal­Motor(s): 1­Motor output: 260.0 watt­2-duct radial fans­Electronic control­Noise emission: 40 dB­Good grease absorption­Perfect cooking vapour capture­Easy to clean and operate­Grease filter can be washed in

­the dishwasher
Exhaust air connection

­(diameter): 150.0 mm

Service and interfaces

Warranty: 2 year(s)-

Energy

Voltage: 220-240 volt­Connected loads: 0,64 kilowatt­Fuse protection: 10 ampere-

Dimensions

Appliance width mm: 1200­Appliance depth mm: 550­Empty weight: 42.0 kg-

V-ZUG Ltd, ZUGORAMA, Suite 3/3990 Pacific Highway, Loganholme, QLD, 4129, P (07) 3209 68 22, F [phone], www.vzug.com.au

2/2
