Operating instructions
DKS5i/DKS6i

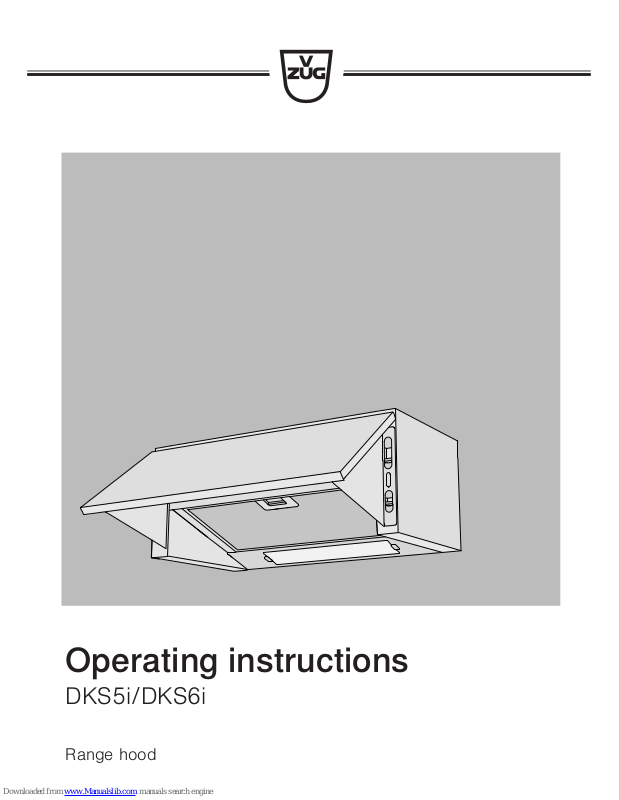

Range hood
Page 2
Thank you for choosing to buy one of our products. Your appliance is made to
high standards and is easy to use. Nevertheless, please take the time to read
these operating instructions in order to familiarise yourself with the appliance
and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance
at the time these operating instructions went to press. The right to make technical modifications for the purpose of the further development of the appliance
is reserved.
Validity
The product family (model number) corresponds to the first alphanumerics on
the identification plate. These operating instructions apply to:
Type
Product family
Size system
DKS5i 61005 55
DKS6i 61006 60
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6301 Zug, 2016
2
Page 3
Contents
1 Safety precautions 4
1.1 Symbols used ........................................................................................................ 4
1.2 General safety precautions ................................................................................. 5
1.3 Before using for the first time ............................................................................. 5
1.4 Correct use............................................................................................................. 6
1.5 Children in the home............................................................................................ 6
1.6 Note on use ........................................................................................................... 7
2 Disposal 9
3 Your appliance 10
3.1 Appliance description ........................................................................................10
3.2 Extraction model .................................................................................................10
3.3 Recirculation model............................................................................................10
3.4 Equipment ............................................................................................................10
3.5 Construction.........................................................................................................11
3.6 Operating elements ............................................................................................11
4 Operating the appliance 12
4.1 Switching the extractor fan on..........................................................................12
4.2 Setting the power level ......................................................................................12
4.3 Switching the illumination on/off ......................................................................12
4.4 Switching the extractor fan off..........................................................................12
5 Care and maintenance 13
5.1 Cleaning the housing .........................................................................................13
5.2 Cleaning the grease filter and inside surfaces..............................................13
5.3 Removing the grease filter ................................................................................14
5.4 Installing the grease filter ..................................................................................14
5.5 Replacing the light bulb.....................................................................................14
6 Trouble-shooting 15
6.1 What to do if ... ....................................................................................................15
7 Accessories and spare parts 16
8 Technical data 17
9 Index 18
10 Service & Support 19
3
Page 4
1 Safety precautions
1.1 Symbols used
Denotes important safety precautions.
Failure to observe said precautions can result in injury or in damage
to the appliance or fittings!
Information and precautions that should be observed.
Information on disposal
Information about the operating instructions
▸ Indicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
▪ Indicates a list.
4
Page 5
1 Safety precautions
1.2 General safety precautions
▪ Read the operating instructions before using the appliance for
the first time!
▪ This appliance can be used by children aged 8 and above
and by persons with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge, provided
they are supervised or have been instructed on the safe use
of the appliance and have understood the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be undertaken by children without supervision.
▪ If an appliance is not equipped with a mains cable and a plug
or other means for disconnecting from the mains with a contact opening on each pole complying with the conditions of
overvoltage category III for full isolation, an isolating device
must be incorporated into the permanently installed electrical
installation in accordance with the installation regulations.
▪ If the mains cable of this appliance is damaged, it must be re-
placed by the manufacturer or its Customer Services or a similarly qualified person in order to avoid hazard.
1.3 Before using for the first time
▪ The appliance must be installed and connected to the electricity supply in
accordance with the separate installation instructions. Have a qualified fitter/
electrician carry out the necessary work.
▪ When extracting fumes, please observe the official regulations.
▪ Dispose of the packaging material in accordance with local regulations.
5
Page 6
1 Safety precautions
1.4 Correct use
▪ The appliance is designed for use in the home for extracting cooking
odours from above a cooking area.
▪ Any repairs, modifications or manipulations to the appliance, especially any
electrically live parts, may only be carried out by the manufacturer, its Customer Services or a similarly qualified person. Repairs if carried out incorrectly could cause serious injury or damage to the appliance and fittings as
well as affect the functioning of the appliance. If the appliance is not working properly or in case of a repair order, follow the instructions given in the
'Service & Support' section. If necessary, please contact our Customer Services.
▪ Use original spare parts only.
▪ Retain these operating instructions for future reference. If you sell the appli-
ance or pass it on to a third party, please ensure these operating instructions accompany the appliance, together with the instructions on installation.
In this way, the new owner can inform themselves about how to use the appliance correctly and read the pertinent safety precautions.
1.5 Children in the home
▪ Packaging material, e.g. plastic film and polystyrene, can be dangerous for
children. Danger of suffocation! Keep packaging material away from children.
▪ The appliance is designed for use by adults who are familiar with these op-
erating instructions. Children are often unable to recognize the danger of
electrical appliances. Ensure proper supervision and do not allow children
to play with the appliance – there is a danger that children could hurt themselves.
6
Page 7
1 Safety precautions
1.6 Note on use
▪ If the appliance is visibly damaged, do not use it. Contact our Customer
Services.
▪ If the appliance is not functioning properly, disconnect it from the power
supply immediately.
▪ If the mains cable of the appliance is damaged, it must be replaced by Cus-
tomer Services in order to avoid hazard.
▪ Caution: Accessible parts may become hot when used with cooking appli-
ances.
▪ Make sure the room is adequately ventilated when operating the range
hood at the same time as other appliances that burn gas or other fuels.
▪ Do not flambé food underneath the appliance. Metal grease filters if laden
with grease could catch fire.
▪ When frying on the cooking surface, do not leave the appliance unattended.
The cooking oil in the frying appliance could overheat and catch fire. Constantly monitor the temperature of the cooking oil, keeping it below the temperature at which it can catch fire. Change the cooking oil regularly – dirty
oil catches fire more easily than clean oil.
▪ Observe the cleaning intervals. Failure to do so can increase the fire hazard
due to the build-up of grease in the metal grease filters.
▪ Do not operate the individual cooking zones of the cooking surface without
a pan on them or with an empty pan on them so as to avoid damaging the
appliance or the kitchen fittings through a build-up of heat. Avoid open fires
with oil, gas, wood and coal fired cookers.
▪ Ensure there is adequate ventilation when the extractor fan is on so as to
avoid creating a disturbing underpressure in the kitchen and to achieve optimal air extraction.
▪ Avoid a cross-current of air, which could blow the cooking vapours over the
cooking area.
▪ If other appliances – fuelled by gas or other fuels – are being used at the
same time, ensure that there is a sufficient supply of fresh air. This does not
apply to air recirculation appliances.
▪ If other firing systems are being used at the same time (e.g. wood, gas, oil
or coal fired heating appliances), safe operation is only possible providing a
room negative pressure of 4Pa (0.04mbar) is not exceeded at the location
of the appliance. Risk of toxic fumes! An adequate flow of fresh air must be
guaranteed e.g. via non-closable openings in doors or windows and in combination with an air-intake/exhaust-air wall box or by other technical means.
7
Page 8
1 Safety precautions
▪ When carrying out maintenance work on the appliance, including replacing
the light bulb, cut off the electricity supply to the appliance: remove the
screw fuse from the holder or switch the circuit breaker off, or disconnect
from the mains supply.
▪ When cleaning the appliance make sure no water gets inside the appliance.
Use a moderately damp cloth. Do not spray the inside or outside of the appliance with water. Do not use a steam cleaner. If water gets inside the appliance, it can cause damage.
8
Page 9
2 Disposal
Packaging
▪ All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS))
are marked and should, if possible, be collected for recycling and disposed
of in an environmentally friendly way.
Disconnection
▪ Disconnect the appliance from the mains. With a fixed appliance, this is to
be carried out by a qualified electrician!
Safety
▪ Disable the appliance to prevent accidents caused by improper use, espe-
cially through children playing.
▪ Pull the plug out of the mains socket or have the appliance disconnected
from the mains by an electrician. Then cut the mains cable off flush with the
appliance.
Disposal
▪ The old appliance should not be discarded as worthless rubbish. If dis-
posed of correctly, the raw materials can be recovered for recycling.
▪ The symbol on the identification plate warns that the appliance may not
be disposed of in normal household waste.
▪ The appliance must be disposed of in accordance with local regulations on
waste disposal. For more information on the handling, disposal and recycling of the product, please contact the local authorities, the local recycling
facilities for household waste or the retailer from whom you purchased the
appliance.
9
Page 10
3 Your appliance
3.1 Appliance description
The appliance is for ventilating a cooking area and is typically built into the
wall unit. This particular model can be used in the extraction mode as well as
in the recirculation mode.
3.2 Extraction model
The integrated fan extracts cooking fumes and smells from above the cooking
surface. The metal grease filters clean the air, which is ducted outside.
When in use, ensure there is a sufficient supply of fresh air. Exhaust
air requires intake air.
The saturation indicator for the activated charcoal filter must be deactivated.
3.3 Recirculation model
Using a LRC1 air recycling cassette
The appliance draws the odours from the cooking area through the grease filter, which retains the grease particles. The air is then blown via a pipeline
through the air recycling cassette. The latter has an activated charcoal filter
which removes odours from the air. The cleaned air is then blown aerodynamically back into the room through the air outlet grille.

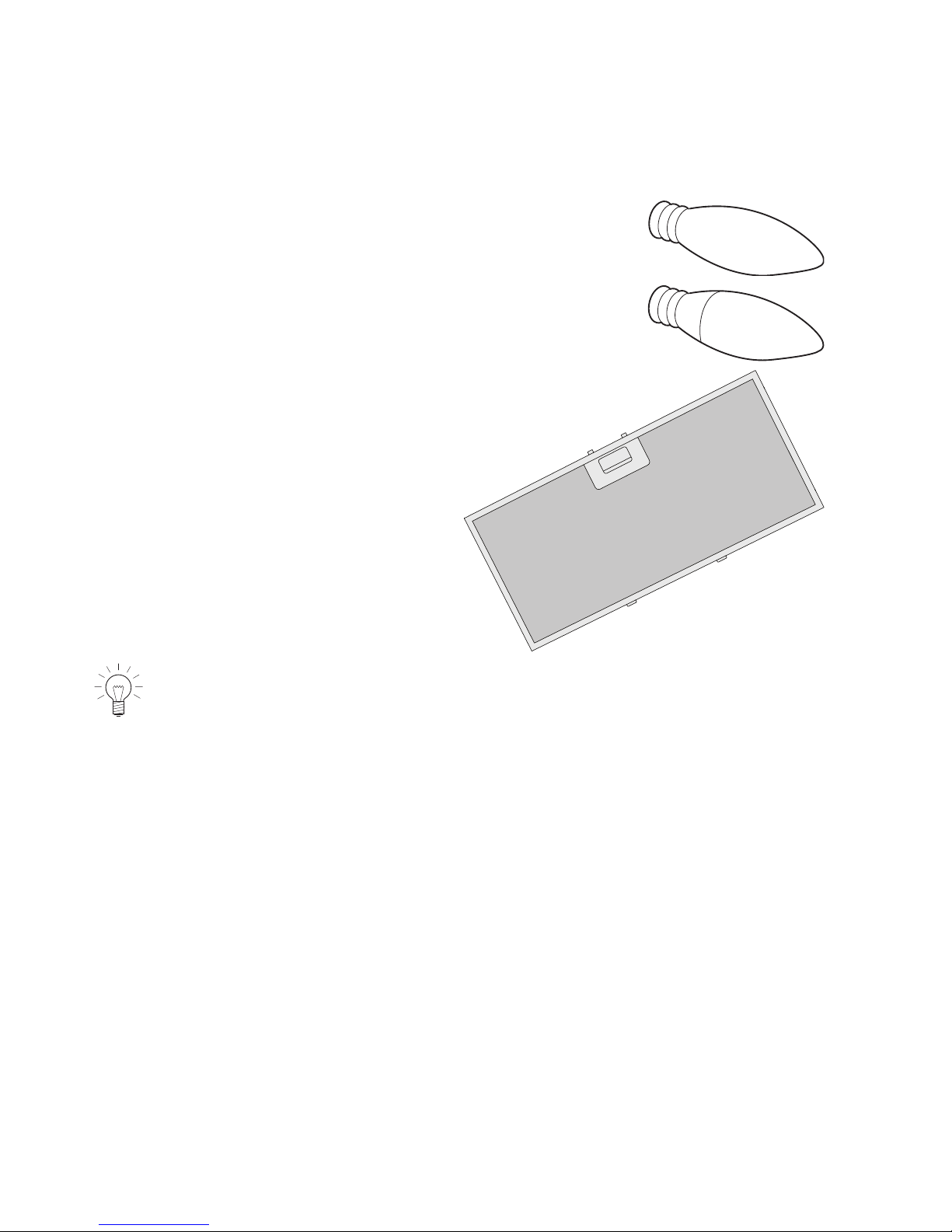

3.4 Equipment
▪ 1 extractor fan
▪ Illumination
▪ 1 grease filter
10
Page 11
3 Your appliance

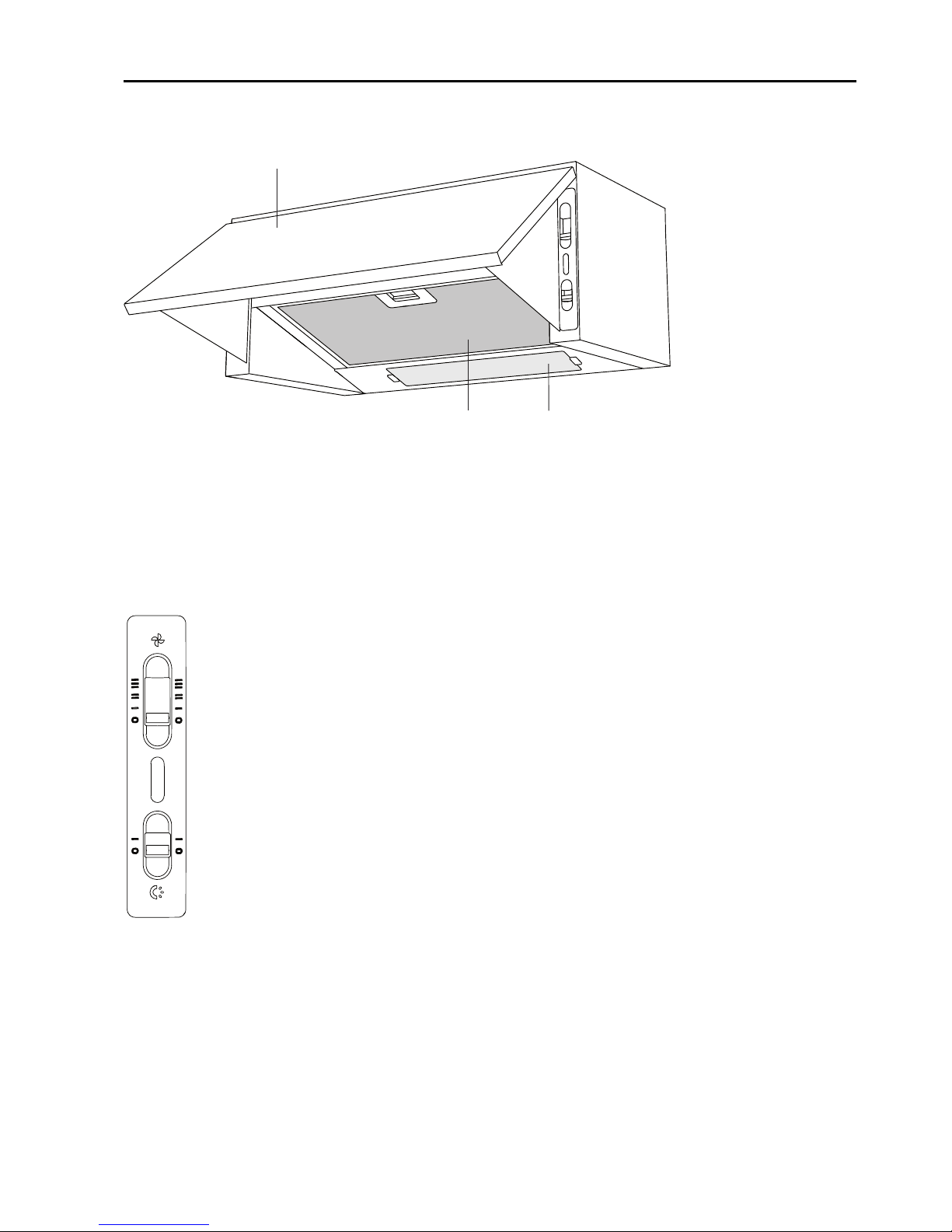

3.5 Construction
1
2
3
1
Hood flap
2
Grease filter with stable metal frame
3
Illumination
3.6 Operating elements
Power level switch
Illumination switch
11
Page 12
4 Operating the appliance

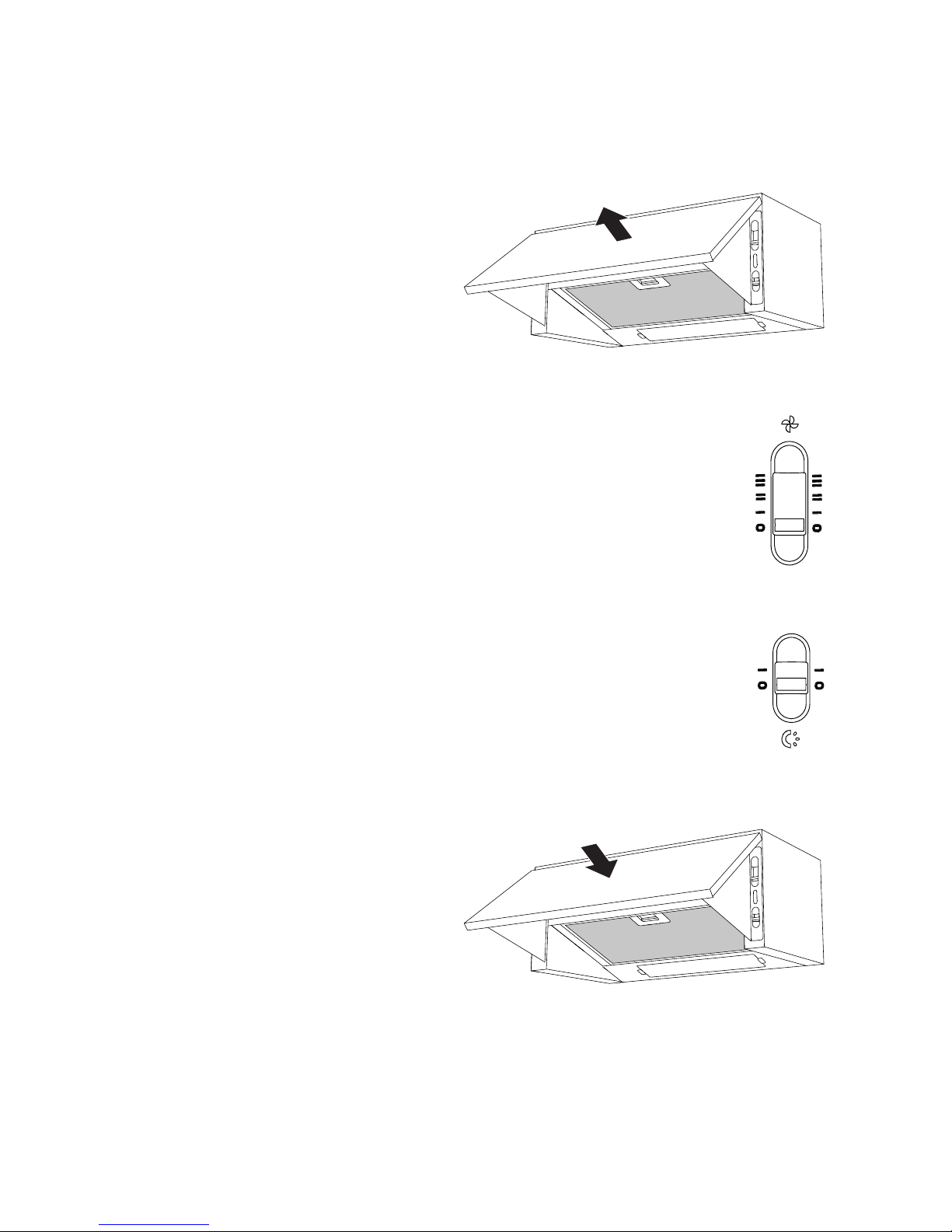

4.1 Switching the extractor fan on
▸ Swing the hood flap out.
– The extractor fan switches on.
4.2 Setting the power level
▸ Use the power level switch to set
the desired power level.
4.3 Switching the illumination on/off
▸ Set the illumination switch to on or
off.
4.4 Switching the extractor fan off
▸ Swing the hood flap in.
– The extractor fan switches off.
12
Page 13
5 Care and maintenance
5.1 Cleaning the housing
Take care that no water gets into the housing of the appliance! If water gets into the housing, it can cause damage.
Do not use abrasive cleaners, scouring pads, steel wool, etc. for
cleaning, as they can damage the surface. Remove the screw fuse or
switch off the circuit breaker.
Cleaning the outside/inside
▸ Clean the outside using a slightly damp cloth – and detergent if necessary
– and wipe dry.
Grease and condensate water can build up on the inside next to the metal
grease filters.
▸ Clean using a slightly damp cloth – and detergent if necessary – and wipe
dry.
5.2 Cleaning the grease filter and inside surfaces
The inside surfaces of the appliance and the grease filter must be cleaned
regularly (after about 40 to 80 operating hours depending on conditions of
use).
13
Page 14
5 Care and maintenance
5.3 Removing the grease filter

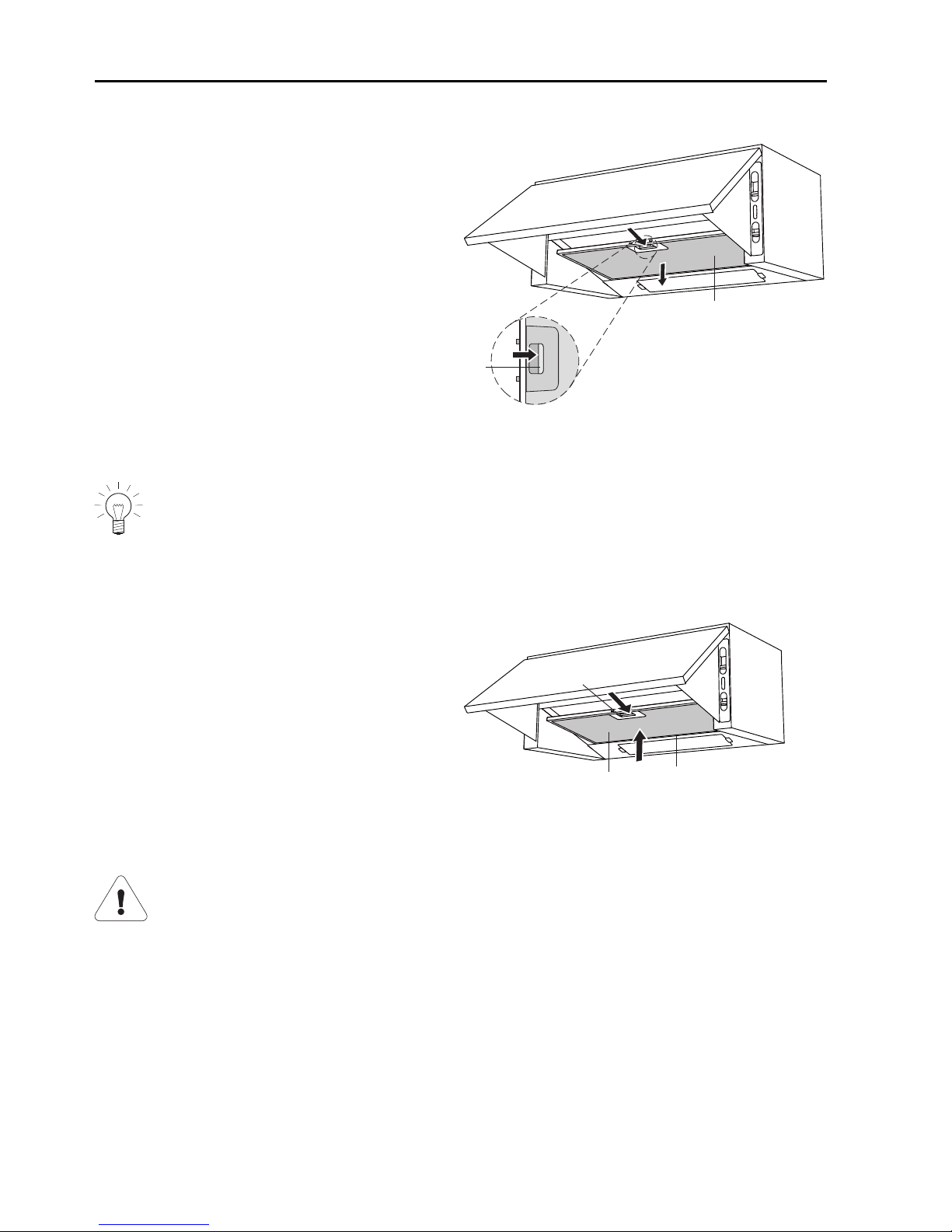

▸ Swing the hood flap out and switch
the appliance off.
▸ Push the grip 5 on the grease filter
4
back.
– This releases the grease filter.
▸ Remove the grease filter from the
fixture.
▸ Clean the grease filter in the sink
with hot water and detergent or on
its own in the dishwasher.
4
5
Select an «intensive» – or «heavy» – wash programme with a warm
pre-wash. Cleaning may cause the grease filter to become discoloured. This will not affect the functioning of the filter in any way.
5.4 Installing the grease filter
▸ Insert the grease filter 4 into the fix-
ture at the back 6.
▸ Push the grip 5 on the grease filter
4
back. Swing the filter up into the
fixture and engage.
▸ Ensure that the grease filter is sit-
ting in the fixture correctly.
4
5
6
5.5 Replacing the light bulb
Remove the screw fuse or switch the circuit breaker off.
Light bulbs get hot during operation! Allow to cool down first.
▸ Remove the grease filter (see point 5.3).
▸ Unscrew the light bulb from the fixture and replace it with a new light bulb of
the same type (see designation on the light bulb housing or on the identification plate).
▸ Install the grease filter (see point 5.4).
14
Page 15
6 Trouble-shooting
6.1 What to do if ...
… the illumination is not working
Possible cause Solution
▪ Fuse or automatic circuit breaker
for electrical installations in the
home is defective.
▸ Change the fuse.
▸ Reset the automatic circuit breaker.
▪ An interruption in the mains power
supply.
▸ Check the mains power supply.
▪ The light bulb is faulty. ▸ Replace the light bulb.
… the appliance is not ventilating adequately
Possible cause Solution
▪ The grease filter is dirty. ▸ Clean the grease filter.
15
Page 16
7 Accessories and spare parts
Please give model number of the appliance and exact description of the accessory or spare part when ordering parts.
Halogene light bulb (230 V / 28 W)
LED light bulb (230 V / 3 W)
Grease filter
The light bulb is also available from specialist retailers.
16
Page 17
8 Technical data
Electrical connection
▸ See identification plate.
▸ Remove the metal grease filters.
– The identification plate is located on the inside of the appliance.
17
Page 18
9 Index
C
Care................................................................. 13
Children in the home...................................... 6
Cleaning
Housing ............................................... 13
D
Disconnection.................................................. 9
Disposal............................................................ 9
E
Electrical connection .................................... 17
Extraction model ........................................... 10
I
Identification plate......................................... 17
M
Model number ................................................. 2
O
Operating elements ...................................... 11
P
Packaging ........................................................ 9
Product family.................................................. 2
Q
Queries ........................................................... 19
S
Safety ................................................................ 9
Safety precautions
Before using for the first time ............5
Children in the home ...........................6
Correct use............................................6
General...................................................5
Note on use...........................................7
Service & Support......................................... 19
Service agreement........................................ 19
Symbols ............................................................ 4
T
Technical data ............................................... 17
Type................................................................... 2
V
Validity............................................................... 2
18
Page 19
10 Service & Support
The «Troubleshooting» section provides valuable tips for dealing with minor oper-
ating faults. This saves you the time, effort and potential cost of having to call out
a service technician.
Information on the V-ZUG warranty can be found at www.vzug.com →Service →Warranty information. Please read this information carefully.
Please register your V-ZUG appliance immediately:
▪ online via www.vzug.com →Service →Warranty registration, or
▪ using the enclosed registration card.
This will allow you to take advantage of the best possible support in the event of a fault in
the appliance during the guarantee period. You will require the serial number (FN) and appliance designation to complete the registration process. This information can be found on
the identification plate for your appliance.
My appliance information:
FN:
___________________
Appliance:
_____________________
Always have this appliance information to hand when you contact V-ZUG. Thank you.
▸ Remove the metal grease filter.
– The identification plate is located on the inside of the appliance.
Your repair order
Call the free service number 0800 850 850 to contact your nearest
V-ZUG service centre. You can arrange an onsite visit by us by phone if you wish.
General queries, accessories and service agreement
V-ZUG will be happy to help you with any general administrative or technical queries, to
accept your orders for accessories and spare parts and to inform you about our progress-
ive service agreements. You can contact us by calling Tel. + 41 58 767 67 67 or by going
to our website at www.vzug.com.
19
Page 20

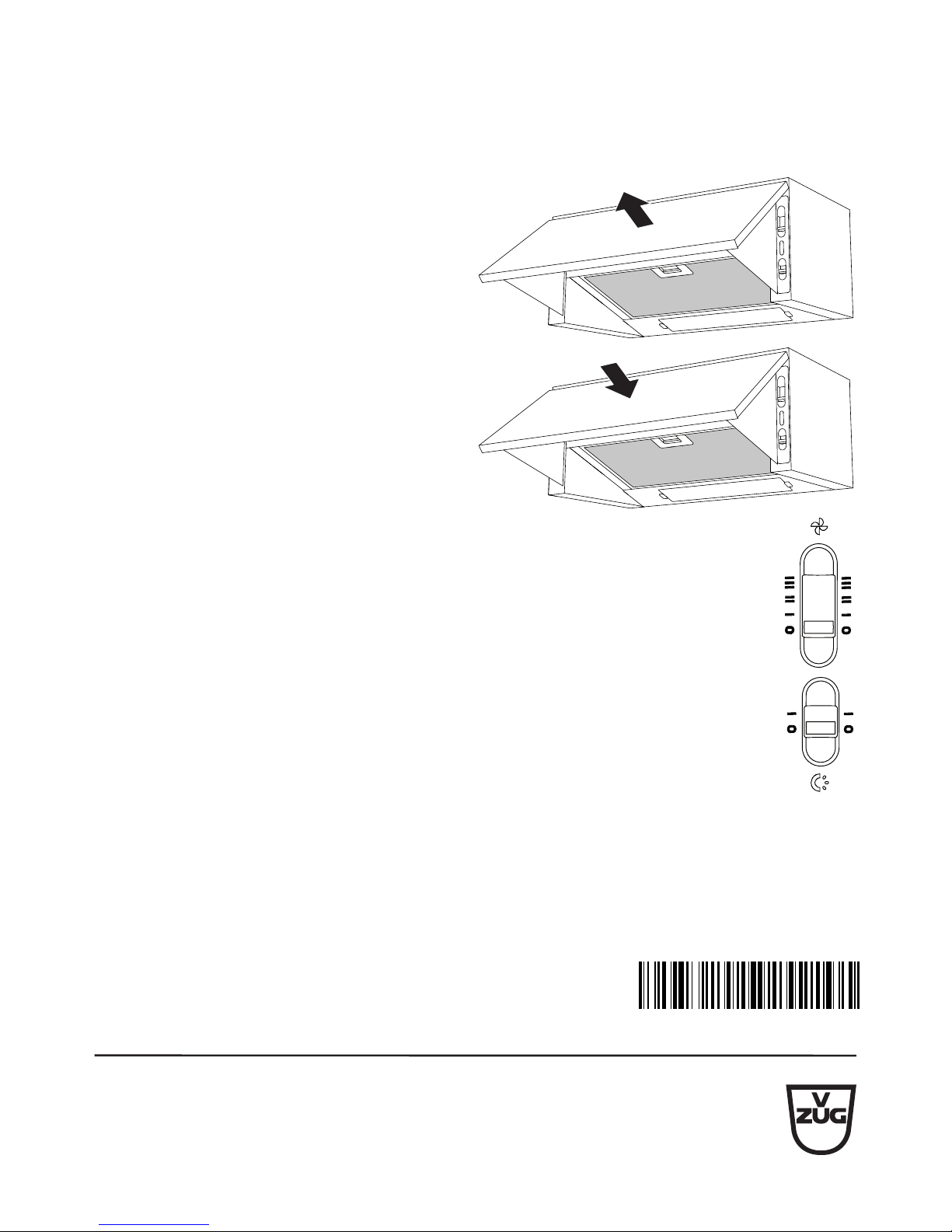

Quick instructions
Please first read the safety precautions in the operating instructions!
To switch the extractor fan on
▸ Swing the hood flap out.
To switch the extractor fan off
▸ Swing the hood flap in.
To set the power level
▸ Use the power level switch to set the
desired power level.
To switch the illumination on/off
▸ Set the illumination switch to on or
off.
V-ZUG Ltd, Industriestrasse 66, CH-6301 Zug
Tel. +41 58 767 67 67, Fax +41 58 767 61 61
[email protected], www.vzug.com
Service Centre: Tel. 0800 850 850
J61005013-R02
Loading...
