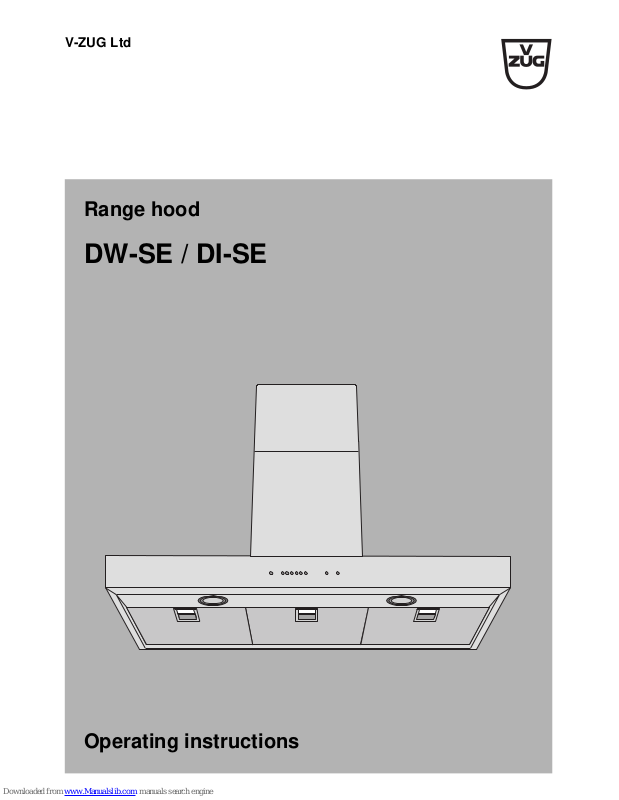

V-ZUG DW-SE series, DI-SE series, DW-SE7, DI-SE10, DI-SE12 Operating Instructions Manual
...Page 1
Range hood
DW-SE / DI-SE
Operating instructions
V-ZUG Ltd
Page 2
2
Thank you for choosing to buy one of our products. Your appliance is made
to high standards and is easy to use. Nevertheless, please take the time to
read these operating instructions in order to familiarize yourself with the
appliance and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the
appliance at the time these operating instructions went to press. The right to
make technical modifications for the purpose of the further development of
the appliance is reserved.
Symbols used
A Indicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
䡲 Indicates a list.
Validity
The model number corresponds to the first 3 digits on the identification plate.
These operating instructions apply to the models:
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6301 Zug, 2010
Denotes important safety precautions. Failure to observe said
precautions can result in injury or damage to the appliance or
fittings!
Denotes useful tips for the user.
Type Model no. Size system Type Model no. Size system
DW-SE7 988 70 DI-SE10 393 100
DW-SE9 386 90 DI-SE12 394 120
DW-SE12 390 120
Page 3
3
Contents
Safety precautions 4
Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . 4
Correct use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Children in the home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Note on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Appliance description 8
Extraction model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Recirculation model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operating and display elements . . . . . . . . . . . . . . . . . . . . . 11
Use 12
Care and maintenance 14
Cleaning the housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning the grease filters . . . . . . . . . . . . . . . . . . . . . . . . . 15

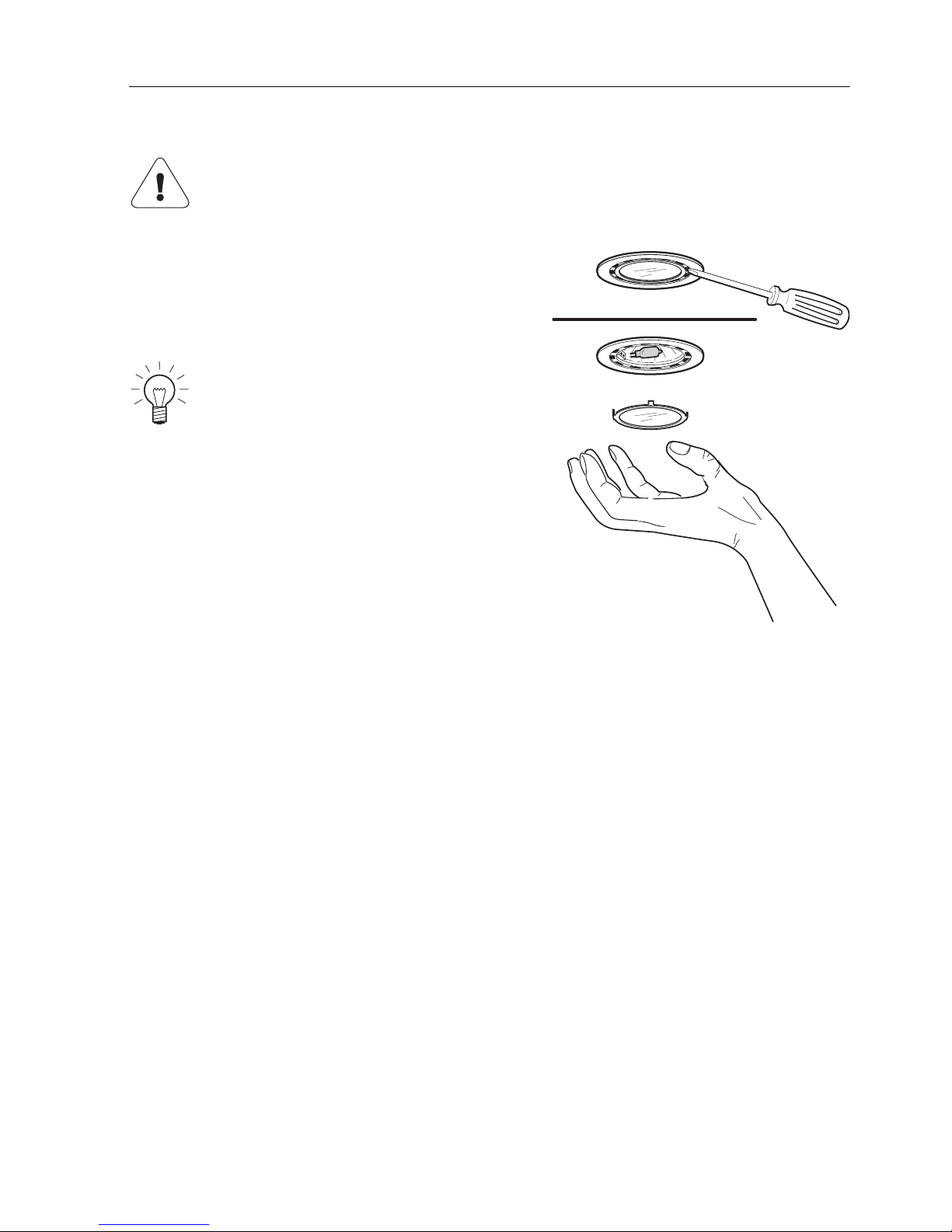

Changing the halogen light . . . . . . . . . . . . . . . . . . . . . . . . . 17

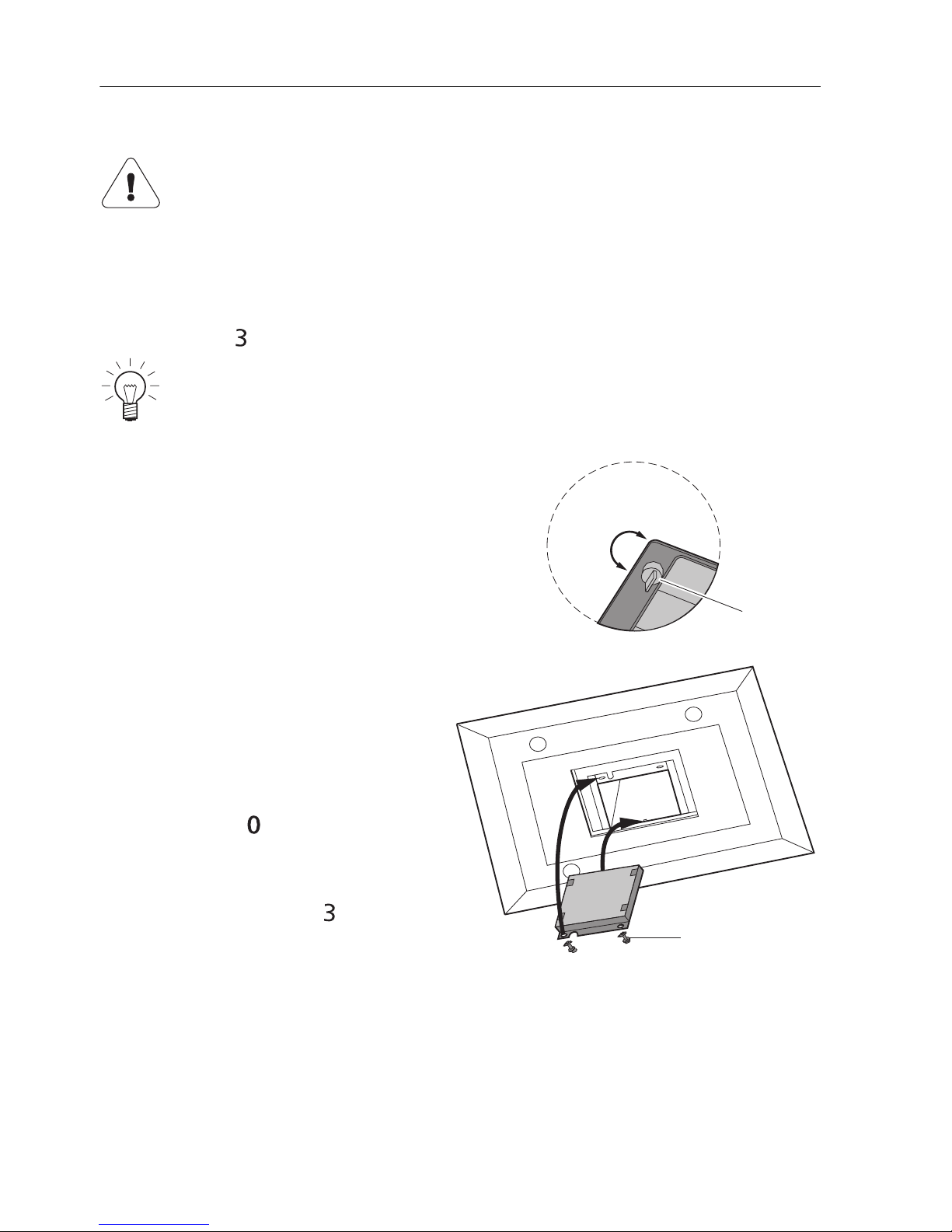

Changing the standard activated charcoal filter . . . . . . . . . 18

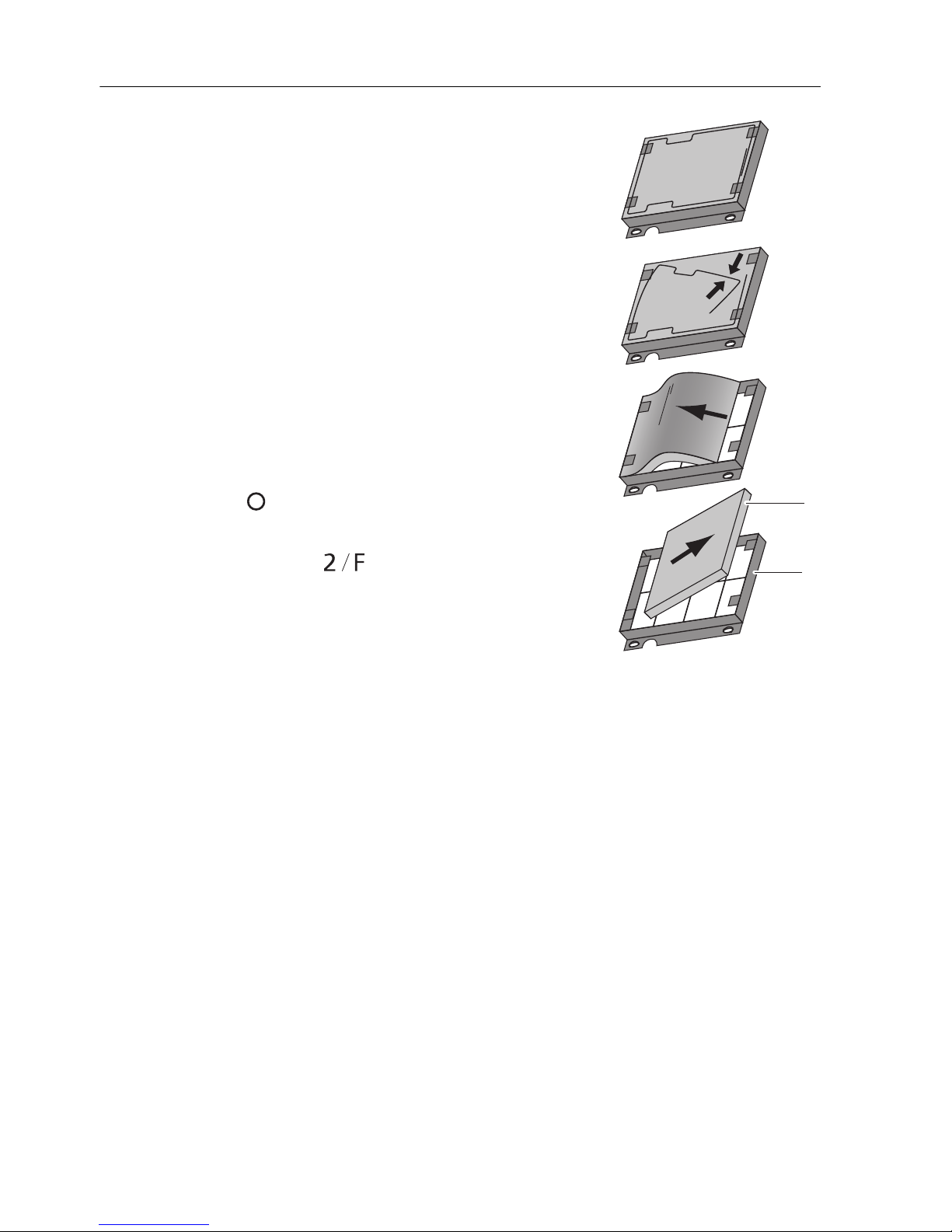

Cleaning and changing the long-life activated
charcoal filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Trouble-shooting 21
What to do if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

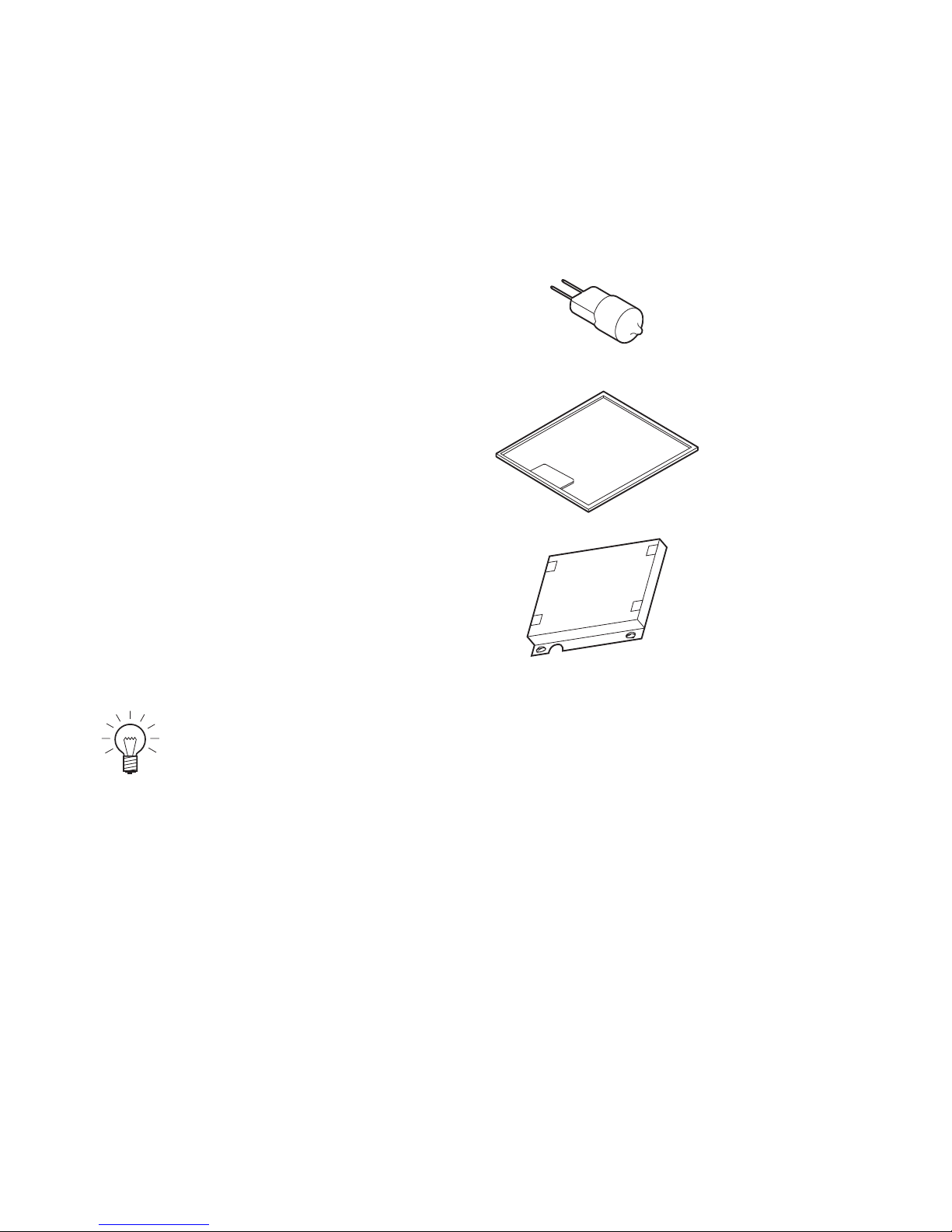

Accessories and spare parts 22
Technical data 23
Disposal 24
Index 25
Repair service 27

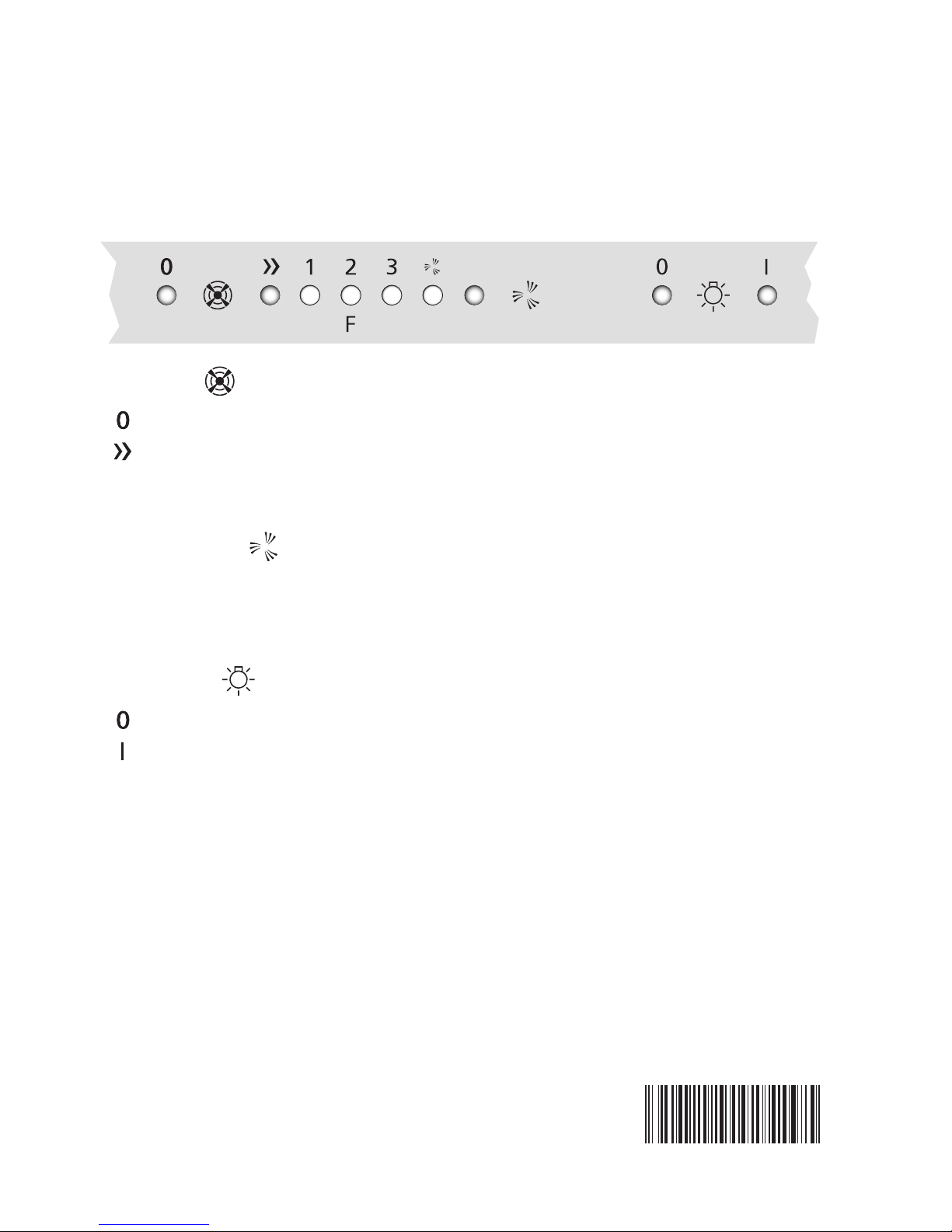

Quick instructions 28
Page 4
4
Safety precautions
In accordance with the requirements of IEC 60335-1:
䡲 This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless supervised or unless they have been given instruction
concerning the use of the appliance by a person responsible for their
safety.
Before using for the first time
䡲 The appliance must be installed and connected up to the electricity supply
according to the separate installation instructions. The necessary work
should be carried out by a qualified fitter or electrician.
䡲 Dispose of the packaging material in accordance with local regulations.
The appliance corresponds to recognised technology standards
and the relevant safety regulations. Proper use of the appliance is
however essential to avoid damage and accidents. Please therefore follow the precautions given in these operating instructions.
Page 5
… Safety precautions
5
Correct use
䡲 The appliance is designed for use in the home for extracting cooking fumes
and smells from above the cooking surface.
䡲 Any repairs, modifications or manipulations to the appliance, especially
any electrically live parts, should only be carried out by the manufacturer,
its Customer Services or similarly qualified persons. Repairs if carried out
incorrectly may cause serious injury, damage to the appliance and fittings,
as well as affect the functioning of the appliance. If the appliance is not
working properly or in case of a repair order, follow the instructions given
in the 'Repair service' section. Please contact our Customer Services if
necessary.
䡲 Use original spare parts only.
䡲 Retain these operating instructions for future reference. If you sell or pass
the appliance on to a third party, please ensure these operating instructions, together with the installation instructions, accompany the appliance.
In this way, the new owner can inform themselves about how to use the
appliance correctly and read the pertinent safety precautions.
Children in the home
䡲 Packaging material e.g. plastic and polystyrene can be dangerous for
children. Danger of suffocation! Please keep packaging material away from
children.
䡲 The appliance is designed for use by adults who are familiar with these
operating instructions. Children are often unable to recognise the danger
of electrical appliances. Ensure proper supervision and do not allow
children to play with the appliance – there is a danger that children could
hurt themselves.
Page 6
… Safety precautions
6
Note on use
䡲 If the appliance is visibly damaged, do not use it. Contact our Customer
Services.
䡲 If the appliance is not operating properly, disconnect it from the electricity
supply immediately.
䡲 Caution: Accessible parts may become hot when used with cooking
appliances.
䡲 Do not flambé food underneath the hood as the grease filters if laden with
grease could catch fire.
䡲 If frying on the cooking surface, do not leave the frying appliance unattend-
ed. The cooking oil in the frying appliance could overheat and catch fire.
Constantly monitor the temperature of the cooking oil, keeping it below the
temperature at which it can catch fire. Change the cooking oil regularly –
dirty oil catches fire more easily than clean oil.
䡲 Clean the filters regularly. Failure to do so can increase the fire hazard due
to the build-up of grease in the grease filter.
䡲 Do not operate the individual cooking zones of the cooking surface without
a pan on them or with an empty pan on them so as to avoid damaging the
appliance or the kitchen fittings through a build-up of heat. Avoid open fires
with oil, gas, wood and coal fired cookers.
䡲 Ensure there is adequate ventilation when the extraction fan is on so as to
avoid creating a disturbing underpressure in the kitchen and to achieve
optimal air extraction.
䡲 Avoid a cross-current of air, which could blow the cooking vapours over
the cooking area.
Page 7
… Safety precautions
7
䡲
If other appliances – fuelled by gas or other fuels – are being used at the
same time, ensure that there is a sufficient supply of fresh air. This does
not apply to air recirculation appliances.
䡲 If other firing systems are being used at the same time (e.g. wood, gas, oil
or coal-fired heating appliances), safe operation is only possible providing
a room negative pressure of 4 Pa (0.04 mbar) is not exceeded at the location of the appliance. Risk of toxic fumes! An adequate flow of fresh air
must be guaranteed e.g. via non-closable openings in doors or windows
and in combination with an air-intake/exhaust-air wall box or by other technical means.
䡲 When carrying out maintenance work on the appliance, including replacing
the light bulb, cut off the electricity supply to the appliance (remove the
screw fuse from the holder or switch the circuit breaker off, or disconnect
from the mains supply).
䡲 When cleaning the appliance make sure no water gets inside the appli-
ance. Use a moderately damp cloth. Do not spray the inside or outside of
the appliance with water. Do not use a steam cleaner. If water gets inside
the appliance, it can cause damage.
Page 8
8
Appliance description
The appliance is designed to extract cooking fumes and smells from the
cooking area.
This particular model can be used to extract or recirculate air.
Extraction model
The integrated fan extracts cooking fumes and smells from above the
cooking surface. The air is cleaned through the grease filters and then fed
through the exhaust air conduit to the outside.
Recirculation model
The fumes over the hob are largely removed by the metal grease filter through
activated charcoal and then recirculated back into the room through the side
air slits in the hood.
When the appliance is in use, ensure there is a sufficient supply of
fresh air to replace the air that is being extracted.
If the appliance is not equipped with an activated charcoal filter, one
should be ordered and installed prior to initial use. In addition, the
saturation indicator for the activated charcoal filter must be activated.
Page 9
… Appliance description
9
Equipment
䡲 1Extractor fan
䡲 Illumination
䡲 2, 3 or 4 metal grease filters
䡲 1 activated charcoal filter (only for recirculation mode, not included in
scope of delivery)
The extractor fan has four power levels
䡲 1 = low, 2 = medium, 3 = high power and the intensive level.
䡲 Levels 1–3 are suitable for continuous operation.
䡲 The intensive level is used for brief, intensive extraction of fumes, e.g. when
searing. The intensive level can be run for five minutes.
Page 10
… Appliance description
10

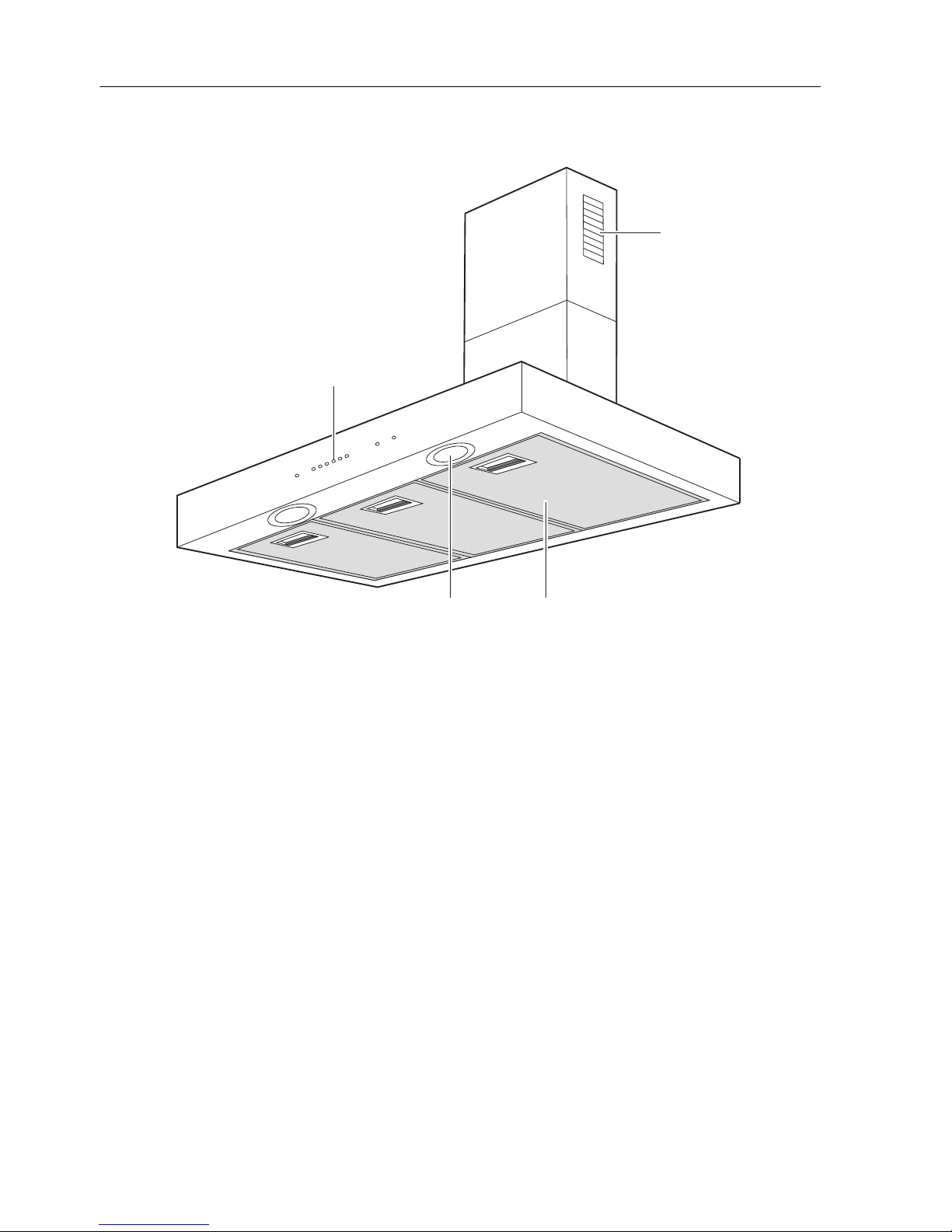

Construction
1 Operating elements
2 Metal grease filter
3 Illumination
4 Air recirculation with recirculation model
1
32
4
Page 11
… Appliance description
11

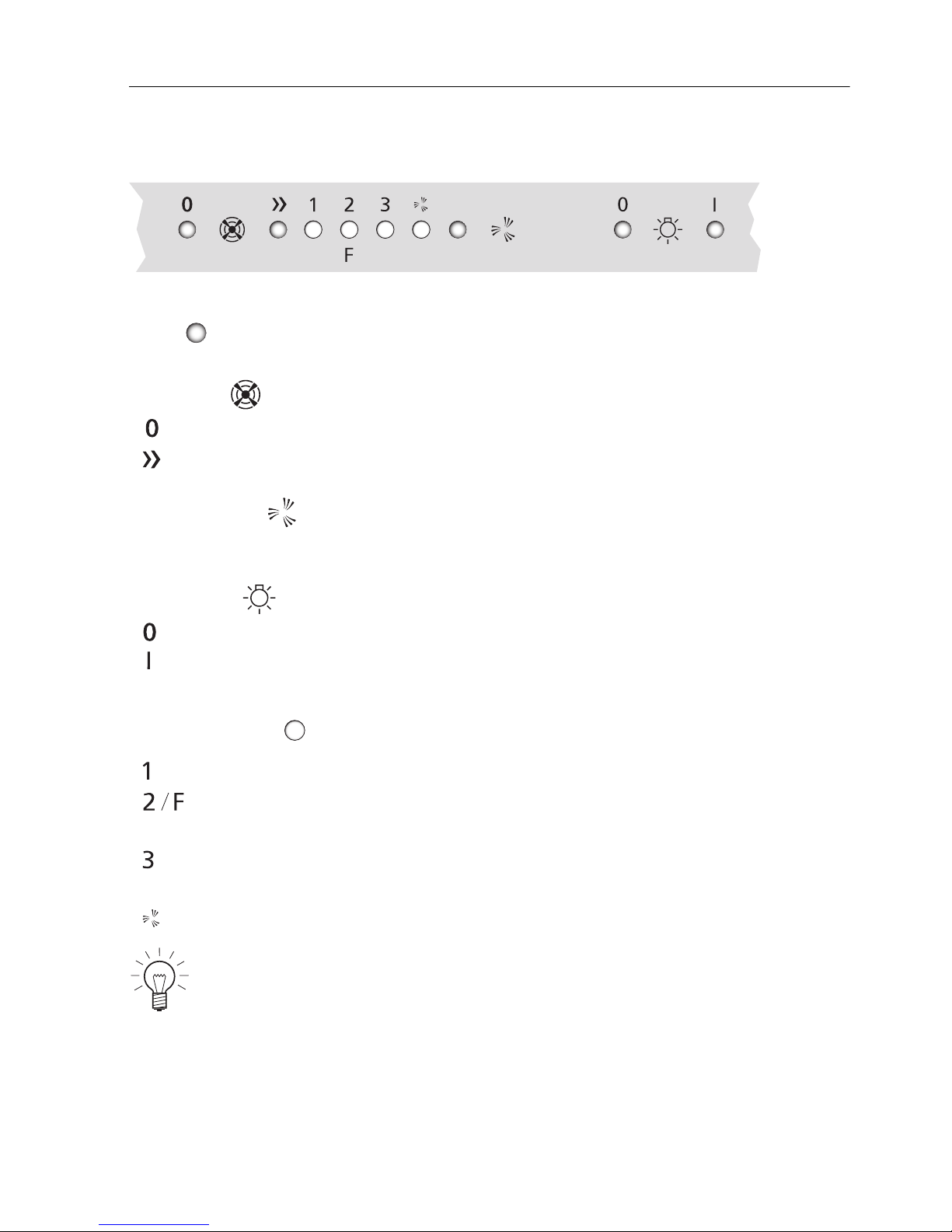

Operating and display elements
Keys
Indicator lights
Operation
Switching off / resetting saturation indicator
Switching on / power level
Intensive level
Intensive level
Illumination
Off
On
Extraction level 1
Extraction level 2 / saturation indicator for metal grease filter
and long-life activated charcoal filter
Extraction level 3 / saturation indicator for standard activated
charcoal filter
Intensive level
Depending on the model and features, the specification of the
appliance may differ from the standard specification described herein.
Page 12
12
Use
Switching the appliance on / Selecting the power level
A Pressing the button switches the appliance on at power level 1.
A To select power levels 2 or 3, repeatedly press the button.
– The indicator light shows which power level is currently being used.
Intensive level
A Press the button to switch the intensive level on for 5 minutes.
– After this time has elapsed, the appliance switches back to the
previously selected extraction level. If no extraction level was selected,
the appliance switches off.
– The indicator light shows that the intensive level is activated.
A Press the or button to stop the intensive level before the 5 minutes is
up.
Switching off the appliance
A Press the button to switch off the extraction functions.
We recommend switching the appliance on at power level 1 some
5 minutes before cooking. After you have finished cooking, allow the
appliance to run for another 15 minutes. Use a low power level for
normal cooking fumes and a higher power level for very strong
cooking fumes and smells.
After you have finished cooking, allow the appliance to run for another
15 minutes so that the cooking smells can be extracted.
Page 13
… Use
13
Illumination
A Use the and button to switch the illumination off or on.
Saturation indicator for metal grease filter and long-life activated charcoal
filter
The indicator light flashes after 40 operating hours. The saturation level
has been reached and the grease filter must be cleaned.
Saturation indicator for standard activated charcoal filter
The indicator light flashes after 160 operating hours. The saturation level
has been reached and the standard activated charcoal filter must be
replaced.
To activate the saturation indicator
A To activate the saturation indicator, depress the and buttons at the
same time for 3 seconds.
– The indicator light flashes.
– After 3 seconds the indicator light flashes.
– The saturation indicator is activated.
To deactivate the saturation indicator
A To deactivate the saturation indicator, depress the and buttons at the
same time again.
– After 3 seconds the indicator light flashes.
– The saturation indicator is deactivated.
The illumination can be used on its own.
The saturation indicator is deactivated at the factory. If the appliance
is being used as a recirculation model, the saturation indicator must
first be activated.
Page 14
14
Care and maintenance
Cleaning the housing
Cleaning the outside / inside
A Clean the outside using a slightly damp cloth – and detergent if necessary
– and wipe dry.
Grease and condensate water can build up on the inside next to the grease
filters.
A Clean using a slightly damp cloth – and detergent if necessary – and wipe
dry.
Take care that no water gets into the housing of the appliance! If
water gets into the housing, it can cause damage.
Do not use abrasive cleaners, scouring pads, steel wool, etc. as
they can damage the surface.
Page 15
… Care and maintenance
15
Cleaning the grease filters
The grease filters should be cleaned at least once a month with normal use
or whenever the indicator light flashes. If properly cared for, the grease
filters should provide unlimited years of service.
A The grease filters can be cleaned in a dishwasher.
A Select an «intensive» – or «heavy soil» – wash programme with a warm
pre-wash.
If you do not have a dishwasher:
A Clean the grease filters in the sink with hot water and detergent.
A Then soak the filters in hot water in the sink for about 2 hours and finally
clean with a washing-up brush.
Cleaning may cause the grease filters to become discoloured. However, this will not affect the functioning of the filter in any way.
Page 16
… Care and maintenance
16

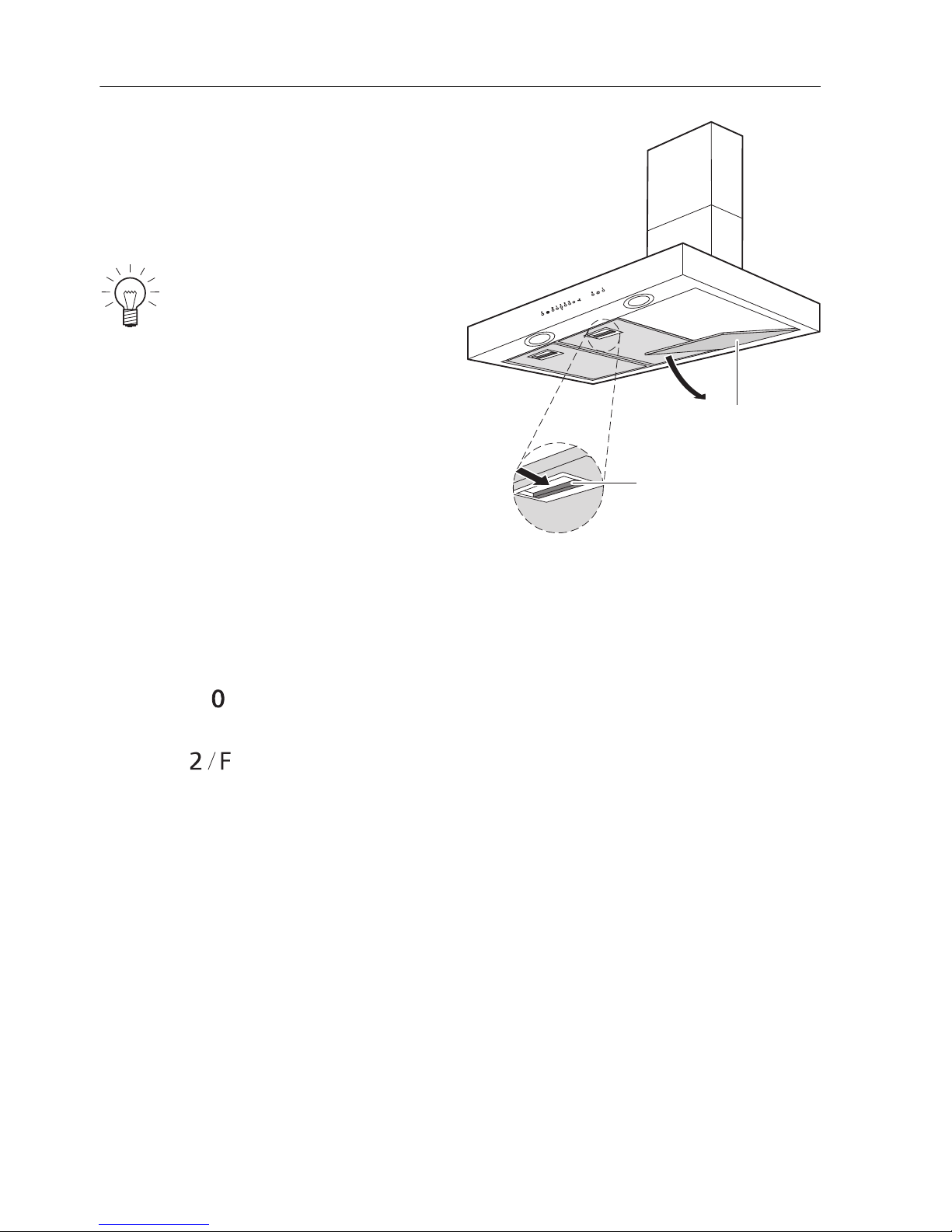

Removing the grease filters
A Press back the grip 2 on the
grease filter 1.
A Carefully pull the grease filter down
and out of the fixture.
Replacing the grease filters
A Insert the grease filter into the slots at the back.
A Push the grip back.
A Swing the grease filter up and engage in position.
A Hold the button depressed for at least 3 seconds.
– An acoustic signal is emitted.
– The indicator light goes out.
Take care not to damage
the grease filters.
2
1
Page 17
… Care and maintenance
17
Changing the halogen light
A Using a small screw driver, carefully lever
the ring out.
A Replace the defective halogen light with a
bulb of the same type (max. 20 watts).
A Clean the ring and the glass.
A Fit the ring and the glass back into the
openings.
A Put the screw fuse back in or the switch
circuit breaker on again.
Remove the screw fuse or switch off the circuit breaker.
Halogen lights get hot during operation! Allow to cool down first.
Avoid touching the new halogen
light with bare hands. Use a soft,
dry, grease-free cloth.
Page 18
… Care and maintenance
18
Changing the standard activated charcoal filter
Standard activated charcoal filters are only used in the recirculation model.
Standard activated charcoal filters become less effective with use. With normal use, they have to be changed at least every 4 months or whenever the
indicator light flashes. They cannot be washed or regenerated.
A Remove the grease filter and
clean it.
A Turn the two locking knobs A by
90° and remove the standard
activated charcoal filter by pulling
it down.
A Insert the new standard activated
charcoal filter until it latches at the
back and secure it in the front
with the locking knobs.
A Reinsert the grease filter.
A Replace the fuse or switch the
circuit breaker back on again.
A Depress the button for at least
3 seconds.
– An acoustic signal sounds.
– The indicator light goes out.
Remove the appliance’s fuse or switch the circuit breaker off.
The dirty standard activated charcoal filter can be disposed of with the
household waste.
90˚
A
A
Page 19
… Care and maintenance
19
Cleaning and changing the long-life activated charcoal filter
Long-life activated charcoal filters are only used in the recirculation mode.
Unlike the standard activated charcoal filter, the long-life activated charcoal
filter can be cleaned and reactivated. The long-life activated charcoal filter
should be changed ever month with normal use or whenever the indicator
light flashes. The filter can be cleaned in a dishwasher at 65 °C (select
an «intensive» or «heavy soil» wash programme). Wash the filter separately
so that it does not become clogged with food particles. If it is not possible to
wash the filter in a dishwasher, soak the filter in 60 °C water and detergent
for one hour. Then rinse well. To reactivate the activated charcoal, dry the filter
without the frame in the oven.
A Select top and bottom heat or hot air and set the temperature to 100 °C.
Place the filter on a wire shelf and allow to dry for 60 minutes.
Remove screw fuse or switch off circuit breaker.
The long-life activated charcoal filter needs to be replaced after about
3 years as its ability to absorb odours declines. The spent long-life
activated charcoal filter can be disposed of in the household waste.
Page 20
… Care and maintenance
20
A Remove and clean the metal grease filters.
A Turn both knobs 90 ° and remove the long-life
activated charcoal filter from the bottom.
A Remove, clean, reactivate and replace the filter 1
into the frame 2. Take care not to damage the
filter. If necessary, replace the used long-life activated charcoal filter by a new one.
A Replace the long-life activated charcoal filter and
engage it at the back and secure at the front with
the knobs.
A Replace the metal grease filters.
A Replace the fuse, switch the circuit breaker back
on again.
A Depress the button for at least 3 seconds.
– An acoustic signal is given off.
– The indicator light goes out.
1
2
Page 21
21
Trouble-shooting
What to do if ...
… the illumination is not working
… the appliance is not extracting the cooking fumes and smells
satisfactorily
Possible cause Solution
䡲 Fuse or circuit breaker
for electrical installations
in the home is faulty.
A Replace the fuse.
A Reset the circuit breaker.
䡲 Interruption in the power
supply.
A Check the power supply.
䡲 The halogen light is faulty. A Replace the halogen light.
Possible cause Solutions
䡲 The grease filters are
dirty.
䡲 Clean the grease filters.
䡲 The activated charcoal
filter (in recirculation
models) is spent.
䡲 Change the standard activated charcoal
filter.
䡲 Clean or change the long-life activated
charcoal filter.
Page 22
22
Accessories and spare parts
Please give model number and exact description when ordering parts.
Halogen light
Metal grease filter
Standard activated charcoal filter
Long-life activated charcoal filter
The halogen light is also available from specialist retailers.
Page 23
23
Technical data
Electrical connection
A See identification plate
A Remove metal grease filter.
– The identification plate is located on the inside of the appliance.
Page 24
24
Disposal
Packaging
䡲 All packaging materials (cardboard, plastic film (PE) and polystyrene
(EPS)) are marked and should, if possible, be collected for recycling and
disposed of in an environmentally friendly way.
Disconnection
䡲 Disconnect the appliance from the mains. With a fixed appliance, this is to
be carried out by a qualified electrician!
Safety
䡲 Disable the appliance to prevent accidents caused by improper use,
especially through children playing.
䡲 Pull the plug out of the mains socket or have the appliance disconnected
from the mains by a qualified electrician. Then cut off the mains cable.
Disposal
䡲 The old appliance should not be discarded as worthless rubbish. If
disposed of correctly, the raw materials can be recovered for recycling.
䡲 The symbol on the identification plate warns that the appliance may
not be disposed of in normal household waste.
䡲 The appliance must be disposed of in accordance with local regulations
on waste disposal. For more information on the handling, disposal and
recycling of the product, please contact the local authorities, the local
recycling facilities for household waste or the retailer from whom you
purchased the appliance.
Page 25
25
Index
A
Accessories................................... 22
Activated charcoal filter ................ 8
Long-life ..................................... 19
Appliance
Switching off ............................. 12
Switching on ............................. 12
C
Care ................................................ 14
Children in the home..................... 5
Cleaning......................................... 14
Grease filters ............................ 15
Construction.................................. 10
D
Disconnection ............................... 24
Display elements.......................... 11
Disposal ......................................... 24
E
Electrical connection ................... 23
Equipment ....................................... 9
Extraction model ............................ 8
F
Faults.............................................. 21
Filter
Combi filter ............................... 15
Metal grease filter.................... 15
G
Grease filter
Saturation indicator.......... 11, 13
Grease filters
Removing ................................. 16
Replacing.................................. 16
H
Halogen light ................................ 17
I
Identification plate ....................... 23
Illumination............................. 10, 13
Intensive level............................... 12
L
Long-life activated charcoal
filter................................................. 19
Cleaning and changing.......... 19
M
Maintenance ................................. 14
Metal grease filter........................ 10
Model no. ........................................ 2
O
Operating elements.............. 10, 11
P
Packaging ..................................... 24
Page 26
… Index
26
Q
Quick instructions ........................ 28
R
Recirculation model ...................... 8
Repair service .............................. 27
S
Safety ............................................. 24
Safety precautions
Before using for the first time . 4
Children in the home................ 5
Correct use................................. 5
Note on use................................ 6
Saturation indicator ..................... 11
Activating .................................. 13
Deactivating.............................. 13
Long-life activated charcoal
filter ............................................ 13
Metal grease filter ................... 13
Standard activated charcoal
filter ............................................ 13
Selecting the power level .......... 12
Spare parts................................... 22
Standard activated charcoal
filter
Changing.................................. 18
Switching on................................. 12
Symbols ........................................... 2
T
Technical data ............................. 23
Type .................................................. 2
U
Use................................................. 12
Using for the first time................... 4
V
Validity .............................................. 2
Page 27
27
Repair service
Whether you contact us about a malfunction or an order, please always state
the serial number (FN) and the model type of your appliance. Enter these
details below and also on the service sticker which comes with the appliance.
Stick it in a conspicuous place or in your telephone or address book.
You will also find the same details on the certificate of guarantee, the original
sales invoice and the identification plate of the appliance.
A Remove metal grease filter.
– The identification plate is located on the inside of the appliance.
The 'Trouble-shooting' section will help you to carry out small repairs
yourself, saving you the time and trouble of calling out a service
engineer and the cost that goes along with it.
FN
Appliance
Page 28
Quick instructions
Please first read the safety precautions in these operating instructions!
Operation
Intensive level
Illumination
Switch off / Reset saturation indicator
Switch on / Power level
Intensive level
Off
On
J386.352-2
V-ZUG Ltd
Industriestrasse 66, CH-6301 Zug
[email protected], www.vzug.com
Loading...
