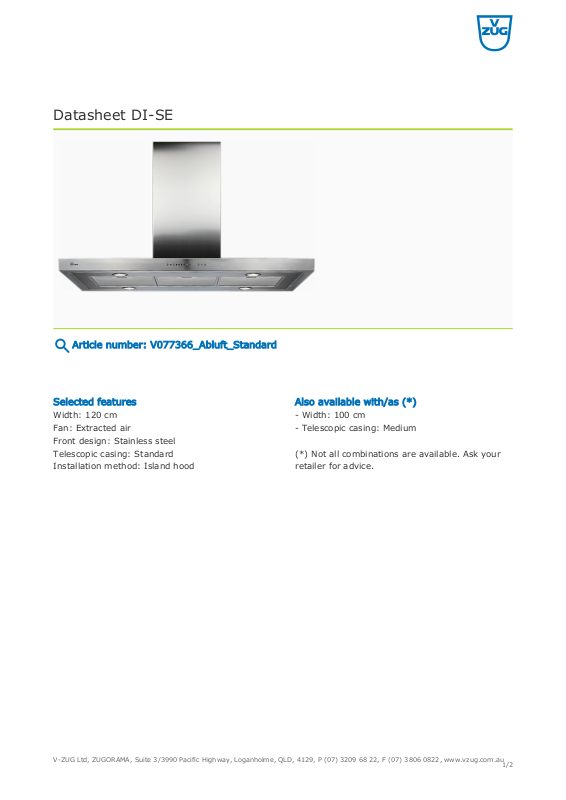

Datasheet DI-SE
Article number: V077366_Abluft_Standard
Selected features
Width: 120 cm
Fan: Extracted air
Front design: Stainless steel
Telescopic casing: Standard
Installation method: Island hood
Also available with/as (*)
Width: 100 cmTelescopic casing: Medium-
(*) Not all combinations are available. Ask your
retailer for advice.
V-ZUG Ltd, ZUGORAMA, Suite 3/3990 Pacific Highway, Loganholme, QLD, 4129, P (07) 3209 68 22, F (07) 3806 0822, www.vzug.com.au
1/2
Page 2
Details DI-SE
Range hood features
Metal grease filter: 3Extracted airForced convection with long-life
activated charcoal filter
Forced convection with standard
activated charcoal filter
Halogen spotlights: 4.0Intensive settingGrease filter cleaning indicatorConnection for fresh air/exhaust
air flap
Power levels: 4of which: number of intensive
levels: 1
Fan power level displayAir delivery rate: 550.0 m³/hrStatic pressure: 464.0 pascalMotor(s): 1Motor output: 175.0 watt2-duct radial fansElectronic controlNoise emission: 44 dBGood grease absorptionEasy to clean and operateGrease filter can be washed in
the dishwasher
Exhaust air connection
(diameter): 150.0 mm
Service and interfaces
Warranty: 2 year(s)-
Energy
Voltage: 230 voltConnected loads: 0,255 kilowattFuse protection: 10 ampere-
Dimensions
Appliance width mm: 1200Appliance depth mm: 600Empty weight: 24.0 kg-
