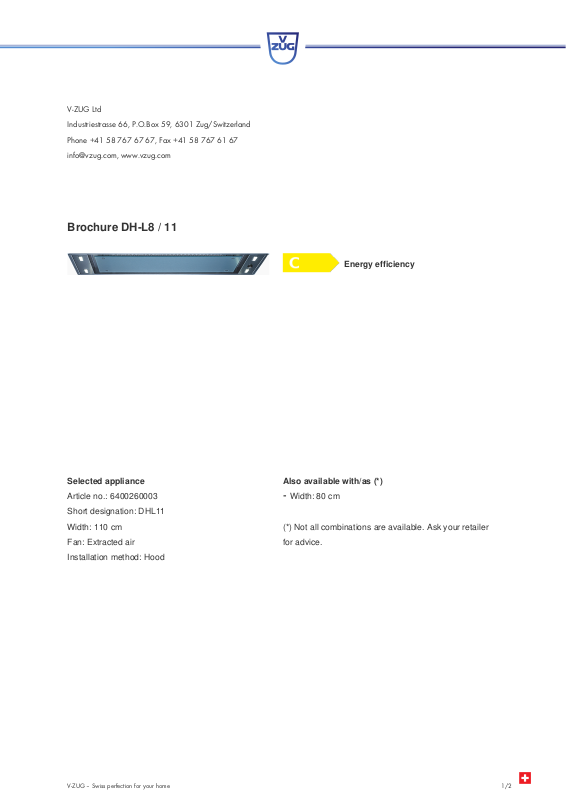

V-ZUG DHL11, 6400260003 Specifications Sheet

V-ZUG Ltd

Industriestrasse 66, P.O.Box 59, 6301 Zug/Switzerland

Phone [phone], Fax [phone]

[email protected], www.vzug.com

Brochure DH-L8 / 11

Energy efficiency

Selected appliance

Article no.: 6400260003

Short designation: DHL11

Width: 110 cm

Fan: Extracted air

Installation method: Hood

Also available with/as (*)

Width: 80 cm-

(*) Not all combinations are available. Ask your retailer

for advice.

1/2V-ZUG – Swiss perfection for your home

Details DH-L8 / 11

Range hood features

Air delivery rate: 563.0 m³/hr­Motor output: 188.0 watt­Noise emission: 40 dB(A)­Power levels: 4­Energy-saving LED lights: 2­Metal grease filter: 1­Motor(s): 1­Fan power level display­Good grease absorption­Easy to clean and operate­Grease filter can be washed in the dishwasher-

Service and interfaces

Warranty: 2 year(s)-

Energy

Type of connection: 220-240 volt­Connected loads: 0,35 kilowatt­Fuse protection: 6 ampere­Energy efficiency: C-

Dimensions

Appliance width mm: 1100­Appliance height mm: 300­Appliance depth mm: 300-

2/2V-ZUG – Swiss perfection for your home
