Page 1
V-ZUG Australia Pty. Ltd
2/796 High Street East Kew Vic 3102, VICTORIA/Australia
Phone +61 (03) 9832 7500
enquire.au@vzug.com, www.vzug.com

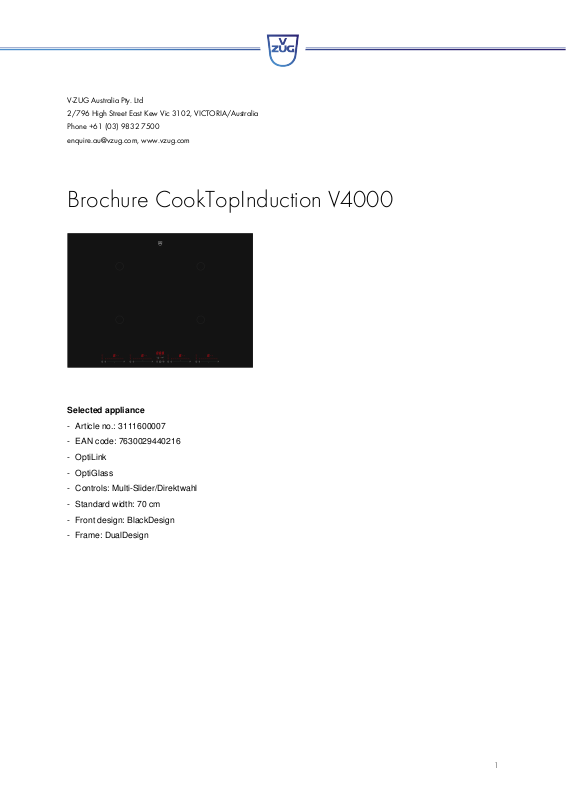

Brochure CookTopInduction V4000
Selected appliance
- Article no.: 3111600007
- EAN code: 7630029440216
- OptiLink
- OptiGlass
- Controls: Multi-Slider/Direktwahl
- Standard width: 70 cm
- Front design: BlackDesign
- Frame: DualDesign
1
Page 2
Details CookTopInduction V4000
- Cooking zone 4 position: front right
- Cooking zone 4 dimensions: 18x20 cm
Additional settings
- Safety package
- Pan detection (10–22 cm)
Design
- OptiLink
- OptiGlass
- Controls: Multi-Slider/Direktwahl
- Standard width: 70 cm
- Front design: BlackDesign
- Frame: DualDesign
Dimensions
- Cut-out height: 8.5 mm
- Cut-out radius: 5 mm
- Appliance height: 51.7 mm
- Appliance width: 691 mm
- Appliance depth: 501 mm
- Appliance corner radius: 1.5 mm
- Support size width: 680 mm
- Max. support size width: 680 mm
- Support size depth: 490 mm
- Max. support size depth: 490 mm
- Installation height when flush-fitted: 51.7 mm
- Installation height when surface-mounted: 47.7 mm
- Cut-out width when flush-mounted: 697 mm
- Cut-out width when surface-mounted: 680 mm
- Max. cut-out width when surface-mounted: 680 mm
- Cut-out depth when flush-mounted: 507 mm
- Cut-out depth when surface-mounted: 490 mm
- Max. cut-out depth when surface-mounted: 490 mm
- Empty weight: 10.5 kg
- Cooking zone 1 position: front left
- Cooking zone 1 dimensions: 18x20 cm
- Cooking zone 2 position: rear left
- Cooking zone 2 dimensions: 18x20 cm
- Cooking zone 3 position: rear right
- Cooking zone 3 dimensions: 18x20 cm
Display and operation
- Display: digital display
- Slider control
- Operating time
- Button sound (on/off)
Energy
- Cooking zone 1 max. power: 3700 W
- Cooking zone 2 max. power: 3700 W
- Cooking zone 3 max. power: 3700 W
- Cooking zone 4 max. power: 3700 W
- Type of connection (1): 380-415V 2N~
- Type of connection (2): 220-240V~
- Frequency (1): 50/60Hz
- Frequency (2): 50/60Hz
- Connected loads (1): 7.4 kW
- Connected loads (2): 7.4 kW
- Fuse protection (1): 16 A
- Fuse protection (2): 32 A
- Plug type: cable
Hob features
- OptiGlass
- Powerplus: 4
- Hob category: Induction
- Operating time with shut-down function
- Residual heat indicator
- Timer
- Restore function
- Cooking zones: 4
- Power levels: 9
- Heating technology: induction cooking zones
Functions
- Heating function
- Childproof look
- Powerplus: 4.0
- Pause button
2
Page 3
- Warming function
- Automatic warm-up function
- Cleaning lock
- Zone connection
- Melt function
- Simmer function
Additional data
- Feature level: 4
Service and interfaces
- Wi-Fi as standard: 802.11 b/g/n
- Warranty: 2 years
- Interface: Bluetooth
3
