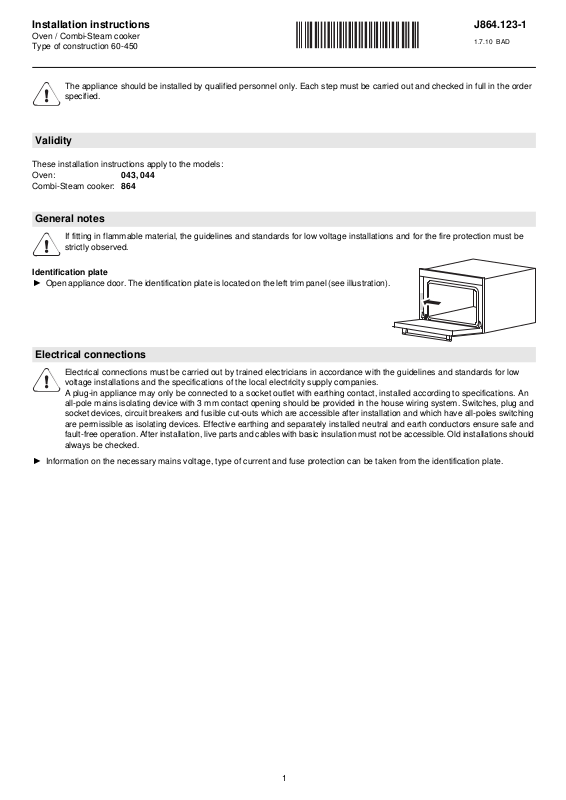

Installation instructions
Oven / Combi-Steam cooker
Type of construction 60-450
The appliance should be installed by qualified personnel only. Each step must be carried out and checked in full in the order
specified.
Validity
These installation instructions apply to the models:
Oven:
Combi-Steam cooker:
043, 044
864
General notes
If fitting in flammable material, the guidelines and standards for low voltage installations and for the fire protection must be
strictly observed.
Identification plate
A Open appliance door. The identification plate is located on the left trim panel (see illustration).
J864.123-1
1.7.10 BAD
Electrical connections
Electrical connections must be carried out by trained electricians in accordance with the guidelines and standards for low
voltage installations and the specifications of the local electricity supply companies.
A plug-in appliance may only be connected to a socket outlet with earthing contact, installed according to specifications. An
all-pole mains isolating device with 3 mm contact opening should be provided in the house wiring system. Switches, plug and
socket devices, circuit breakers and fusible cut-outs which are accessible after installation and which have all-poles switching
are permissible as isolating devices. Effective earthing and separately installed neutral and earth conductors ensure safe and
fault-free operation. After installation, live parts and cables with basic insulation must not be accessible. Old installations should
always be checked.
A Information on the necessary mains voltage, type of current and fuse protection can be taken from the identification plate.
1
Installation instructions
Oven / Combi-Steam cooker
Type of construction 60-450
Installation
It is not possible to install the appliance above an extractor oven because of the extraction pipes that lead upwards.
Installing
596
J864.123-1
1.7.10 BAD
Detail X
X
548
20
~85˚
454
1. Place appliance in front of the niche and insert the mains plug.
2. Carefully slide appliance into the niche until it is flush with the front of the cabinets, ensuring that the mains cable is not pinched.
3. Open appliance door and fasten the sides from the front with the 4 enclosed screws S.
~45
346
S
548
(567)
S
450
min. 550
560–568
600
=
=
450
454
50
Niche
Appliance
Installation combinations
If a second appliance is installed in the same niche (above or below), you should use bracket set 60 W to support the upper
appliance.
Above a oven Below a oven Above a warming drawer
1050
450600
min. 550
50
W
560–568
1050
594456
min. 550
50
450144
594
W
min. 550
50
W
560–568
560–568
2
