VM SERIES

211

Clear Cover & Opaque Base

(with & w/o knockouts)

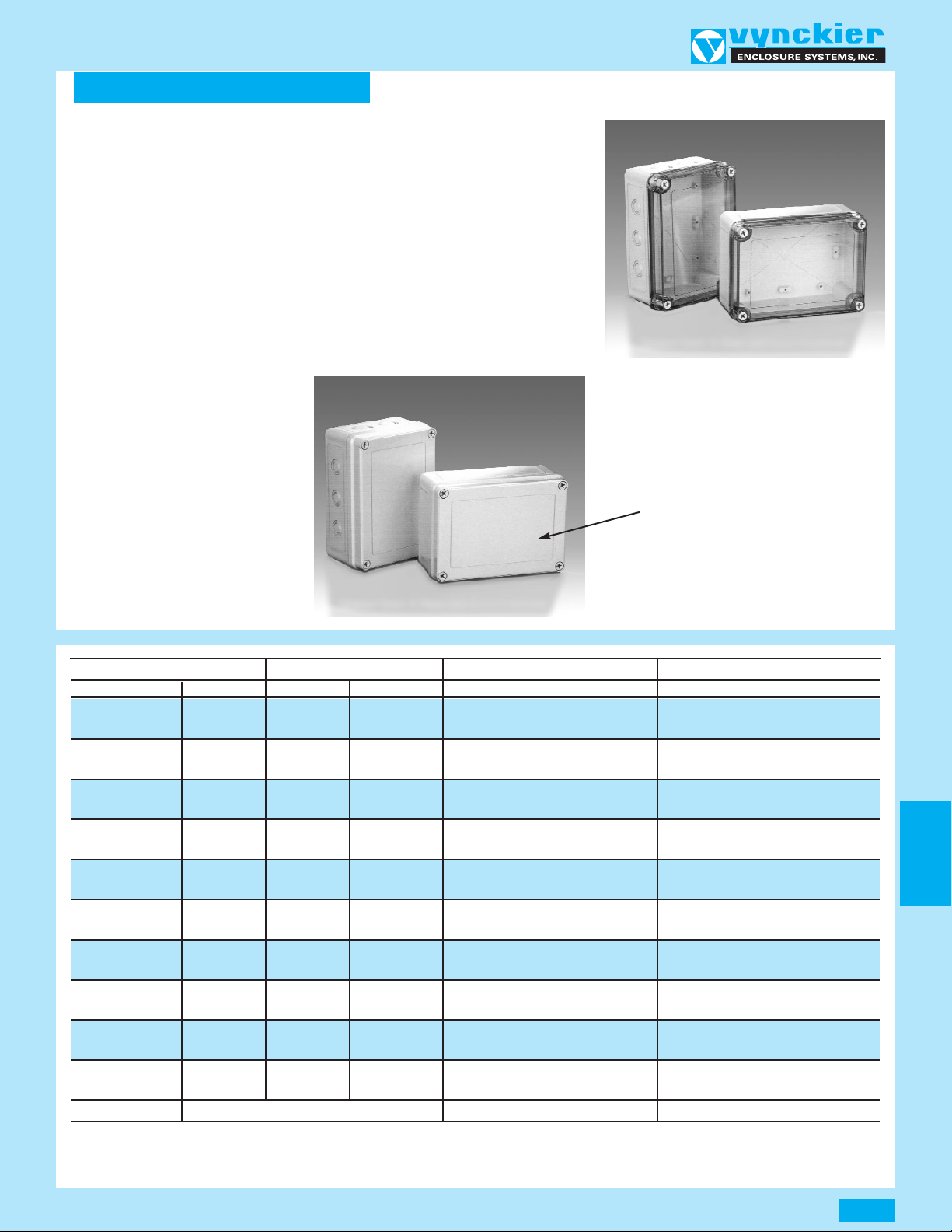

CUSTOM INJECTION
MOLDED LOGO
AVAILABLE

(Consult Factory)

FEATURES

- The Vynckier Miniature or VM
Series available in ten sizes
ranging from 5”X 3”X 3”to 7”X 7”
X6”.

- Opaque covers and all bases are
made of impact and corrosive
resistant VALOX®, RAL 7035 color.

- Transparent cover is made from
polycarbonate.

- Molded internal bosses for back
panel, mounting of components or
DIN rail.

- IP66 rating.

- UL NEMA Type 3, 3R, 4, 4X,
12 & 13

- CSA Type 2, 3, 4 & 5

- ASTM D 648 up to 280

°F heat

deflection temperature.

- Non-metallic cover screws.

- Tongue & groove gasket fitting to
ensure tight seal.

- Consult factory for custom molded
logo on cover.

APPLICATIONS

Designed for use as insulated electrical
junction boxes, terminal-wiring boxes,
instrument housings,electrical control
boxes and pushbutton housings in
wet, dusty and / or corrosive
environments.

VALOX

®

VALOX®is a crystalline thermoplastic­polyester. VALOX®resin offers a
performance profile engineered for
demanding end-use environments.

Vynckier Miniature (VM Series)

OPAQUE COVER CLEAR COVER INSIDE DIMENSION OUTSIDE DIMENSION

w/o knockouts w/knockouts w/o knockouts w/knockouts h w d H W D

VM533 VM533K VM533CT VM533CTK 4.69 2.61 2.72 5.03 3.06 3.02

(mm) (119.02 66.4 69.06) (127.83 77.83 76.67)

VM534 VM534K VM534CT VM534CTK 4.69 2.72 3.72 5.03 3.06 4.02

(mm) (119.02 69.03 94.46) (127.83 77.83 102.02)

VM553 VM553K VM553CT VM553CTK 4.69 4.69 2.72 5.03 5.03 3.02

(mm) (119.02 119.02 69.05) (127.83 127.83 76.67)

VM554 VM554K VM554CT VM554CTK 4.69 4.69 3.72 5.03 5.03 4.02

(mm) (119.02 119.02 94.46) (127.83 127.83 102.02)

VM753 VM753K VM753CT VM753CTK 6.65 4.69 2.72 7.00 5.03 3.02

(mm) (169.02 119.02 69.06) (177.83 127.83 76.62)

VM754 VM754K VM754CT VM754CTK 6.65 4.69 3.72 7.00 5.03 4.02

(mm) (169.02 119.02 94.46) (177.83 127.83 102.02)

VM755 VM755K VM755CT VM755CTK 6.65 4.69 4.72 7.00 5.03 5.02

(mm) (169.02 119.02 119.85) (177.83 127.83 127.42)

VM773 VM773K VM773CT VM773CTK 6.65 6.65 2.72 7.00 7.00 3.02

(mm) (169.02 169.02 69.05) (177.83 177.83 76.72)

VM775 VM775K VM775CT VM775CTK 6.65 6.65 4.72 7.00 7.00 5.02

(mm) (169.02 169.02 119.85) (177.83 177.83 127.42)

VM776 VM776K VM776CT VM776CTK 6.65 6.65 5.72 7.00 7.00 6.02

(mm) (169.02 169.02 145.26) (177.83 177.83 152.83)

VM107**

** Subject to production minimum
