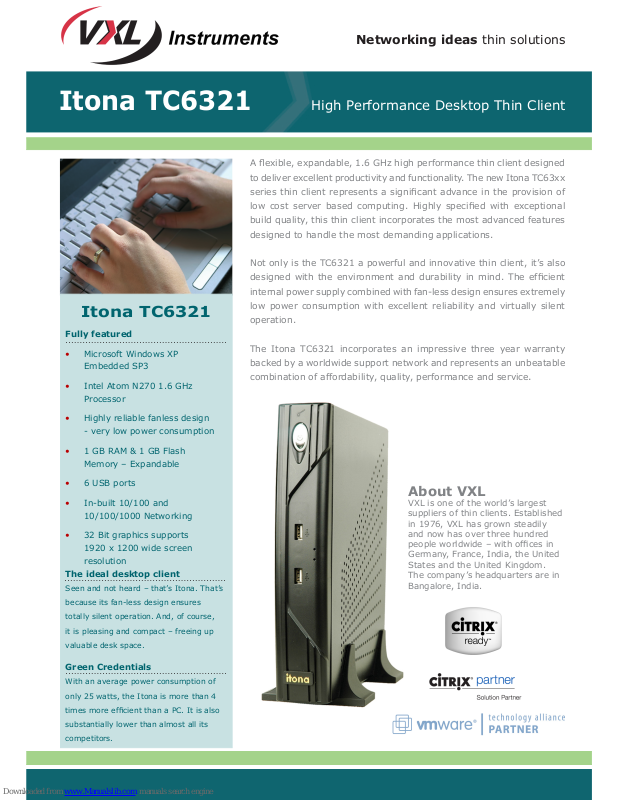

Vxl Itona TC6321 Specifications

Itona TC6321

A exible, expandable, 1.6 GHz high performance thin client designed
to deliver excellent productivity and functionality. The new Itona TC63xx
series thin client represents a signicant advance in the provision of
low cost server based computing. Highly specied with exceptional
build quality, this thin client incorporates the most advanced features
designed to handle the most demanding applications.

Not only is the TC6321 a powerful and innovative thin client, it’s also
designed with the environment and durability in mind. The efcient
internal power supply combined with fan-less design ensures extremely
low power consumption with excellent reliability and virtually silent
operation.

The Itona TC6321 incorporates an impressive three year warranty
backed by a worldwide support network and represents an unbeatable
combination of affordability, quality, performance and service.

Microsoft Windows XP •

Embedded SP3

Intel Atom N270 1.6 GHz •

Processor

Highly reliable fanless design •

- very low power consumption

1 GB RAM & 1 GB Flash •

Memory – Expandable

6 USB ports•

In-built 10/100 and •

10/100/1000 Networking

32 Bit graphics supports •
1920 x 1200 wide screen
resolution

Fully featured

About VXL

VXL is one of the world’s largest
suppliers of thin clients. Established
in 1976, VXL has grown steadily
and now has over three hundred
people worldwide – with ofces in
Germany, France, India, the United
States and the United Kingdom.
The company’s headquarters are in

Bangalore, India.

Itona TC6321

High Performance Desktop Thin Client

Networking ideas thin solutions

The ideal desktop client

Seen and not heard – that’s Itona. That’s
because its fan-less design ensures
totally silent operation. And, of course,
it is pleasing and compact – freeing up
valuable desk space.

Green Credentials

With an average power consumption of
only 25 watts, the Itona is more than 4
times more efcient than a PC. It is also
substantially lower than almost all its
competitors.

Model

TC6321 MS Windows XPe SP3

Operating System.

Standard Client Software

Citrix ICA, RDP, Microsoft Internet
Explorer 7.0, Ericom terminal emulation,
VMware View Client, Media Player, Ericom
Blaze Cllient, Acrobat Reader Standard

Processor

Intel Atom N270 1.6 GHz Processor•

System Memory

Ram: 1 GB & Flash: 1 GB - •

Expandable

Display Support

Display Data Control (DDC) for •
automatic setting of resolution and
refresh rate
Video RAM: 32/64/128 MB, •
Selectable from BIOS (default
32MB). Display Res. 4:3 up to
1920x1440 32bit colour. Widescreen
up to 1920 x 1200 32 bit colour.

Interfaces

1 x Serial Port•
1 x Parallel port•
6 x USB 2.0 •
2 x PS/2 port•
1 x VGA type video output (DB-15)•

Built-in Kensington Security Slot•

Networking

Autosensing, 10/100 Ethernet, •
Autosensing, 10/100/1000 Ethernet,•
Wake On Lan•

PXE boot•

Audio

Line Out•
Mic •

Environmental

Powered on: 0 to 40 ˚C •
Powered off: –10 to 60 ˚C•
Convectional cooling, fanless design•
Humidity : 20% to 80% maximum, •
non-condensing

Physical Characteristics

Worldwide auto-sensing •
100-240 VAC Internal Power Supply
Average power usage: 25 Watts •
(Only with KBD, Mouse and
Monitor)
Height: 268 mm •
Depth: 250 mm •
Width: 50 mm•

Weight: Approx 3.0Kg•

Software

RDP Client Client 7.x•
Citrix ICA client 11.xx•
Internet Explorer 7.0: HTML, •
MHTML, XML, Active X, Media
Player, Citrix web client
VMware View Client•
Ericom Webconnect•
Ericom Blaze Client•
Ericom Powerterm terminal •
emulation
.Net Framework 2.0•
Leostream Client •
NX Client •
VNC Client •
Plug-ins: Adobe Acrobat Reader, •
Adobe Server OS compatibility

Server OS Compatibility/Support :

Microsoft Windows Terminal Server •
Edition,Windows server 2003/2008
Citrix XenApp / Citrix Presentation •
Server/ Citrix XenDesktop
Protocol Support :TCP/IP, NTP, •

DHCP, FTP, HTTP

Setup and Conguration:

Boot from Local ash•
Windows XP user interface language •
: US English French, German,
Spanish, italian, Dutch, Turkish,
Japanese optional add-on’s,
Keyboard Language support: US •
English standard 36 other languages
supported.
Scanners & Camera Support•
VPN•
Customizable Thin print•
Smartcard Support•
ELO Touch screen Support•
PPP/DIAL-UP-Networking•
USB Input Devices Support•
My ODBC Client Support•

Management:

Remote management, conguration, •
and upgrades through XLmanage
client management software version

1.29 or later
Wake terminal remotely (Wake-on-•
LAN)
Terminal conguration (IP •
information, name, etc.)
Remote Shadowing•
Reporting•

Regulatory Compliance

Ergonomics: German EKI-ITB 2000•
Safty: cULus, UL-GS•
RF Interference: FCC B, CE, RoHS, •
WEEE.

Warranty

Three years limited warranty•

E & OE: Specications subject to change without notice. All trademarks are acknowledged and remain the property of their respective owners.

Head Ofce: ‘House of Excellence’, No 17 Electronics City, Hosur Road, Bangalore 560 100, India
Tel: [phone] (5 lines) Fax: [phone] E-mail: [email protected] Web: www.vxl.net
European Headquarters: Carrington Business Park, Carrington, Manchester, UK M31 4DD
Tel: [phone] Fax: [phone] E-mail: [email protected]

Regional Ofces France Germany United States

Tel: [phone] Tel: [phone] Tel: [phone]

E-mail: [email protected] E-mail: [email protected] E-mail: [email protected]

Itona TC6321

Networking ideas thin solutions

Part No

TC6321 - F6R6 1 GB Flash / 1 GB RAM
TC6321 - F7R7 2 GB Flash / 2 GB RAM
