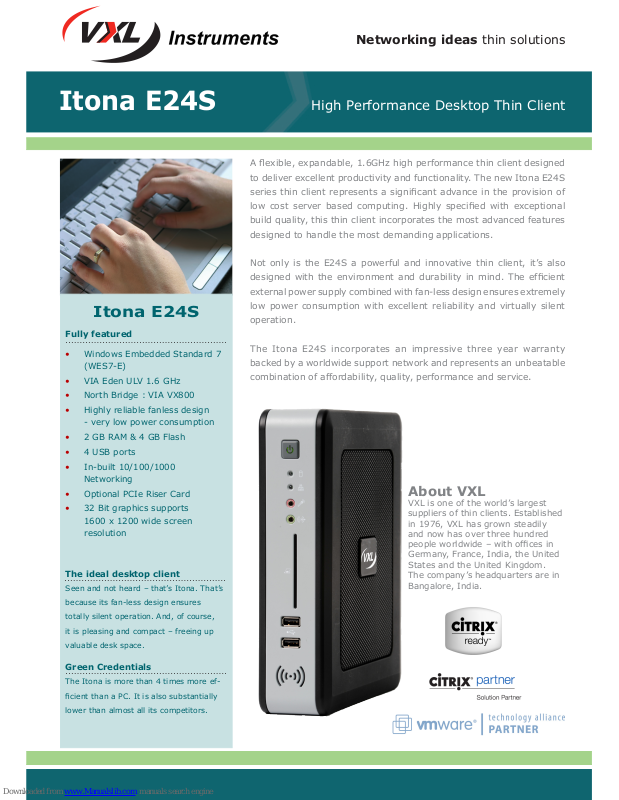

Vxl Itona E24S Specifications

Itona E24S

A exible, expandable, 1.6GHz high performance thin client designed
to deliver excellent productivity and functionality. The new Itona E24S
series thin client represents a signicant advance in the provision of
low cost server based computing. Highly specied with exceptional
build quality, this thin client incorporates the most advanced features
designed to handle the most demanding applications.

Not only is the E24S a powerful and innovative thin client, it’s also
designed with the environment and durability in mind. The efcient
external power supply combined with fan-less design ensures extremely
low power consumption with excellent reliability and virtually silent
operation.

The Itona E24S incorporates an impressive three year warranty
backed by a worldwide support network and represents an unbeatable
combination of affordability, quality, performance and service.

Windows Embedded Standard 7 •

(WES7-E)

VIA Eden ULV 1.6 GHz•
North Bridge : VIA VX800•
Highly reliable fanless design •

- very low power consumption
2 GB RAM & 4 GB Flash •
4 USB ports•
In-built 10/100/1000 •

Networking

Optional PCIe Riser Card•
32 Bit graphics supports •

1600 x 1200 wide screen
resolution

Fully featured

About VXL

VXL is one of the world’s largest
suppliers of thin clients. Established
in 1976, VXL has grown steadily
and now has over three hundred
people worldwide – with ofces in
Germany, France, India, the United
States and the United Kingdom.
The company’s headquarters are in

Bangalore, India.

Itona E24S

High Performance Desktop Thin Client

Networking ideas thin solutions

The ideal desktop client

Seen and not heard – that’s Itona. That’s
because its fan-less design ensures
totally silent operation. And, of course,
it is pleasing and compact – freeing up
valuable desk space.

Green Credentials

The Itona is more than 4 times more ef­cient than a PC. It is also substantially
lower than almost all its competitors.

Model

E24S Windows Embedded Standard 7

(WES7-E)

Standard Client Software

Citrix ICA, RDP, Microsoft Internet Explorer

8.0, Ericom terminal emulation, VMware

View Client, Media Player, Ericom Blaze
Cllient, Acrobat Reader Standard

Processor

VIA Eden ULV 1.6 GHz Processor •
(North Bridge: VIA VX800

System Memory

Ram: 2 GB & Flash: 4 GB •

Display Support

Display Data Control (DDC) for •
automatic setting of resolution and
refresh rate
Video RAM: 32/64/128/256 MB, •
Selectable from BIOS (default 32MB).
Display Res. 4:3 up to 1920x1440
32bit colour. Widescreen up to 1920 x
1200 32 bit colour.

Interfaces

1 x Serial Port•
4 x USB 2.0 •
1 x PS/2 port•
1 x VGA type video output (DB-15)•
1 x DVI-I Port•
Built-in Kensington Security Slot•
Optional internal USB Wireless and/or •
Smartcard reader
Optional PCIe Riser Card•

Networking

Autosensing, 10/100/1000 Ethernet, •
RJ-45
Wake On Lan•
PXE boot•

Audio

Line Out•
Mic •

Environmental

Powered on: 0 to 40 ˚C •
Powered off: –20 to 60 ˚C•
Convectional cooling, fanless design•
Humidity : 20% to 80% maximum, •
non-condensing

Physical Characteristics

External Power Supply 12V/4A DC•
Height: 229 mm •
Depth: 226 mm •
Width: 50 mm•
Weight: Approx 2.5Kg •

Software

RDP Client 7.0•
Citrix ICA client 12.0•
Internet Explorer 8.0: HTML, MHTML, •
XML, Active X, Media Player 12.0,
Citrix web client
VMware View Client 4.5•
VPN Support•
Ericom Blaze Client 1.4.4.0•
Ericom Powerterm terminal emulation •

9.2
VNC Server/Viewer•
MS Silverlight 4.0•
.Net Framework 3.5•
Dial Up Support•
Local Printing Support•
NW Printing Support•
Thinprint Support 7.0•
WMI Support•
Dirct X 11.0•
Device Update Agent•
Bluetooth Support •
Plug-ins: Adobe Acrobat Reader, Adobe •
Flash 10.0, Shokewave

Server OS Compatibility/Support :

Microsoft Windows Terminal Server •
Edition,Windows server 2003/2008.
Citrix XenApp / Citrix Presentation •
Server/ Citrix XenDesktop.

Protocol Support :TCP/IP, NTP, DHCP, •
FTP, HTTP

Setup and Conguration:

Boot from Local ash•
Windows XP user interface language : •
US English French, German, Spanish,
italian, Dutch, Turkish, Japanese
optional add-on’s,
Keyboard Language support: US English •
standard 36 other languages supported.
Scanners & Camera Support•
VPN•
Customizable Thin print•
Smartcard Support•
ELO Touch screen Support•
PPP/DIAL-UP-Networking•
USB Input Devices Support•
My ODBC Client Support•

Management:

Remote management, conguration, •
and upgrades through XLmanage client
management software version 1.29 or
later
Wake terminal remotely (Wake-on-LAN)•
Terminal conguration (IP information, •
name, etc.)
Remote Shadowing•
Reporting•

Regulatory Compliance

Ergonomics: German EKI-ITB 2000•
Safty: cTUVus, TUV-GS•
RF Interference: FCC B, CE, RoHS, •
WEEE.

Warranty

Three years limited warranty•

E & OE: Specications subject to change without notice. All trademarks are acknowledged and remain the property of their respective owners.

Itona E24S

Networking ideas thin solutions

Part No

E24S - F8R7 4 GB Flash / 2GB RAM
