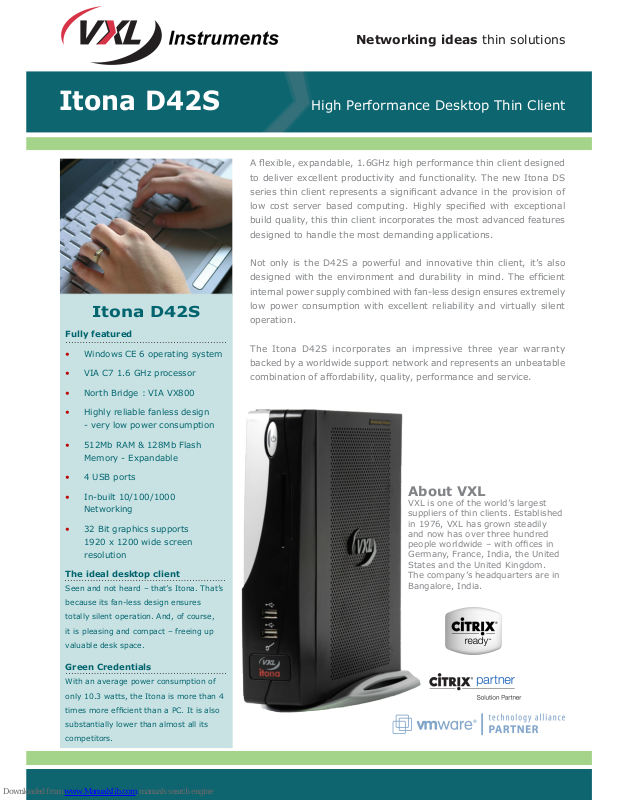

Itona D42S
A exible, expandable, 1.6GHz high performance thin client designed
to deliver excellent productivity and functionality. The new Itona DS
series thin client represents a signicant advance in the provision of
low cost server based computing. Highly specied with exceptional
build quality, this thin client incorporates the most advanced features
designed to handle the most demanding applications.
Not only is the D42S a powerful and innovative thin client, it’s also
designed with the environment and durability in mind. The efcient
internal power supply combined with fan-less design ensures extremely
low power consumption with excellent reliability and virtually silent
operation.
The Itona D42S incorporates an impressive three year warranty
backed by a worldwide support network and represents an unbeatable
combination of affordability, quality, performance and service.
Windows CE 6 operating system•
VIA C7 1.6 GHz processor•
North Bridge : VIA VX800•
Highly reliable fanless design •
- very low power consumption
512Mb RAM & 128Mb Flash •
Memory - Expandable
4 USB ports•
In-built 10/100/1000 •
Networking
32 Bit graphics supports •
1920 x 1200 wide screen
resolution
Fully featured
About VXL
VXL is one of the world’s largest
suppliers of thin clients. Established
in 1976, VXL has grown steadily
and now has over three hundred
people worldwide – with ofces in
Germany, France, India, the United
States and the United Kingdom.
The company’s headquarters are in
Bangalore, India.
Itona D42S
High Performance Desktop Thin Client
Networking ideas thin solutions
The ideal desktop client
Seen and not heard – that’s Itona. That’s
because its fan-less design ensures
totally silent operation. And, of course,
it is pleasing and compact – freeing up
valuable desk space.
Green Credentials
With an average power consumption of
only 10.3 watts, the Itona is more than 4
times more efcient than a PC. It is also
substantially lower than almost all its
competitors.
Page 2
Model
D42S Windowds CE 6 R2, Citrix
ICA client, Citrix PNAgent and
RDP 6.0 Resident.
Processor
VIA C7 1.6 GHz Processor (North •
Bridge: VIA VX800
System Memory
Ram: 512Mb & Flash: 128Mb - •
Expandable
Display Support
Display Data Control (DDC) for •
automatic setting of resolution
and refresh rate
Video RAM: 16/32/64/128/256 •
MB. Selectable from BIOS
(default 32MB). Display Res. 4:3
up to 1920x1440 32bit colour.
Widescreen up to 1920 x 1200 32
bit colour.
Interfaces
2 x Serial Port with optional 3rd•
4 x USB 2.0 •
2 x PS/2 port•
1 x VGA type video output•
1 x DVI-I Port•
Optional internal Wireless and/or •
Smartcard reader
Built-in Kensington Security Slot•
Networking
Autosensing, 10/100/1000 •
Ethernet, RJ-45
Wake On Lan•
PXE boot •
Audio
Line Out•
Mic •
Environmental
Powered on: 0 to 40 ˚C •
Powered off: –20 to 60 ˚C•
Convectional cooling, fanless •
design
Humidity : 20% to 80% •
maximum, non-condensing
Physical Characteristics
Worlwide auto-sensing •
100-240 VAC
External Power Supply•
50/60 Hz, less than 20W (max)•
Average power usage: 10.3 •
Watts(Only with KBD, Mouse and
Monitor)
Height: 229 mm •
Depth: 226 mm •
Width: 50 mm•
Weight: Approx 2.5Kg •
Software
Citrix ICA client 10.xx •
RDP Client : A Remote Desktop •
Protocol 6.0
Ericom terminal emulation •
standard
Media Player Ver 9.0•
Thin Print Client Agent•
MSN Messenger•
Pocket word•
Smart Card•
Password-protected support•
Server OS Compatibility/Support :
Microsoft Windows Terminal •
Server Edition,Windows
2003/2008.
Citrix XenApp / Citrix •
Presentation Server/ Citrix
XenDesktop.
Protocol Support :TCP/IP, NTP, •
DHCP, FTP, HTTP
User Management:
Boot from Local ash•
Users Prole for Connections and •
Congure Access to Control pannel
component
Windows CE.Net user interface •
Keyboard interface Language
& Keyboard: U.S. English,
U.K.English, French, German,
Spanish, plus other 26 languages
included
Management:
Remote management, •
conguration, and upgrades
through XLmanage client
management software (included)
Wake terminal remotely (Wake-•
on-LAN)
Terminal conguration (IP •
information, name, etc.)
Send messages •
Remote Shadowing•
Complete image upgrade•
Pull/Push Updates •
Regulatory Compliance
Ergonomics: German EKI-ITB •
2000
Safty: cTUVus, TUV-GS, VCCI•
RF Interference: FCC B, CE, C-Tick •
RoHS, WEEE, Energy Star 5.0
Warranty
Three years limited warranty•
E & OE: Specications subject to change without notice. All trademarks are acknowledged and remain the property of their respective owners.
Head Ofce: ‘House of Excellence’, No 17 Electronics City, Hosur Road, Bangalore 560 100, India
Tel: +91 80 30222525 (5 lines) Fax: +91 80 28520095 E-mail: [email protected] Web: www.vxl.net
European Headquarters: Carrington Business Park, Carrington, Manchester, UK M31 4DD
Tel: +44 (0) 16 17 75 47 55 Fax: +44 (0) 16 17 75 48 66 E-mail: [email protected]
Regional Ofces France Germany United States
Tel: +33 (0) 1 42 17 00 03 Tel: +49 (0) 8761 1093 Tel: +1 713 589 3273
Itona D42S
Networking ideas thin solutions
Part No
D42S - F3R5 128 MB Flash / 512 MB RAM
