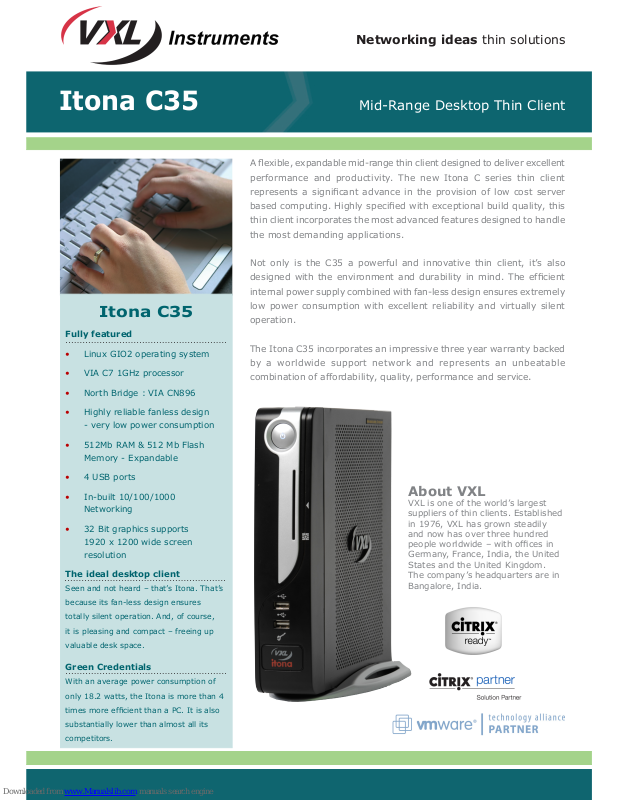

Vxl Itona C35 Specifications

Itona C35

A exible, expandable mid-range thin client designed to deliver excellent
performance and productivity. The new Itona C series thin client
represents a signicant advance in the provision of low cost server
based computing. Highly specied with exceptional build quality, this
thin client incorporates the most advanced features designed to handle
the most demanding applications.

Not only is the C35 a powerful and innovative thin client, it’s also
designed with the environment and durability in mind. The efcient
internal power supply combined with fan-less design ensures extremely
low power consumption with excellent reliability and virtually silent
operation.

The Itona C35 incorporates an impressive three year warranty backed
by a worldwide support network and represents an unbeatable
combination of affordability, quality, performance and service.

Linux GIO2 operating system•

VIA C7 1GHz processor•

North Bridge : VIA CN896•

Highly reliable fanless design •

- very low power consumption

512Mb RAM & 512 Mb Flash •

Memory - Expandable

4 USB ports•

In-built 10/100/1000 •

Networking

32 Bit graphics supports •
1920 x 1200 wide screen
resolution

Fully featured

About VXL

VXL is one of the world’s largest
suppliers of thin clients. Established
in 1976, VXL has grown steadily
and now has over three hundred
people worldwide – with ofces in
Germany, France, India, the United
States and the United Kingdom.
The company’s headquarters are in

Bangalore, India.

Itona C35

Mid-Range Desktop Thin Client

Networking ideas thin solutions

The ideal desktop client

Seen and not heard – that’s Itona. That’s
because its fan-less design ensures
totally silent operation. And, of course,
it is pleasing and compact – freeing up
valuable desk space.

Green Credentials

With an average power consumption of
only 18.2 watts, the Itona is more than 4
times more efcient than a PC. It is also
substantially lower than almost all its
competitors.

Model

C35 Linux GIO2 Operating System.

Standard Client Software

XDMCP, ICA, PN Agent, RDP, VNC, VMware
View Client, REXEC standard, PPTP VPN,
Mozilla Browser, SAP Client

Processor

VIA C7 1 GHz Processor (North •
Bridge: VIA CN896

System Memory

Ram: 512Mb & Flash: 512Mb - •
Expandable

Display Support

Display Data Control (DDC) for •
automatic setting of resolution and
refresh rate
Video RAM: 16/32/64/128/256 MB. •
Selectable from BIOS (default 32MB).
Display Res. 4:3 up to 1920x1440
32bit colour. Widescreen up to 1920 x
1200 32 bit colour.

Interfaces

2 x Serial Port•
1 x Parallel port•
4 x USB 2.0 •
2 x PS/2 port•
One VGA type video output•
1 x DVI-I Port•
Optional internal Wireless and/or •
Smartcard reader
Built-in Kensington Security Slot•

Networking

Autosensing, 10/100/1000 Ethernet, •
RJ-45
Wake On Lan•
PXE boot •

Audio

Line Out•
Mic •
Line In •

Environmental

Powered on: 0 to 40 ˚C •
Powered off: –20 to 60 ˚C•
Convectional cooling, fanless design•
Humidity : 20% to 80% maximum, •
non-condensing

Physical Characteristics

Worldwide auto-sensing •
100-240 VAC
50/60 Hz, less than 20W (max)•
Average power usage: 18.2 •
Watts(Only with KBD, Mouse and
Monitor)
Height: 229 mm •
Depth: 226 mm •
Width: 50 mm•
Weight: Approx 2.5Kg •

Software

Citrix ICA client 11.xx •
RDP Client : A Remote Desktop For •
Linux 1.6.0, RDP6 x Compatible
Mozilla Browser with Multimedia •
Java, other plugin support
SAP Client•
Ericom Blaze, •
Ericom Webconect•
Ericom Powerterm terminal •
emulation
NX Client•
Quest Access Client•
VMware View Client•
PPTP VPN•
VNC Client •
VNC Shadowing•
SAMBA Support•
Leostream Client•
XDMCP Protocol: Remote X •
connection based on X server.
ThinPrint Client Agent•
Rexec command, RSH, SSH, •
LaunchPA , telnet, CMD standard

Local Operating System feature :

Updated Kernel 2.6xx•
X11R6 local windows manager•
LPR, ThinPrint, CUPS, SAMBA print •
support
Touch screen support•

Server OS Compatibility/Support :

Microsoft Windows Terminal Server •
Edition,Windows server 2003 / 2008
Citrix XenApp / Citrix Presentation •
Server/ Citrix XenDesktop
UNIX/Linux Servers (Redhat etc)•
Protocol Support :TCP/IP, NTP, DHCP, •
FTP, HTTP

User Interface:

Boot from Local ash•
User Interface Language: US English, •
French, German
Keyboard language support: U.S. •
English Standard, French, German,
Italian,U.K English, 30 others included.

Management:

Remote management, conguration, •
and upgrades through XLmanage client
management software (included)
Wake terminal remotely (Wake-on-•
LAN)
Terminal conguration (IP information, •
name, etc.)
Remote Shadowing•
Complete image upgrade•
Pull/Push Updates •

Regulatory Compliance

Ergonomics: German EKI-ITB 2000•
Safty: cTUVus, TUV-GS, VCCI•
RF Interference: FCC B, CE, C-Tick •
RoHS, WEEE.

Warranty

Three years limited warranty•

E & OE: Specications subject to change without notice. All trademarks are acknowledged and remain the property of their respective owners.

Itona C35

Networking ideas thin solutions

Part No

C35 - F5R5 512 MB Flash / 512 MB RAM
