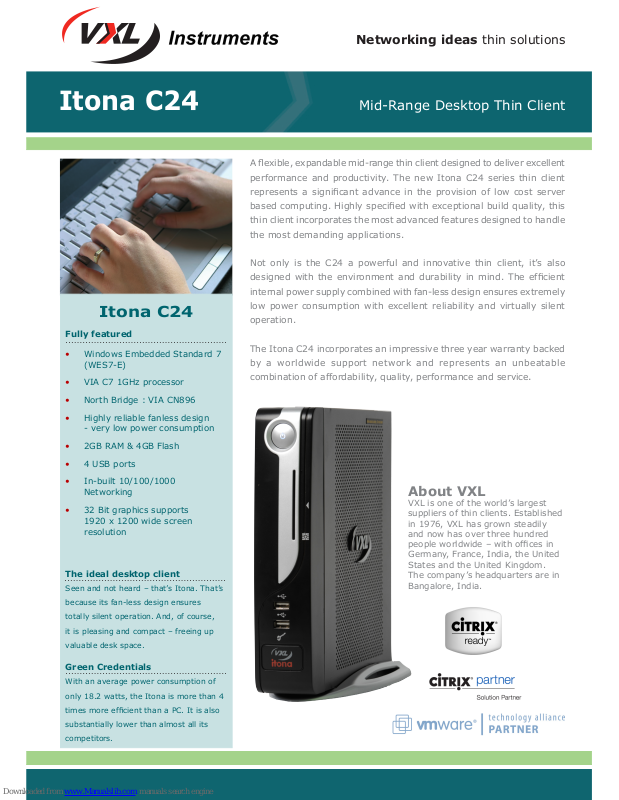

Vxl Itona C24 Specifications

Itona C24

A exible, expandable mid-range thin client designed to deliver excellent
performance and productivity. The new Itona C24 series thin client
represents a signicant advance in the provision of low cost server
based computing. Highly specied with exceptional build quality, this
thin client incorporates the most advanced features designed to handle
the most demanding applications.

Not only is the C24 a powerful and innovative thin client, it’s also
designed with the environment and durability in mind. The efcient
internal power supply combined with fan-less design ensures extremely
low power consumption with excellent reliability and virtually silent
operation.

The Itona C24 incorporates an impressive three year warranty backed
by a worldwide support network and represents an unbeatable
combination of affordability, quality, performance and service.

Windows Embedded Standard 7 •

(WES7-E)

VIA C7 1GHz processor•

North Bridge : VIA CN896•

Highly reliable fanless design •

- very low power consumption

2GB RAM & 4GB Flash•

4 USB ports•

In-built 10/100/1000 •

Networking

32 Bit graphics supports •
1920 x 1200 wide screen
resolution

Fully featured

About VXL

VXL is one of the world’s largest
suppliers of thin clients. Established
in 1976, VXL has grown steadily
and now has over three hundred
people worldwide – with ofces in
Germany, France, India, the United
States and the United Kingdom.
The company’s headquarters are in

Bangalore, India.

Itona C24

Mid-Range Desktop Thin Client

Networking ideas thin solutions

The ideal desktop client

Seen and not heard – that’s Itona. That’s
because its fan-less design ensures
totally silent operation. And, of course,
it is pleasing and compact – freeing up
valuable desk space.

Green Credentials

With an average power consumption of
only 18.2 watts, the Itona is more than 4
times more efcient than a PC. It is also
substantially lower than almost all its
competitors.

Model

C24 Windows Embedded Standard 7

(WES7-E)

Standard Client Software

Citrix ICA, RDP, Microsoft Internet Explorer

8.0, Ericom terminal emulation, VMware
View Client, Media Player, Ericom Blaze
Client, Acrobat Reader Standard

Processor

VIA C7 1 GHz Processor (North Bridge: •
VIA CN896

System Memory

Ram: 2GB & Flash: 4GB•

Display Support

Display Data Control (DDC) for •
automatic setting of resolution and
refresh rate
Video RAM: 16/32/64/128/256 MB. •
Selectable from BIOS (default 32MB).
Display Res. 4:3 up to 1920x1440
32bit colour. Widescreen up to 1920 x
1200 32 bit colour.

Interfaces

2 x Serial Port•
1 x Parallel port•
4 x USB 2.0 •
2 x PS/2 port•
One VGA type video output•
1 x DVI-I Port•
Optional internal Wireless and/or •
Smartcard reader
Built-in Kensington Security Slot•

Networking

Autosensing, 10/100/1000 Ethernet, •
RJ-45
Wake On Lan•
PXE boot •

Audio

Line Out•
Mic •

Line In •

Environmental

Powered on: 0 to 40 ˚C •
Powered off: –20 to 60 ˚C•
Convectional cooling, fanless design•
Humidity : 20% to 80% maximum, •
non-condensing

Physical Characteristics

Worldwide auto-sensing •
100-240 VAC
50/60 Hz, less than 20W (max)•
Average power usage: 18.2 Watts(Only •
with KBD, Mouse and Monitor)
Height: 229 mm •
Depth: 226 mm •
Width: 50 mm•
Weight: Approx 2.5Kg •

Software

RDP Client 7.0•
Citrix ICA client 12.0•
Internet Explorer 8.0: HTML, MHTML, •
XML, Active X, Media Player 12.0,
Citrix web client
Ericom Powerterm terminal emulation •

9.2
Ericom Blaze Client 1.4.4.0•
VMware View Client 4.5•
VNC - Server/Viewer•
VPN Support•
MS Silverlight 4.0 •
.Net Framework 3.5•
Dialup Support•
Local Printing Support•
NW Printing Support•
Thinprint Support 7.0•
WMI Support•
Direct X 11.0•
Device Update Agent•
Bluetooth Support•
Plug-ins: Adobe Acrobat Reader, Adobe •
Flash 10.0, Shokewave

Server OS Compatibility/Support :

Microsoft Windows Terminal Server •
Edition,Windows server 2003/2008
Citrix XenApp / Citrix Presentation •
Server/ Citrix XenDesktop.
Protocol Support :TCP/IP, NTP, DHCP, •
FTP, HTTP

Setup and Conguration:

Boot from Local ash•
Windows XP user interface language : •
US English French, German, Spanish,
italian, Dutch, Turkish, Japanese
optional add-on’s,
Keyboard Language support: US English •
standard 36 other languages supported.
Scanners & Camera Support•
VPN•
Customizable Thin print•
Smartcard Support•
ELO Touch screen Support•
PPP/DIAL-UP-Networking•
USB Input Devices Support•
My ODBC Client Support•

Management:

Remote management, conguration, •
and upgrades through XLmanage client
management software version 1.29 or
later
Wake terminal remotely (Wake-on-LAN)•
Terminal conguration (IP information, •
name, etc.)
Remote Shadowing•
Reporting•

Regulatory Compliance

Ergonomics: German EKI-ITB 2000•
Safty: cTUVus, TUV-GS, VCCI•
RF Interference: FCC B, CE, C-Tick •
RoHS, WEEE.

Warranty

Three years limited warranty•

E & OE: Specications subject to change without notice. All trademarks are acknowledged and remain the property of their respective owners.

Itona C24

Networking ideas thin solutions

Part No

C24 - F8R7 4 GB Flash / 2GB RAM
