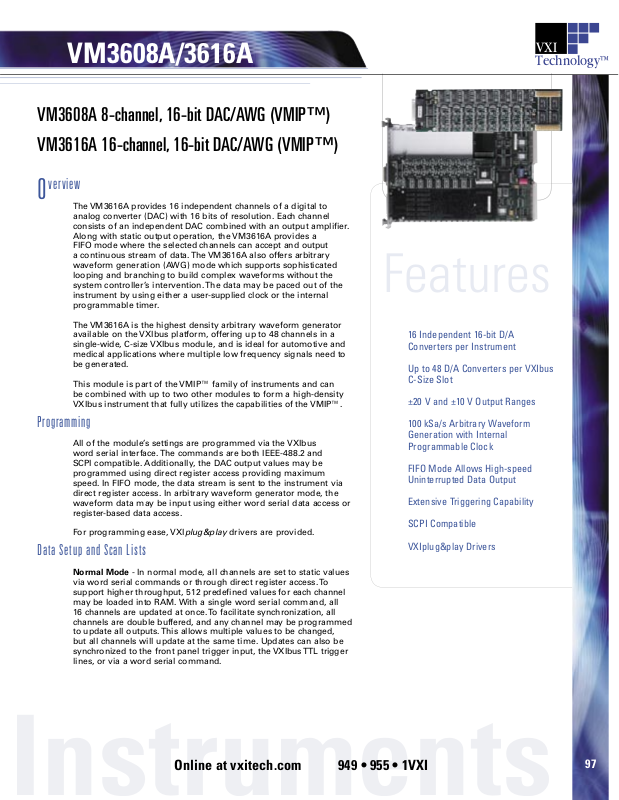

Technology
™
VXI
VM3608A/3616A
VM3608A 8-channel, 16-bit DAC/AWG (VMIP™)
VM3616A 16-channel, 16-bit DAC/AWG (VMIP™)
verview
O
The VM3616A provides 16 independent channels of a digital to
analog converter (DAC) with 16 bits of resolution. Each channel
consists of an independent DAC combined with an output amplifier.
Along with static output operation, the VM3616A provides a
FIFO mode where the selected channels can accept and output
a continuous stream of data. The VM3616A also offers arbitrary
waveform generation (AWG) mode which supports sophisticated
looping and branching to build complex waveforms without the
system controller’s intervention. The data may be paced out of the
instrument by using either a user-supplied clock or the internal
programmable timer.
The VM3616A is the highest density arbitrary waveform generator
available on the VXIbus platform, offering up to 48 channels in a
single-wide, C-size VXIbus module, and is ideal for automotive and
medical applications where multiple low frequency signals need to
be generated.
This module is part of the VMIP™ family of instruments and can
be combined with up to two other modules to form a high-density
VXIbus instrument that fully utilizes the capabilities of the VMIP™.
Features
16 Independent 16-bit D/A
Converters per Instrument
Up to 48 D/A Converters per VXIbus
C-Size Slot
±20 V and ±10 V Output Ranges
Programming
All of the module’s settings are programmed via the VXIbus
word serial interface. The commands are both IEEE-488.2 and
SCPI compatible. Additionally, the DAC output values may be
programmed using direct register access providing maximum
speed. In FIFO mode, the data stream is sent to the instrument via
direct register access. In arbitrary waveform generator mode, the
waveform data may be input using either word serial data access or
register-based data access.
For programming ease, VXIplug&play drivers are provided.
Data Setup and Scan Lists
Normal Mode - In normal mode, all channels are set to static values
via word serial commands or through direct register access. To
support higher throughput, 512 predefined values for each channel
may be loaded into RAM. With a single word serial command, all
16 channels are updated at once. To facilitate synchronization, all
channels are double buffered, and any channel may be programmed
to update all outputs. This allows multiple values to be changed,
but all channels will update at the same time. Updates can also be
synchronized to the front panel trigger input, the VXIbus TTL trigger
lines, or via a word serial command.
100 kSa/s Arbitrary Waveform
Generation with Internal
Programmable Clock
FIFO Mode Allows High-speed
Uninterrupted Data Output
Extensive Triggering Capability
SCPI Compatible
VXIplug&play Drivers
Online at vxitech.com 949 • 955 • 1VXI
97
VM3608A/3616A
Technology
™
VXI
VM3608A 8-channel, 16-bit DAC/AWG (VMIP™)
VM3616A 16-channel, 16-bit DAC/AWG (VMIP™
FIFO Mode - In FIFO mode, any or all channels may be set up
to output a continuous stream of data, while all other channels
remain at their previously programmed values. Data is fed into
the instrument using direct register access and data throughput
of up to 100 kSa/s. The output may be paced using an internal
timer with 100 nS resolution, the VXIbus TTL trigger lines or via
a front panel trigger input.
Arbitrary Waveform Generator Mode - In arbitrary waveform
generator mode, any or all channels may be set up to output
complex waveforms by loading one or more waveform
segments and linking them together. All other channels
remain at their previously programmed values. Up to 4096
waveform segments may be loaded into the instrument and
4096 segments may be linked together. Each segment may
be used once, looped up to a million plus times, or may loop
continuously until triggered to advance to the next segment.
Advancing from segment to segment can occur automatically,
or when a trigger event is received. In arbitrary waveform
generator mode, all enabled channels are synchronized with
each other, and all waveform segments for each channel are
the same length. All looping and branching instructions apply
for all enabled channels.
Scan Mode - In scan mode, any or all channels may be set up
to output data previously stored in RAM. Each channel may
have up to 512 data points, and each channel may have a
unique number of points. The data is advanced by a VXIbus TTL
trigger event or the front panel trigger input. Scan mode may
be set up to either stop at the end of the data set, or restart
from the beginning of the data set. In this mode, the output
levels of the channels that are not included in scan mode may
be altered while scan mode is running.
Calibration
The calibration constants are stored in non-volatile memory,
are determined when the instrument is calibrated, and can be
changed as necessary (such as during routine calibration cycles
or when the user selects a new gain setting and wishes to set
the gain accurately). These constants may also be queried at
any time and altered as necessary if the security code is known.
All calibration is done using calibration DACs to adjust the gain
and offset of each channel, eliminating the need to remove
the covers from the unit while calibrating. The accuracy of the
instrument is maintained when direct register access is used.
)
Specifications
Output Ranges: ±20 V, 610 µV step, or
±10 V, 305 µV step
Output Current: ±50 mA per channel (1 A
max. total for all channels per
C-size VXIbus card)
Resolution: 16 bits, 16 bits monotonic
Short Circuit: Continuous duration
Slew Rate: 6 V/µs (50 mA load)
Settling time: 10 µs to 0.1% of specified value
Gain Error: ±0.015% + 0.002%/ºC
Offset Error: ±2 LSB + 0.2 LSB/ºC
Conversion Rate: 100,000 voltage changes per
second, normal mode register
access, FIFO mode, and AWG
mode.
100 voltage changes per
second, normal mode word
serial access.
Static Mode VXIbus TTL trigger bus 0-7
Update Sources: Front panel input
Updating any selected channel
word serial command
Memory: 512 kwords, 1 Mword optional
FIFO Memory: 512 kwords divided by the
number of active channels
1 Mword optional
FIFO Clock Source: Any trigger source
AWG Memory: 484 kwords divided by the
number of active channels
996 kword optional
AWG Data Traces: 1 to 4096 unique patterns
98
Instruments
AWG Segments: 1 to 4096
AWG Loop Count: 1 to 1048575 or continuous
Online at vxitech.com 949 • 955 • 1VXI
Technology
™
VXI
VM3608A/3616A
VM3608A 8-channel, 16-bit DAC/AWG (VMIP™)
VM3616A 16-channel, 16-bit DAC/AWG (VMIP™
AWG Advance Synchronous: waits for the end of
Modes: the current pattern to advance to
the next.
Asynchronous: advances
immediately to the next pattern
upon being triggered.
AWG Advance Automatic or triggered
Conditions:
AWG Marker Marks the first data in a pattern
Function: when enabled. Polarity is software
programmable.
AWG Marker VXIbus TTL trigger bus 0-7
Output: Front panel TTL compatible output.
Trigger Source: VXIbus TTL trigger bus 0-7
Front panel input, TTL compatible
Internal timer.
Word serial command
Advance Clock VXIbus TTL trigger bus 0-7
Source: Front panel input, TTL compatible
Internal timer
General
Instrument The module is provided with
drivers: VXIplug&play drivers
User Connector: Standard 44-pin female high-
density D-Sub connector.
A mating male solder cup
connector is provided with
each unit
)
Word serial command
Ordering Information
VM3616A 16-channel 16-bit D/A
VM3608A 8-channel 16-bit D/A
(must be configured with a VM9000
host module)
Option 4: 1 Megaword Memory
VM3608A/3616A
Online at vxitech.com 949 • 955 • 1VXI
99
