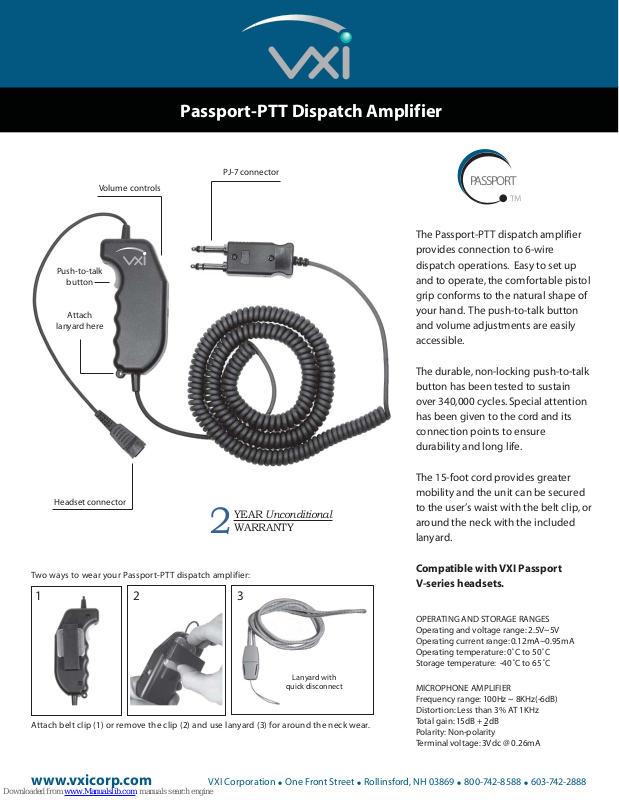

VXI Passport PTT Specifications

Push-to-talk

button

Attach

lanyard here

Volume controls

Passport-PTT Dispatch Amplifier

PJ-7 connector

PA S S P OR T

™

The Passport-PTT dispatch amplifier
provides connection to 6-wire
dispatch operations. Easy to set up
and to operate, the comfortable pistol
grip conforms to the natural shape of
your hand. The push-to-talk button
and volume adjustments are easily
accessible.

The durable, non-locking push-to-talk
button has been tested to sustain
over 340,000 cycles. Special attention
has been given to the cord and its
connection points to ensure
durability and long life.

Headset connector

YEAR Unconditional

warranty

WARRANTY

2

Two ways to wear your Passport-PTT dispatch amplifier:

12 3

Lanyard with

quick disconnect

Attach belt clip (1) or remove the clip (2) and use lanyard (3) for around the neck wear.

The 15-foot cord provides greater
mobility and the unit can be secured
to the user’s waist with the belt clip, or
around the neck with the included
lanyard.

Compatible with VXI Passport
V-series headsets.

OPERATING AND STORAGE RANGES
Operating and voltage range: 2.5V~5V
Operating current range: 0.12mA~0.95mA
Operating temperature: 0˚C to 50˚C
Storage temperature: -40˚C to 65˚C

MICROPHONE AMPLIFIER
Frequency range: 100Hz ~ 8KHz(-6dB)
Distortion: Less than 3% AT 1KHz
Total gain: 15dB + 2dB
Polarity: Non-polarity
Terminal voltage: 3Vdc @ 0.26mA
