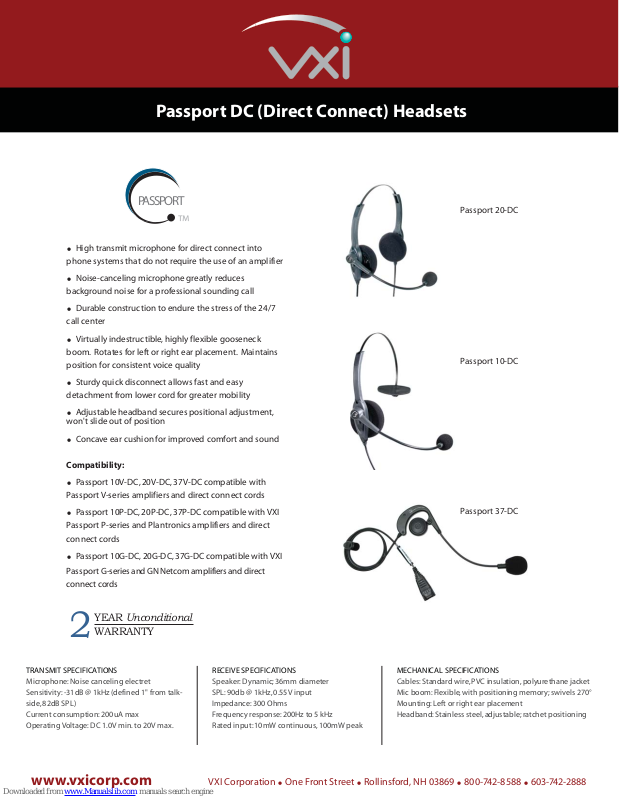

VXI Passport 10P-DC, Passport 20P-DC, Passport 37P-DC, Passport 20-DC, Passport 10-DC Specifications
...
Passport DC (Direct Connect) Headsets
PA S S P OR T
™
High transmit microphone for direct connect into
phone systems that do not require the use of an amplifier
Noise-canceling microphone greatly reduces
background noise for a professional sounding call
Durable construction to endure the stress of the 24/7
call center
Virtually indestructible, highly flexible gooseneck
boom. Rotates for left or right ear placement. Maintains
position for consistent voice quality
Sturdy quick disconnect allows fast and easy
detachment from lower cord for greater mobility
Adjustable headband secures positional adjustment,
won't slide out of position
Concave ear cushion for improved comfort and sound
Compatibility:
Passport 10V-DC, 20V-DC, 37V-DC compatible with
Passport V-series amplifiers and direct connect cords
Passport 10P-DC, 20P-DC, 37P-DC compatible with VXI
Passport P-series and Plantronics amplifiers and direct
connect cords
Passport 20-DC
Passport 10-DC
Passport 37-DC
Passport 10G-DC, 20G-DC, 37G-DC compatible with VXI
Passport G-series and GN Netcom amplifiers and direct
connect cords
YEAR Unconditional
warranty
WARRANTY
2
TRANSMIT SPECIFICATIONS
Microphone: Noise canceling electret
Sensitivity: -31dB @ 1kHz (defined 1" from talkside, 82dB SPL)
Current consumption: 200uA max
Operating Voltage: DC 1.0V min. to 20V max.
RECEIVE SPECIFICATIONS
Speaker: Dynamic; 36mm diameter
SPL: 90db @ 1kHz, 0.55V input
Impedance: 300 Ohms
Frequency response: 200Hz to 5 kHz
Rated input: 10mW continuous, 100mW peak
MECHANICAL SPECIFICATIONS
Cables: Standard wire, PVC insulation, polyurethane jacket
Mic boom: Flexible, with positioning memory; swivels 270°
Mounting: Left or right ear placement
Headband: Stainless steel, adjustable; ratchet positioning
www.vxicorp.com VXI Corporation One Front Street Rollinsford, NH 03869 800-742-8588 603-742-2888
