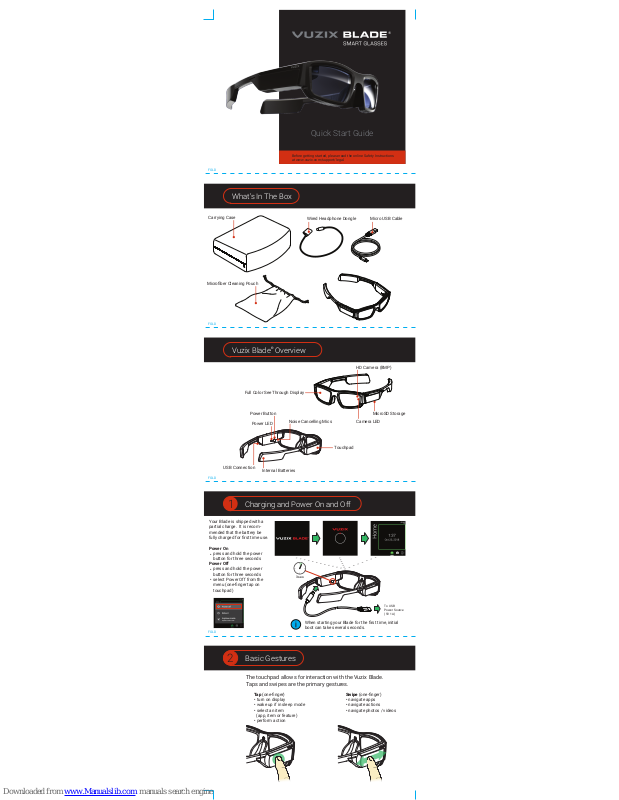

Vuzix Blade Quick Start Manual
®
Vuzix Blade Overview
What’s In The Box
Camera LED
HD Camera (8MP)
MicroSD Storage
Full Color See Through Display
Touchpad
Internal Batteries
Power LED
USB Connection
Power Button
Noise Cancelling Mics
Wired Headphone Dongle
Carrying Case
Microfiber Cleaning Pouch
Micro USB Cable
Quick Start Guide
Before getting started, please read the online Safety Instructions
at www.vuzix.com/support/legal.
Charging and Power On and Off
1
When starting your Blade for the first time, initial
boot can take several seconds.
To USB
Power Source
(5V 1A)
Your Blade is shipped with a
partial charge. It is recom-
mended that the battery be
fully charged for first time use.
Power On
Power Off
press and hold the power
button for three seconds
press and hold the power
button for three seconds
select Power Off from the
menu (one-finger tap on
touchpad)
•
•
•
Tap (one-finger)
• turn on display
• wake up if in sleep mode
• select an item
(app, item or feature)
• perform action
Swipe (one-finger)
• navigate apps
• navigate actions
• navigate photos / videos
The touchpad allows for interaction with the Vuzix Blade.
Taps and swipes are the primary gestures.
Basic Gestures
2
3 sec.
FOLD
FOLD
FOLD
FOLD
A list of apps is displayed horizontally allowing users to view
different product features. One app is displayed at a time.
Swipe the touchpad forward or backward to navigate through the
app list.
447PB0002 (0003)-QUICK START GUIDE, BLADE, US
4
BladeOS
Keeping Vuzix Blade Clean and Safe
Learning More
6
Companion App
5
7
Treat your Blade as you would any quality eyewear. It is mostly
maintenance free and requires only to be wiped down periodically.
Use only the included microfiber pouch or equivalent microfiber
cloth.
CAUTION: Do not spray with cleaners. If required, use a
microfiber cloth moistened with standard eyeglass cleaner. Avoid
drips or spills. Solvents, cleaners and paper towels should never
be used on your Blade.
CAUTION: Do not pack loose objects in the zipper case with the
Blade. Loose objects may rattle and cause damage.
CAUTION: Vuzix Blade is not water resistant. Avoid submerging
and exposure to moisture. Excessive moisture will damage the
Blade.
BladeOS has a built-in keyboard for character entry when needed. For
in-depth information on this and other BladeOS features, refer to the online
User’s Manual at www.vuzix.com/support/blade-smart-glasses
Visit www.vuzix.com/support/blade-smart-glasses to reference the
comprehensive online User’s Manual.
Please register your Vuzix Blade AR Smart Glasses in the Developer Center at
www.vuzix.com/developers. As a developer, registration gives you access to
Vuzix’s suite of developer tools including: product documentation, sample code,
and more.
For safety, warranty and regulatory information, go to the Vuzix legal page at
www.vuzix.com/support/legal
Additional information on the Vuzix Blade AR Smart Glasses is available at
vuzix.com ׀ vuzix.eu ׀ vuzix.jp
Visit www.vuzix.com/contact for technical support and other Vuzix contacts.
Advanced Gestures
3
Two-Finger Swipe Forward
• delete action
• clear current notification
• delete photo or video
• add space (keyboard)
Two-Finger Swipe
Backward
• backspace (keyboard)
• available gesture
definable within app
Two-Finger Hold
One Second
• return to home
Two-Finger Tap
• move backward
• close action bar
• close apps
Two-Finger Swipe
Up / Down
• increase or
decrease volume
One-Finger Hold
One Second
• open menu
One-Finger Swipe
Up / Down
• navigate vertical lists
App Name
Status BarWarning Bar
Widget
App List
Download and install the
Vuzix Blade Companion
App from the App Store
or Google Play.
Once installed, tap Start
Setup and follow the
instructions on the
screen to connect your
iOS or Android smart
phone with your Blade.
© Vuzix 2018. This quick start guide is subject to change.
Before using this product please read the online safety instructions at
www.vuzix.com/support/safety-warranty-blade
All trademarks belong to the respective owners.
