Vuly Ring Swing User Manual

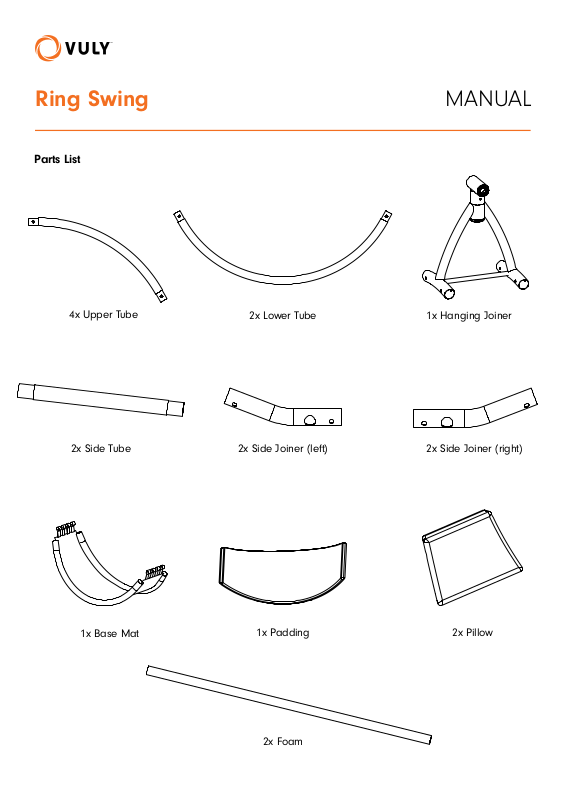

Parts List

MANUALRing Swing

4x Upper Tube

2x Lower Tube

2x Side Joiner (left)2x Side Tube

1x Hanging Joiner

2x Side Joiner (right)

1x Base Mat

1x Padding

2x Foam

2x Pillow

MANUALRing Swing

STEP

Replace a Swing Rail on your swing set with the included
Ring Rail.

Ensure that the prongs are closer to the centre than the end
of the swing set.

STEP

A. Insert Side Joiners (both left and right) into the corresponding

Ensure that the large hole on the Side Joiners is at the top.

B. Repeat for the other Lower Tube.

1

2

ends of a Lower Tube.

STEP

Slide Foams over both Lower Tubes.

3

I

1 : 5

MANUALRing Swing

STEP

Insert a completed Lower Tube into the
sleeves on both sides of the Base Mat.

STEP

Insert Side Tubes through the loops between the Left and
Right Side Joiners on both sides.

4

5

STEP

Attach the Hanging Joiner to the Ring Rail
on your swing set, and secure with the
large nut and bolt.

STEP

Insert the Upper Tubes into all four ends of the
Hanging Joiner.

6

7

MANUALRing Swing

STEP

Insert the Side Joiners on the completed lower half
of the Ring Swing into the Upper Tubes.

8

STEP

Place the Padding in the centre of the Base Mat
and the Pillows at the ends. Secure with Velcro.

9

CONGRATULATIONS!

You have attached the Ring Swing to your Vuly swing set.
